Understanding How Inverter Microwaves Actually Work
Most people assume an inverter microwave just lowers the power setting by running the magnetron at a reduced output, like a dimmer switch. That is not what happens. An inverter microwave uses PWM, or pulse width modulation, to cycle the magnetron on and off very rapidly while maintaining a constant output during each pulse. A 50 percent power setting means the magnetron runs at full output for half the time and then cuts off for the other half. The frequency of that cycling typically sits between 60 and 200 Hz depending on the design. The advantage is supposed to be more even cooking since food is never exposed to full bursts of power followed by long cooling periods. The reality is messier. The inverter board has to manage several things simultaneously: rectifying incoming AC, filtering it through a large electrolytic capacitor, driving the IGBT switch, and coordinating with the control board through a pulse signal. Any weak point in that chain becomes a failure mode.
Common Microwave Inverter Technology Problems
I have repaired probably thirty of these units over the years. The most frequent issue is a blown IGBT, which is the insulated gate bipolar transistor that acts as the main switching element. You will usually see a characteristic smell first. Then the microwave either will not start at all or will only work on certain power levels. A multimeter in diode mode will tell you pretty quickly if the IGBT is dead. The tricky part is that the IGBT rarely fails on its own. Something upstream or downstream caused it to blow, and if you just replace the IGBT without checking the rest of the circuit, it will blow again within hours or days. Another very common failure point is the high voltage capacitor inside the inverter assembly. These capacitors degrade over time, especially in humid environments. When they weaken, you get arcing inside the cavity, error codes on the display, or the microwave shutting down mid-cycle. I recently worked on a Sharp model where the inverter kept throwing an E2 fault code. The unit would run for about thirty seconds and then cut out. The issue traced back to a cracked trace on the inverter PCB near the flyback transformer connection. Very fine crack, barely visible without a magnifying glass. I reinforced it with a thin wire solder bridge and the unit has been running fine for six months since. That is the kind of thing that makes these repairs frustrating but sometimes satisfying when you nail it. The control board communication fault is another classic problem. The inverter sends feedback pulses to the main control board to report its status. If those pulses get interrupted by noise, a bad solder joint, or a failing optocoupler, the control board throws an error and locks out the microwave. Common culprits include cracked solder joints around the optocoupler pins and dried-out electrolytic capacitors on the inverter board itself. I typically resolder the optocoupler pins and replace any capacitors that show signs of bulging or leakage before doing anything else.
Power supply issues on the low voltage side are worth mentioning separately. The inverter needs a stable DC supply, usually around fifteen volts, to drive the IGBT gate. If that supply sags or has ripple, the IGBT will not switch properly and can overheat or fail intermittently. I have seen situations where the problem was not the inverter board at all but a failing bridge rectifier feeding it. The rectifier would work under normal load but collapse when the inverter started demanding current during a cooking cycle. Swapping the rectifier solved the issue completely.
Get the Full Details
Practical Troubleshooting Steps

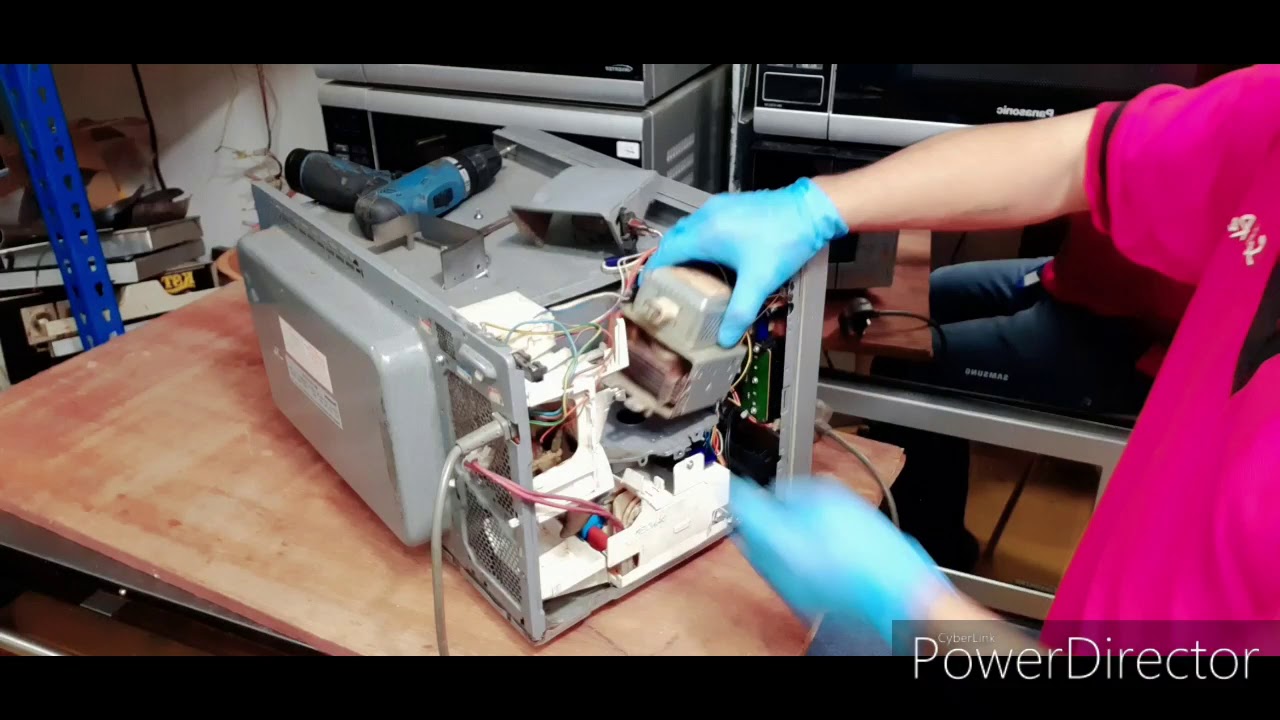

Start with the basics. Check your mains voltage at the outlet with a multimeter. If you are getting below 100 volts on a 120 volt system or below 220 volts on a 230 volt system, the inverter may not be able to function correctly. I had a case where a microwave kept throwing inverter errors and every diagnostic pointed at the board. Turns out the house wiring in that corner of the kitchen had a loose neutral connection, causing voltage fluctuation whenever other appliances kicked on. Once the electrician fixed the neutral, the microwave worked perfectly. When you do open the unit, discharge the high voltage capacitor before touching anything. These things can hold a lethal charge even when unplugged. I use a properly rated discharge tool, not a screwdriver with an insulated handle like some people still do. The capacitor should read near zero volts before you proceed. Inspect the inverter board visually first. Look for burnt components, cracked solder joints, discolored PCB traces, and any capacitors that look swollen or leaky. Then move to electrical testing. Check the IGBT with a diode mode multimeter reading across collector-emitter, gate-emitter, and collector-gate. A good IGBT should show a diode drop in one direction and open circuit in the other for each pair. If you get a reading in both directions on any pair, the device is likely shorted.
The flyback transformer on the inverter board is another component to check. Measure resistance across the primary and secondary windings. Typical primary resistance runs between 0.5 and 2 ohms depending on the model. Secondary resistance will be much higher, often in the hundreds of ohms range. Open windings or a short between layers will show up as unexpected readings. I have replaced flyback transformers where the primary looked fine but the secondary had an interturn short that only manifested under load.
Counter-Intuitive Things to Know
One thing most people do not realize is that running an inverter microwave at lower power settings does not always mean gentler cooking. Because the magnetron is cycling on and off at full output, the peak power during each pulse is the same regardless of the setting. This can actually cause more uneven cooking in some foods because you get rapid heating pulses followed by cooling periods. A traditional transformer-based microwave at 50 percent power actually reduces the magnetron output voltage, giving a lower but more continuous energy delivery. For delicate tasks like defrosting or melting chocolate, the traditional design can sometimes produce better results despite being an older technology. Another overlooked point is that inverter microwaves are more sensitive to the type of cookware you use. Metal trim on dishes, aluminum foil, and even some ceramic glazes with metallic content can interact badly with the faster switching pulses. I have seen cases where a perfectly fine inverter board developed intermittent faults simply because the owner regularly used dishes with a metallic rim pattern. The reflections from the rapid pulsing created voltage spikes that stressed the inverter components over time. Switching to plain ceramic or glass cookware resolved the issue entirely. The thermal management on these boards is also different from traditional designs. The IGBT and flyback transformer generate significant heat, and many manufacturers rely on passive cooling through the chassis rather than active fans. In units installed in enclosed cabinetry or tight spaces, this can lead to premature component degradation. I measured case temperatures on one unit that exceeded 85 degrees Celsius on the inverter board during a typical defrost cycle. That is well within operating specs for most semiconductors but accelerates capacitor aging noticeably over a few years.
When to Replace vs Repair
If the IGBT and flyback transformer are the only failures, the repair is usually straightforward and costs maybe twenty to forty dollars in parts depending on the model. IGBTs for common microwave inverter boards run between five and fifteen dollars. Flyback transformers are pricier, often thirty to sixty dollars. A new inverter board replacement unit from the manufacturer will typically cost between one hundred and two hundred fifty dollars, sometimes more for less common models. However, if the damage has propagated to the main control board through a power surge or the chassis itself is corroded, it may not be worth repairing. I tend to recommend replacement of the entire microwave when the unit is more than seven years old and the inverter board has suffered multiple component failures. At that point, you are likely to encounter another issue within a year anyway. For newer units under warranty, obviously go with the manufacturer replacement. For units out of warranty but still relatively new, a board-level repair is almost always more economical than buying a replacement microwave. Just make sure whoever is doing the repair actually understands inverter circuitry and is not just swapping out the IGBT without checking the surrounding components. That is the fastest way to end up back where you started.
Replacement inverter boards for specific models can be found through appliance parts distributors. Search by your microwave model number at retailers like Repair Clinic, Appliance Parts Pros, or the manufacturer's own parts portal. Generic third-party boards exist but their quality is inconsistent. I have seen some where the PCB substrate is thinner than the original and the solder masks are poorly applied. Stick to OEM or well-reviewed brand names when possible. Component level repair requires basic soldering skill and a decent multimeter. If you are not comfortable working with live high voltage circuits or soldering surface mount components on a multi-layer PCB, you should probably have a professional handle it. The risks are real, not just from the high voltage capacitor but also from the inverter board operating at elevated voltages during testing. I always run test cycles with the casing partially open and keep a fire extinguisher rated for electrical fires nearby, just in case something goes wrong during diagnostic testing.
Long-Term Reliability Considerations
Inverter microwaves are generally more energy efficient than traditional transformer-based models, using roughly ten to fifteen percent less electricity during normal operation. The efficiency gain comes from the inverter providing only the power needed rather than wasting excess as heat through a bulky transformer. But that efficiency advantage shrinks if the inverter board starts failing periodically and requiring repairs. A microwave that needs an inverter board replacement every three to four years is not saving you much on your electricity bill compared to a cheap transformer-based model that runs forever. The main reliability concern with inverter microwaves is the complexity. More components in the power path means more potential failure points. The traditional microwave has a transformer, a capacitor, a diode, and a magnetron. The inverter microwave has all of those plus an IGBT, a flyback transformer, filtering capacitors, and more sophisticated control circuitry. Statistically, each additional component increases the chance of failure over time. That does not mean inverter microwaves are unreliable, but it does mean you should expect a different failure profile than with older designs. If you are buying a new microwave and trying to decide between inverter and traditional technology, the inverter version is worth the extra cost if you cook with it frequently and care about even cooking results. If you mostly reheat leftovers and defrost frozen items, a traditional model will likely serve you just as well for less money and with fewer things that can break. Both types have their place, and neither is universally superior.
