Working with Microwave Repair Manuals
Most people don't think about microwave repair until the thing stops working. You open the door, press start, and hear nothing. The display is dark. Or worse, it runs but doesn't heat, which is the kind of failure that makes you question whether you're dealing with a simple fuse or something more expensive to fix. I've pulled apart more microwaves than I care to count over the years, mostly because people don't want to spend $400 on a replacement when the fix is often a $15 part. The problem is that every manufacturer does their own thing, and the service information isn't always easy to find. That's where a proper Microwave Repair Manual becomes useful instead of having to reverse-engineer the circuit board by trial and error.
What You're Actually Looking For

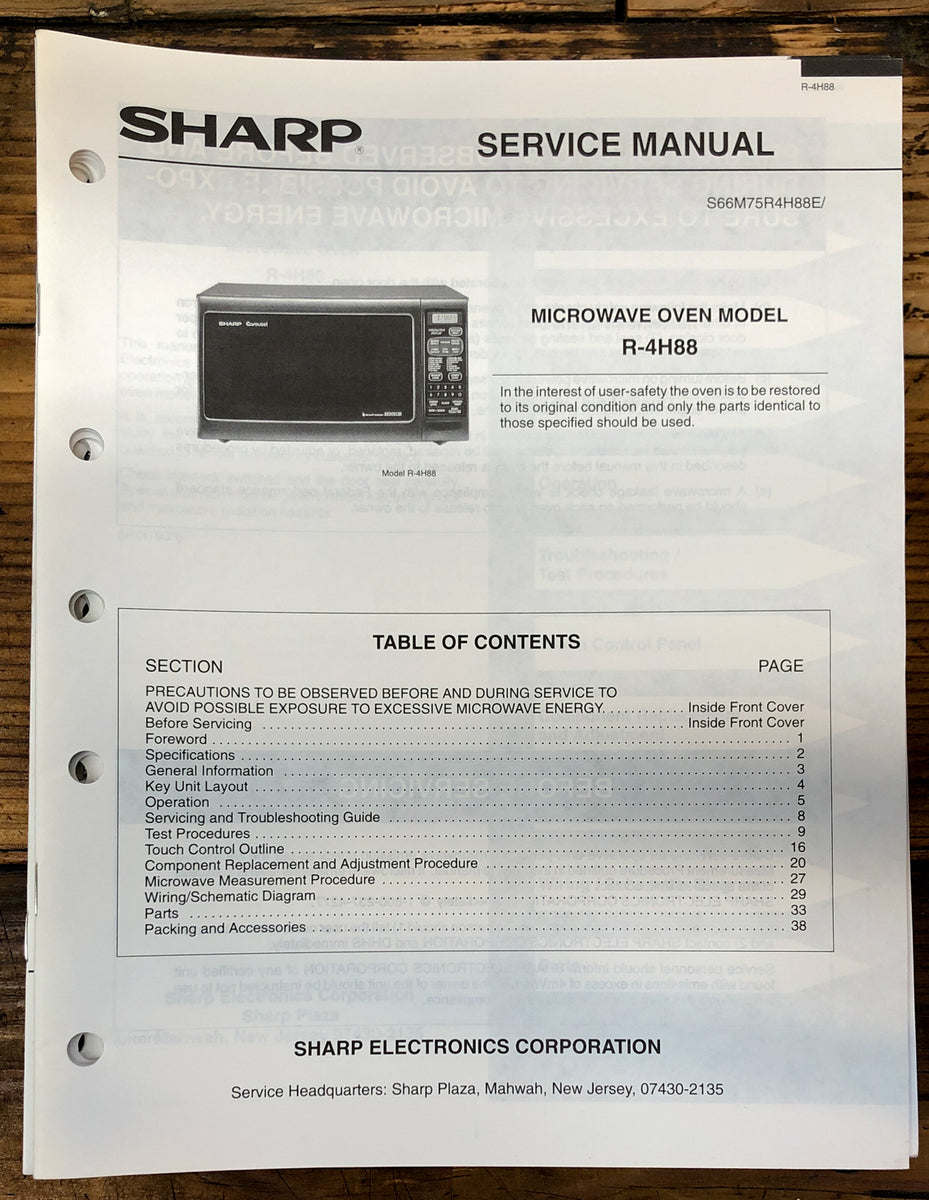

A service manual for a microwave isn't like a user manual. It contains wiring diagrams, component values, test points, and sometimes even firmware updates. The high-voltage section is where things get interesting, and also where people get hurt if they don't know what they're doing. The capacitor can hold a lethal charge even after the unit is unplugged, so proper discharge procedures are non-negotiable before you touch anything inside. The typical manual will give you a schematic, a parts list with the manufacturer's internal numbering system, and troubleshooting flowcharts that walk you through diagnosing common failures. Some manufacturers like Samsung and LG make these available on their support sites if you know where to look. Others don't publish them at all, which is why third-party repair databases exist.
Finding the Right Manual
Start with the model number. It's usually on a sticker inside the door frame or on the back of the unit. Don't guess at it. Enter it into the manufacturer's support site first, then search for "service manual" or "technical documentation." If they don't host it directly, look for repair forums where people share what they've found. Sites like ServiceManuals.net and SchematicsLibrary have decent collections, though the quality varies. Here's something most guides don't mention: the part numbers in the manual might not match what's on the actual board. Manufacturers sometimes update components mid-production without changing the model number. I ran into this with a Whirlpool WMC300053 where the replacement magnetron didn't fit because the bracket had been redesigned in a later batch. The manual showed the old version, and I had to measure everything twice before ordering. Keep a backup of the original part just in case.
Get the Full Details
What the Manual Won't Tell You
Service information covers the electrical side well enough, but mechanical failures are harder to diagnose from paper. The turntable motor on my LG LMV2032ST failed after three years, and the manual listed the part number but not the torque spec for the gear assembly. I learned the hard way that forcing the coupling can strip the plastic gears, which are cheap to replace but annoying to order if you don't have the right part on hand. Another gap is firmware. Some newer microwaves with touchpad controls require a specific reset procedure that isn't documented in the hardware manual. Samsung units in particular have had issues where the control board locks up and needs a hard reset through a service menu. Without knowing the button sequence, you might replace perfectly good components before figuring out the real problem.
When to Walk Away
Not every repair is worth doing. If the PCB itself is damaged, especially in the high-voltage section, the cost of sourcing a replacement board often exceeds the value of the microwave. I've seen people spend more on a new control board for a ten-year-old unit than they would have spent on a new microwave outright. There's no shame in that calculation. The same goes for sealed systems. Some modern microwaves have the magnetron and high-voltage transformer integrated into a single module that isn't serviceable. If that fails, your options are replace the whole assembly or replace the microwave. A proper Microwave Repair Manual would show you the diagram, but it might also show you that the part only comes as an assembly, which changes the math pretty quickly. If you're working on something older than 2010, chances are the information is available and the repair is straightforward. If it's a smart microwave with WiFi and a touchscreen, you're probably better off calling a professional or replacing the unit unless you enjoy troubleshooting software issues that may not have any public documentation at all.
