The thing nobody tells you about adjusting these louvers
The manual for the Mirador Adjustable Louvered Aluminum Pergola is about eighty pages of mostly nice photography and the same warning printed four different ways about not standing on the beams. You'll want to skim it, but honestly the real information is in the hardware bag and in what happens when you actually try to tilt the blades at 10 PM in a rain shower because your neighbor's kids are finally asleep and you need the patio dry. I spent three years installing these across the Southeast. The Mirador shows up on a flatbed with six boxes, a hardware sack that looks heavier than it should, and a manual that assumes you've done this before. You probably haven't. Here's what actually matters.
Downloading the Mirador Adjustable Louvered Aluminum Pergola Manual
It's typically hosted on the manufacturer's support page under product documentation. If you bought it through a dealer, they should forward it directly. The PDF runs around 75 megabytes and includes exploded diagrams, torque specs, and the wiring schematic for the optional motor kit. The paper insert that ships in the box is a condensed version missing the torque specifications and the drainage detail on the gutter integration. That's why the full PDF matters. If the link on the site is broken, which happens more often than it should with these pergolas, search for the model number on your beam end cap. It's usually a stamp like MDR-AL-2460 or similar. Run that through a search engine with the word manual appended. You'll usually find it on a distributor mirror page within a day.
What the manual actually covers and where it falls short
The manual walks you through unboxing, base plate layout, post assembly, beam installation, and louver mechanism setup. It also includes a section on the worm drive or chain drive depending on your configuration, and if you ordered the motorized version there's a separate wiring appendix. What it doesn't cover with any real clarity is how the louver seals interact with wind load, what happens when debris gets trapped in the blade gaskets, and the adjustment procedure for inter-blade gap tolerances once the unit has settled into its mounting surface. Here's the gap I keep hitting. The manual states that after the first seasonal temperature swing, you should check and retorque the louver pivot pins. It says this in a single sentence on page 62 in small type. In practice, aluminum expands and contracts enough that those pins can back off by a fraction over three months, and when they do, the blades start binding on the closed side. You'll notice it as a resistance change when you're rotating them from fully open to fully closed. The workaround is straightforward: loosening the retaining bolt on the pivot housing just enough to reseat the pin, then torquing back to spec. The spec is usually 18 to 22 foot-pounds depending on the exact model year. Check your manual's torque table for the specific variant.
Get the Full Details
Hardware you need before you open the boxes
The manual lists the tools, but it doesn't emphasize how much floor space you actually need. These pergolas come in standard sizes like 10 by 10, 12 by 10, and 12 by 12 feet. The longest beam in a 12-foot model is exactly 12 feet and the packaging doesn't shrink-wrap everything tight. You'll want a flat area at least 15 feet long and 8 feet wide to lay everything out and identify components before assembly starts. If you skip this step you'll end up fighting a 12-foot extrusion in a cramped garage while trying to read the manual on your phone held in your teeth. Basic tool list from the manual with additions I'd make based on actual install experience: Socket set with both metric and SAE. The hardware mix varies by production batch. A few units I pulled had a mix of 8-millimeter and 5/16-inch bolts in the same subassembly. Don't assume uniformity.
Torque wrench. The manual specifies torque values for the main structural connections. If you don't have one, go borrow one or buy a cheap adjustable one from a hardware store. The difference between under-torqued and properly torqued on these aluminum connections is whether your pergola sounds like a wind chime every time a car drives by on a nearby street. Level. Not the toy ones. A real 2-foot or 4-foot bubble level. The posts need to be plumb in both directions before you commit the beam connections. Once the frame is squared and connected, correcting a plumb error means loosening multiple structural fasteners and starting over. Helper. At minimum one other person. The beams and ridge sections are light but unwieldy. Two people cut the assembly time roughly in half and reduce the chance of bending a louver blade during installation.
The sequence that matters

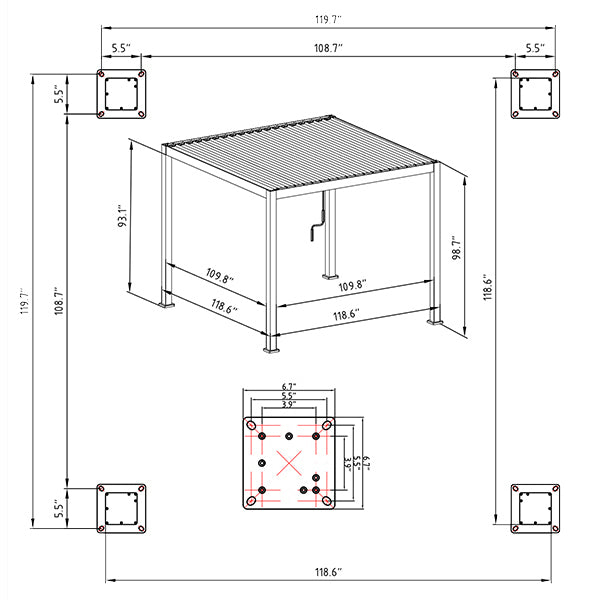

The manual presents a linear assembly path, and generally you should follow it. But here's the part that trips people up: the base plates need to be set and leveled before you open the main frame boxes. If you're bolting into concrete, the anchor placement has to be accurate because you can't move them once the plate sits. Layout the pattern from the manual's base plate diagram onto your surface first. Double check the diagonal measurements. If the diagonals aren't equal, your rectangle is a parallelogram and the pergola will sit crooked even if every post is perfectly plumb. Once the bases are set, assemble the posts into the side frames on the ground before raising them. The manual shows this step, but it's easy to rush past it. Getting the post-to-beam connections finger-tight first, checking square, then torquing everything down after the frame is upright makes the whole process significantly easier than trying to align everything while holding a post steady with your knee.
The louver mechanism
This is the part the manual explains reasonably well but doesn't warn you about regarding long-term maintenance. The Mirador uses a gear-driven louver system. Turning the handle or activating the motor rotates the worms that engage the gear tracks inside each beam. The blades pivot on sealed bearings at each end. The manual shows a diagram of how the linkage transfers motion from one side of the beam to the other, but it omits what happens when sand or construction debris gets into those gear tracks. I had a unit in Gulf Shores where the louver handle started binding after about eight months. The manual suggested checking for obstructions and lubricating the gears. The troubleshooting section mentions white lithium grease as acceptable. What it didn't mention is that standard workshop grease attracts sand in coastal environments and turns into an abrasive paste. I switched to a dry PTFE lubricant and the problem went away completely. The manual should probably say this, but manufacturers tend to test in controlled environments. For the manual crank version, the handle inserts into a square drive on the end of the beam. There's a detent mechanism that holds the position at common angles. It's not precision engineering and it will slip slightly over time. If you find your louvers drifting from the set position, there's an adjustment screw on the detent assembly inside the drive housing. You'll need a small hex key for it. Loosen the lock nut, turn the adjustment screw a quarter turn, retighten, and test. That's not in the manual. It's in the service bulletin that the dealer should have provided if you asked.
The motor kit variant
If you have the powered version, the manual includes a wiring diagram that assumes you're comfortable working with low-voltage connections. The transformer plugs into a standard 120-volt outlet and outputs 24 volts to the motor. The manual recommends using outdoor-rated junction boxes and GFCI protection. This isn't optional. Even though the motor operates at 24 volts, the control wiring runs back to a power source that isn't. The manual gives wire length recommendations but doesn't specify what happens if you run the cable 80 feet instead of the recommended 50. Voltage drop becomes noticeable and the motor will struggle at the extremes of the louver range. If your application requires a long run, upsizing the wire gauge or positioning the transformer closer to the pergola solves this. The manual doesn't cover this edge case because most installs are within residential distances.
Gutter and drainage
The Mirador includes integrated gutters on the front and back beams if you ordered that configuration. The manual shows the downspout connection details but the installation order here is backwards in most manuals I've seen. Install the downspouts before you mount the pergola if you can. Trying to connect a downspout to a beam that's already bolted to four posts and squared into place is awkward. The manual treats this as a minor note but it's one of those things that adds thirty minutes of frustration if you catch it too late. Bleeding noise when rotating the louvers. Usually means a pivot pin is slightly misaligned or a blade is contacting an adjacent blade. The manual mentions checking blade clearance but the tolerance it gives is generous. In practice, if two blades are touching at the closed position, you'll hear it. Loosen the pivot pin on the affected blade, reseat it so the blade sits flush against its neighbor with a business card's worth of gap, and retighten. Handle or motor feels increasingly resistant over time. This is almost always a debris issue in the gear track, not a mechanical failure. Remove the cover on the louver drive end and clean the gear track with a brush and compressed air. The manual shows the cover removal steps. Follow them. The covers come off with a few Allen screws and the internal gears are accessible.
Louvers won't hold position at an intermediate angle. The detent is worn or adjusted incorrectly. See the adjustment procedure mentioned earlier. If the detent mechanism is physically worn, replacement parts are available through the manufacturer but the manual doesn't include a parts list with ordering numbers. You'll need to contact the dealer or manufacturer's support line with your model and serial numbers.
What to do when the manual doesn't help
The Mirador is a solid product but like anything mass-produced, there are edge cases the documentation doesn't anticipate. Your best resource after the manual is the manufacturer's technical support line. Have your model number, serial number, and a photo of the specific component you're working on ready before you call. They respond faster when you've already done the basic troubleshooting the manual outlines. Second resource is the dealer who sold it. They've installed enough of these to know the quirks. The manual is written for the average case. Dealers deal with the exceptions. If you're stuck on a structural question like whether a particular mounting surface is adequate, don't guess. The manual provides minimum substrate requirements but real-world conditions like existing concrete degradation or wood rot under deck boards aren't visible until you drill the anchor holes. Take photos of the substrate before you begin and share them with the dealer or manufacturer if anything looks questionable.
The Mirador Adjustable Louvered Aluminum Pergola Manual is a reasonable document for a product of this complexity. It covers the basics adequately and the diagrams are generally clear. Just know that the real installation knowledge comes from the gaps between what's written and what actually happens when you're putting it together on a Tuesday afternoon with a level that might or might not be accurate and a helper who also doesn't have any formal experience with aluminum pergolas. That's normal. Work through it slowly, follow the sequence, and don't force anything that doesn't want to go together. The hardware is decent quality and everything should align if you take the time to check square and plumb at each stage rather than rushing to the next step.
