Finding the Right Mitsubishi Mighty Max Wiring Diagram
The Mitsubishi Mighty Max is a compact pickup that ran from 1989 to 2005, and like a lot of mid-nineties Japanese truck wiring, it's not documented anywhere in a way that's easy to actually use. I've seen people buy reproduction manuals that are just grainy scans of faded pages, and I've seen forum posts where someone posts a blurry photo of a diagram that's missing half the connector pins. It's a genuine pain point. The factory service manual for the Mighty Max includes wiring diagrams, but they're organized by system—engine control, ignition, chassis electrical—and not always cross-referenced cleanly. The color codes use Mitsubishi's internal system, which maps to standard wire colors but doesn't always say so explicitly on the diagram itself. You need a reference chart to translate those codes, and most of the free ones floating around the internet are wrong on at least a few entries.
Mitsubishi Mighty Max Wiring Manual

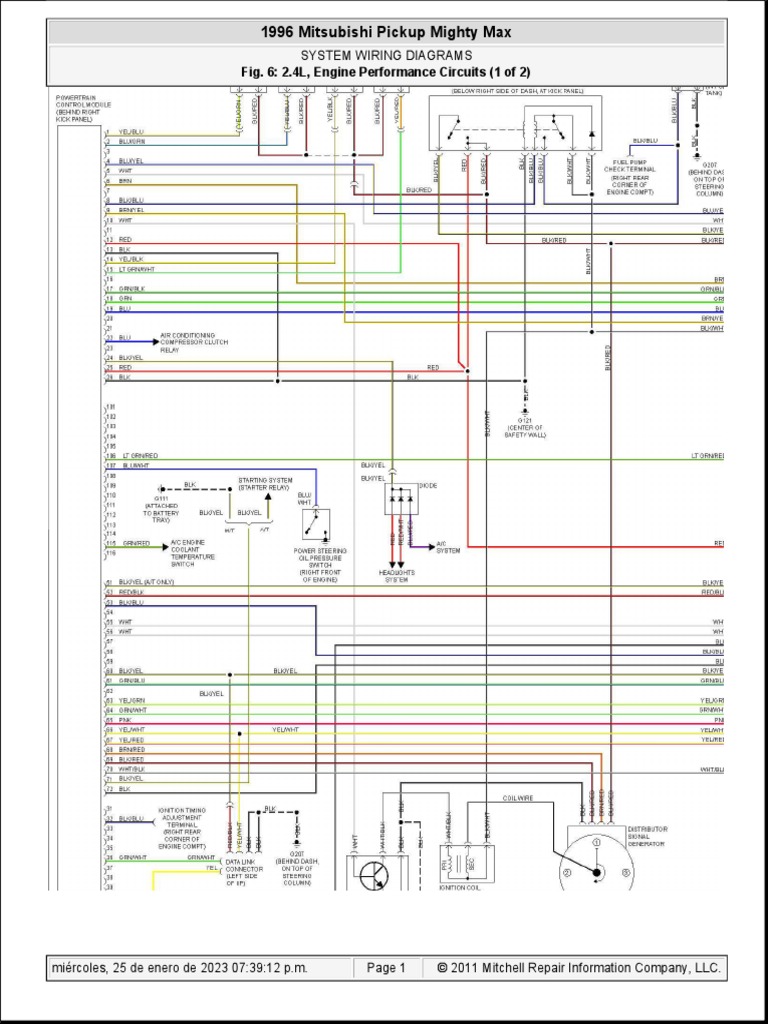

The most complete version I've worked with comes from the factory service manual that covers the D155, 4G16, and 4G63 engine variants. Those diagrams show everything from the ECU ground points to the tail light circuit, and they use standardized symbols for connectors, splices, and grounds. The file I usually pull from runs about forty megabytes because it's essentially a scanned book with good resolution. You want that resolution. Thin wires on a low-res scan look like noise and you'll misidentify the gauge or the color. I found that the brown ground circuits are the most frequently misread. On the Mighty Max, most chassis grounds route through a single main ground strap near the transmission bellhousing, and then branch off as individual brown wires. The diagram shows them clearly, but when you're tracing a fault in the dark under a truck, brown looks like black and black looks like brown. I marked every ground connection with a piece of blue electrical tape during my last harness diagnostic, which slowed me down initially but cut my troubleshooting time in half compared to the last job where I didn't do that.
How to Actually Use the Diagrams
Start with the system you're working on and trace from power source to load to ground. Don't skip the ground side. A lot of people diagnose a non-functioning accessory by checking for voltage at the component and finding nothing, then declaring the fuse blown or the relay bad. Half the time on these trucks it's a corroded ground point, usually the main chassis strap or one of the engine-to-body grounds. The wiring diagram will show you exactly where that brown wire terminates. Connector pin-outs are where the diagrams get tricky. Mitsubishi used a mix of sealed and unsealed connectors across the production run, and they changed part numbers without updating the wiring manual between 1993 and 1996. If you're working on a 1994 model and the diagram doesn't match your connector, check whether the truck has the updated harness. Look for a label on the main loom near the firewall. Updated harnesses have a part number sticker that ends in a later suffix than the original. The difference is usually a revised pin assignment on the ECU connector or the alternator plug. One thing the manual doesn't make obvious is that the tachometer signal on the 4G63 engine comes from the ignition coil secondary, not the ECU. On the 4G16 it's ECU-driven. If you're installing an aftermarket gauge and it's reading erratically, check which engine your truck has before you start modifying the signal wire. I spent an afternoon chasing a phantom interference problem on a '95 Double Cab with the 4G63 before I realized the new gauge was picking up coil noise because someone had tapped into the wrong circuit.
Get the Full Details
Where to Get the Diagrams
Factory service manuals are available through Mitsubishi dealer parts departments if you have a VIN. They'll print the wiring section for you, usually for a fee that's less than what people charge online for a PDF. The standalone PDF versions circulating on enthusiast forums are often from third-party publishers like Clymer or Haynes, and those are adequate for basic reference but they omit a lot of the detail—the connector views, the wire gauge callouts, the splice locations. If you're doing anything beyond replacing a bulb or a fuse, you need the factory diagrams. There's also the Mitsubishi EPC system, the electronic parts catalog, which has wiring diagrams tied to specific model years and engine codes. It requires a subscription and a bit of navigation to find the right section, but it's accurate and it shows you which harness part number applies to your exact truck. That's useful when you're looking for a replacement harness section rather than just troubleshooting.
Limits of What You'll Find
No single public source has everything. The factory manual doesn't cover aftermarket installations or the wiring changes that came with the 1998 facelift, which added some new sensor circuits and revised the charging system. There's no authoritative compiled document for the post-1997 changes. People who need that information usually have to piece it together from parts catalogs, owner discussions, and physical inspection of the vehicle's harness. The diagrams also don't include wire gauge in most places. You'll see color and sometimes a circuit designation, but if you need to know whether a particular circuit uses 16-gauge or 18-gauge wire for a repair, you're often better off measuring it or checking a donor vehicle. I keep a sample of common gauge sizes on hand so I'm not guessing when I'm splicing into an existing harness. What works for one year isn't guaranteed to work for another, even within the same generation. The Mighty Max had enough production changes across its run that cross-referencing is necessary. A diagram from a 1991 manual might be close to a 1993 truck, but the ABS and traction control additions in later models mean you'll find extra circuits that aren't in the earlier documentation. Always verify against the physical vehicle when possible.
