Getting Your Hands on a Proper Manual
Most people searching for this end up at one of three places: a $40 PDF that gets re-sold a dozen times, the official Mitsu service literature, or a used copy you find on eBay with dog-eared pages and someone's mechanic notes in the margins. The real difference shows up fast once you start tearing into the ZF 5HP-19 or the older A750 gearbox depending on what year Raider you are working on. I spent about eight hours last November trying to verify a shift solenoid code on a 2007 Raider with 142,000 miles. The cheap PDF I'd downloaded had the wiring diagram labeled wrong, and it sent me chasing the wrong harness for most of that time. The factory manual has the pinout diagrams correct, along with the proper resistance specs. If you are doing this work regularly, the upgrade from a random internet download to the genuine thing pays for itself in the first job.
Mitsubishi Raider Transmission Repair Manual
The factory repair manual covers both the automatic and manual variants, though the automatic ones see more questions. It includes the full teardown sequence, hydraulic circuit diagrams, valve body mapping, and the adaptation reset procedures that most aftermarket guides skip entirely. You also get the torque specs in the right order instead of hunting through forums for answers. When you pull the tail housing off a 4G64-powered model, the real headache is usually the transfer case output seal that refuses to come out without a proper puller. The manual shows you the correct tool number and the step-by-step method that avoids breaking the housing. I learned that the hard way on a truck that originally belonged to a tow yard in Georgia. One thing nobody emphasizes enough is the filter and pan gasket sequence. You need to replace the pan gasket before you seat the new filter, not after. Get it backward and you will be removing everything twice, which means more chances to drop a bolt into the bellhousing crack where it turns into a two-day problem instead of a two-hour one.

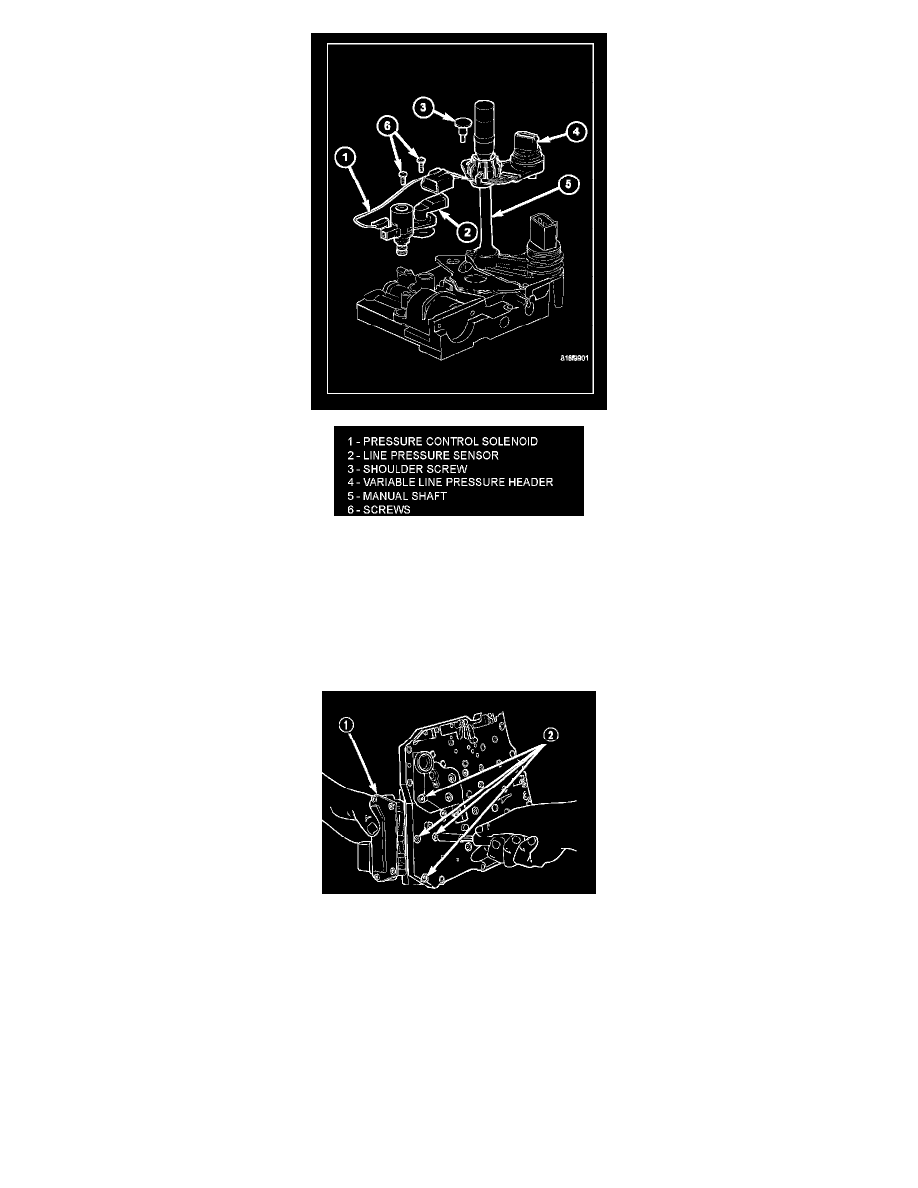

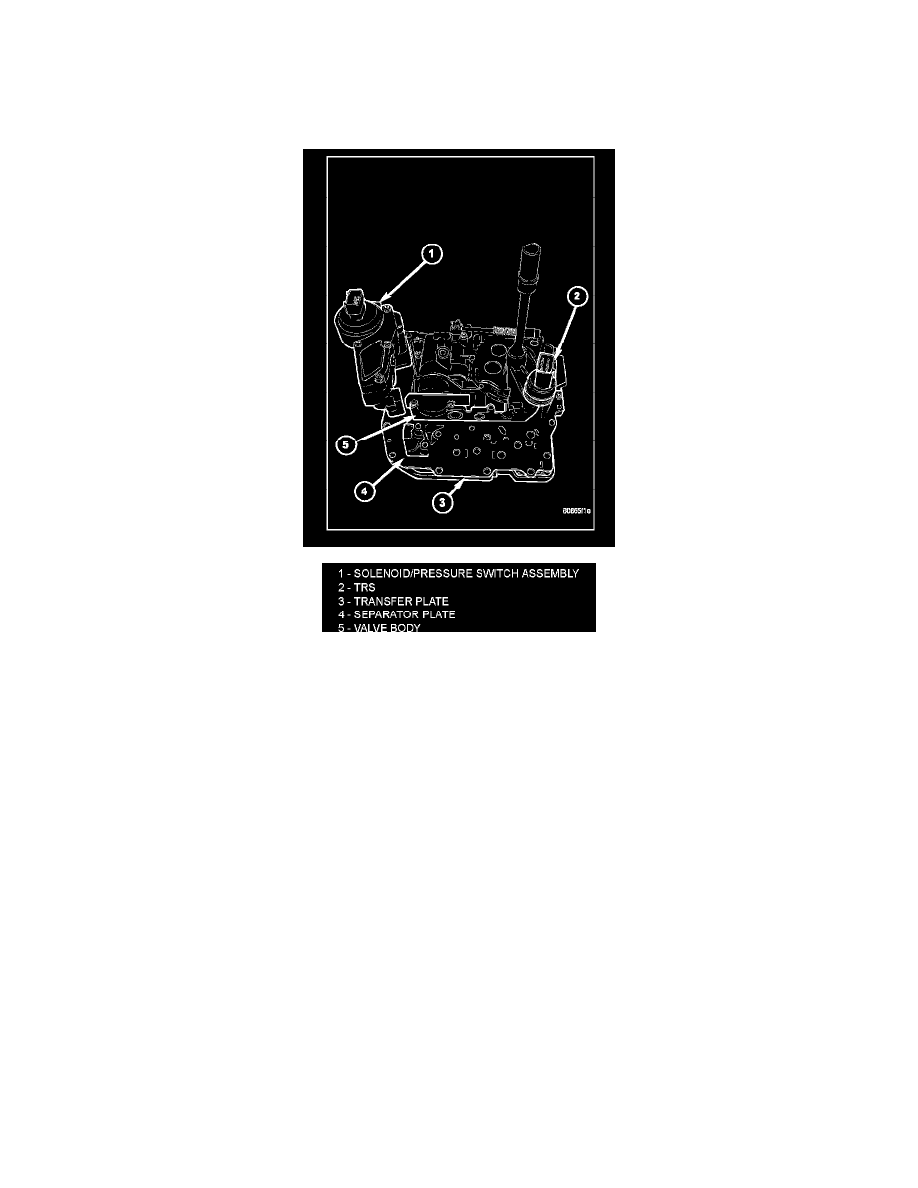

The solenoid replacement numbers are another spot where generic manuals fail. The ZF unit uses three different valve body assemblies across the production run, and the repair manual flags the part number changes with the build date breakdown. Without that info you might buy the wrong solenoid kit and then wonder why the codes come back after the reset. If you can find the original Mitsubishi dealer reprint, those usually run somewhere between $80 and $150 from specialty automotive publishers. Some independent shops scan them and sell copies, but the quality varies. I stick with the official reprint because the diagrams actually line up with the physical components, and the torque spec tables use the correct units without mixing metric and imperial in the same column.
