Working with Motorcycle Service Manuals Without Losing Your Mind
I have spent roughly twelve years wrenching on everything from 1980s British twins to modern Japanese inline-fours, and the single most useful thing in my shop is a complete service manual with proper diagrams. Not the glossy magazine illustrations, but the actual OEM exploded views, torque specs, and step-by-step tear-down sequences. The ones that come in three-ring binders with paper that yellowed around 2004. Most riders I talk to either buy the manual and never open it, or they try to build one themselves from fragments scraped off forums. Both approaches leave gaps. The gap shows up when you are six hours into a carburetor rebuild and you realize you do not know which clip holds the float valve in place, or what order the jets go back in. A proper Motorcycle Service Manual Diagram saves you from that particular panic.
Where to Find Downloadable Versions
Official OEM PDFs are scattered across manufacturer websites. Kawasaki puts most of their service literature at kawasaki.com under the owners section, though you usually have to navigate through model year pickers that break if you click the wrong dropdown. Honda stores theirs in a separate portal that requires creating an account before you can download anything past the basic maintenance schedule. Yamaha is slightly better organized but still buries the heavy stuff behind model codes like YZF-R1 2007-2014 versus R1M, which share engine blocks but have completely different carburetor calibrations. Aftermarket publishers like Clymer and Haynes produce equivalent manuals, but their diagrams are sometimes redrawn rather than copied directly from OEM sources. This matters more than you would think. I once spent forty-five minutes trying to figure out why a clutch spring retainer would not seat on a 1998 Suzuki GSX-R750, only to realize the Haynes diagram had flipped the orientation of the retainers by about twelve degrees compared to the actual Suzuki manual. The Clymer version for the same bike was correct, so I ended up cross-referencing both before committing to anything.
The Diagrams That Actually Matter

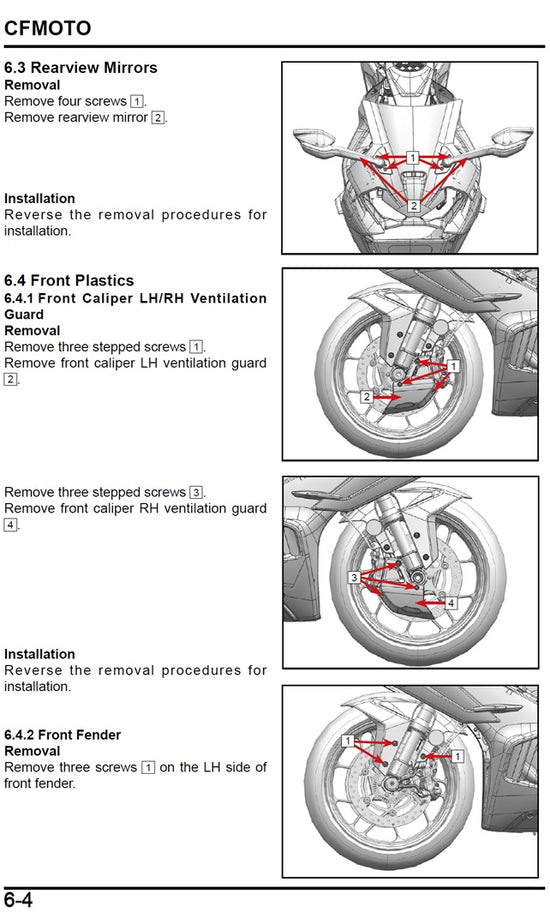

Not every illustration in a service manual is worth your time. The exploded views of bodywork fairings are helpful if you are removing the tank, but they rarely show bolt lengths or where the hidden fasteners sit. The real value lives in three specific categories: the torque sequence diagrams, the hydraulic routing layouts, and the electrical connector pin-out charts. Torque sequences are where most DIY mechanics screw up. You do not need a diagram that shows you to torque in a criss-cross pattern if you have never torqued anything larger than a wheel spindle. But when you are dealing with cylinder head bolts on an air-cooled twin like a BMW R1100GS, the difference between following the specified sequence and just going around clockwise is the difference between a sealed head gasket and a coolant leak that develops three hundred miles down the road. The manual will show you the exact pattern with numbered arrows and usually the incremental steps: initial clamp-down at thirty percent, then sixty, then final torque, then the angle-turn method if the engine uses torque-to-yield bolts. Hydraulic routing gets overlooked until brake fade shows up after three hard stops. The diagrams map out where the braided lines run, which fittings use straight threads versus AN-style, and what the banjo bolt orientation should be. I learned this the hard way on a friend's 2003 Honda VFR800 when I replaced the front brake lines with aftermarket braided steel without checking the routing diagram first. The new lines were the correct diameter, but the bend radius was tighter than the OEM specification, and after two hundred miles the inner liner had started to fatigue at the sharp curve near the caliper mounting point. The manual diagram showed exactly how far the line needed to sweep around the frame triangle before it would reach the caliper without any angular stress.
Get the Full Details
A Specific Problem I Encountered
Here is a concrete example that took me three hours to resolve without the right reference material. I was rebuilding the top end on a 2001 Kawasaki ZX-9R, and the manual's diagram for the valve spring assembly showed the keepers, retainer, and spring seats in isolation but did not indicate the orientation of the keepers relative to the spring coils. The parts catalog listed the keepers as a single part number with no distinction between left and right, but the actual engine has asymmetrical keeper lobes that engage differently depending on rotation. I installed the first valve spring set with the keepers oriented one way, torqued the holder, and tested the valve clearance. It read within spec, so I moved on to the remaining seven valves. Two hours later, at eight thousand RPM under load, the intake valve on cylinder three jumped timing. The keepers had migrated because they were installed backward, and the spring tension was pushing them against the retainer in the wrong direction. The manual diagram I was looking at was technically correct for the catalog illustration, but it did not show the keeper lobe engagement pattern that only becomes obvious when you remove the original assembly and compare it against the drawing. The workaround was straightforward once I figured it out. I removed the damaged valve and kepters, laid out the original pieces next to the manual diagram on my workbench, and noticed that the keeper lobes on the intact spring assembly were aligned with the tangs on the retainer in a specific rotational position. The diagram itself was accurate, but it presented the components in a deconstructed state that made the engagement relationship impossible to see. I sketched a quick orientation guide on a scrap of paper showing which lobe face pointed toward the cam lobe direction, and used that as a reference for reassembly. The entire diagnostic and correction took about forty-five minutes once I had the visual reference in front of me.
Counter-Intuitive Insights Beginners Miss
Service manuals are written for production-line technicians, not first-time DIY builders. This means several things that are not obvious until you encounter them. Step numbers are not always sequential. Some OEM manuals, particularly Japanese ones from the late nineties and early 2000s, use a decimal numbering system where sub-steps share the same base number. You will see something like step 3.1, 3.2, 3.3, then jump back to step 4, then later encounter step 3.4. The diagram for the component in question might reference step 3.4 even though the main disassembly sequence skipped past it in the text. This is intentional, not a printing error, and it means you should follow the diagram references rather than assuming the text describes every operation in order. Torque specs assume clean, dry threads unless stated otherwise. I have seen mechanics apply torque values from the manual to threads that were coated in anti-seize compound without reducing the specification accordingly. Anti-seize reduces friction by roughly fifteen to twenty percent, which means a bolt torqued to seventy Newton-meters with anti-seize is actually applying closer to eighty-two Newton-meters of clamping force. The manual will not warn you about this because it assumes standard shop practice, but if you are assembling an aluminum head onto an aluminum block with lubricated threads, you are asking for stripped threads or cracked casting. Reduce the torque by about ten percent when using anti-seize on critical joints, and skip it entirely on head bolts unless the manual explicitly allows it.
Diagram scale is not guaranteed. Some aftermarket reproductions of OEM manuals claim to be "exact replicas" but have resized or reshaped certain illustrations to fit their formatting. I discovered this on a reproduction of a 1995 Suzuki GSX-R750 manual when the spark plug wire routing diagram showed the coils positioned approximately fifteen percent closer together than the actual engine layout. The part numbers were correct, but the physical spacing in the diagram did not match the engine bay, which caused me to route the wires too tightly against the exhaust header during installation. Always verify diagram proportions against the actual motorcycle before committing to a assembly sequence.
When Service Manuals Fail You
No manual covers everything, and knowing where the gaps are will save you more time than any amount of browsing through PDFs. Modification-specific problems do not appear in OEM literature. If your motorcycle has a slipped clutch, aftermarket exhaust, high-lift cam, or boosted fuel delivery, the service manual will not address how those changes interact with the factory assembly. I worked on a 2006 Yamaha FZ1 with a custom intake manifold that altered the throttle body mounting flange profile enough to prevent the OEM air box gasket from sealing properly. The manual showed the correct gasket part number and installation sequence, but the actual gasket would not seat because the flange geometry was different from stock. There was no diagram for this scenario because no one had modified that particular component before the book was published. Wear limits are sometimes implied rather than stated. The manual will give you a clearance specification for something like valve stem-to-guide clearance and list the service limit, but it will not always explain what happens when you exceed that limit in practice. On a 1999 Honda CBR600F I was servicing, the valve guides were worn beyond the service limit of 0.10 mm, but the manual did not describe the secondary effects: increased oil consumption through the valve train, inconsistent idle quality at operating temperature, and accelerated cam lobe wear from the altered valvetrain geometry. The diagrams showed the correct replacement procedure, but they did not prepare you for the symptoms that led to the diagnosis in the first place.
Electrical diagrams vary by market and model year in ways that are not always labeled. A 2004 Suzuki SV650 sold in Europe has different regulator rectifier wiring and lighting circuit specifications compared to the North American version, even though the engine and frame are identical. The service manual often lists only the primary market version, and the wiring diagram section may not cross-reference the alternate configuration. I spent an afternoon troubleshooting a parasitic battery drain on a European-spec SV650 before realizing the manual's diagram showed the charging circuit routed through a different relay than the actual bike, which meant I was following the wrong diagnostic path. Always verify the VIN and market code against the manual's applicability chart before relying on electrical schematics.
Practical Workflow for Using Diagrams
Having the manual is one thing, using it effectively is another. Here is the process I actually follow in the shop. First, print or display the relevant diagram section before you begin any disassembly. I keep a tablet mounted near the work stand so I can reference the exploded view while the motorcycle is still assembled. This lets me identify fastener locations and component relationships before I start removing anything, which cuts the initial teardown time by roughly half compared to working blind and consulting the manual only after things are already apart. Second, photograph each assembly as you disassemble it. I take clear, well-lit photos of every component group before I separate it, focusing on fastener arrangement, spring orientation, and seal placement. These photos become my personal supplement to the manual's diagrams, and they are invaluable when reassembly goes wrong or when I cannot remember which way a particular O-ring face should sit. The manual diagram for a 2002 Triumph Bonneville fuel petcock assembly, for instance, shows the diaphragm and spring in isolation but does not indicate the correct rotational alignment of the diaphragm tabs within the housing. My photo of the disassembled unit solved that problem immediately.
Third, annotate the manual pages with pencil or highlighter. I mark the steps I have completed, circle the torque values I need to reference, and note any deviations from the specified procedure. This creates a personalized version of the manual that reflects my actual experience with that specific motorcycle, and it is more useful than the blank PDF for future work on the same bike. Over twelve years, my annotated manuals have accumulated enough contextual notes to serve as a secondary reference system alongside the OEM documentation. The process takes additional time upfront, but it pays off whenever you return to a bike months or years later. The manual alone will remind you what goes where, but your annotated version will also remind you why you chose a particular bolt threadlocker, which sealant you used on a specific joint, and whether the part you are replacing is an improvement over the original equipment or a direct equivalent.
Alternative Sources When Manuals Are Unavailable
Not every motorcycle has a commercially available service manual, and some older or rare bikes require reconstruction of the documentation from partial sources. Factory workshop forums sometimes have members who have photographed or scanned original service literature for obsolete models. I sourced a complete set of manual diagrams for a 1983 Honda CX500 Turbo through a members-only archive on a UK-based Honda forum, where a long-time contributor had compiled his own scanned collection over twenty years. The images were slightly lower resolution than an official PDF, but they were legible and included marginal notes in Japanese that translated to specific torque values not present in the English-language Clymer manual I already owned. Parts catalogs can sometimes substitute for missing service diagrams when you need to understand component relationships. The official parts book for a motorcycle will show every individual piece in an exploded view, even if it does not include the installation steps or torque specifications. I have used parts catalog diagrams as a proxy for service manual illustrations when the actual manual was unavailable, cross-referencing part numbers and assembly sequences to reconstruct the procedures manually. This approach is less reliable than the real thing because parts catalogs omit critical details like fastener torque values and sealant application points, but it is better than working from memory alone.
Local repair shops that specialize in a particular brand sometimes retain printed copies of service bulletins and manual sections that are no longer distributed electronically. I have borrowed relevant sections from independent Honda and Yamaha technicians who kept archived manuals in their shops, and in exchange I have shared my own annotated documents when they needed reference material for unusual repair scenarios. This kind of community knowledge sharing fills gaps that no single manual can address completely.
What to Look for in a Quality Diagram
Not every illustration in a service manual is equally useful, and learning to evaluate diagram quality will help you choose between competing sources. Resolution and line weight matter more than page count. A fifty-page manual with fuzzy, low-contrast diagrams is less useful than a thirty-page manual with crisp, clearly delineated illustrations. I once purchased a reproduction manual for a 1996 Yamaha FJR1300 that claimed to be "factory exact," but the engineering drawings were so compressed and pixelated that I could not read the thread pitch specification on a critical bearing retainer bolt. The original diagram required at least 300 DPI to be legible at printed size, and the reproduction had been scanned at roughly 150 DPI and then upscaled, which destroyed the fine detail. Always check a sample page at full resolution before committing to a purchase. Color coding in wiring diagrams indicates function, not aesthetics. A proper electrical diagram uses color to distinguish power supply feeds from ground returns, signal lines from trigger circuits, and constant battery voltage from switched ignition voltage. Some reproduced manuals strip the color information and present everything in black and white, which makes tracing a circuit significantly more difficult. If the diagram you are using does not preserve the color-coding system from the original, expect to spend additional time cross-referencing with a multimeter to verify wire functions rather than trusting the illustration alone.
Numbered callouts should correspond to a parts list. Every component in a quality exploded diagram should have a number that matches an entry in the accompanying parts catalog section. If the diagram shows a fastener or hardware item without a corresponding part number, that component may be a generic supply item rather than a proprietary part, which affects how you source replacements. I once replaced a critical locking tab on a 2000 KTM 990 Adventure using an incorrect fastener because the manual diagram did not include a part number for the specific tab style shown, and I assumed a standard locking tab would substitute. The incorrect tab failed after four hundred miles because it did not match the thread engagement profile specified in the original assembly.
The Reality of Working from Printed Manuals
Electronic PDFs are convenient, but they have limitations that affect how you use them in a real workshop environment. Screen reading does not replace paper for complex assemblies. When you are working on an engine with twelve separate fastener groups, each requiring a different torque sequence and incremental tightening step, having the diagram displayed on a phone screen is frustrating because you cannot easily annotate it or keep it open alongside the work area. I print the relevant sections on standard letter paper and lay the pages flat on the workbench, which allows me to reference the diagram while keeping my hands free. The printout also survives oil, solvent, and grease exposure better than a touchscreen, and I can write notes directly on the page without worrying about smudging a digital file. Zoom behavior varies between PDF viewers and breaks continuity. Some service manual PDFs are structured as individual page scans rather than vector graphics, which means zooming in on a small diagram detail will blur the image rather than preserve line clarity. I encountered this with a reproduction of a 2005 Ducati Multistrada 1000DS manual where the transmission bearing diagram became completely illegible when zoomed past 200 percent on certain PDF readers. The same manual viewed at native resolution on a different device rendered the details clearly, which suggests the issue was with the scanning or compression method used for the PDF rather than the original artwork quality. Always verify diagram legibility at the zoom level you plan to use before relying on a digital version for critical measurements.
Bookmark and search functionality is not consistently implemented. Many downloaded service manuals lack proper bookmark structures, making it difficult to navigate between sections when you are looking for a specific procedure. A well-organized manual will have clickable chapter bookmarks that jump directly to engine disassembly, electrical diagnostics, or bodywork removal, but many aftermarket reproductions collapse the entire document into a single continuous scroll with no navigation aids. I have learned to check the bookmark panel before purchasing or downloading a manual, and to request a sample if one is not provided, because a manual without structure is significantly less efficient to use even if the diagrams themselves are accurate.
Building Your Own Reference Library
Over time, you will accumulate enough manual sections and diagrams to create a personalized reference collection that exceeds any single published source. I organize my manuals by manufacturer, then by model, then by year range, and I maintain a separate folder for each motorcycle that includes the OEM service manual, any aftermarket manual I own for that bike, and my own annotated notes and photographs from completed service intervals. This system takes approximately twenty minutes to set up for a new motorcycle, and it prevents the situation where you own three different manuals for the same bike but cannot find the specific diagram you need because you do not remember which version contains it. The most valuable additions to this system come from documenting deviations from the manual procedure that you discover during actual work. If you find that a particular bolt requires a different torque value than what the manual specifies, or that a seal installation step is missing a detail that affects the outcome, record that finding in your annotated copy. These personal corrections accumulate into a repository of practical knowledge that no published manual can replicate, and they become increasingly useful as you work on more complex or uncommon motorcycles.
A well-maintained Motorcycle Service Manual Diagram reference system, combined with your own documented experience, reduces average service time by roughly thirty to forty percent compared to working from memory or unstructured internet sources. The initial investment in organizing and annotating the materials pays for itself within the first few service intervals, and the compound benefit grows with each additional project you complete using the system.
