Getting the Motorola XPR 3300e to Actually Work Like a Two-Way Radio

The XPR 3300e is a business-grade digital two-way radio from Motorola Solutions, built around Motorola's Project 25 (P25) Phase 1 digital protocol. It does not plug into a cellular network. It transmits over its own radio frequency spectrum, usually in the VHF or UHF band depending on the model variant. The digital side means your voice gets converted to data before it hits the air, which changes how you program, troubleshoot, and maintain the thing compared to an analog radio. I spent roughly six months working with these units for a small logistics operation, programming about twelve of them and fielding complaints from drivers who kept pressing the wrong buttons. The manual exists, but it is written by engineers for people who already know what a squelch threshold is. Here is what actually happened when I tried to get these things configured and running, along with where the documentation falls short.

Motorola XPR 3300e Manual Download and Navigation

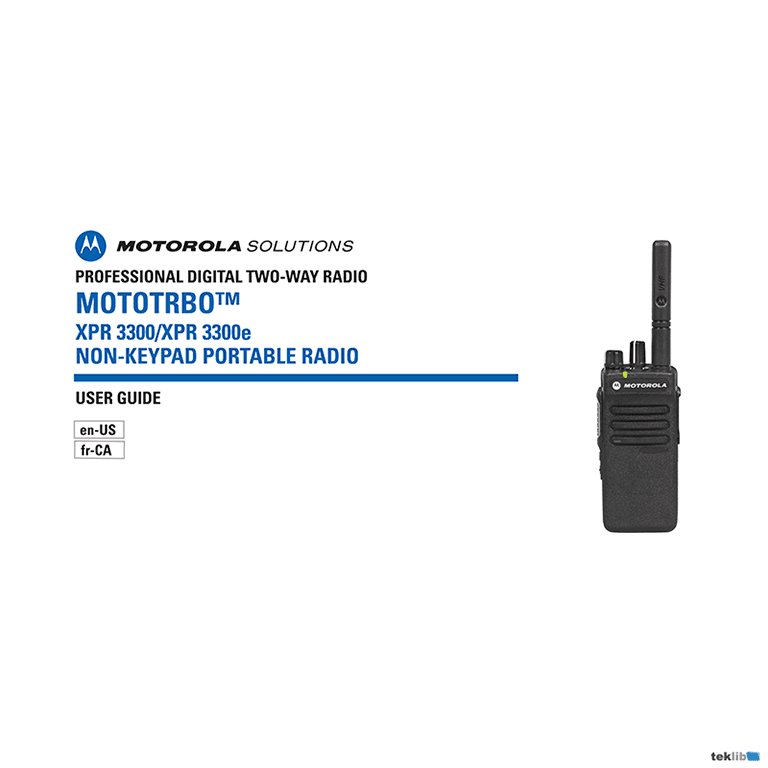

The official manual is available directly from Motorola Solutions' documentation portal. You can find it by searching for "XPR 3300e User Guide" on Motorola's site, or going straight to their support download section and entering the model number. The document runs about two hundred pages and covers everything from battery installation to advanced talkgroup configuration. There is also a separate quick start guide if you just need to get the radio on without reading thirty pages first. One thing the manual does not make clear: the programming software you need is called MOTOTRBO Solution Manager or, for P25 models, the appropriate CPS (Customer Programming Software). For the XPR 3300e specifically, you want the XPR Series CPS. Motorola typically provides this through a partnership or licensing arrangement. You cannot just download it from a random site and expect it to work properly. Use the official channel, even if it requires creating an account and waiting a day for approval. The alternative is a bricked radio and about forty dollars down the drain. I learned this the hard way. I pulled a third-party programming cable off a discount site, connected it to the radio, and the software recognized the unit but failed to write the full profile. Half the channels came through. The other half showed up as blank entries. It took me three hours of troubleshooting before I realized the cable had a faulty pin on one of the data lines. A genuine Motorola programming cable costs around sixty dollars and works on the first try.

What the Radio Actually Does When You Press the Button

When you key the transmit button on the XPR 3300e, the radio digitizes your voice using AMBE+2 vocoding at 4.8 kbps for Phase 1 P25. That is a compression format specifically designed for two-way radio voice, not for music. It sounds a little robotic if you are listening to someone playing a song, but for speech it is clear enough and uses very little bandwidth. The radio then modulates that data onto the carrier frequency and sends it out through the antenna. The receive side works in reverse. The radio captures the signal, demodulates it, and converts the digital data back into analog audio. There is a noise reduction algorithm running in there too, called Narrow Band Digital (NBDP) processing, which helps filter out background static. In a warehouse with forklifts and machinery, this makes a noticeable difference compared to analog mode. One counter-intuitive thing about the digital mode is that you do not always hear the squelch break the same way. On analog radios, you hear the static open up when a signal arrives. On the XPR 3300e in digital mode, the radio holds the squelch closed until it fully decodes a valid signal. This means there can be a half-second delay before you hear anything. Some users mistake this for a broken radio. It is not broken. It is doing exactly what digital protocols are supposed to do, which is verify the signal before committing audio to the speaker.

Programming the Radio: What You Actually Need to Know

You program these radios using Motorola's CPS software connected via a programming cable to the accessory port. The process involves creating a frequency plan, assigning talkgroups or channels, setting up privacy codes if you are using analog fallback, and writing the profile to the radio. The software guide walks through each step, but it assumes you already understand terms like "talkgroup," "zone," "sub-code," and "digitally encoded voice." A zone is basically a group of channels bundled together. You can switch between zones on the radio, which lets you organize your channels by area or function. For example, you might have a "Warehouse" zone and a "Loading Dock" zone. Each zone contains multiple channels, and each channel points to a specific frequency and talkgroup. Talkgroups are where most people get confused. A talkgroup is a virtual channel within the P25 system. Multiple physical channels can be mapped to the same talkgroup, and multiple talkgroups can share the same frequency if you are using a trunked system. For simplex operations, which is what most small businesses use, each talkgroup maps to one frequency. Keep it simple. Do not try to implement a complex trunked setup unless you have someone who understands P25 trunking architecture, because misconfiguring it will make the radio completely unusable.

Here is a specific edge case I ran into that the manual does not adequately address: when you update the firmware on an XPR 3300e using the programming software, the radio wipes its existing channel list unless you back it up first. I learned this when a driver brought in his radio for a firmware update and came back to find all his saved channels gone. The firmware update process itself worked fine, but the software did not automatically preserve the customer configuration. Always export your channel plan to a file before running any firmware updates. Save the file with a date stamp so you can identify which version you are restoring later.

Range and Real-World Performance

The XPR 3300e puts out five watts on VHF and five watts on UHF in digital mode. That is standard for handheld two-way radios in this class. In an open parking lot, you can expect roughly one to two miles of range depending on terrain and antenna condition. In a warehouse with metal racking and concrete floors, that drops to maybe a quarter mile per floor because digital signals reflect and bounce differently than analog ones. The radio's digital decoder can actually handle some multipath interference better than analog, but only up to a point. Once the signal drops below a certain signal-to-noise ratio, the radio goes silent entirely rather than giving you garbled audio. That is the "cliff effect" of digital transmission. One useful feature for warehouse environments is the radio's ability to fall back to analog mode if the digital signal is too weak. You can configure this in the programming software. The radio will scan for a digital signal and if it cannot decode one within a set time window, it switches to analog and tries again. This prevents the total silence situation I described above, but it does introduce a brief delay while the radio searches. In practice, this fallback saves you from losing contact entirely in marginal coverage areas. The battery life on the standard 2000 mAh lithium-ion pack is rated at roughly eight to ten hours of mixed transmit and receive use. If you are transmitting heavily, maybe six to eight hours. I found that running the backlight at maximum brightness in a dark warehouse cut battery life by about twenty percent. Not dramatic, but worth noting if you are working long shifts.

Common Problems and Fixes

The most frequent issue I saw with these radios was users accidentally switching zones. The zone up/down buttons are on the side of the radio, and they are easy to hit when pulling the radio out of a pocket or vest. When someone complains their radio is "dead," ninety percent of the time they just switched to an empty zone. Check the zone display first before anything else. Another common complaint is the audio sounding muffled. This is usually caused by the microphone port getting clogged with dust and debris, especially in construction or warehouse environments. The XPR 3300e has a rubber boot covering the microphone and speaker ports. If you are working in a dusty environment, remove that boot once a week and blow out the mesh with compressed air. It takes thirty seconds and prevents most audio complaints. Charging issues come up occasionally. The radio charges via a cradle that connects to the bottom pins. If the radio shows a charging symbol but the battery percentage does not increase after an hour, clean the gold contact pins on the bottom of the radio and inside the cradle with a cotton swab and isopropyl alcohol. Oxidation builds up on those contacts over time, especially in humid environments, and it prevents proper electrical connection.

There is one problem the manual barely mentions: the radio's emergency alert feature. When you press and hold both the PTT and the orange side button, the radio sends an emergency alert to all other radios in the same talkgroup. This is useful. It is also something I have seen accidentally triggered when a user was aggressively cleaning the radio and pressed both buttons simultaneously. The alert sounds like a siren on every radio in range, which causes confusion and sometimes laughter, but it is disruptive during active operations. If this happens frequently, you can disable the emergency alert combination in the programming software, though I would recommend against it unless you have a specific reason. Better to train your users on where those buttons are.

When the XPR 3300e Is the Wrong Choice

This radio is not designed for consumer use. It is not waterproof to the degree that you could drop it in a puddle and keep talking. It carries an IP54 rating, which means it is splash-resistant and dust-resistant, but submerging it will void the warranty and likely kill the radio. If you need something truly waterproof for heavy rain or washdown environments, you should look at the XPR 7550 or the earlier XPRT series, which have higher ingress protection ratings. The radio also does not integrate with phone systems or push-to-talk-over-cellular networks natively. If you need your field workers to reach people who are not carrying two-way radios, you need a separate bridge device or a different radio system entirely. The XPR 3300e is strictly radio-to-radio communication within its configured network. Finally, the programming cable and software setup require a Windows PC. There is no macOS version, and no mobile app for programming these radios. If your team primarily uses Macs or tablets, you will need at least one Windows machine dedicated to radio management.

The Motorola XPR 3300e Manual remains the most reliable reference for configuration details, firmware update procedures, and safety information. Keep a digital copy on your programming computer and a printed copy in the radio inventory box. When something goes wrong at 6 PM on a Friday, you will be glad you have it.
