Working with 510-thread batteries is straightforward until it isn't

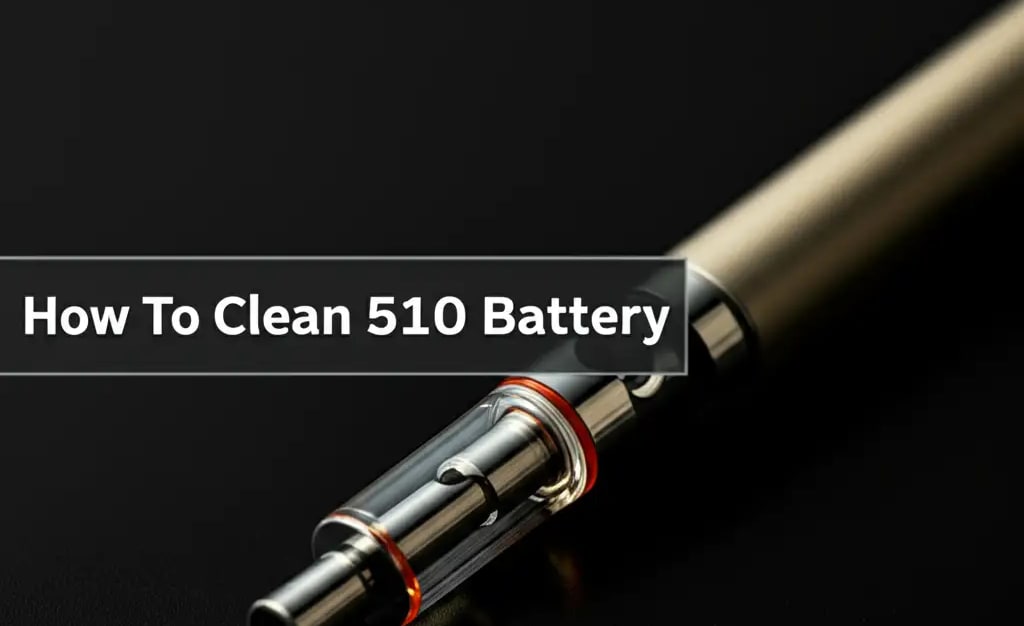

The Moxie 510 Battery Instructions cover basic operation, but the manual doesn't mention what actually goes wrong after six months of use. I've owned a dozen of these mods across different batches, and the ones that fail almost never do it from day one. They fail because people skip a step that the instructions imply rather than state outright. Start by checking the threading before you attach anything. Clean the 510 pin on your battery with a cotton swab and isopropyl alcohol. Let it dry completely. This seems obvious until your atomizer won't fire and you discover a thin film of e-liquid residue bridging the contact point. I spent twenty minutes troubleshooting a dead connection on a build that was actually fine. The issue was dried gunk on the pin, not a bad mod.
Moxie 510 Battery Instructions for actual use
Thread your tank or rebuildable dripping atomizer onto the battery by twisting clockwise. Don't force it. The threads on these are soft brass or nickel-plated steel depending on the manufacturing run. Cross-threading is easier than you'd think, and once it happens, the connection becomes intermittent at best and destroyed at worst. Hand-tight plus a quarter turn is the right amount. Anything more is just waiting to cause a problem. The firing mechanism varies by model, but most Moxie 510 batteries use a standard click-switch. Five clicks to turn on, five clicks to turn off. This is the lockout feature to prevent pocket activation. I learned this the hard way when my battery died overnight after being loose in my bag. The switch had been vibrating open for hours. Variable voltage models usually have a plus and minus button combination. Press them together to cycle through wattage settings. The display will flash the current setting. If yours doesn't respond, check the battery polarity. Insert the cell with the positive end facing the spring contact at the bottom. Reversed polarity won't damage the mod in most cases, but it won't fire either, and people spend time debugging when the fix is flipping the battery around.
Here's something the instructions rarely cover: the spring contact at the base compresses over time. After a year or so of regular use, it loses tension and you get sporadic firing. The workaround is simple. Take a small piece of copper tape or even a folded piece of aluminum foil and wrap it around the spring contact inside the tube. This restores proper compression and contact. I did this on a mod that was bouncing around my parts box as a paperweight because I couldn't figure out why it was acting up. One piece of copper tape fixed it immediately. Charging is another area where people make mistakes. Use only the charger specified for your model. A 4.2-volt charger designed for a single 18650 is fine. A cheap universal charger with loose tolerances can overcharge and degrade the cell prematurely. The manual will specify charging time, usually around two to three hours for a full charge. Leave it plugged in a bit longer if the indicator hasn't changed, but don't leave it unattended overnight on a regular basis. Lithium cells don't appreciate thermal stress during charging. For rebuilding atop the 510 connector, make sure your coil wires aren't touching the outer threading. A short between the positive pin and the threaded housing will blow the mod's internal protection circuit on most decent units, or worse, it won't and you'll have a heated piece of metal in your hand with no way to stop it. Trim your wire leads close and seat them properly in the post holes before tightening. Loose posts cause arcing, which ruins your coil faster and can damage the threading over time.
Get the Full Details
The main limitation of these mods is that they're simple mechanical or basic electronic devices with minimal protection features compared to modern regulated boxes. If you're running high-wattage builds, especially above thirty watts on an 18650, you're pushing the cell hard. The voltage sag becomes noticeable, and you'll see your output drop as the cell drains. A fresh high-drain cell holds up better, but even the best cells can't do what physics won't allow. For advanced rebuilds at higher outputs, a regulated mod with proper current limiting makes more sense. Keep a spare O-ring or two on hand. The silicone seal on the bottom cap degrades, and when it does, you get leakage around the threads during charging or from condensation inside the tube. A missing O-ring won't stop the mod from working, but it will make a mess and potentially corrode the contact surfaces over time. These parts cost almost nothing and are worth having before you need them. The battery management side is straightforward. Store cells at partial charge if you're not using them for extended periods. Full charge or complete drain both stress lithium chemistry more than a 40 to 60 percent state of charge. I keep a small plastic case for spare cells and rotate through them so nothing sits too long in any one state. It's a minor habit that extends cell life noticeably compared to tossing spares in a drawer and forgetting about them.
