The New Holland 451 sickle mower is one of those old machines that still shows up in hay fields every summer. It's simple enough that most people assume they don't need a manual, but if you've ever tried to figure out which cutterbar section goes with which joint or why your guards are wearing unevenly, you already know better. The parts manual is the only thing that separates a Saturday spent guessing from one spent with a wrench in hand. Here's the thing nobody tells you: the original factory manual for the 451 is not the same as the operator's handbook. People confuse them constantly. The parts manual is a flat-list explosion of exploded diagrams with part numbers and descriptions. It will not tell you how to adjust your pickup or troubleshoot a slipping belt. It exists purely so you can order the right piece without calling three different supply houses and getting quoted for something that doesn't fit. My version came loose inside a canvas pouch on the tractor dash around 2018, and I lost it somewhere between a field near Oakdale and a barn in Columbia County. I didn't realize how much I needed it until I was sitting on a broken finger guard trying to remember whether it was the left or right hand variant. I ended up digging through old Ag Parts Central archives and pulled a PDF from a New Holland dealer bulletin database. Most of the digitized copies floating around online are scans of scanned copies — blurry, incomplete, occasionally missing entire sections of the knife drive diagram. The one I found had the full cutterbar assembly breakdown through section G-4, which is the part most people actually need.
Where to Find the Manual
The safest route is going through an authorized New Holland agricultural dealer. They can pull the current supersession list from OEM systems, which means you get the latest part number replacements built in. Older manuals sometimes list parts that have been discontinued or revised, and if you order from the paper without checking, you'll get rejected at the counter or stuck with an obsolete number. Online, there are a few sources. Parts Town has a searchable database with the 451 manual included for most configurations. Ag Parts City offers a downloadable PDF version. eBay occasionally has physical copies sold by machinery salvage yards, usually between fifteen and forty dollars depending on condition. If you go the eBay route, check the photo of the actual pages — some sellers list a manual that only covers the tractor-mounted PTO driveshaft and not the sickle bar itself. For free options, the Tractor Parts ASAP site and the ManualsLib archive both host community-uploaded versions. The quality varies. I'd recommend cross-referencing any part number you find there against a dealer quote before placing an order.
What's Actually Inside the Manual

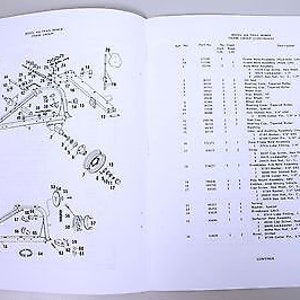

The New Holland 451 sickle mower parts manual breaks down into roughly six major assemblies. The cutterbar is the big one — that's the long horizontal blade assembly that does the cutting. It includes the knife, drive pitman, sickle guards, section joints, and the shear bolts that protect the whole thing when you hit a rock or a stump. Then there's the gearbox, which transfers power from the PTO to the reciprocating motion of the knife. The idler pulley and tension assembly come next, followed by the frame and skid shoes, the drift guards and wear plates, and finally the entire knife drive system including the crankshaft and bearing housing. Each section uses an exploded view layout. That means every component is shown separated from its neighbors but positioned in relationship to where it belongs. Part numbers run sequentially and reference a separate table at the back of the manual. If a part has been revised, the old number gets struck through and the new one appears beside it with a supersession note. Pay attention to those. I once ordered a replacement pitman arm using a number that looked right but was actually crossed out, and the part wouldn't mount to my gearbox because the mounting hole pattern had been updated in an earlier revision.
Get the Full Details
A Practical Problem I Ran Into
Last fall I was replacing a worn section of the cutterbar on my 451. The manual showed the section joint — the bolted connection between two pieces of the bar — with a specific part number for the joining bolts. I ordered them, installed them, and when I torqued the second bolt, the threads stripped out. Not the bolt. The tapped hole in the bar itself. Turns out the manual doesn't flag that the section joint threaded insert is a separate serviceable component. You have to hunt for it in a different sub-section deeper in the cutterbar assembly breakdown, and even then it's listed under a different numbering sequence than the rest of the joint hardware. The workaround was straightforward but annoying. I pulled the bar off the mower, took it to a machine shop, and had them re-tap the holes with a Helicoil insert kit sized for the original bolt diameter. That cost me about forty dollars in labor and saved me from buying a whole new cutterbar section that would have run closer to six hundred. The manual would have saved me the trial and error if I'd read through the entire cutterbar section before ordering anything, but most people skip straight to the part number they need and go from there. Don't do that.
How to Use the Manual Effectively
Start by identifying the exact sub-assembly you're working on. The 451 has enough variants across production years that a part from a 1982 model might not match a 1987, even though the manual lists them together. Check your serial number against the year range at the front of the document. New Holland typically grouped serial ranges by production run, and if yours falls between two ranges, you'll need to look at both. When you find the part you need, write down the full part number including any letter suffixes. Those matter. A guard with suffix A might be the standard left-side version, while suffix B could be the heavy-duty upgrade introduced in a mid-production run. Both appear in the same diagram. If you're ordering online and the retailer asks you to confirm the suffix, don't just guess — go back to the manual and verify it. Another thing the manual doesn't make obvious: many of the smaller wear items — guards, shear bolts, drift plates — are sold as kits rather than individually. The kit part numbers appear in a separate quick-reference chart near the end. If you're doing a full cutterbar rebuild, buying the kit saves you the separate ordering step and usually comes in ten to fifteen percent cheaper than individual pieces. I learned that the hard way after spending an afternoon calling three suppliers just to assemble a full set of guards.
Limitations of the Manual

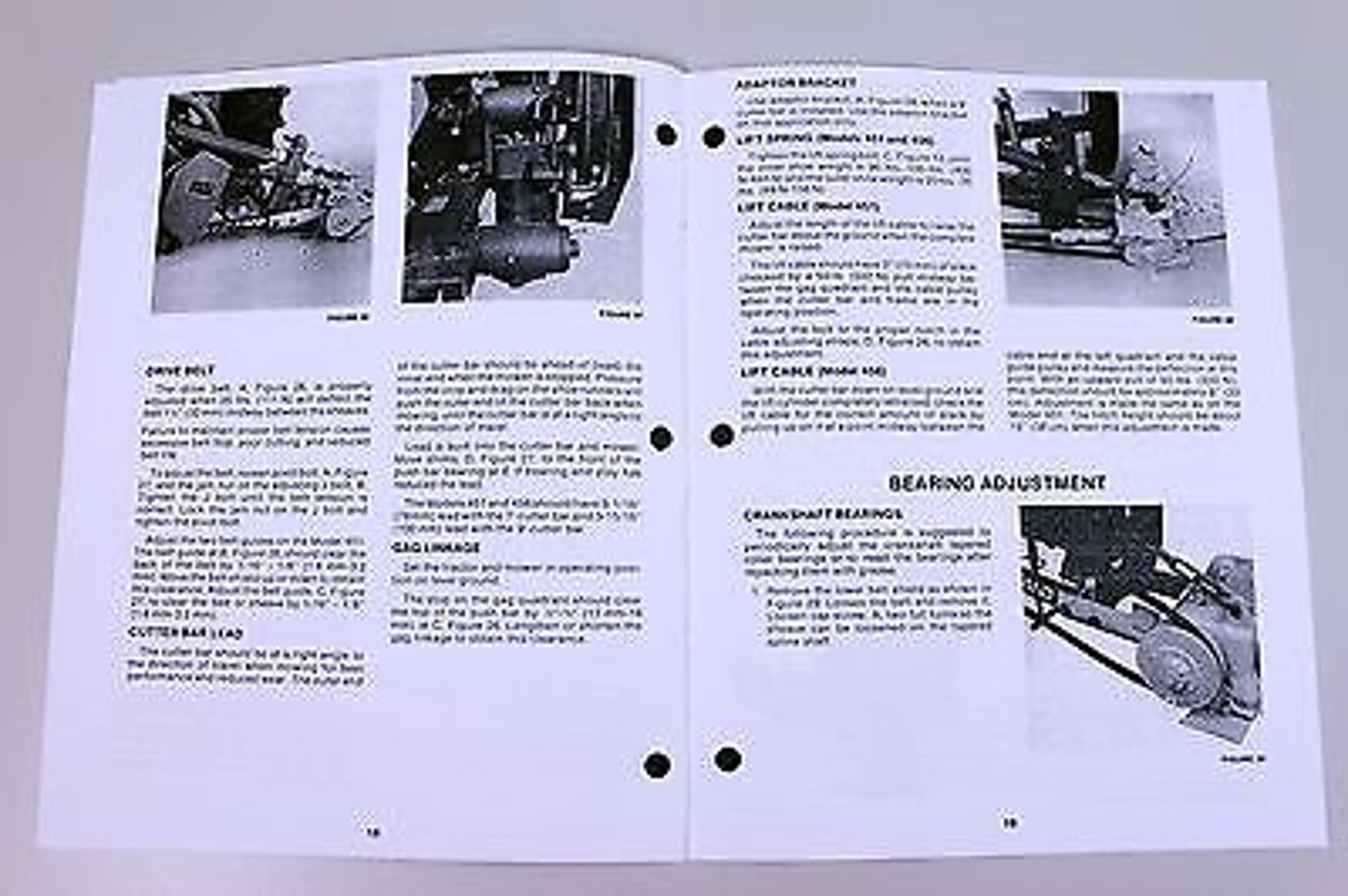

The manual is a parts catalog, not a repair guide. It won't tell you torque specs, adjustment procedures, or troubleshooting sequences. If your knife isn't cutting clean, you're not going to find that answer in here. For that you need the operator's manual or a service bulletin. Also, the manual doesn't cover aftermarket modifications. If someone before you welded on a custom guard or swapped in a third-party drive shaft, the part numbers in the book won't apply to your setup. Some pages in older printed copies are faded or smudged, and a few digitized versions have missing pages entirely — usually the gearbox internals or the drift guard detail section. If you run into that, a dealer can print just the missing pages for you, or you can request a reprint from New Holland's parts documentation group. It's not free, but it's usually under fifty dollars and worth it if you're missing a critical diagram. If you find yourself referencing the manual often, consider having a laminated copy. The field environment destroys paper fast — rain, hay dust, grease, sun. A laminated sheet from a copy shop costs about twelve dollars and lasts multiple seasons. I keep mine in a ziplock bag stapled to the inside of the tractor cab door. Bad idea for the door, good idea for the manual.
Final Notes on Ordering Parts
Always double-check the supersession status before you order. A part number that was valid in 1985 might have been replaced three times by 1992, and the original number could still appear in the manual even though no manufacturer stocks it anymore. The dealer system will show you the current number, but if you're ordering from a generic agricultural parts site, it might not catch the supersession. I've had that happen twice, and each time it cost me a week of downtime waiting for a return exchange. Keep your serial number written somewhere visible on the mower frame. Not in the manual — on the machine. When you're six months into a project and everything is apart, you'll forget whether you're looking at a pre- or post-revision gearbox, and having the serial number handy lets you verify which configuration you actually have. The New Holland 451 sickle mower parts manual is a reference tool, not a complete solution. But used correctly, it cuts the guesswork out of maintenance and keeps you from spending half a day on a parts run that should have taken twenty minutes.
