Working Through NFPA 70e Risk Assessment on Real Jobsites

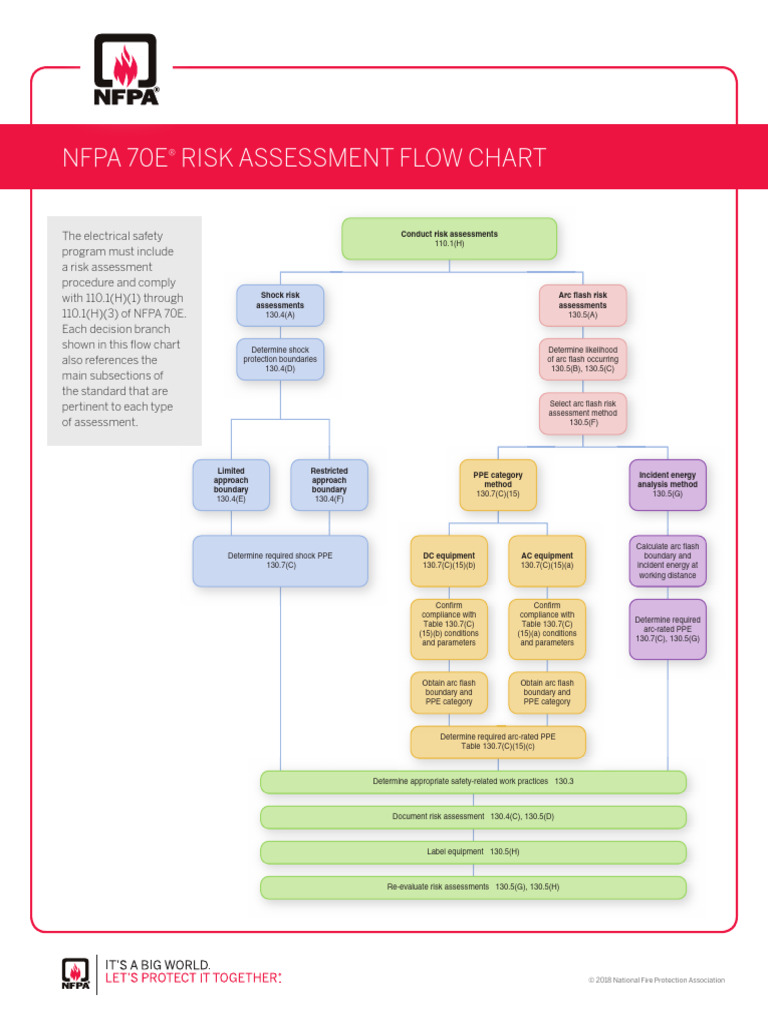

I spent about six years doing electrical safety surveys across manufacturing plants, data centers, and healthcare facilities before I stopped calling it "risk assessment" and started calling it what it actually is: a structured argument between the NFPA handbook and the messy reality of a panel that was wired by someone who retired in 1998. The standard, in its current form, demands a documented evaluation before any energized work happens. The evaluator has to consider arc flash boundaries, incident energy levels, the likelihood of an arc fault occurring, and the severity of potential injury. That list sounds straightforward until you stand in front of a 480-volt switchgear room and realize the engineering drawings don't match the actual conductor lengths, and the main-tie-main configuration means fault currents could be anywhere from twelve thousand to forty thousand amps depending on which transformer is feeding the bus at that moment. The core loop is this: identify the hazard, estimate the energy, define the boundary, select PPE, and document everything so someone else can verify your math without having to redraft your entire job plan. NFPA 70e Risk Assessment isn't really a single calculation. It's a chain of dependencies where one wrong input cascades through every downstream step.

The Workflow I Use

Start with the one-line diagram. If the facility doesn't have one, or if it has one and it's from three different eras of construction, stop and build it first. I've seen people skip this and plug numbers from a 2004 feed into a 2023 arc flash study, then wonder why the PPE category didn't match the actual incident energy at the work location. Run the fault current analysis. You need a proper load flow study that accounts for all contributing sources, not just the utility. Motors contribute. Transformers on adjacent buses contribute. Sometimes the VFDs contribute more than the utility does at certain harmonic frequencies, and that matters for interruption time calculations even though nobody thinks about it until after the incident. Calibrate the clearing times. This is where most studies go wrong. A 1200-amp fuse might clear in 0.04 seconds on paper, but the actual melting integral curve shifts when the ambient temperature is 115 degrees in an enclosed room with no ventilation. I worked on a site where the published clearing time was based on a 25-degree Celsius environment, and the real-world clearing time was nearly double because the fuses were thermally preloaded before any fault even occurred.

Calculate incident energy at the working distance. The standard formula references the arc power, the exposure time, the grounding system, and the voltage class. But here's the thing most beginners miss: the working distance matters more than the voltage level when you're in the 2400-volt range and above. Moving from 18 inches to 36 inches can drop your incident energy reading by half, which flips your PPE category and changes whether you need the heavier jacket or not. Set the arc flash boundary and limited approach boundary. These aren't arbitrary. The arc flash boundary is where the incident energy equals 1.2 calories per square centimeter. Everything inside that line requires PPE. Everything outside that line can still cause injury from thermal burns if a fault erupts and you're too close, which is why the limited approach boundary exists as a secondary threshold.

A Practical Problem I Encountered

Here's a specific edge case that burned me. I was assessing a hospital's standby generator room where the utility and the generator had an automatic transfer switch with a 30-second crossover time. The arc flash study showed incident energy at 4.8 cal/cm2 at the main distribution panel during utility power. That meant Category 2 PPE. Standard stuff. No big deal. But during a generator-only test, the study didn't account for the significantly lower fault current contribution from the generator compared to the utility. The actual incident energy dropped to 1.2 cal/cm2, which is Category 1, but the label on the panel still read Category 2 because the original assessment never considered the generation mode separation. A technician saw the label, grabbed the Category 2 gear, spent twenty minutes dressing, and then realized the generator was isolated anyway and he could have worked with Category 1 instead. Wasted time, but also a real safety concern because he'd been exposed to higher-rated PPE that might have reduced his dexterity when he didn't need it. The workaround was to add a generator-mode annotation to the arc flash label that explicitly stated the dual rating: utility-fed conditions at 4.8 cal/cm2, generator-only conditions at 1.2 cal/cm2. The hospital's maintenance team then had a simple decision tree instead of guessing which mode was active. It took about four hours to recalculate and relabel, and it prevented at least one future misunderstanding.

Counter-Intuitive Insights Most People Miss

First: higher fault current doesn't always mean higher incident energy. If the overcurrent protection device is properly sized and coordinated, a higher fault current causes the breaker to trip faster, which actually reduces the total arc duration and therefore reduces the incident energy. A well-coordinated protection scheme can produce lower incident energy than a poorly coordinated one, even with the same fault current levels. This flips the usual assumption that more fault current is always worse for arc flash. Second: the type of overcurrent device matters more than its rating. A bolted pressure fuse might clear a fault in 0.02 seconds, while a molded case circuit breaker at the same ampere rating might take 0.3 seconds. That's a fifteen-fold difference in exposure time, which means the incident energy from the breaker could be fifteen times higher. People focus on the amperage number and ignore the clearing time curve, which is where the real danger lives.

The Honest Limitations

NFPA 70e Risk Assessment is not a perfect tool. It assumes steady-state conditions that rarely exist in real industrial environments. The standards use generalized equations that don't capture every variable in every specific installation. The documentation requirement creates a paper trail that can look thorough on the surface while missing the edge cases that actually matter. There's also a significant bottleneck: the study is only as good as the input data. If the as-built drawings are wrong, the study is wrong. If the protective device settings haven't been updated since 2018, the study is stale. I've seen valid-looking assessments that failed because someone changed the transformer tap position without updating the fault current calculation, and that single change shifted the incident energy enough to push a Category 2 into Category 3, which should have triggered different PPE requirements that nobody was following. The alternative when a full study isn't practical is a conservative field assessment using published tables from the NFPA handbook, but that approach tends to overestimate PPE categories by one or two levels, which means workers wear heavier gear than necessary without understanding why. It's safer, but it also creates complacency because the PPE feels excessive and people start cutting corners on other aspects of electrical safety.

If you're dealing with a complex facility with multiple power sources, generator interlocks, or variable frequency drives, a hand calculation won't cover it. You need proper modeling software like ETAP, SKM, or CYME, and you need someone who understands both the electrical engineering and the NFPA requirements to interpret the results. The cost of a professional study ranges from two thousand to fifteen thousand dollars depending on facility size, but a failed study that misses an actual arc flash event costs a lot more than that in human terms. The documentation itself is the weak point. Most facilities treat the arc flash label as the end product rather than as one component of a living safety process. The label doesn't change when you change the load, or modify the protection settings, or add new equipment. I recommend quarterly reviews of the one-line diagram and protection coordination, with annual re-verification of the incident energy calculations if anything has changed since the last study. That usually takes about thirty minutes per major panel if you have the data organized, and it catches the drift before it becomes a hazard.
