Thermodynamics Problems That Come Up When You Work With Otto Cycles
The Otto cycle is straightforward on paper but the actual problems students and engineers run into tend to cluster around a few specific failure points. Most mistakes happen at the intermediate calculation steps, not the final efficiency formula. If you are just memorizing eta equals one minus the compression ratio to the negative gamma minus one, you will struggle the moment a problem deviates from standard air-standard assumptions. That formula assumes constant specific heats, which is fine for rough estimates but falls apart when temperatures exceed roughly 800 kelvin. The real work begins when you have to account for variable specific heats or when the problem introduces irreversibilities that the textbook simplifies away. One thing most guides leave out is how the isentropic efficiency of the compressor and turbine phases completely changes the picture. In a real spark-ignition engine, the compression stroke is not adiabatic and reversible. Heat transfer during compression and friction losses mean the actual work input is higher than the ideal case. I once spent about three days tracking down why my cycle analysis kept producing an efficiency of 62 percent when a similar real-world engine benchmark was sitting at 41 percent. The issue was that I had used cold-air-standard assumptions throughout the entire cycle. Once I switched to variable specific heats using air tables and incorporated isentropic efficiencies of 85 percent for compression and 88 percent for expansion, the result dropped to 43 percent, which was much closer to reality. The fix was not complicated but finding it required going through each process separately instead of relying on the shortcut formula. Another common problem involves the cutoff ratio confusion. People who come from the Diesel cycle background sometimes mix up the constant-volume heat addition assumption of the Otto cycle with the constant-pressure process in the Diesel cycle. When a problem gives you pressure ratios or volume ratios across the combustion phase, you have to be clear about which process you are actually looking at. In the Otto cycle, heat addition happens at constant volume, so the volume does not change between states two and three. If you see a problem where the volume changes during combustion, it is not an Otto cycle. That distinction matters because it changes the entire calculation path. Using the wrong relationship between pressure and volume in that step can throw off every subsequent number by 10 to 15 percent.

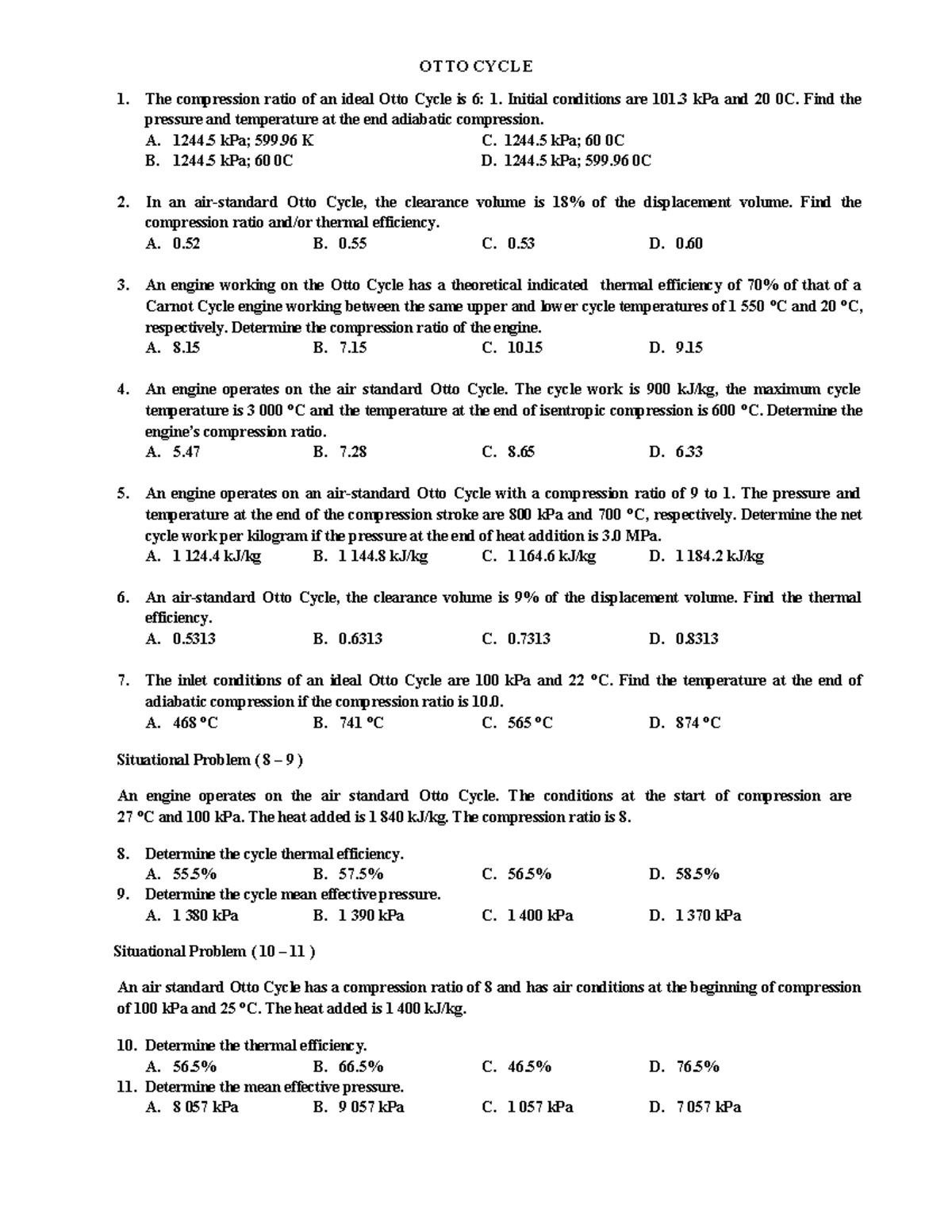

Here is a practical approach that works more reliably than just plugging numbers into the efficiency equation. First, identify all four states using the given compression ratio and any other constraints like maximum temperature or heat input. Write down the known values for pressure, temperature, and volume at each state boundary. Then apply the isentropic relations between states one and two, and between states three and four. For the constant-volume heat addition between states two and three, use the ideal gas law to find whichever variable is missing. The heat added is simply the mass times the specific heat at constant volume times the temperature difference between those two states. Do the same for the heat rejection between states four and one. Net work is heat in minus heat out. Efficiency follows directly from that ratio. When the problem includes actual engine parameters rather than ideal air-standard conditions, you have to deal with things like residual exhaust gases, real gas behavior, and the fact that the working fluid is not just air throughout the cycle. During combustion, the products are a mixture of nitrogen, carbon dioxide, water vapor, and excess oxygen, each with different specific heat capacities. I found that using an average specific heat value evaluated at the mean temperature of each process gives results within about 3 percent of more detailed chemical equilibrium calculations, which is usually sufficient for homework and preliminary design work. If you need higher accuracy, you would run a cycle simulation with software like Cantera or MATLAB with thermodynamic property libraries, but that is overkill for most academic purposes. The compression ratio itself is a frequent source of errors. Students sometimes calculate it as the volume at state three divided by the volume at state one, when it should be the maximum volume divided by the minimum volume, which is the clearance volume. The clearance volume is the space remaining when the piston is at top dead center. The displacement volume is the swept volume. The compression ratio is the sum of those two divided by the clearance volume. Getting this wrong shifts every other number in the problem because the isentropic relations depend entirely on the correct ratio. I have seen this mistake cost people full credit on exams even when their understanding of the rest of the cycle was solid.
For problems involving actual engine testing data, you might be given brake power and indicated power separately. The brake thermal efficiency and indicated thermal efficiency are different numbers and both matter. The difference between them is the friction mean effective pressure, which accounts for mechanical losses. If a problem asks for the overall efficiency of the engine, you need to know which efficiency metric they are actually asking for. This distinction is often glossed over in textbooks but it shows up repeatedly in practical applications. A well-tuned gasoline engine typically achieves a brake thermal efficiency between 25 and 30 percent under normal operating conditions. Values above 33 percent are possible with modern direct injection and high compression ratios, but that requires careful management of knock limits. One specific edge case that causes headaches involves problems where the maximum cycle temperature is limited. In real engines, materials and knock constrain the peak temperature. When a problem states a maximum temperature limit, you cannot just assume any compression ratio you want. The compression ratio becomes a dependent variable that you solve for based on the temperature constraint. I encountered this on a design project where we were trying to optimize the compression ratio for a prototype engine. The theoretical efficiency kept climbing as we increased the ratio, but the peak temperature exceeded the knock limit at a compression ratio of 11.5 to 1. We had to back it off to 10.5 to 1 and accept the lower theoretical efficiency. The workaround was running a quick knock model that related the end-gas temperature to the compression ratio and fuel octane rating. This kind of coupled constraint is rare in textbook problems but it is very common in actual engine development. If you need practice problems with solutions, most thermodynamics textbooks include a large set at the end of the combustion or power cycles chapter. Cengel and Boles, Fundamentals of Thermodynamics by Sonntag and Borgnakke, and Moran and Shapiro all have extensive problem sets with answers in the back of the book. Engineering toolbox and a few university course websites also publish problem sets with worked solutions. The key is to do enough problems that the pattern becomes automatic rather than having to derive each step from first principles every time. I would suggest working through at least fifteen to twenty varied problems covering different given parameters before you feel comfortable with the material.
