Output Speed Sensor Replacement and Diagnosis Guide for Ford Expedition
The output speed sensor on a Ford Expedition is mounted directly on the transmission case, usually near the tail housing where the transfer case bolts up. It reads the rotational speed of the output shaft inside the automatic transmission and sends that signal to the PCM so it can properly manage shift timing and torque converter lockup. When it fails or gets dirty, the transmission goes into limp mode and you get codes like P0720 or P0722. I ran into a situation a while back where a 2006 Expedition with a 5.4L was throwing a P0720 and the transmission was refusing to go past third gear. The scanner showed zero output speed signal. Visual inspection of the sensor wiring came back clean, no obvious damage. What I found was that the sensor itself was covered in fine metallic sludge from normal wear inside the transmission. That sludge was interfering with the magnetic pickup. The fix wasn't replacing the sensor — it was already a cheap part — it was cleaning the tip of the sensor and the tone ring area. Sometimes the code clears after that. Other times you have to replace both.
Output Speed Sensor On Ford Expedition — Location and Access
On the 4R70W and 4R75E transmissions found in Expeditions from roughly 2003 to 2014, the OSS is located on the driver's side of the transmission tail housing, facing downward toward the crossmember. You access it from underneath the vehicle. The sensor is held in place by a single 8mm bolt. It's a two-wire connector that unclicks with a firm tug. Removing the sensor is straightforward. You'll need a ratchet with an extension and a small wire brush. The connector can be brittle on older vehicles so work the clip carefully. Some people remove the sensor from the transmission without pulling the vehicle high enough to get comfortable access. A jack stand on the passenger side frame rail gives you room. Don't crawl under a vehicle supported only by a hydraulic jack, period.
Testing the Sensor Before You Replace It
There's a common assumption that if you have a code, you just swap the part. That's not always correct. The sensor itself can be good while the wiring between the sensor and the PCM is damaged. Or the tone ring on the output shaft can have missing teeth that the scanner won't tell you about directly. Here's what I do. First, check resistance across the two sensor terminals with a multimeter. A good OSS typically reads between 200 and 600 ohms. If it reads infinite or near zero, the sensor is bad. But don't stop there. With the connector disconnected and the ignition on, check for 5 volts at the harness side. That's the reference voltage from the PCM. If there's no 5V, you're looking at an open or short in the wiring. Also check for continuity from each pin back to the PCM connector using a wiring diagram. The OSS circuit on these Explorers and Expeditions shares ground and signal paths that can be interrupted by corroded splices near the firewall, which is a problem I've seen repeatedly on high-mileage trucks. If the sensor tests good and the wiring tests good but you still have no signal, then you need to look at the tone ring. That's the toothed wheel inside the transmission that the sensor reads. It's not something you inspect without pulling the transmission pan or dropping the tail housing. In one case I dealt with, a previous owner had installed a replacement output shaft that didn't have the correct tooth count for the year and engine combo. The sensor was reading teeth that were there but at the wrong pitch, which threw off the PCM's calculations entirely. The fix was replacing the output shaft with the correct part number for that specific VIN. That kind of issue doesn't show up on a multimeter.
Get the Full Details
Replacing the Sensor — What to Expect
The actual replacement takes about twenty minutes once you're under the truck. Clean the area around the sensor before you remove it so debris doesn't fall into the transmission. There's an O-ring on the sensor body that seals it against the housing. Always replace that O-ring. I've seen people reuse the old one, reinstall, and come back a week later because fluid was leaking out around the sensor. The O-ring costs about eighty cents. Don't skip it. After installation, clear the codes and do a test drive. The PCM needs to see a valid speed signal before it will command normal shift behavior. On some Expeditions, you'll need to use a scan tool to watch the OSS live data parameter. It should read zero when the vehicle is stationary and climb smoothly as you accelerate. If it jumps around or drops to zero while driving, that points to a bad tone ring or a loose sensor that isn't seated properly.
Common Pitfalls

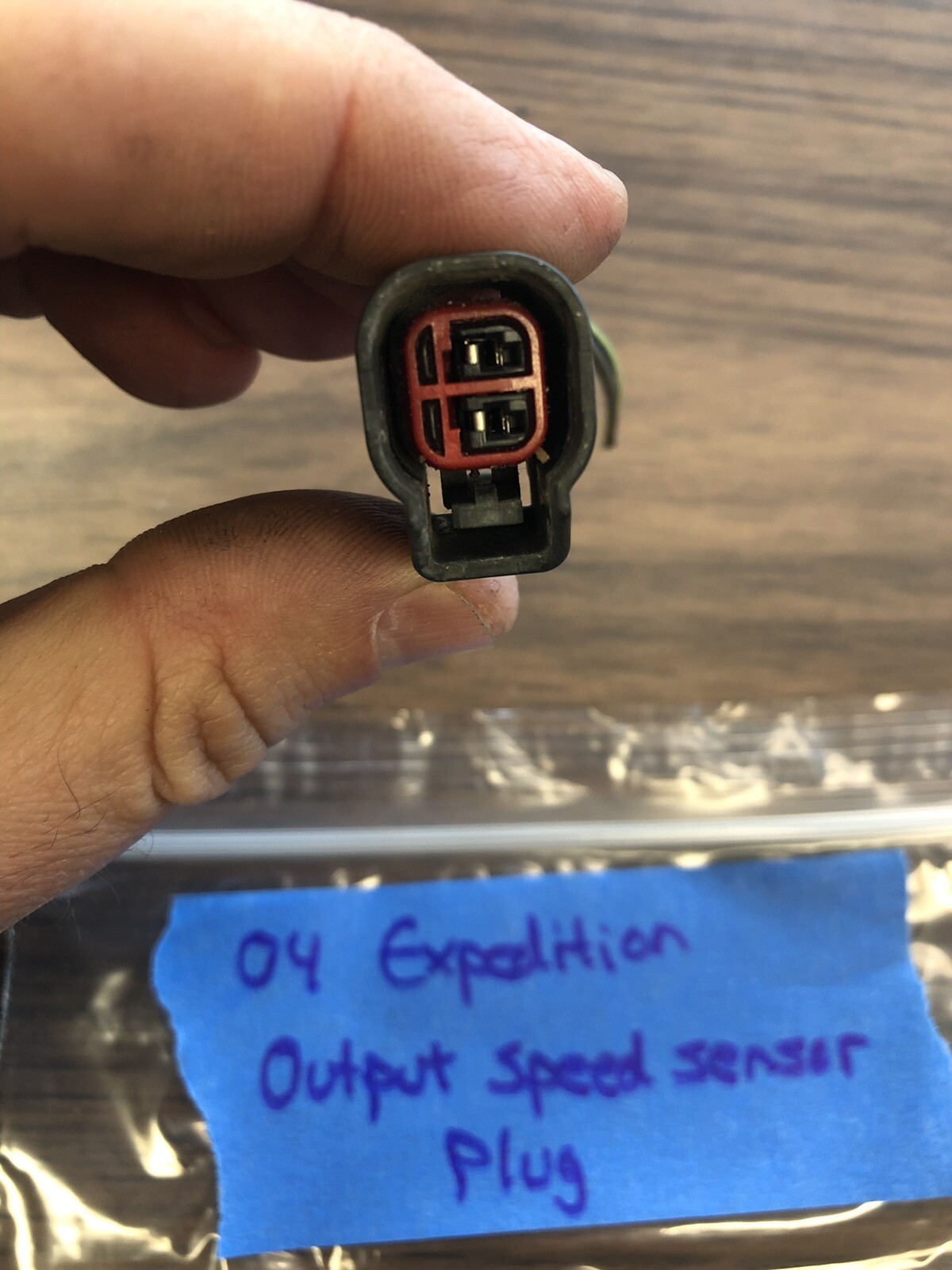

The biggest issue people run into is buying the wrong sensor. Ford uses different output speed sensor part numbers across model years and transmission variants. A 2003 Expedition with the 4R70W has a different OSS than a 2010 with the 4R75E. Even within the same year, the 2WD and 4WD versions can differ. Cross-reference by VIN every time. The aftermarket catalog system gets this wrong more often than you'd think. Another problem is the connector. The plastic locking tab on the two-pin connector breaks fairly easily, especially on older vehicles where the plastic has degraded. If the tab is cracked, you can sometimes tape the connector closed temporarily, but a proper repair means replacing the connector shell. There are repair kits available from automotive suppliers if you search by the Ford connector type number, which is usually listed in the wiring diagram. One thing the sensor code won't tell you is whether your transmission fluid is in acceptable condition. Dark, burnt-smelling fluid accelerates wear on internal components including the tone ring. If you replace the OSS and the problem returns within a few thousand miles, the issue is likely internal. At that point you're looking at a transmission rebuild or replacement, not another sensor swap.
If you're dealing with a P0720 or similar code on your Expedition and want to pull the correct parts and wiring information, you can find technical service bulletins and wiring diagrams through Ford's official service resources or third-party databases like ALLDATA or Mitchell1. Those are the same references mechanics use, though they require a subscription. For basic diagnosis, a decent OBDII scanner that reads transmission codes and displays live data will get you most of the way there without spending money on parts you might not need.
