Understanding Overhead Crane Tests: What You Actually Need to Know
Overhead crane testing isn't complicated, but it's easy to mess up if you wing it. There's a difference between passing a written exam and actually knowing what you're doing when something goes wrong at height with a multi-ton load. I've sat through both sides of this — the testing and the consequences of people who didn't pass the practical portion. The core of overhead crane certification breaks down into three areas: visual inspection, functional testing, and load testing. Each one has specific questions that come up repeatedly across ASME B30.2, OSHA 1910.179, and manufacturer requirements. The answers aren't debatable once you've spent time with the actual equipment.

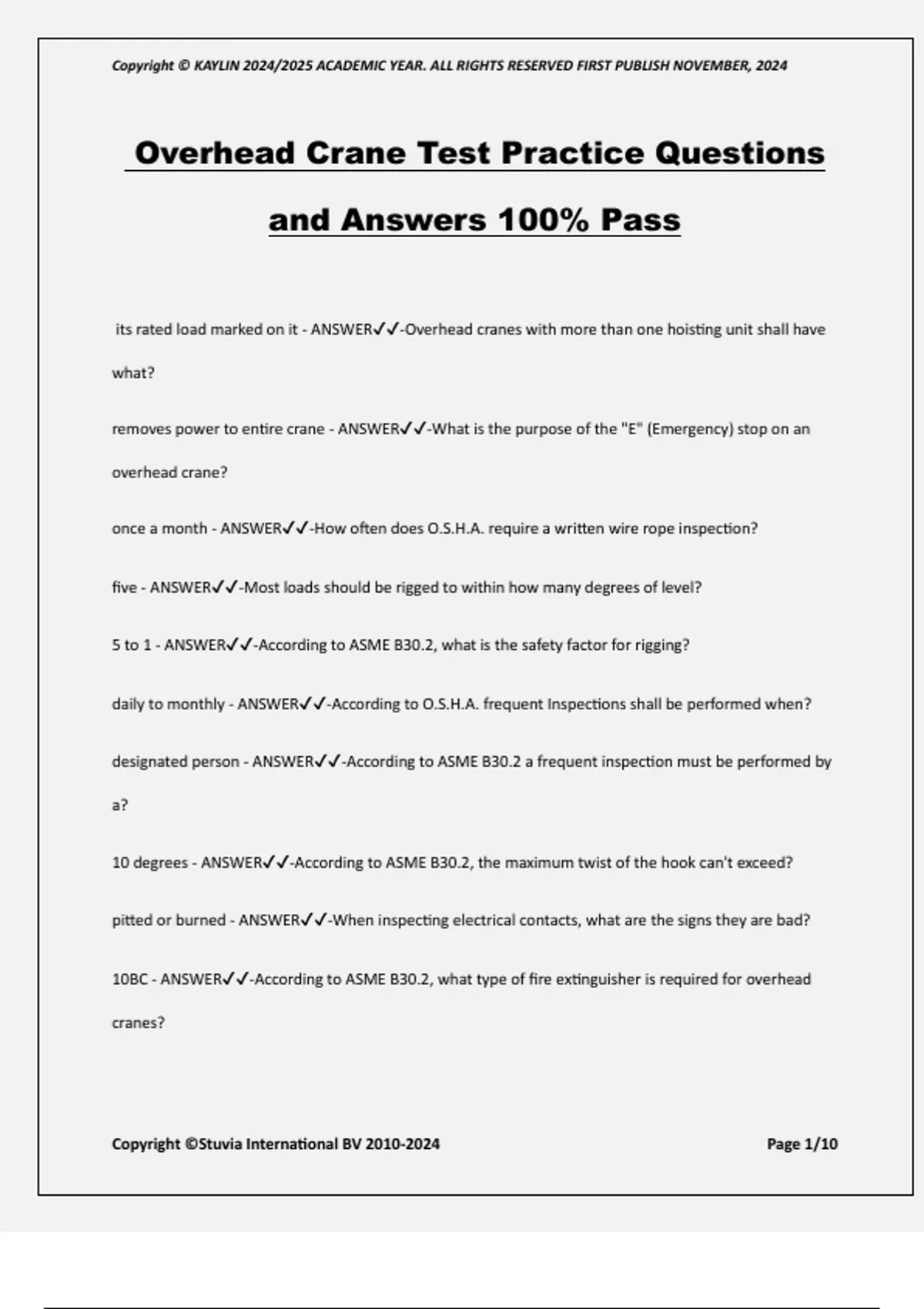

Overhead Crane Test Questions And Answers
Here's where I'll address the specific questions that show up most often on certification exams and pre-employment skills assessments. These aren't made up — they're pulled from actual inspector checklists and company qualification requirements I've encountered over the years. Q: What is the maximum allowable deflection of a bridge girder during a proof load test? The standard answer is no more than L/500 of the span, where L is the distance between end trucks. In practice, most cranes in industrial settings show negligible deflection well below that threshold. If you're seeing measurable deflection close to that limit on a crane that's been in service for years, something has changed — wear, welding issues, or fatigue in the main girders. The calculation itself is straightforward, but interpreting whether the measured deflection is a problem requires understanding the crane's history.
Q: How often must overhead cranes be inspected under OSHA requirements? OSHA 1910.179 splits this into two categories. Frequent inspection covers daily to monthly visual checks of hooks, ropes, chains, wheels, brakes, and locks. This includes looking for cracks, deformation, excessive wear, and proper lubrication. Regular inspection is more thorough — it happens at least annually and covers the complete condition of the crane including structural members, connections, and internal components. The exact frequency for frequent inspections depends on service classification, which runs from normal (1 to 3 hours per day) to severe (continuous operation at high speeds with heavy loads). I've seen companies get cited because they used a blanket monthly schedule for everything regardless of how hard the crane was actually worked. Q: What is the proof load test requirement for a newly installed overhead crane?
Get the Full Details
At 125 percent of the rated load. This applies to the initial installation and whenever modifications or repairs are made that could affect structural integrity. The test load is held off the ground for a minimum of 10 minutes while the operator checks for permanent deformation, cracking, or other damage. If the crane passes at 125%, it must also pass a 100% rated load test. The reverse doesn't work — passing at 100% does not automatically mean the crane passes at 125%. I dealt with a situation where a crane passed its proof test visually but showed a slight bind in one rail after the test. The bind went away once the load was removed, but it indicated misalignment that would cause premature wheel wear. Tightening the rail connections fixed it, but documenting that post-test observation is what separated a competent inspection from a tick-the-box exercise.
Practical Test Scenarios
Scenario: You notice the hoist rope has 3 broken wires in one lay length. What do you do? According to ASME B30.2 and the Wire Rope Users Manual, the acceptance criteria for rotation-resisting rope (common on modern overhead cranes) is typically 5 broken wires in one rope lay or 10 broken wires distributed over three rope lays. For regular lay construction, it's 6 broken wires in one lay. So 3 broken wires in one lay on a typical crane rope doesn't meet the replacement criterion yet. However, you should document it, monitor the progression, and consider the rope's age and service conditions. The pitfall here is that many inspectors automatically call for replacement without checking the rope construction type first. The answer changes completely depending on whether it's rotation-resisting or regular construction. Scenario: The crane bridge won't travel in one direction but works fine in the other. Where do you start?
This is almost always a control circuit issue, not a mechanical one. Check the direction contactor first — the coil may be stuck or the contacts worn on one direction. Then check the limit switches and jogging circuits. I remember a case where a 50-ton workshop crane had this exact symptom, and the root cause was a loose terminal on one contactor's auxiliary contact. It wasn't even a failed component. Just vibration loosened a screw over two years of daily use. The lesson: don't replace parts before tracing the circuit with a multimeter. This kind of diagnostic approach cuts troubleshooting time from hours to about 20 minutes if you know which contacts to probe. Scenario: During inspection, you find a hairline crack in the hook throat. What's your call? The hook is scrapped. Period. ASME B30.10 and OSHA 1910.181 are explicit about this. No weld repair, no grinding out the crack and re-inspecting, no secondary NDT to confirm how deep it goes. A cracked hook throat means the stress concentration at that point has already compromised the metallurgy. I've seen operators try to convince inspectors that a surface-level crack can be dressed out and reused. It cannot. The crack root becomes a new stress riser every time the hook is loaded, and fatigue propagation doesn't care about your production schedule. The replacement cost is a fraction of what a failure at height costs.
Load Test Calculations You Need to Know
The mathematical portion of overhead crane testing tends to trip people up not because the math is hard, but because they forget which formula applies to which situation. For sling angle calculations, the tension in each sling leg increases as the angle from horizontal decreases. At 60 degrees, each leg carries roughly 1.15 times the weight divided by the number of legs. At 30 degrees, that jumps to about 2 times the weight per leg. Below 30 degrees, most inspectors and safety officers will refuse to allow the lift. The formula is T = W / (2 × sin ), where is the angle from horizontal. Memorize this because exam questions will give you angles and ask for tension values, and doing trig on a timed test without preparation is unnecessarily stressful. For rated load capacity verification, remember that the nameplate rating assumes the load is centered and the bridge is level. Off-center loads shift weight distribution between the two end trucks, and in extreme cases one truck can see significantly more than its proportional share. A load positioned 10% toward one end truck can increase that truck's reaction by roughly 10% beyond the nominal distribution. This matters for runway beam design, not just crane operation.
Documentation and Record Keeping
This is the part everyone underestimates until an audit hits. OSHA requires you to keep records of the most recent level of inspection, the date of inspection, the initials of the person who performed it, and the location of the crane. For load tests, you need the test load applied, the results observed, and the signature of the qualified person who conducted the test. The record retention period varies. Some jurisdictions require keeping inspection records for the life of the crane plus a few years. Manufacturers often specify 3 to 5 years. The practical rule is: keep them as long as you own the crane, and longer if you sell it. I once inherited a fleet of cranes at a new facility where the previous owner had destroyed all inspection records. We had to bring in a third-party inspector to requalify every crane before we could legally operate any of them. That delayed production by three weeks and cost roughly $8,000 in inspection fees alone. Proper documentation costs nothing but a few minutes per inspection. Neglecting it can cost you weeks of downtime.
Advanced Nuances Most People Miss
One thing that comes up rarely on written exams but shows up constantly in the field: electromagnetic interference affecting crane controls. Modern variable frequency drives and wireless remote controls can experience interference from nearby VFDs, welders, or large motors cycling on and off. The symptom is intermittent fault codes or uncommanded movements. I found one case where a crane's control system would randomly drop communication with the pendant station whenever a nearby arc welder was activated. The fix wasn't on the crane itself — it was adding a line reactor on the welder's power input and rerouting the crane control cable away from the welder's secondary circuit. If your written exam only covers standard troubleshooting and you've never dealt with EMI, this gap will hurt you in a practical assessment. Another counter-intuitive point: brake adjustment. Many technicians think tightening the brake spring makes the brake stronger. It does, but over-tightening causes premature lining wear and generates enough heat to degrade the friction material. The correct adjustment follows the manufacturer's specification for brake stroke, not maximum clamping force. A properly adjusted brake engages smoothly and releases completely without dragging. I've seen cranes with brakes that dragged constantly because someone maxed out the spring adjustment, and the resulting heat eventually weakened the brake linings to the point where they could no longer hold the rated load. The paradox is that an over-adjusted brake ends up weaker than a properly adjusted one.
Things That Will Make You Fail the Practical Portion
Failing the hands-on test usually comes down to three categories: skipped steps, poor load control, and failure to communicate. The most common skip is not performing a no-load cycle test before applying the rated load. Every procedure requires you to run the crane through all functions without a load first. Skip it and you've already failed the safety checklist regardless of how well you handle the load test itself. Poor load control shows up as sloppy signaling, uncommanded swinging, and jerky movements. The examiner is watching how smoothly you operate, not just whether you move the load from point A to point B. Jerky movements indicate that you're riding the controls rather than using them with deliberate, gradual input. This is a habit that develops from rushing. Slow down during the test even if you think you're taking too long. The alternative is getting marked down for every abrupt motion. Communication failures are the easiest to avoid and the most common to overlook. Before moving any load, you need to confirm your signaling method with the signal person if one is assigned. If you're operating without a signal person, you still need to announce your intentions audibly. The question isn't whether you can operate the crane — it's whether you can demonstrate safe operating discipline under observation. Examiners fail people for this regularly because candidates assume they've earned trust by making it through the first few lifts.
When to Use a Third-Party Inspector vs. In-House
OSHA allows in-house inspectors who are "qualified by training or experience" to perform annual inspections and functional tests. However, initial installations, modifications, and repairs that affect structural integrity often require a qualified person with specific expertise in those areas. The distinction matters because a general maintenance technician who knows the crane operates correctly is not the same as a qualified person who can evaluate whether a repaired girder meets engineering standards. If your company has an in-house qualified inspector, use them for routine annual inspections and frequent inspections. Bring in a third party for proof load tests, structural repairs, and any situation where the crane has been involved in an overload incident. The third-party inspection provides legal defensibility that an internal report cannot match. If OSHA or a client comes asking and you only have internal records, your defense options shrink considerably.
Final Practical Notes
The single biggest mistake I see on certification exams is confusing inspection frequency requirements between different service classifications. Normal service cranes get frequent inspection monthly. Intermittent service gets it weekly. Continuous or severe service gets it daily or even at the start of each shift. The exam will give you a scenario and ask what the inspection interval should be. Read the service description carefully before picking the answer. Also, don't overlook the runway itself. The crane is only as good as the structure it runs on. Runway beam deflection, column plumb, and rail alignment all factor into safe crane operation. A crane that tracks properly on a perfectly aligned runway will wear components at a normal rate. The same crane on a misaligned runway will chew through wheels, gears, and motors at 3 to 4 times the normal rate. Inspectors who only look at the crane and ignore the runway are missing half the picture. I once identified a runway column that had settled 3/4 inch over five years, causing the rail to bow. The crane operator reported binding and noise but had been told the crane itself was fine. The real problem was the building structure, not the equipment. Correcting it required shimming the column base and realigning the rail, which cost far less than replacing the worn wheels and gears it was destroying.
