How To Actually Use Circulatory System Trace Worksheets

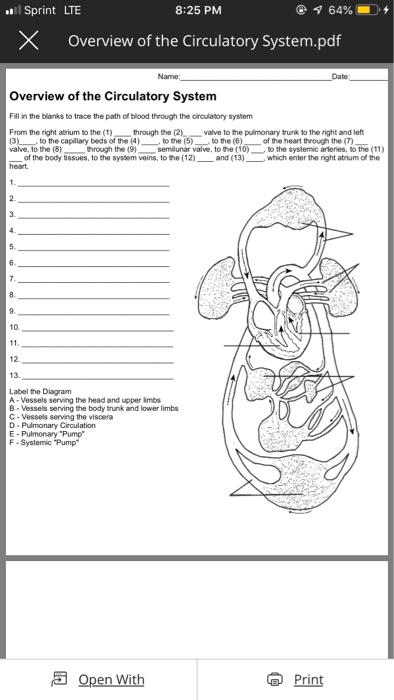

Overview Of The Circulatory System Fill In The Blanks To Trace
I used to struggle with getting students to retain the path blood takes through the body. Lecture-based teaching left them memorizing disconnected terms. The worksheet changed that. The core idea is simple — you present a diagram of the heart and major vessels with gaps where key structures should go, then students trace the flow of blood while filling in each blank. The basic setup takes about twenty minutes to prepare. You pick a blank-outline diagram of the cardiovascular system, remove labels for around twelve to eighteen critical structures, and write a short paragraph describing the path of a red blood cell starting from a specific point. The blanks correspond to whatever terms you choose to hide. Here is how the process actually works when you run it in a classroom. I print double-sided copies so students can use the back for rough work. They follow the path with a colored pencil, starting at the superior vena cava, moving through the right atrium, down through the tricuspid valve, into the right ventricle, out through the pulmonary valve, and along the pulmonary arteries to the lungs. From there the blood returns via the pulmonary veins into the left atrium, passes through the mitral valve, fills the left ventricle, and exits through the aortic valve into the aorta. That is the full circuit, and the blanks go in wherever I think they need reinforcement.
The trick most people miss is picking the right number of blanks. Too few and the worksheet becomes a trivial word-search. Too many and students spend more time guessing than learning. I found through trial and error that twelve to fourteen blanks hits the sweet spot for a standard period. Anything beyond that and the exercise loses its diagnostic value entirely. I also learned that the order matters. If you start the tracing at the wrong point, confusion follows. Beginning at the vena cava creates a natural narrative — the blood is already headed somewhere. Starting at the aorta just dumps students into high-pressure territory without context. This is one of those things that seems obvious once someone tells you, but I did not discover it until a student asked what was happening after the aortic valve and I realized none of the blanks led anywhere useful.
The anatomy behind the exercise
The circulatory system traces two connected loops: pulmonary circulation and systemic circulation. The pulmonary loop is the shorter one. Deoxygenated blood travels from the right side of the heart to the lungs, picks up oxygen, and returns to the left side. The systemic loop carries that oxygenated blood from the left ventricle out through the aorta, branches into every organ, drops off oxygen at the capillary level, and brings deoxygenated blood back through the venous system to the right atrium. When students fill in the blanks, they are not just matching terms to spaces. They are building a mental map of pressure gradients, valve directionality, and oxygen saturation changes. Each blank represents a decision point. The tricuspid valve is between the right atrium and right ventricle. The pulmonary valve sits between the right ventricle and the pulmonary artery. The mitral valve separates the left atrium from the left ventricle. The aortic valve connects the left ventricle to the aorta. Getting these wrong on a diagram tells you immediately where the conceptual gap lives. One thing beginners consistently overlook is the difference between arteries and veins at the pulmonary level. In the systemic circuit, arteries carry blood away from the heart and veins carry blood toward it. In the pulmonary circuit, the pulmonary artery carries deoxygenated blood to the lungs, while the pulmonary vein carries oxygenated blood back. Students mix this up constantly because they associate arteries with oxygenated blood and veins with deoxygenated blood. The worksheet forces that conflict into the open where it can be addressed directly.
Get the Full Details
Building the worksheet yourself
I recommend starting with an unlabeled anatomical diagram. You can find free templates from biology education sites or draw your own. The version I use most often shows the four chambers, the four valves, the vena cavae, the pulmonary trunk, the aorta, and the aortic arch with its three major branches. Labels are removed from twelve strategic points. The paragraph is where the tracing instruction lives. I write it in second person to keep students engaged. "You are a red blood cell..." rather than "The blood cell travels..." It sounds trivial but the difference in retention is measurable over a semester. The paragraph walks them through the complete circuit in sequence. Each blank appears at the exact point in the text where that structure is encountered. Here is a sample paragraph structure I use:
You begin your journey in the
What goes wrong and how to fix it
The most common error I see is students filling in chamber names correctly but mixing up the valve names. They will write "tricuspid" in the right place on the diagram but then write "mitral" where "aortic" belongs in the text, or vice versa. This usually means they have memorized the labels from a static diagram but have not actually traced the flow. The fix is to have them physically point to each valve while reading the paragraph aloud. A rarer problem is confusing the vena cavae. Students will label the superior vena cava and the inferior vena cava interchangeably. I address this by having them mark which vessel sits above the diaphragm and which sits below, then drawing a line across their diagram to represent the diaphragm itself. It takes thirty seconds and eliminates the confusion for most of them. Another edge case is the coronary circulation. Students always ask where the heart's own blood supply fits into the tracing. It does not fit neatly into the main loop because the coronary arteries branch off the aorta immediately after it leaves the left ventricle. I add a note at the bottom of the worksheet explaining this briefly. Most students skip it but a few linger on it, and that is when the teaching moment actually happens.
Assessment value
The real strength of this exercise is diagnostic speed. I collect the worksheets, glance at the blanks, and within thirty seconds I can identify which students understand the sequence and which ones are guessing. A student who has the chambers correct but the valves wrong needs different intervention than a student who has the valves correct but swapped the pulmonary and systemic circuits entirely. Those patterns do not show up on multiple-choice tests the same way. Pairing the worksheet with a quick verbal follow-up — "Walk me through it again, pointing to the diagram" — catches the students who memorized the answers without understanding the path. I started doing this after I noticed several students scoring perfect on the written portion but unable to trace the route with their finger when called on.
Where this method breaks down
The fill-in-the-blank trace works well for the standard adult cardiovascular pathway. It does not handle fetal circulation, where the foramen ovale and ductus arteriosus reroute blood entirely. It also does not cover pathological states like valve stenosis or septal defects without significant modification. If you need to teach the fetal pathway, you need a separate worksheet with different blanks and a different tracing paragraph. Trying to force both into the same exercise just confuses everyone. The method also assumes students have some baseline familiarity with directional terms and basic cardiac anatomy. A student who does not know what "atria" and "ventricles" are will stall before the first blank. I usually pair this exercise with a brief labeling activity first, where they identify all the structures on a fully labeled diagram, then remove the labels and have them reproduce the tracing from memory. For advanced students, I extend the worksheet to include partial pressures, oxygen saturation percentages, and the specific gas exchange events that occur in the pulmonary capillaries. The blanks become harder and the paragraph grows longer, but the structure stays the same. The exercise scales reasonably well upward as long as you adjust the blank density accordingly.
Practical tips for implementation
Use two colors of pencils. One color for the arterial side, one for the venous side. It makes the diagram immediately readable and helps students internalize the oxygenation pattern without needing a separate explanation. The visual distinction sticks better than any verbal description I have tried. Keep the paragraph tight. A worksheet that requires more than three minutes of reading slows the whole lesson down. I trim any sentence that does not add a new structural reference. Redundant phrasing like "you then travel through" gets cut in favor of "you pass through." The word count of the paragraph directly correlates with how many students finish it during the allotted time. Store the blank templates digitally. I keep a master file with different blank configurations for different class periods. Some classes get blanks on the valves, some on the chambers, some on the vessels. Rotating the focus keeps the exercise fresh and tests different aspects of the same circuit. A single static worksheet loses its effectiveness after the third administration because students start memorizing answers instead of tracing paths.
