Working with Palfinger Crane Service Documentation
The service manual for Palfinger cranes isn't something you flip through on a Sunday afternoon. It's a reference document you pull out when something on a PK or PKN series won't cycle right, and you need to know whether the issue is hydraulic, electrical, or just a worn seal that nobody replaced during the last overhaul. These manuals run several hundred pages each, and they're organized by model family rather than by symptom, which means you spend more time hunting than reading sometimes. I've worked with Palfinger equipment across truck-mounted cranes, marine cranes, and industrial lifting tables for about fourteen years now. The manuals have improved noticeably over that time. The early PDFs from the mid-2000s were scanned paper documents with inconsistent formatting and missing page numbers in the wiring sections. The current versions are properly typeset, searchable, and usually include the updated revision notes at the front. But even the good ones have gaps.
Where to Find a Palfinger Crane Service Manual
The official source is always through Palfinger themselves. You can request documentation through their dealer network, and most authorized distributors will email you a PDF for free if you provide the crane's serial number. The serial number is stamped on a plate near the base of the boom or on the turntable housing. Without it, you're guessing at model variants, and Palfinger made enough changes between production runs that guessing leads to wrong torque values and incompatible seal kits. Sometimes you can find older manuals on third-party sites, but those tend to be incomplete scans or outdated revisions. I learned this the hard way when I followed a pressure relief valve setting from a 2008 manual on a 2012 PK 10002 that had been updated with different specifications. The crane ran fine initially, then developed a gradual loss of power over three weeks because the relief was set too high for the improved pump that came with the later version. Two days of troubleshooting before I realized the manual I was reading was two model years behind. If you're looking for a Palfinger Crane Service Manual for a specific model, your dealer portal is the only place I'd trust for current revision data. Palfinger's own website has a documentation section, but it requires login credentials that dealers control. Independent crane repair shops sometimes share copies internally, but sharing them publicly violates the license terms.
How the Manuals Are Structured
Each manual follows roughly the same pattern: general information, hydraulic schematics, electrical diagrams, component descriptions, adjustment procedures, troubleshooting tables, and spare parts lists. The troubleshooting sections are the most useful and the least reliable at the same time. They list symptoms and possible causes, but they don't always reflect the actual failure modes you see in the field. I've had hydraulic pump failures show up as "no boom elevation" with the troubleshooting table pointing toward valve issues for twenty minutes before I noticed the pump coupling was sheared. The hydraulic schematics are generally accurate and detailed. They use standard ISO symbols, which helps if you're already familiar with mobile hydraulic systems. The color coding in the newer manuals makes it easier to trace circuits, though the older black-and-white versions required more patience. Each schematic includes pressure ratings and flow specifications for the circuits, which you'll need when bench-testing components or selecting replacement valves. The electrical diagrams are where things get complicated. Palfinger uses different control architectures across their product lines. The PK series typically uses a relay-based control system with a separate joystick module, while the newer PKN and PKT models have moved toward programmable logic controllers. If you're troubleshooting electrical faults on an older crane, the diagram will show you wire colors and connector pinouts. On the newer units, you'll need the diagnostic software in addition to the manual to read fault codes from the controller.
Get the Full Details
Reading the Torque and Adjustment Tables
The torque specifications are critical, and they're usually organized by bolt grade and size. Palfinger follows ISO standards for thread dimensions, but the torque values themselves can vary depending on whether the bolt is lubricated or dry. The manual will specify which condition applies. I've seen mechanics apply the dry torque value to a lubricated bolt and over-tighten it, then wonder why the bolt stretched and failed prematurely. Always check the note in the table header about surface condition before applying values. Hydraulic cylinder rod adjustment is another area where the manual provides clear procedures but real-world conditions sometimes diverge. The instructions tell you how to set rod protrusion and check seal compression, but if the cylinder barrel is worn from years of side loading, adjusting within spec won't necessarily eliminate leakage. I once spent an afternoon adjusting a boom cylinder that should have been rebuilt. The rod seals held at first, then wept within a week because the barrel had developed a groove from a contaminated wiper that let abrasive material reach the seal surface. The manual wouldn't have told me that without examining the physical condition of the components first.
Common Maintenance Intervals
Palfinger specifies maintenance intervals in operating hours, and the manual breaks them into daily, weekly, monthly, and annual categories. The daily checks are straightforward: inspect hoses for abrasion, check hydraulic fluid level, look for leaks at cylinder rods and fittings, and verify all functions operate normally. The weekly and monthly items get more involved, covering grease points, filter conditions, and electrical connection inspection. The annual inspection is where most fleet managers cut corners. The manual calls for hydraulic hose replacement on a five-year or ten-thousand-hour basis, whichever comes first, and it recommends pressure testing the relief valves annually. In practice, many cranes go eight or nine years between hose replacements because they're in low-use environments. That works until a hose bursts under load, which is exactly when you need the crane most. I've seen two hoses fail on the same crane within a month of each other because they were past their service life and showing external cracking that hadn't been flagged during inspection. Grease points are another area where the manual gives clear guidance but field conditions matter. The boom foot pins and tilt cylinder pins need grease every fifty hours in dusty environments. If the crane operates in a clean workshop, you can stretch that to a hundred hours. The manual doesn't always make that distinction explicit, so you have to read between the lines based on your operating conditions.
What the Manuals Don't Cover Well

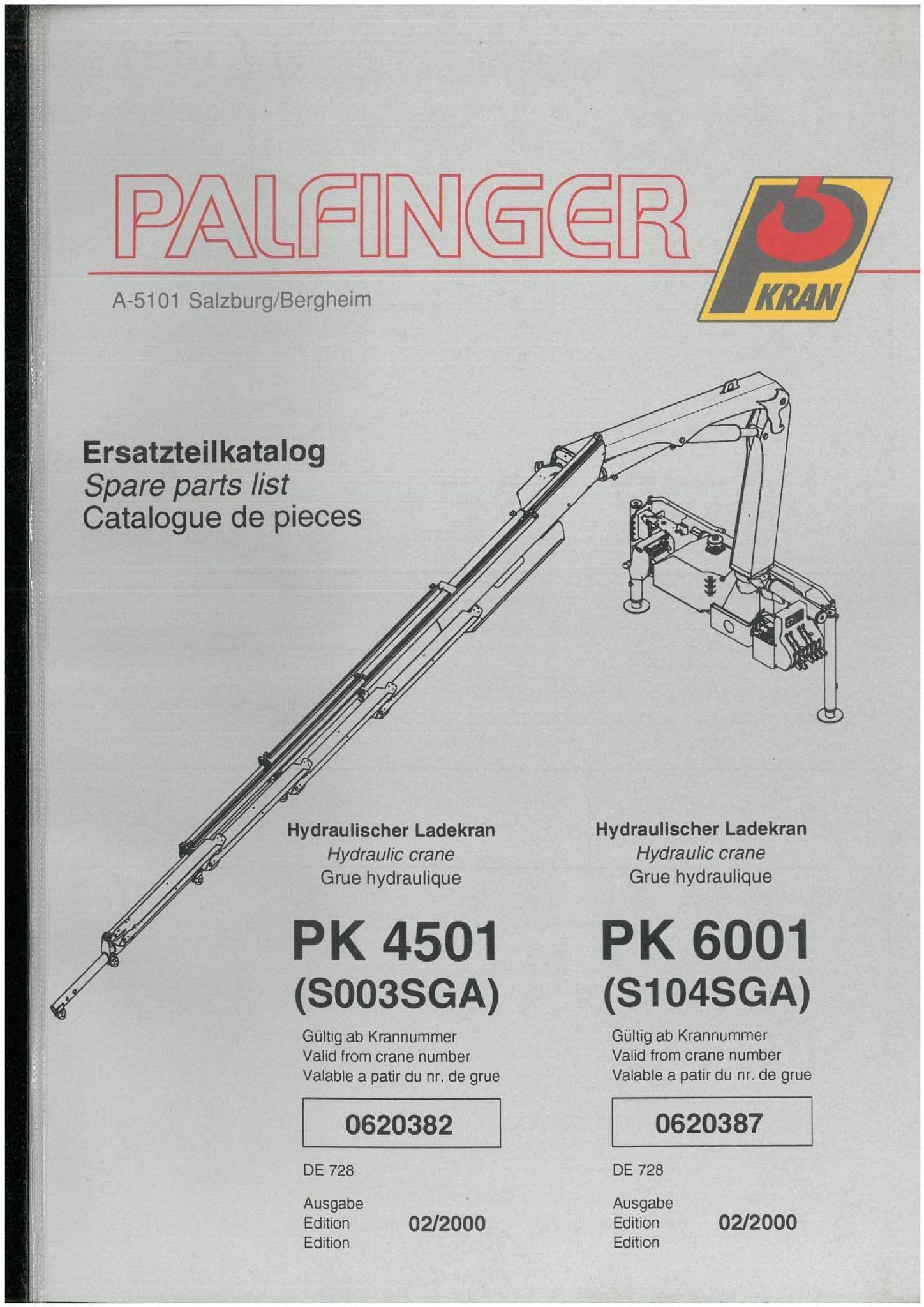

For all their detail, Palfinger service manuals have blind spots. The diagnostic procedures for electronic controllers are thin on the older models. If a PK series crane from before 2010 develops an intermittent fault, the manual will suggest checking connections and measuring voltage at various points, but it won't give you the expected values for every connector in every position. You end up relying on experience and multimeter readings to figure out what's normal. Another gap is the spare parts lists. They're comprehensive but not always indexed by the part numbers you might encounter on replacement kits from third-party suppliers. If you order a seal kit from an aftermarket vendor, the part numbers won't match the manual's numbering system, and you need to cross-reference by description rather than by number. This slows down ordering and increases the chance of getting the wrong kit if the description is vague. The troubleshooting tables also don't account for combined failures well. A single symptom like "slow cycle time" could be a worn pump, a leaking cylinder, a partially clogged filter, or a misadjusted relief valve. The manual lists these separately, which is correct, but it doesn't help you prioritize which one to check first. In my experience, the most efficient approach is to check the hydraulic fluid condition and filter indicator first, then measure pump output pressure, then isolate cylinders one circuit at a time. That sequence catches the majority of issues before you get into component teardown.
A Specific Edge Case I Encountered
There was a PK 8002 that came into the shop with an intermittent loss of slew function. The crane would slew normally for a few cycles, then lose power completely. The troubleshooting table pointed toward the slew motor, the slew gear, and the hydraulic motor seal kit. We replaced the hydraulic motor seal kit on a hunch because the unit had high operating hours and the motor was showing external leakage at the shaft seal. The problem persisted after the repair, which meant the issue was elsewhere in the circuit. The manual didn't mention the slew holding brake as a potential source of this symptom, but I'd seen it before on similar units. The holding brake on the slew motor can fail to release fully, creating enough drag that the hydraulic system pressure drops and the control valve interprets it as a load condition. The workaround was to disconnect the slew hydraulic line at the motor, start the engine, and verify that the brake released with no hydraulic resistance. It didn't. The brake solenoid was receiving voltage but the mechanical linkage was binding from corrosion. Cleaning and regreasing the linkage resolved it, and the crane ran normally afterward. The manual covered the brake electrical circuit but not the mechanical release condition, which is the kind of gap that shows up in real field work.
Using the Manual Alongside Other Resources
No single manual covers every scenario, and experienced technicians supplement the documentation with other sources. Hydraulic schematic databases can help when you're tracing circuits across different model variants. Electrical component suppliers often have application notes that go beyond what the manual provides. And operator forums sometimes have threads where other mechanics have documented unusual failure modes that never made it into the official documentation. The manual remains the primary reference for torque values, adjustment procedures, and approved part numbers. When you deviate from it, you should have a reason. If you're using an aftermarket seal kit instead of the Palfinger OEM part, verify the dimensions match before installation. If you're adjusting a relief valve outside the specified range, document why and recheck the setting after a brief operating period to confirm it hasn't drifted. The manual gives you the baseline. Your judgment fills in the rest. Keeping the manual organized is also worth mentioning. The PDFs are large, and having them scattered across different folders makes finding a specific section tedious. I keep mine in a single directory organized by model series, with a spreadsheet tracking which serial numbers correspond to which manual revisions. That way, when a crane comes in with an unfamiliar production date, I can pull the correct documentation without digging through multiple files. It's a small investment that pays off over time.
