Cascade 1000 Filter Setup and Troubleshooting

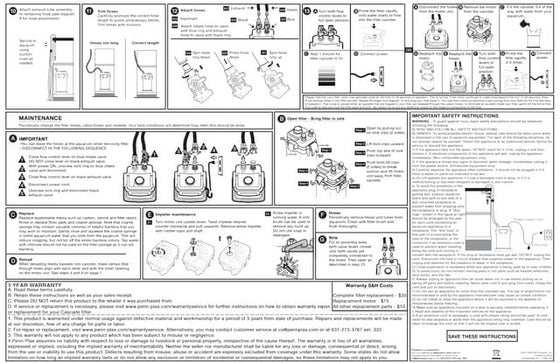

The Penn Plax Cascade 1000 is one of those filters you see in every starter tank because it's cheap and it does the job, but it also has a few quirks that will drive you crazy if you don't know them upfront. I still see people fighting with these at fish stores and forums constantly, mostly because they don't read the manual properly or skip steps during assembly. You can find the official manual on the Penn Plax website under their support or downloads section, but honestly, the PDF isn't that useful on its own. It tells you the basic parts and how to put the box together, which is about it. What it won't tell you is why your filter is making a loud clicking noise three months in, or why the flow dropped to a trickle after a week. The unit itself moves about 100 gallons per hour, which sounds fine on paper for a 10-gallon tank, but the real issue is that this filter gets clogged fast if you don't maintain it. The pre-filter sponge is the first line of defense and the first thing to fail. I had a customer once who never replaced his sponge and ended up with zero water movement because the sponge had turned into a solid mat of debris. The impeller was spinning just fine but there was nothing to pull through. Replacing a $3 sponge would have prevented that entirely.
Here is the practical setup order that actually works, not the theoretical one from the manual: First, assemble the filter body while it is out of the tank. Connect the tubing, seat the impeller chamber, and make sure the O-ring on the intake tube is properly seated and not twisted. Then fill the media tray with your chosen filter media, making sure the coarse mechanical filtration is on top and the bio-media is below it. Put the lid on and secure the clips. Now hang it on the back of your tank and lower it so the intake tube sits just below the water surface. Fill the filter body with water by pouring it in through the top before you plug it in. This primes the pump and prevents the impeller from running dry, which is the quickest way to burn out the motor on these units. That last step is the most overlooked part of the entire process. A dry-running impeller will survive for a few cycles but the shaft wears down and eventually the magnet loses its grip. You end up with that slapping sound that means the impeller is spinning against a worn housing instead of freely rotating.
Common Problems and Fixes
The Cascade 1000 has a few predictable failure points. The impeller assembly is the main one. Every six to eight months you should take the impeller cover off, remove the rotor, and check the shaft for any buildup. I use a cotton swab dipped in dechlorinated water to clean around the bearing area. Aquarium conditioner residue, algae spores, and fine gravel dust all combine into a gunk that reduces impeller speed and increases noise. Another issue is the flow rate adjustment flap on the output. Some people leave it fully open thinking more flow is better. It isn't. For a standard community tank, closing it to about two-thirds gives you better surface agitation without creating a current that stresses sensitive fish. The manual doesn't mention this nuance at all. If your filter starts leaking from the top seams, it almost always means the lid clips are not evenly tensioned. I've had cases where tightening one clip too much warps the plastic slightly and creates a gap on the opposite side. Loosen all four clips, realign the lid, then tighten them gradually in a cross pattern, like you would with a car tire. It holds better and stops the seepage.
Get the Full Details
For media, the stock foam that comes with it is adequate for mechanical filtration but it breaks down faster than third-party Replacement sponges. I started using a pack of Penn Plax Cascade replacement foam and the difference in lifespan was noticeable within two months. The stock foam compresses and loses porosity quickly once it starts holding fine particulate matter. Third-party media like API Filtration Strips or Seachem Filtering Media also work well as upgrades, though you may need to trim them to fit the tray. One thing the manual won't warn you about is that this filter is not designed for planted tanks with heavy bioloads unless you upgrade the media significantly. The 100 GPH rating assumes clean water conditions. Once you add live plants, substrate bacteria, and a moderate fish load, the biological capacity of the standard media tray becomes insufficient. I resolved this in a 20-gallon setup by replacing the bottom media compartment with a small bag of Seachem Fluorite substrate and adding a layer of matrix media on top, which boosted nitrification capacity without reducing flow. The trade-off is that you need to rinse the matrix media less frequently, maybe once every six weeks instead of the standard monthly schedule.
When the Cascade 1000 Isn't the Right Choice
This filter works fine for small, lightly stocked tanks up to about 20 gallons. Beyond that, the flow rate becomes inadequate and the media capacity maxes out quickly. If you have a 30-gallon tank or plan to keep larger fish, a canister filter or a hang-on-back model with a higher GPH rating will serve you better. The Cascade 1000 also struggles with heavily planted tanks because the surface agitation it creates can uproot young plants, and the intake suction is strong enough to pull in fry or small invertebrates unless you add a pre-filter sponge or mesh guard. Regular maintenance on this filter takes about ten minutes per month if you are just rinsing the sponge and checking the impeller. If you skip maintenance for more than three months, you are looking at a full teardown and deep cleaning that could take 30 to 45 minutes. The parts are inexpensive and widely available, which is one reason these filters have stayed in production for so long, but neglecting them turns a simple task into a frustrating project. If you want the manual, search Penn Plax official site for the Cascade series PDF. It is accurate for the basic assembly steps but you will learn most of what matters by paying attention to how the filter behaves over its first few months of use. The problems are predictable and the fixes are straightforward once you know what to look for.
