Working with the Pickett Slide Rule Manual

When I first picked up the manual for a Pickett N4-ES, I assumed it was just a glorified user guide. It's not. The thing is dense, occasionally contradictory, and written for engineers who apparently share a brain. The slide rules themselves were built to be intuitive - the scales tell you most of what you need without reading a word. The manual exists for the cases where the scales don't cover everything, or where you need to know what happens when two scales interact in a way that isn't immediately obvious. The original Pickett manuals aren't exactly easy to track down in print. Most people find them through scanned copies on sites like the Slide Rule Museum or Archive.org. The document itself runs about 80 pages for the N4-ES model, covering scale layouts, worked examples, and then a long section on special scales like the LL scales, trigonometric functions, and constants. If you're looking at a different model - the N5, the 10/20, the Trumath - the manual varies considerably in content. The N4-ES manual is the most commonly referenced one, and the one most people end up hunting for. The manual doesn't organize information the way you'd expect. It puts the simplest operations - basic multiplication and division - near the back, after pages of scale descriptions and mathematical derivations. I found it more useful to flip to the middle sections first, where the actual worked examples live, then go back and read the theory. Reading front-to-back is a good way to lose interest within ten pages.

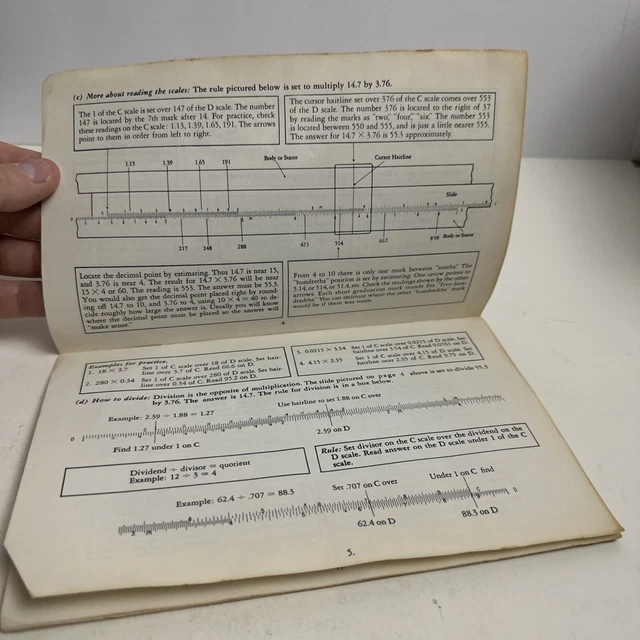

Here's the thing most people miss when they start using a Pickett with the manual: the scales are marked with a precision that the human eye can't actually resolve. The N4-ES gives you roughly three significant figures of readability. Some of the finer graduations are there for consistency across models, not because you're supposed to read them. I spent a solid afternoon trying to read the thousandths place on the C scale before someone pointed out that the manufacturer's own accuracy specification was 0.3 percent. You're not going to beat that with your eyes. Stop pretending you can. Another counter-intuitive detail: the CI scale (inverted C) isn't just a convenience for division. It's significantly faster than using the C and D scales together when you're doing a chain of mixed multiplication and division. The standard approach - align the index, move the cursor, read - works fine for single operations. But if you're calculating something like (A × B) / (C × D), flipping between C and CI saves you from resetting the slide three or four times. I went through about six months of habitually using the standard method before I even noticed the CI scale was inverted. Once I started using it properly, my typical engineering calculation time dropped from maybe five minutes to under ninety seconds. That's not a small difference when you're doing batch work. The LL scales on the N4-ES are probably the part of the manual that generates the most confusion. These are the log-log scales, and they let you compute exponential and logarithmic functions. The manual describes them, but it doesn't make clear how they actually work mechanically. The LL scales are laid out so that the logarithm of the logarithm of the value is proportional to distance from the index. That's why you can read e^x directly - the slide rule is essentially doing a double logarithm transformation and then inverting it. The manual mentions this in a footnote somewhere around page 34, buried between explanations of the K scale and a table of physical constants.

There's a real edge case with the LL scales that the manual doesn't flag explicitly. When you're working near the boundaries - LL1 for values roughly between 1.01 and 1.1, LL2 for 1.1 to 4, LL3 for 4 to 55 - the scale compression gets severe at the upper end. On LL3, the distance between 50 and 55 is maybe a quarter of an inch. If you're trying to extract three-figure precision from that region, you're asking a lot. I ran into this when calculating time constants for RC circuits with large capacitance values. The manual would have you read 52.3 or something close, but the actual value was closer to 51.7. That half-unit error matters when you're designing for a specific frequency response. My workaround was to shift the calculation - instead of reading directly off LL3, I'd use the L scale in combination with the C scale to reframe the problem into a range where the scale spacing was more generous. It added a step but improved accuracy noticeably. The trigonometric scales are another area where the manual and the actual instrument diverge in usefulness. The T and ST scales are straightforward for angles up to about 57 degrees, but beyond that you're relying on the S and T scales working in tandem, and the manual's examples get thin. The SIN/COS scales on some Pickett models help, but not all versions include them. If you're doing anything with angles above 45 degrees regularly, check which variant of the N4-ES you have before you commit to it for that work. One practical note about the manual itself: the printed editions have typos. Not minor ones. There's a worked example on page 47 where the intermediate result is clearly wrong, and the final answer compounds the error. I caught it because the answer didn't match my own calculation, and then I traced back through and found the mistake in the second step. This isn't unusual for technical manuals from this era - the typesetting was done by hand, and Pickett's QA process clearly wasn't exhaustive. Always verify a worked example yourself before trusting the manual's arithmetic.

The manual also assumes a baseline familiarity with logarithms that most people coming to slide rules today don't have. It references properties like log(a/b) = log a - log b without derivation. If you've never actually worked through why the slide rule multiplication works from first principles, those sections will read like alphabet soup. I'd recommend keeping a basic logarithm reference nearby rather than expecting the manual to teach you the underlying math. For actual use, the most valuable part of the manual is the constants table at the end. Values for pi, e, sqrt(2), conversion factors between metric and imperial - these are things you reach for constantly and that would take longer to look up elsewhere than to find on the rule. The manual organizes them reasonably well, though again, the organization assumes you know what you're looking for before you find the right page. If you're trying to learn slide rule operation from the manual alone, it's possible but inefficient. Pair it with visual demonstrations - there are decent video walkthroughs on YouTube that show the hand positions and scale alignment in a way that 80 pages of text can't match. The manual is best used as a reference when you're stuck on a particular scale combination or need to understand why a result looks wrong. It's not a teaching document, despite how formal it appears.
