What You Actually Need to Know About Playground Matting

I spent about six years installing and specifying impact-attenuating surfaces before I stopped doing the hands-on work. The short version is that most people walk into this completely blind, which is understandable because the industry sells it like a consumer product when it is nothing of the sort. A Playground Mat is not a rubber tile you buy at a home center and lay down in the backyard. It is a engineered safety system that has to pass ASTM F1292 or EN 1177 impact attenuation testing, and the difference between a compliant installation and one that fails the drop test is usually a single bad decision about substrate prep or infill depth. Let me start with the thing nobody tells you until after the incident report comes back: the critical dimension is not the mat thickness you see from the outside. It is the critical height of fall and the required fall zone radius, both of which dictate the minimum nominal depth of the loose-fill or bonded surface underneath. For a piece of playground equipment rated at a 6-foot critical height, you are looking at a minimum 8-foot unobstructed radius around it, and the surface under that radius has to sustain a GMax of 200 or less when tested with the standard head impact criteria device. Most contractors miss the radius requirement and cut it down to save money. It does not matter how good your mat looks if the corner of the fall zone gets compacted into concrete-hard packed earth six months later.

Types of Playground Mat Systems

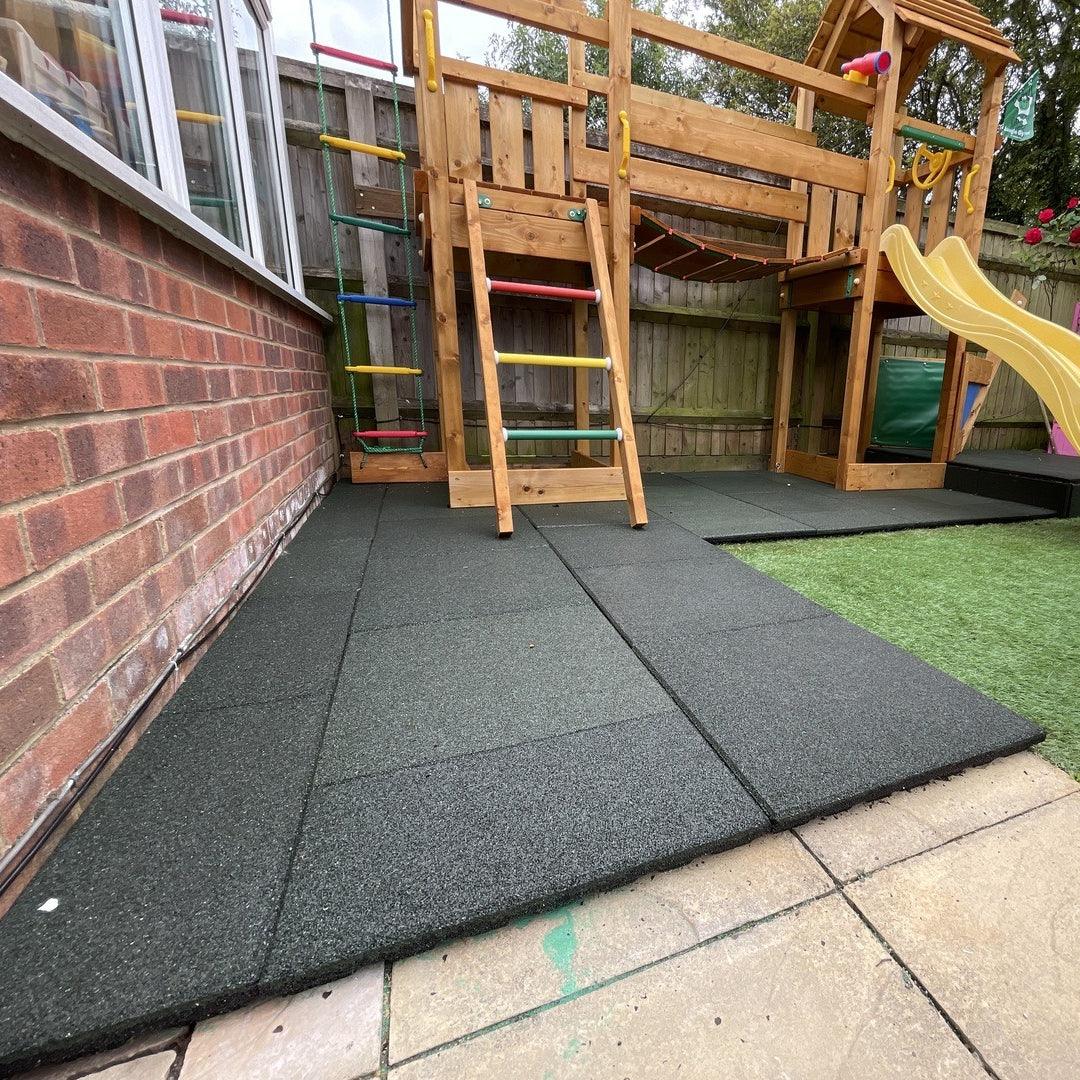

There are really three families you will run into on actual job sites, and picking the wrong one for the application is the most common failure mode I see. Poured-in-place rubber is the one that looks best and costs the most. You pour a liquid rubber compound onto a prepared base, broadcast the color flakes, and let it cure. It gives you seamless custom graphics and can be built up to whatever depth the engineering calculation requires. The downside is that it needs a stable, well-drained substrate, it takes 24 to 72 hours to cure depending on temperature, and if the base settles even a quarter inch in one area you will see telegraphing cracks within a year. I had a project in Ohio where the contractor skipped the geotextile separator between the crushed stone base and the native clay, and the p.i.p. surface delaminated in two sections after the first freeze-thaw cycle. They had to cut it out and redo about forty percent of the install. Cost me about three weeks of rework and a very uncomfortable conversation with the city parks director. Rubber tiles and mats, including the interlocking kind, are faster to install but introduce seams that can lift. The interlocking polypropylene or rubber tiles with poured rubber infill are actually decent for light commercial use if you get the subbase right. The problem is that cheap interlocking tiles without proper locking mechanisms will spread apart over time, especially in the high-traffic areas near swings and slide exits. Once those seams open, water gets underneath, and you get freeze-thaw heaving or just general buckling. I specify a minimum 4-inch compacted crushed stone base with a compacted asphalt or concrete slab underneath whenever I can get it, and I always require a permeable geotextile fabric between the soil and the stone. That single detail prevents about ninety percent of the premature failures I see in the field.

Unitary rubber mats are the pre-manufactured sheets you roll out, usually 4x8 or similar dimensions, and adhere or mechanically fasten to the substrate. They come in thicknesses from half an inch to two inches. The thickness determines what fall heights they are rated for, and the ratings are printed on the manufacturer spec sheet. A half-inch mat is usually rated for a 4-foot critical height. A one-inch mat might be rated for 6 or 7 feet. You have to match the mat rating to the equipment rating, not the other way around, which is backwards from how most people think about it.

Substrate and Drainage

This is where the real work happens, and it is also where most budgets get cut because nobody sees the value in something buried underground. Your subbase needs to be permeable, well-compacted, and level. I prefer a 4-to-6-inch layer of compacted crusher run or Grade 57 stone, finished to a slight crown of about one-eighth inch per foot for drainage. If you are pouring into a low spot or a flat area with poor natural drainage, you need perimeter French drains or at minimum a sloped perimeter toward a catch basin. The old trick of just laying mulch or pea gravel under equipment and calling it a day is not acceptable for any commercial or public playground. Loose wood fiber, sand, or pea gravel can work in residential settings if you maintain them, which almost no one does. They compact, they scatter, they wash away, and the impact attenuation drops below safe levels within a season. I once tested a schoolyard installation with loosely spread rubber mulch and the GMax readings were between 350 and 480 in the high-use zones. The spec limit is 200. That is more than double the acceptable threshold, and it is the kind of number that shows up in liability paperwork after an injury.

Installation Checklist

When I am reviewing an installation, I walk through this sequence and anything missing is a red flag. The ground needs to be cleared of organic material. Topsoil and grass beneath a rubber surface is a guaranteed failure. Remove at least the top 4 inches of soil in the playground area and the extended fall zone perimeter. Lay geotextile fabric over the exposed subgrade. Spread and compact the aggregate base in lifted layers, not all at once. Check the compaction with a plate compactor and verify density. Level and crown the surface. Install edging or containment if required by the mat system. Then and only then do you lay the playground mat. For poured-in-place systems, the ambient temperature during pour matters a lot. Below 50 degrees Fahrenheit, the curing chemistry slows down significantly and you can get weak spots or improper cross-linking. Above 90 degrees and you are racing against the pot life, which means smaller crews and more wasted material. The ideal window is 60 to 75 degrees with low humidity. I always check the weather forecast for the pour day and have a contingency plan for rain, because a pour ruined by unexpected precipitation has to be entirely removed and redone. There is no patching it out.

Testing and Maintenance

Impact attenuation testing should happen after installation and then periodically, ideally every 12 to 24 months depending on usage. The test uses a drop test apparatus that releases a weight from a specified height onto the surface and measures the peak g-force transmitted through the mat. The result has to read 200 GMax or less. If it reads higher, the surface has degraded or was installed below the required depth. You cannot fix a failing surface by topping it off in most cases, especially with poured-in-place rubber. The material properties change as the rubber ages and UV exposure breaks down the binders over time. Regular maintenance is straightforward but again, people skip it. Sweep or power wash the surface annually to remove debris and biological growth. Inspect seams on tiled systems for lifting. Check drainage paths around the perimeter. Trim back any vegetation that overhangs the fall zone, because falling branches and fruit can damage the surface and introduce trip hazards. Keep the fall zone clear of stored equipment, bikes, and other obstructions. Those two numbers are not theoretical. They are the measured dimensions you need to keep unobstructed.

Cost Reality

A poured-in-place rubber Playground Mat system with proper substrate preparation runs anywhere from $15 to $35 per square foot installed, depending on design complexity, color patterns, and local labor rates. Interlocking rubber tiles run $8 to $18 per square foot. Unitary mats run $6 to $15 per square foot. The cheapest option is rarely the cheapest in the long run because premature replacement costs far exceed the initial savings. I have seen $6-per-square-foot installations get ripped out and replaced within three years due to delamination and seam failure, which works out to a much higher annual cost than a properly specified and installed system at double the price point. Also factor in the fall zone area into your square footage calculations. The equipment footprint is only part of the required covered area. A typical swing set might need a 6-foot-wide by 8-foot-deep fall zone in front and back, plus side zones depending on the manufacturer specification. Multiply that out across a full playground layout and the actual square footage covered is often 1.5 to 2 times the equipment footprint alone.

Common Mistakes

I will list the ones I see repeatedly because knowing what to avoid is as useful as knowing what to do. Installing over asphalt without proper priming or adhesion. The asphalt needs to be clean, sound, and free of sealcoating residues, and you often need a specialized primer for the bond to hold. Installing without checking the equipment manufacturer fall zone specifications. Different manufacturers specify different radii based on their specific critical height calculations. Using a mat rated for a lower fall height than the equipment requires. This is a liability issue, not just a performance issue. Skipping the geotextile layer. Skipping proper base compaction in lifts. Overwatering or poorly draining the subbase. Mixing different product types from different manufacturers in the same install without verifying compatibility. And the big one: not testing the installed surface for impact attenuation before signing off on the project. That test takes about 20 minutes per zone and costs very little compared to the alternative. If you are specifying a Playground Mat for a public facility, make sure the contract language requires ASTM F1292 testing documentation and a passing result before final payment. For residential installs, at minimum verify the product is listed and labeled by a recognized testing laboratory, and follow the manufacturer instructions for substrate and installation depth precisely. Deviating from those instructions voids the warranty and compromises the safety performance.
