Pole Barn Design Guide

The actual work of designing a pole barn

Pole barns are simple in theory and frustrating in practice. You stick posts in the ground, hang trusses, throw on a roof, and call it a day. That works fine until it doesn't, and most of those failures come from skipping the design phase or treating it like a formality. This guide walks through what actually matters when you're designing one. Before getting into layout and engineering, you need to understand your loads. I once designed a 40-by-60 pole barn for a client in central Illinois. Standard snow load, light wind, nothing exotic. The plans looked clean on paper. Then the county engineer came back with a comment: the gable-end wall bracing didn't account for the high exposure category on that particular site. The building sat on a flat, open field with no wind breaks. I had specified E-W wind loads based on a default exposure B rating. That was wrong. Exposure C added roughly 15 percent to the lateral force on those end walls. We re-specified the cross bracing and upgraded the gable-end post sizes from 6-by-6 to 8-by-8. The fix cost us maybe four hundred dollars in extra material and two hours of redrafting. Doing it upfront would have saved the whole back-and-forth cycle with the permit office.

Pole Barn Design Guide

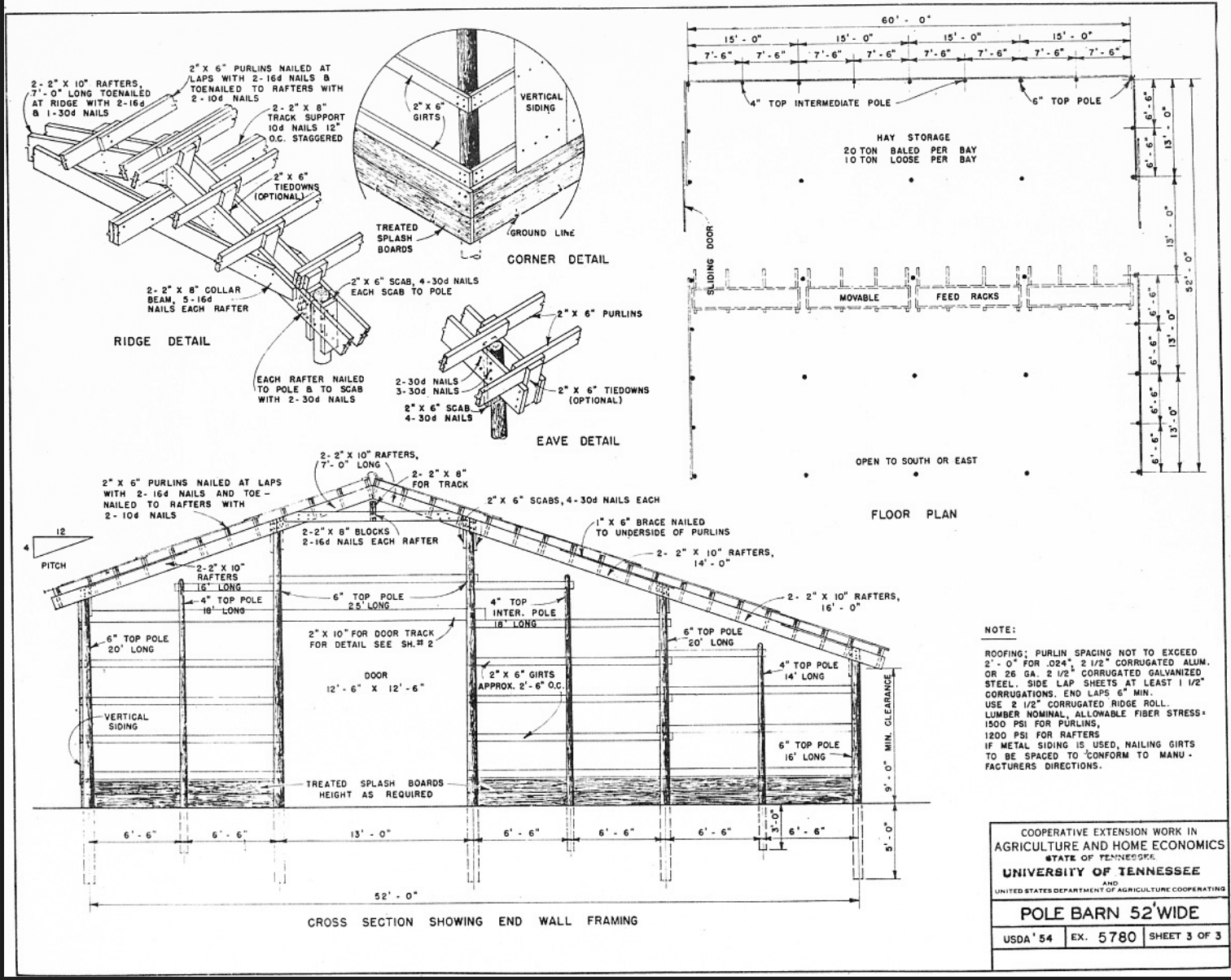

The core steps don't change much from project to project. You start with the footprint and the intended use. A storage shed needs different clear-span requirements than a workshop with a loft or a vehicle bay with overhead doors. Then you look at your local codes for snow, wind, and seismic if applicable. After that you size the columns, space them correctly, and figure out the framing system. The rest follows from there. Get your frost depth before you draw anything. In most of the northern tier, that's between forty-two and sixty inches. Your posts need to extend below that line, or you'll get heave damage within a few years. I've seen it more times than I care to count. A builder in Missouri set his posts at thirty-six inches because the county didn't enforce the code strictly. Two winters later, the building was leaning. The fix involved underpinning every column, which cost more than the original savings from cutting corners. Check your zoning setbacks too. Some municipalities require twenty-five feet from the property line for accessory structures over a certain size. Others have height restrictions based on where the building sits relative to neighboring lots. If you ignore these, you'll get a stop-work order and have to move the building, which is far more expensive than spending an afternoon on the phone with the planning department.

Soil type matters more than most people expect. Sandy soil drains well but offers less bearing capacity for shallow foundations. Clay holds moisture and can shift significantly with weather changes. If you're building on fill dirt, compact it properly before placing your gravel pad. I worked on a project in Ohio where the previous owner had just dumped topsoil and spread it level. The pole barn settled unevenly in the first year, and the door frames twisted shut. You can't fix that without tearing part of the building apart.

Spacing and column sizing

The standard spacing for pole barn posts is eight to ten feet on center. Going wider than twelve feet requires either larger columns or additional intermediate supports. Ten-foot spacing is the sweet spot for most residential applications. It gives you flexibility with shelving and equipment layout without demanding oversized lumber. Column diameter depends on your span and load. A 6-by-6 treated post can handle an eight-foot span with moderate loads. If you're going ten feet between columns and expecting heavier snow or wind, bump up to an 8-by-8. There's no shame in using 10-by-10 for wide spans or heavy-duty applications. They're harder to work with and more expensive, but they eliminate a lot of worry down the road. One thing that surprises people: the embedment depth and the above-ground span interact. A post embedded three feet in the ground with eight feet above it behaves very differently than one embedded four feet with six feet above. The leverage changes. Engineers use this ratio when calculating bending moments at the soil line, which is where most failures occur. Don't skip that calculation just because your builder says it'll be fine. Fine is not the same as correct.

Truss selection and roof framing

Prefabricated trusses are the most common choice for pole barns. They're consistent, code-compliant when manufactured to spec, and faster to install than stick-built rafters. The downside is that you lose usable attic space. If you want a loft or storage above, you'll need scissor trusses or a conventional rafter system, both of which cost more and take longer to install. Truss spacing usually matches your column spacing. Eight-foot on center is typical. For longer spans with heavier loads, you might go six feet on center. More trusses means more connection points and better load distribution, but it also means more material and more labor. Rafter ties or collar ties are essential for keeping the roof from spreading. Without them, the outward thrust from the roof can push the walls apart over time. I've seen buildings where the gable ends bowed inward because the builder skipped the horizontal ties. The fix involved installing temporary braces and then retrofitting steel straps, which required removing sections of the interior finish. Doing it right the first time takes thirty seconds per connection and prevents a catastrophic failure that could take days to repair.

Wall framing and sheathing

Wall height is another area where people make arbitrary choices. Standard wall height for a pole barn is eight to ten feet, but taller walls increase wind load significantly. A ten-foot wall catches more wind than an eight-foot wall, and the difference shows up in your bracing requirements. If you're in a high-wind zone, stick with eight feet unless you have a specific reason to go taller. For wall sheathing, oriented strand board is the most common choice. It provides both structural bracing and a nailing base for siding. Treated plywood works too and has better moisture resistance, but it costs more. I've used both and the difference in performance over ten years is marginal in most climates. The bigger factor is how well you seal the seams and flash the penetrations. Gable-end walls need extra attention. They're large flat surfaces that take direct wind pressure. Cross bracing or Shear Wall construction is necessary here. A common mistake is to rely solely on the sheathing for bracing without adding diagonal bracing or proper hold-downs at the corners. The sheathing helps, but it's not a substitute for dedicated lateral load resistance. I learned this the hard way on a project in Kansas where a 60-mile-per-hour wind event cracked the gable-end framing. The trusses were fine, but the wall panels shifted enough to crack the metal siding along the seams. The repair involved adding cross bracing to both gable ends and reinforcing the connections. It cost roughly two thousand dollars in materials and a week of labor. If we had done it right from the start, it would have been about three hundred dollars and two days.

Doors, windows, and openings

Every opening weakens the structure. That's basic structural engineering. Door and window placements need to be coordinated with your framing plan from the beginning. You can't just cut a twelve-foot garage door opening into an eight-by-eight post without providing a header that redistributes the load above it. Headers over large openings are typically built up from multiple pieces of dimensional lumber or constructed as LVL beams for wider spans. A 12-foot garage door opening in an 8-by-8 wall needs a header rated for the tributary load from the roof and any above. In most cases, a built-up 2-by-12 header spanning the opening will handle it, but check your span tables. Using a pre-engineered lintel beam is faster and more reliable if you're uncertain. Windows are easier but still require planning. A standard 2-by-4 or 2-by-6 King stud and Jack stud arrangement works for small openings up to four feet wide. Anything larger needs a proper header. Also, don't forget about insulation if the building will be conditioned. Framing for windows affects your thermal envelope, and cutting around them incorrectly can create significant air leakage paths.

Floor and foundation options

Pole barns don't always need a full concrete slab. A gravel floor works for storage and equipment buildings. If you're planning to use the space for living or working, a concrete slab is the standard choice. Either way, the subgrade preparation matters more than most builders give it credit for. A proper gravel base consists of a layer of crushed stone, usually four to six inches deep, compacted in lifts. Geotextile fabric underneath prevents the gravel from mixing with the native soil. Without it, your base will settle and rut over time, especially in areas with poor drainage. I recommend using a plate compactor or a roller for anything over a thousand square feet. Hand tamping isn't sufficient for a durable floor base. If you're pouring concrete, the thickness and reinforcement depend on the expected load. Four inches of four-thousand PSI concrete with wire mesh is adequate for light vehicle storage. Six inches with #3 rebar on a twelve-inch grid is better for heavier equipment or frequent traffic. The edges should be thickened or keyed into the perimeter grade beam to prevent cracking from frost heave.

Roofing and drainage

Metal roofing is the standard for pole barns. It's durable, relatively inexpensive, and easy to install. The gauge matters more than most people realize. Twenty-nine gauge is the lightest common option and works fine for low-slope sheds. Twenty-six gauge is a step up and handles heavier snow loads better. Twenty-four gauge is what you should use if you're in a heavy snow zone or want a roof that will last twenty years or more. The price difference between twenty-nine and twenty-four is usually two or three hundred dollars on a 40-by-60 building. Worth it. Slope is critical for drainage. You want at least a 3-on-12 pitch for metal roofing. Less than that and you risk water intrusion at the seams, especially in wind-driven rain. Four-on-12 is a comfortable target. Steeper pitches shed water and snow more effectively but require more material and labor. Gutter and downspout placement is often an afterthought. It shouldn't be. Proper drainage away from the foundation prevents water from pooling around your posts and accelerating rot. Downspouts should discharge at least six feet from the building footprint. Extend them further if the soil is clay or the site is flat.

Fasteners and connections

Use galvanized or stainless steel fasteners everywhere. There's no benefit to using plain steel nails or screws in a pole barn. The moisture from the treated lumber and the outdoor environment will corrode them within a few years, and corroded connections lose strength. Hot-dipped galvanized is the minimum. Geolux or stainless is better but more expensive. For critical structural connections, spend the extra money. Post-to-beam connections are another area where shortcuts happen. The standard is a hurricane tie or a post cap connector secured with structural screws or lag bolts. Nailing alone is insufficient for seismic or high-wind zones. Many builders still use toenails because they're faster. The connection will hold under normal conditions, but it won't hold during an extreme event. That's a risk you're taking, and it's worth knowing what you're taking.

Permitting and inspection

Some jurisdictions require a stamped engineering drawing for a pole barn. Others don't. The trend is toward requiring more documentation, not less. If you're in an area that requires permits, get your drawings done by someone who knows local code. A generic plan from a catalog might not meet your locality's specific requirements, and the resubmission process can add weeks to your timeline. Inspection points typically include: footing and embedment depth before backfill, post placement and plumb, truss installation and bracing, and final completion. Being present for these inspections saves you from having to tear out completed work because something wasn't up to code. I've seen builders get called back to expose a footing inspection because they backfilled before the inspector arrived. That's avoidable with basic communication.

Common mistakes to avoid

Using untreated wood below grade. Treated lumber is rated for ground contact. Untreated will rot within a few years, and the failure is usually gradual enough that you don't notice it until the post is soft enough to push a screwdriver into. This is the single most common cause of pole barn failure. Inadequate bracing on long buildings. A 60-foot or 80-foot pole barn needs periodic cross bracing or a continuous girt system to resist lateral loads. Without it, the building can rack or shift over time, especially in wind. The bracing doesn't have to be elaborate. Simple X-bracing with 2-by-4s between the posts is sufficient for most residential applications. Overlooking the importance of top plate continuity. The top plate or ceiling joist acts as a tie that holds the walls together. If it's discontinuous or poorly connected, the building loses lateral stability. Make sure your top plates are lapped or spliced at every corner and intersection, and secured with structural connectors.

Tools and software

You don't need expensive software to design a basic pole barn. SketchUp Free works for layout and visualization. For structural calculations, there are free online calculators for post sizing and truss spans, but they only cover standard cases. If your design involves unusual spans, heavy loads, or complex geometry, a structural engineer's involvement is worth the cost. A consultation typically runs five hundred to fifteen hundred dollars and prevents problems that could cost tens of thousands to fix later. A tape measure, a level, a circular saw, a drill, and a post hole auger are the basic tools. For larger projects, a skid steer or mini-excavator makes post hole digging and site prep significantly faster. I used to dig holes by hand for smaller buildings and lasted maybe two days before my back gave out. A rented mini-excavator pays for itself quickly if you're doing multiple holes over forty inches deep.

Material list basics

Here's a rough material estimate for a 40-by-60 pole barn with an 8-foot wall height and 4-on-12 roof slope: Posts: twelve 8-by-8 treated poles, fourteen feet long, or sixteen 6-by-6 poles depending on your span and load requirements. Girts: two-by-six or two-by-eight studs spaced four feet on center around the perimeter and interior if needed.

Trusses: eight to ten prefabricated trusses depending on spacing, spanning forty feet with a 4-on-12 pitch. Roof sheathing: two-by-four purlins spaced twenty-four inches on center, covered with twenty-nine to twenty-four gauge metal roofing. Siding: twenty-six gauge metal siding on the walls, or OSB sheathing with lap siding if you prefer a different aesthetic.

Fasteners and connectors: galvanized structural screws, hurricane ties, post caps, and framing anchors throughout. This is a starting point. Your actual numbers will vary based on your site conditions, local code, and intended use. Running these numbers through a proper design process takes most people between one and three weekends depending on how familiar they are with the details.
