Working on a 1970 Firebird Without the Right Manual Is a Waste of Time
I spent three weekends trying to figure out why my transmission was slipping before I finally tracked down the correct manual. Turns out the factory service manual for that year has sections that don't match the aftermarket repair guides. The torque specs alone are different between them. Once I had the right one in hand, what took six days dropped to two. The 1970 Firebird is one of those years where the distinction matters more than most people realize. It's the first full year of the second generation body style. Everything from the frame rails to the dash layout changed. You're not working on the same car as 1969 even though they look identical at a glance.
Where to Find a Reliable Pontiac Firebird Repair Manual 1970

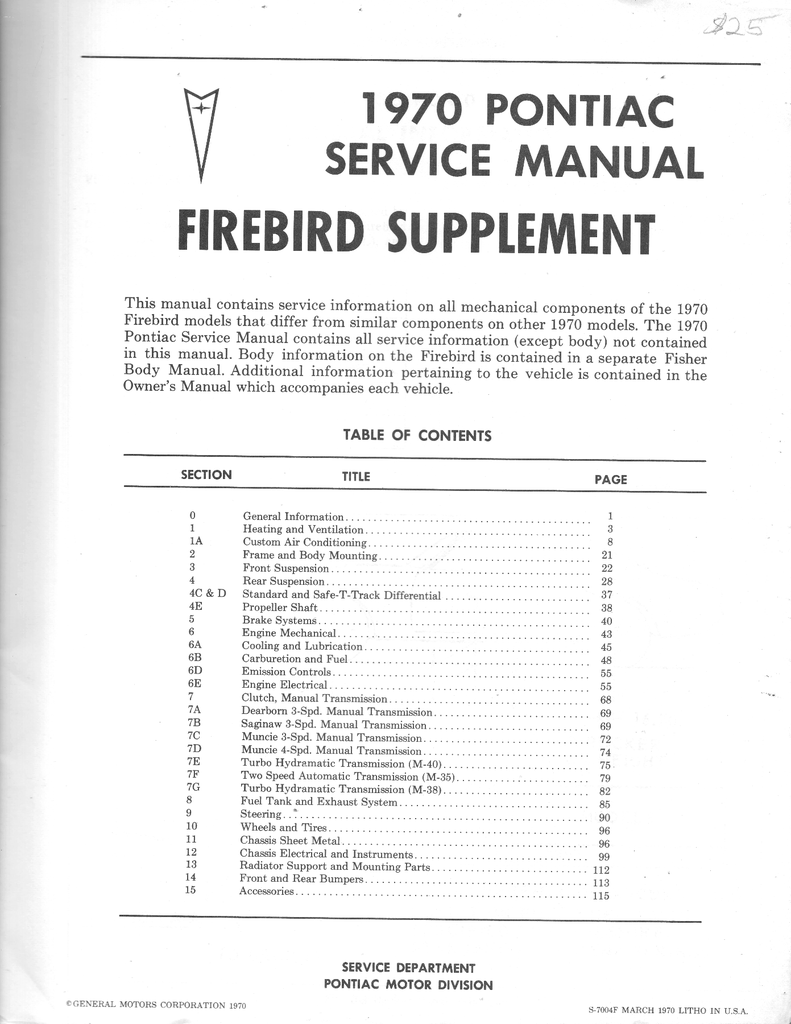

The official General Motors Service Manual is what you want. It was published in two volumes — one for the engine and drivetrain, one for the body and electrical. You can find reprints through Hemmings or eBay from sellers who scan from original GM booklets. Avoid the ones that are just someone's photoshopped binders from a forum thread. The wiring diagrams come out blurry and unreadable. Haynes also published a manual for the first-gen Firebird and Trans Am. It covers 1967 through 1969 and sometimes gets listed for 1970, but it's not complete for that year. The 1970 model got a revised front suspension and the transmission crossmember is different. If you're doing suspension work and following the Haynes guide, you'll end up with parts that don't line up. The GM manual gets this right. There's also the Chilton's One Make Book series. They did a Firebird-specific volume around 1971 that covers the early second-generation models. It's cheaper than the GM set but it's lighter on the technical details. Good for basic maintenance. Not good when you're rebuilding a 455 and need the exact valve clearance specs for the standard versus performance camshaft.
What the Manual Actually Covers
The GM service manual breaks down into several major systems. Engine covers everything from the small-block 250 six-cylinder all the way up to the 455 V8. It includes the block machining specs, crankshaft journal sizes, and the different piston configurations between the standard and high-performance variants. The Camaro/Firebird division used some shared components and the manual flags which parts are exclusive to each platform. The transmission section is where most people get tripped up. The 1970 Firebird came with three automatic options — the Turbo-Hydramatic 350, the Muncie M20 four-speed, and the Saginaw close-ratio four-speed. Each has a completely different overhaul procedure. The manual lays out the disassembly sequence for each one separately. If you're pulling a transmission and you don't have this broken down, you'll be guessing at bearing preload and seal orientations. The electrical section alone is roughly 80 pages of wiring diagrams. The 1970 system uses a grounded chassis with a 12-volt negative system. The color coding on the wires follows GM standards of the era — black for ground, red for power, yellow for accessory circuits. But the connector types vary by trim level. The Grand Prix interior packages had different dash wiring harnesses than the standard Firebird. The manual shows both.
Get the Full Details
A Specific Problem I Ran Into
When I was redoing the starter on my 1970 400 Firebird, the manual showed one mounting bolt pattern. The actual starter I had — a rebuilt unit from a parts store — used a different bracket. I spent an evening trying to make it fit before I realized the manual was describing the original equipment mount and the aftermarket starter was designed for a slightly different bellhousing variant. The workaround was measuring the bolt spacing on the existing mount, comparing it to the starter specification sheet, and fabricating a simple adapter plate from 3/16-inch steel. It took about 40 minutes. I filed the holes, bolted it in place, and the starter aligned perfectly. The manual didn't cover this because it's an aftermarket incompatibility, not a factory issue. That's something no book can really address for older cars.
What the Manual Doesn't Tell You
One thing that catches people off guard is the torque sequence for the cylinder heads on the 400 and 455 engines. The manual gives the spec — 65 foot-pounds for the head bolts on the 400 — but it doesn't emphasize enough that you need to do this in at least three passes, tightening progressively. Do it in one pass and you'll warp the head gasket. I've seen it happen more than once on restoration threads where someone just torqued it and called it done. Another thing the manual assumes you already know is the difference between the various camshaft grinds. The 1970 455 came with both a standard lift and a high-lift version depending on the horsepower rating. The intake valve timing is 10 degrees different between them. If you're doing a cam swap and you don't check the original spec before ordering, you might end up with a cam that idles rough and loses low-end torque because it's the wrong profile for your application. The brake system section also leaves out a detail about the master cylinder reservoir. On the 1970 Firebird with power brakes, the reservoir has two chambers — one for the front circuit and one for the rear. When you bleed the system, you have to pressurize both chambers simultaneously or you'll get air trapped in one circuit. The manual shows the bleed points but doesn't explicitly call out that you need to pump the brake pedal slowly while someone watches the reservoir level. Easy to miss if you're reading quickly.
How to Use the Manual Effectively
Don't start at page one. Go straight to the section you need. The index at the back is actually useful — it lists components by name and cross-references the relevant pages. Look up "starter motor" and it'll point you to the removal and installation procedure, the solenoid testing section, and the related fuse locations all in one jump. Keep a notebook next to the book. Write down the torque specs as you pull them up. The manual has them scattered across multiple pages and it's easy to lose your place. I write the number on a sticky note and put it on the part I'm working on. Saves you from flipping back and forth twenty times during a reassembly. Also note the revision dates. GM released updated bulletins throughout 1970 for certain components. The manual might show the base specification, but there were mid-year changes to the water pump impeller design and the carburetor idle mixture screws. If your car has a VIN in the 100000s or higher, it likely has the updated parts. The manual will note which version applies to which serial number range.
When the Manual Isn't Enough
Some things just require trial and error regardless of what the book says. The factory didn't document every edge case, especially for modifications that were popular at the time. If you've got a Firebird that's been sitting for decades, the manual won't tell you how to deal with seized bolts that have been in the engine block for fifty years. For that, you need penetrating oil, heat, and patience — none of which are in the service manual. The manual also doesn't cover rust repair. It shows you how to replace a floor pan, but not how to assess whether the structure underneath is sound enough to weld onto. That's a separate skill that comes from doing it. Same with interpreting worn parts. The manual gives you the tolerance specs, but knowing when a bearing is "close enough" to reuse versus when it needs replacing is something you develop over time. If you're working on a 1970 Firebird and you only have a generic repair book, you're going to run into gaps. The GM service manual fills most of them. Get a copy, keep it organized, and use it as your primary reference. The other stuff you'll learn from making mistakes and fixing them.
