Getting Your Fluorescence Signals Out of the Noise

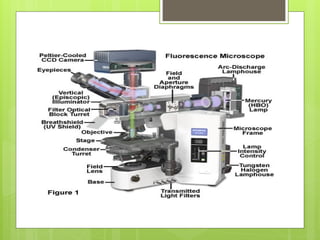

Fluorescence microscopy works because certain molecules absorb light at one wavelength and re-emit it at a longer wavelength. That's the Stokes shift, and it's the entire reason you can tell your labeled structure apart from everything else in the sample. The practical implication is that you need excitation light that's clean enough and emission filters that actually block the wrong stuff. Most problems I see people struggle with come down to poor filter selection or lazy alignment, not a lack of technical talent. The basic optical path starts with a light source—usually a mercury arc lamp, a metal halide lamp, or a laser in confocal setups. That light passes through an excitation filter, hits the sample via the dichroic mirror, and the emitted fluorescence comes back through the same path but gets blocked from the excitation light by that same dichroic. It then goes through the emission filter and reaches your detector. Simple on paper. Terrible in practice if any of those components are mismatched or degraded. I spent three weeks trying to figure out why my GFP signal was showing up in the far-red channel. Turned out the old 405nm laser diode in our confocal was leaking into the 561nm line through the acquisition software's compensation matrix, which had drifted over two years without recalibration. The fix was running a spectral unmixing routine and replacing the compensation file. Not the most elegant troubleshooting story but it happened.

What Actually Determines Image Quality

Resolution in fluorescence microscopy follows the Abbe limit, roughly 0.61 times the wavelength divided by the numerical aperture. With a 500nm emission and a 1.4 NA oil objective, you're looking at about 220 nanometers lateral resolution. That's the theoretical floor. Real-world conditions—spherical aberration from mismatched refractive indices, incomplete immersion oil contact, slightly dirty coverslips—will eat into that number quickly. I've seen published papers where the effective resolution was closer to 300nm because the samples were mounted in aqueous media but imaged with oil objectives at depth. Signal-to-noise ratio matters more than resolution in most cases. A slightly blurry image with good SNR is far more useful than a sharp image drowning in shot noise. You get SNR by collecting more photons, which means longer exposures, higher laser power, or better detectors. Each of those choices has consequences. Longer exposures introduce photobleaching and motion artifacts. Higher laser power accelerates bleaching and can cause phototoxicity in live samples. Better detectors—like scientific CMOS cameras—cost money and may have lower frame rates than sCMOS alternatives.

Choosing Fluorophores That Actually Work

The standard rule is to pick fluorophores with bright quantum yields, good photostability, and minimal spectral overlap with your other labels. In practice, most people reach for GFP derivatives because they're convenient, and then wonder why their two-color experiment looks like a mess. Alexa Fluor dyes, ATTO dyes, and CF dyes are noticeably better for fixed sample work. For live cell imaging, the options narrow considerably because you need something that's not toxic at working concentrations and doesn't leak out of cells or bind nonspecifically. A counter-intuitive point: spectral overlap isn't always your biggest problem. Autofluorescence from common mounting media, plastic petri dishes, and even the glass in cheaper coverslips can be worse than cross-talk between your fluorophores. I use ProLong Gold for most fixed samples because it's low-autofluorescence and hardens nicely. The tradeoff is that it shrinks samples slightly over time, which matters if you're doing colocalization work where subcellular positioning is the actual question.

Get the Full Details

Principles Of Light And Fluorescence Microscopy – IXXLIQ
Principles Of Light And Fluorescence Microscopy – IXXLIQ

Common Setup Mistakes

Kohler illumination is the most undertaught part of fluorescence microscopy. Get it wrong and you'll have uneven field illumination, reduced contrast, and excitation light that's not properly focused on the back aperture of your objective. The result looks like a vague haze over your image. Proper Kohler alignment takes about five minutes once you know the steps: close the field iris, focus on the sample, adjust the condenser height until the iris edges come into sharp focus, center the iris, open it until it just disappears from view, then close and reopen the condenser aperture iris to about 70% of the objective NA. Another mistake I see constantly: using the wrong coverslip thickness. Objectives are corrected for 0.17mm coverslips, which is #1.5. Anything significantly different introduces spherical aberration that degrades resolution and signal intensity, especially at depth. I measured this directly once by imaging fluorescent beads at increasing depths in a 3D hydrogel. With a 0.17mm coverslip, the point spread function stayed tight to about 50 microns depth. Switch to a #1 coverslip and you lose half your resolution by 20 microns.

Quantification Is Harder Than People Think

Fluorescence intensity measurements are only meaningful if you control for several variables: lamp or laser intensity drift, exposure time consistency, detector gain linearity, and optical path differences between channels. If you're comparing expression levels between two conditions, you need to image them on the same day with the same settings. Raster scanning confocal images can have pixel dwell time variations across the field. Widefield cameras have pixel-to-pixel sensitivity variation that needs flat-field correction. I once normalized co-stained sections using the total fluorescence in a reference channel, assuming equal protein abundance. The controls were fine. The experimental condition had a subtle cytoplasmic shift in the reference stain that my analysis pipeline didn't catch, and I spent two weeks chasing artifacts before realizing the normalization itself was biased. Single-color controls for each fluorophore, imaged separately under identical conditions, are essential even when you're only doing relative quantification.

When Fluorescence Microscopy Fails

There are real scenarios where this technique hits a wall. Thick, scattering tissue is one. Beyond about 100 microns in standard widefield, out-of-focus blur dominates and confocal starts losing signal because you're pinning away all that scattered light. Two-photon helps here but requires expensive lasers and the resolution still degrades with depth. Another failure mode: samples with high autofluorescence where the signal you want is weaker than the background. Bone, plant tissue, and formalin-fixed paraffin-embedded samples are notorious for this. In those cases, spectral imaging with unmixing or switching to a different label strategy—like immunogold electron microscopy for ultrastructural questions—is often the only path forward. Photobleaching sets a hard limit on how many frames you can acquire from a single field of view. It's not a matter of if your signal will fade, but when. Reducing excitation intensity and using oxygen-scavenging imaging buffers can extend acquisition windows from seconds to several minutes in favorable conditions. Don't bother with anti-fade reagents on live samples—they're toxic. Just accept that you're working with a finite photon budget and plan your acquisition accordingly.

Fluorescence Microscopy: Techniques, Applications, and Advancements | The Lifesciences Magazine ...
Fluorescence Microscopy: Techniques, Applications, and Advancements | The Lifesciences Magazine ...

Practical Workflow Recommendations

Acquire a test image at the lowest possible excitation intensity and shortest exposure that gives you acceptable SNR before committing to a full z-stack or time series. This catches bleaching issues and reveals whether your fluorophore choice is appropriate for the question. Check the histogram in your acquisition software—a clipped histogram means you're saturating the detector, which destroys quantification capability and can accelerate bleaching in the brightest areas. Most systems will show you this immediately if you enable histogram display. Maintain a log of your microscopy settings for each experiment. Lamp hours, laser power percentages, filter cube part numbers, objective serial numbers, and environmental conditions. I've lost data because I couldn't reproduce settings from six months earlier, and the replacement mercury lamp had a different spectral output profile. Small details like this accumulate into significant reproducibility problems if you don't track them. The hardware investment matters less than consistent technique. A well-aligned system with old filters will outperform a brand-new setup with misaligned optics every time. Budget your microscope maintenance and recalibration schedule with the same seriousness you give to purchasing new equipment. The monthly alignment check takes about twenty minutes and prevents weeks of frustrated troubleshooting later.
