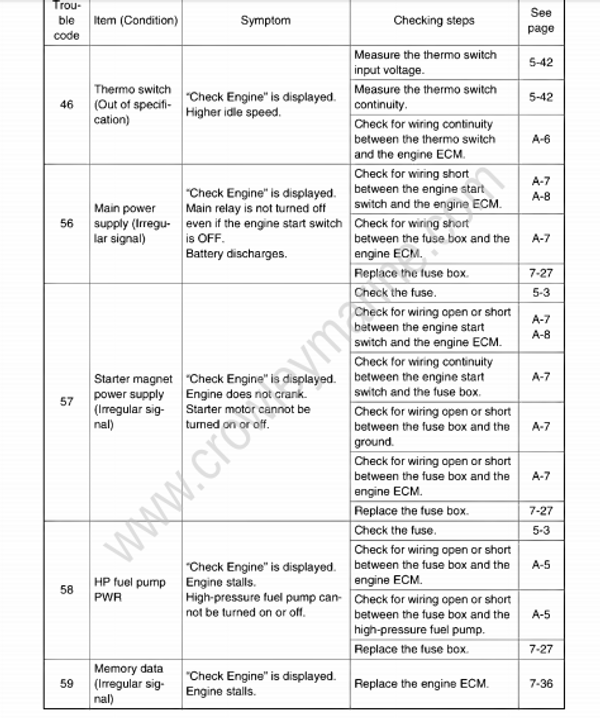

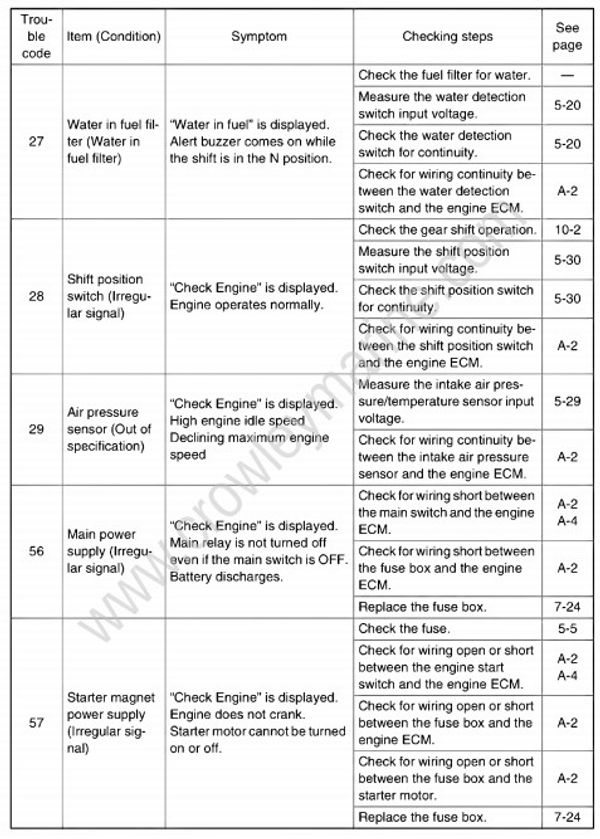

The first thing you need to understand is that error code manuals for marine diesel engines aren't standardized the way they should be. A P0401 on a Cummins QSB isn't the same diagnostic territory as a P0401 on a Yanmar 4LH, even though both reference EGR flow issues. The manual is your starting point, not your endpoint. I've spent more time than I'd like to admit chasing codes across different manufacturers' documentation, and the lesson keeps repeating itself. Start by connecting your diagnostic tool directly to the engine's J1939 CAN bus port. Don't rely on the boat's multiplex display if it's showing you the codes. The display often simplifies or omits sub-codes that matter. A J1939 system throws SPN (Suspect Parameter Number) and FMI (Failure Mode Identifier) values that tell you much more than the generic code alone. Here's what most people skip: the freeze frame data. When a code sets, the ECM captures a snapshot of operating conditions at that exact moment — coolant temperature, fuel rail pressure, RPM, turbo boost, load percentage. This data is critical because marine engines spend most of their time at partial load, and some codes only appear under specific conditions. Without freeze frame, you're guessing at the circumstances that triggered the fault.

I once spent three days on a 2006 Caterpillar C7.2 that kept throwing an intermittent low oil pressure code at idle after the boat had been sitting for a few hours. The procedure manual told me to check the sensor, wiring, and pump. Nothing was wrong. The freeze frame data showed the fault only occurred after the engine sat for more than six hours with the oil below 10 degrees Celsius. The workaround was installing an oil pan heater and updating the ECM calibration to compensate for cold oil viscosity in the pressure calculation. The manual never mentioned this. It listed every electrical and mechanical possibility except the calibration boundary condition. That engine would have passed every single test the manual described. The problem was in how the ECM interpreted the sensor signal under specific temperature thresholds.

Common Pitfalls That Waste Hours

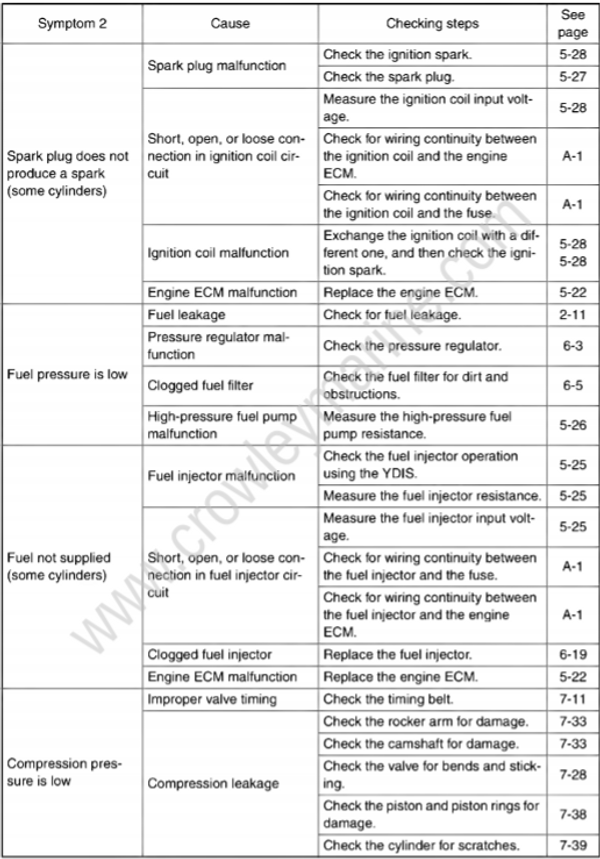

The biggest mistake I see is treating a code as a diagnosis instead of a symptom. A code pointing to a fuel injector circuit doesn't mean the injector is bad. It means the ECM detected an electrical parameter outside its expected range. That range could be violated by a corroded connector, a grounding issue, or a failing ECM driver circuit. I had a MAN D2862 where six injectors threw codes simultaneously. Replacing them cost the owner eighteen thousand euros. The actual problem was a degraded ground strap between the engine block and the hull grounding point. Resistance across that strap was 4.2 ohms when it should have been under 0.1 ohms. Salt spray and vibration ate the connection over twelve years. Another counter-intuitive thing: clearing codes before you've logged them is effectively destroying evidence. The ECM stores pending codes alongside confirmed codes, and some manufacturers sequence diagnostic routines based on code history. Clear the whole tree and you may lose the ability to run active tests that depend on prior fault acknowledgment. Take the time to export or photograph every code and freeze frame before you clear anything. Also, don't trust the DTC list in the back of the manual completely. Some manufacturers publish incomplete or deliberately vague code definitions to push repairs toward authorized service centers. If a code description says "performance issue" or "range logic," that's usually the manual telling you it doesn't want to give you enough information to diagnose it yourself. The real diagnostic logic is in the service manual, not the quick-reference code table.

What the Manual Won't Tell You

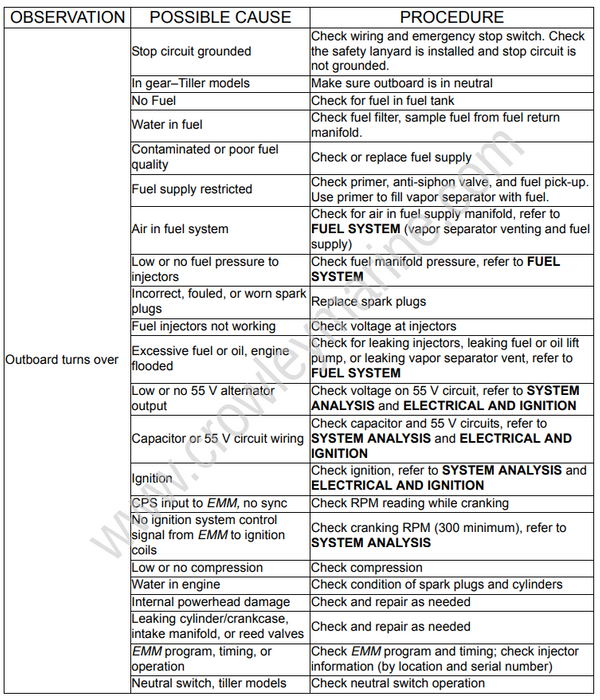

Marine engine error code procedures assume ideal conditions: proper voltage at the diagnostic port, clean grounds, correct cable specifications for J1939 termination. In the real world, a boat's electrical system is often compromised. A weak battery or poor alternator output can cause voltage-dependent codes that look like sensor failures. I've seen low voltage codes that disappeared entirely once the charging system was sorted. The codes were real, but the root cause was upstream from wherever the manual told you to look. Some code families are essentially useless without a wiring diagram and a multimeter. Pressure codes, temperature codes, position sensor codes — they all follow the same pattern. The ECM sends a 5-volt reference, monitors the return signal, and compares it to expected values. When the signal goes out of range, the ECM logs the code. The manual gives you the thresholds. It doesn't tell you which wire in the harness is chafed against the exhaust manifold or which connector pin is backed out by vibration. The limitation of relying solely on a Procedure Manual Marine Engine Error Codes reference is that it covers textbook failure modes, not the thousands of edge cases that show up in real marine environments. Salt, vibration, temperature cycling, and improper installations create symptoms that don't appear in any manual. The manual is still necessary, but it's only the beginning of the diagnostic process. You need schematics, a reliable multimeter, an oscilloscope for signal analysis, and the willingness to trace circuits rather than swap parts based on a code.

Practical Workflow

Here's the routine I follow now. Connect the scanner. Record all active, pending, and historical codes with freeze frame data. Pull the wiring diagram for the affected system. Check power and ground at the sensor connector before touching anything else. Verify the 5-volt reference is actually present and stable under load. Signal trace with an oscilloscope if the DMM reading looks normal but the code persists. Only after ruling out wiring and power issues do I consider component failure. This sequence cuts diagnostic time from hours down to minutes on most jobs. The exceptions are the ones where the ECM itself has failed, and no amount of procedure will fix that without replacement and programming. Manufacturer portals like Cat ET, Cummins Insite, and John Deere DDOR offer the most complete code documentation. Third-party scanners work fine for reading codes but often lack the active test capabilities needed to isolate certain faults. If you're doing this regularly, investing in manufacturer-specific software pays for itself quickly. The free apps and generic OBD tools will get you through a basic check, but they won't help you when the ECM is hiding diagnostic trouble behind a security layer or when you need to run activation tests to confirm a component is actually faulty before replacing it.
