R404a Pressure Temperature Chart

Working with R-404a Charts in the Field

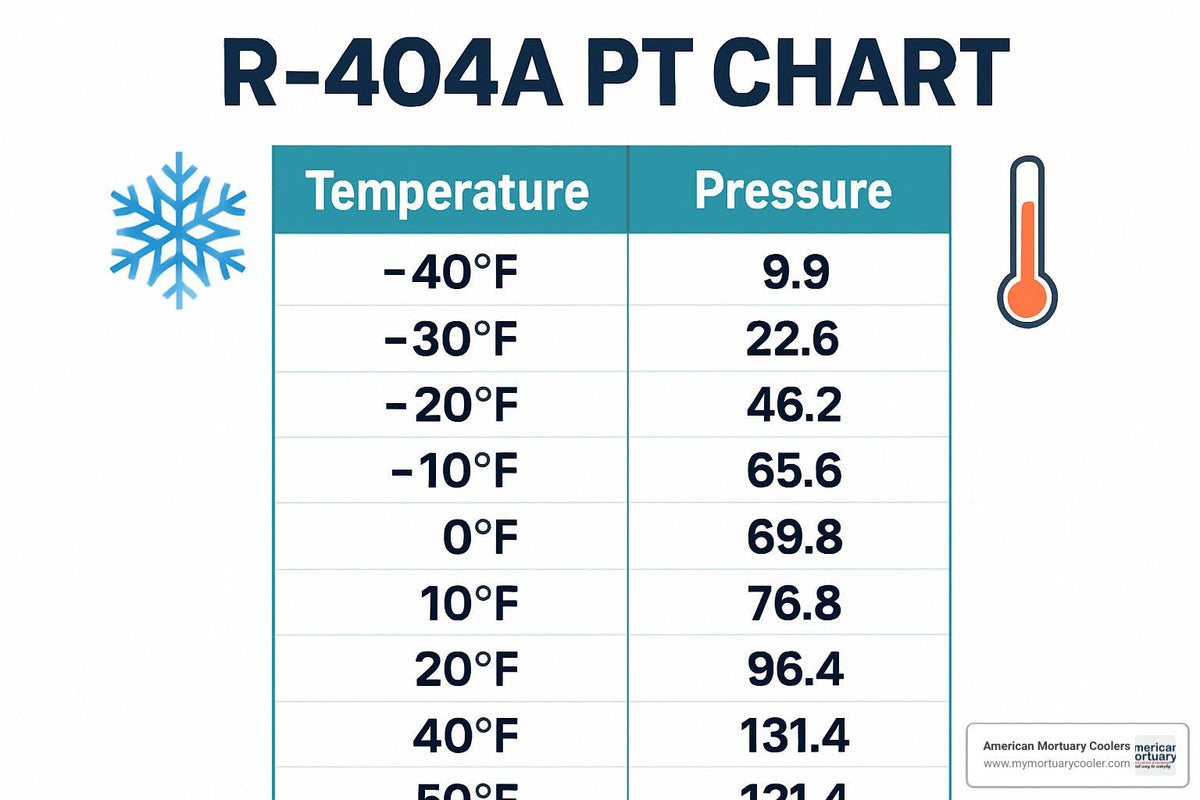

The R404a Pressure Temperature Chart is about as critical as it gets when you are servicing commercial refrigeration equipment, and I mean that in the most literal sense. You pull it out because you need to know what saturation pressure looks like at a given evaporator temperature, and everything from charge verification to leak detection depends on getting that relationship right. The numbers are straightforward enough in theory but the devil is entirely in the details when you are actually on a roof in December with a manifold gauge set and a customer waiting. The chart itself is simple. On one axis you have temperature in degrees Fahrenheit or Celsius, and on the other you have corresponding saturation pressure in psig or bar. What R-404a actually is, for the record, is a near-azeotropic blend of R-125, R-143a, and R-134a by weight roughly 44/52/4. That matters because the individual components have different boiling points, which means under certain conditions you get something called glide. R-404a has a temperature glide of about 7 to 8°F across the phase change, which is higher than most single-component refrigerants you might be used to. Here are some reference points from the chart that come up constantly in my work:

• At 0°F evaporator temperature, the saturation pressure is approximately 37.2 psig
• At 20°F, it is around 18.3 psig
• At 40°F, it is roughly 3.9 psig
• At 60°F ambient, the head pressure sits near 131.7 psig
• At 100°F, you are looking at about 277.4 psig

When you are taking a pressure reading and comparing it to the chart, make sure you are reading the correct scale. Most gauges for R-404a service have dual scales but you would be surprised how many people accidentally read the R-134a scale when they are supposed to be on the R-404a scale. I have seen multiple incorrect diagnoses result from that exact mistake on service calls. The pressure difference between those two scales at typical operating temperatures is substantial enough to make you think the system is wildly off design when really the gauge was just misread. One thing beginners consistently miss is that the chart gives you saturation properties, meaning the pressure-temperature relationship only holds true when the refrigerant is actively changing phase. If you are measuring liquid line pressure at a point where the refrigerant is subcooled and not flashing, the saturation temperature from the chart will be higher than your actual line temperature. That is normal. Subcooling is how you verify charge level on the high side, and the relationship between measured pressure and measured temperature tells you whether you have the right amount of refrigerant in the system. A properly charged R-404a system typically runs with about 10 to 15°F of subcooling depending on the specific application and manufacturer specifications. Deviations from that range either direction indicate a charge problem or a restriction somewhere in the liquid line. I ran into a particularly annoying case last winter where a walk-in cooler was pulling 10°F below the setpoint on the evaporator temperature but the pressure readings looked completely wrong against the chart. The gauge cluster was old and the low-side reading had drifted about 5 psi high across its entire range. The technician before me had concluded the box was overcharged based on the gauge reading and had pulled refrigerant out of the system. When I got there, the actual saturation pressure at the evaporator outlet corresponded to about 15°F evaporating temperature, which told me immediately that the system was not overcharged at all. I calibrated the gauge cluster against a known reference and corrected the readings, then checked the actual charge by weighing it in according to the manufacturer spec. The box was actually slightly low on charge. That misdiagnosis cost the customer a full evaporator coil replacement because someone had added a ton of refrigerant to try to compensate for the bad gauge reading and the resulting mechanical stress cracked the original coil. A five-dollar gauge calibration saved them about four thousand dollars in parts and labor.

Practical Considerations and Where This Tool Falls Short

The R404a Pressure Temperature Chart is useful but it is absolutely not a complete diagnostic tool on its own. It tells you what the pressure should be at a given temperature during phase change, and that is valuable. It does not tell you whether your compressor is running efficiently, whether your metering device is functioning correctly, or whether there is non-condensable gas in the system. You need actual temperature measurements at multiple points in the cycle to get anywhere meaningful. Superheat measurement is where the chart becomes essential. You measure the actual suction line temperature at the evaporator outlet and compare it to the saturation temperature corresponding to the suction pressure reading. The difference is your superheat. For R-404a systems, typical superheat values range from 8 to 12°F depending on the expansion valve type and manufacturer recommendations. Low superheat can lead to liquid slugging which destroys compressors. High superheat means your evaporator is not being fully utilized and your cooling capacity drops significantly. A system running with 20°F of superheat when it should be running at 10 is losing roughly 30 to 40 percent of its cooling capacity because only the first portion of the evaporator coil is actually involved in heat absorption. There is also the issue of pressure drop across the evaporator. The saturation pressure you read at the compressor suction port will be lower than the saturation pressure at the evaporator outlet if there is significant pressure drop through the coil and the thermostatic expansion valve. This is normal and expected but it means you need to decide which pressure reading to use for your superheat calculation. The standard practice is to measure the pressure as close to the evaporator outlet as you can get with a proper service port, and then measure the line temperature a few inches downstream. Using the suction port pressure at the compressor with an evaporator outlet temperature will give you an artificially high superheat reading that makes the system look like it is undercharged when it is not.

Another limitation worth mentioning bluntly: the chart assumes pure saturation conditions and does not account for oil migration effects. R-404a systems use POE oil which is hygroscopic and absorbs moisture from the air rapidly. When oil accumulates in the evaporator coil, it reduces heat transfer efficiency and effectively changes the operating pressures compared to what the chart predicts. I have seen evaporator coils in walk-in freezers that were completely flooded with oil after five years without proper oil management, and the pressure readings looked fine on the chart but the box could not maintain temperature. The fix was a thorough oil return procedure and coil cleaning, not a charge adjustment. The chart did not tell you that anything was wrong because the pressures were within normal range for the temperatures being measured. R-404a is also being phased out under EPA SNAP programs and similar regulations in other countries due to its global warming potential of approximately 3,922. Many jurisdictions are now prohibiting its use in new equipment and restricting service charges on existing systems. If you are working with this refrigerant regularly, you should be aware that supply is tightening and prices are rising. The alternatives like R-448A and R-449A have different pressure-temperature characteristics and you cannot simply swap them without adjusting your approach. The pressure at a given temperature for R-448A is roughly 10 to 15 psi lower than R-404a across the typical operating range, so using the wrong chart for charge verification will lead to incorrect conclusions about system performance. When you are actually using the chart on a service call, keep a few practical points in mind. Always let the system stabilize for at least 15 to 20 minutes after any charge adjustment before taking your final readings. Pressure and temperature will continue shifting for a while after you add or recover refrigerant. Take your pressure readings at the service ports, not at the gauge valves on the manifold if you can avoid it, because the hose volume between the system and your gauges introduces a small but measurable delay. Ambient temperature affects your high-side readings significantly, so if you are trying to verify condenser performance, note the ambient conditions and understand that a hot day will push your head pressure well above the chart value for that particular saturation temperature. That does not necessarily mean anything is wrong with the system.

The chart is a reference tool, not a diagnosis. It gives you the baseline so you can spot deviations, and those deviations are where the actual work happens. The people who rely on the chart alone without measuring actual temperatures at multiple points in the cycle are the ones who end up chasing phantom problems and replacing good components. I would rather have a basic analog thermometer and a good pressure gauge than a fancy digital manifold with no understanding of what the numbers actually mean.
