Working Through a Refrigerator Service Manual

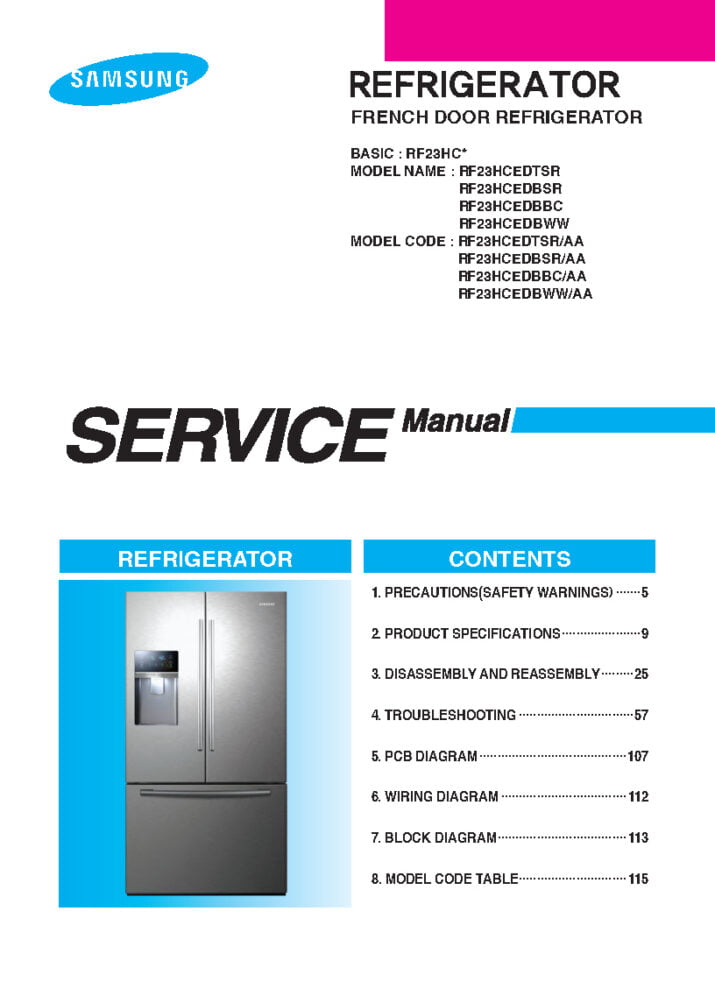

I spent about twelve years chasing down refrigeration issues in residential and commercial units before I stopped trying to memorize everything and started relying on proper documentation. The ones I use most often are the factory service manuals from Whirlpool, Samsung, LG, and Miele, though you can find decent third-party guides if you know where to look. A Refrigerator Service Manual isn't the same thing as the user manual your grandmother got in the box. Those kitchen guides cover basic cleaning and temperature settings. The service documents go into wiring diagrams, component test values, error code tables, and disassembly sequences that actually matter when something breaks and you have to fix it yourself instead of calling someone who charges by the hour. I remember working on a Samsung French door model about three years back. The unit showed an AF error code but the evaporator fan was spinning fine. The tech sheet had me checking the defrost heater resistance at 26 ohms and the defrost thermostat continuity, but the manual listed the heater circuit in section 4.2 while the board diagnostics were buried in appendix B. Neither section referenced the other clearly. I ended up tracing the harness myself with a multimeter and found a frayed wire near the hinge that the manual's diagrams hadn't highlighted. That happens enough that I carry my own annotated copies rather than trusting the standalone PDFs.
Where to Find a Refrigerator Service Manual
Factory service manuals usually live on manufacturer tech support sites or third-party repair databases like Repair Clinic, AppliancePartsPros, or Service Manuals Direct. Some brands make them free. Samsung and LG post them behind registration walls now. Whirlpool Group still hosts a lot of their documentation publicly. Miele and Sub-Zero tend to keep their best materials behind warranty technician logins, which means you won't find clean copies on random forums without jumping through hoops. When I download these, I check the document date first. A 2019 manual for a 2023 model will have wrong part numbers and missing revisions. The model number on your unit's data plate should match the manual's coverage list exactly, and I mean exactly. The difference between RF28R7351SR and RF28R7351SG can change compressor specifications, wire color codes, and control board layouts enough that using the wrong guide wastes time. File format matters more than people admit. PDFs are fine for reference, but some newer manuals come as interactive HTML or searchable documents with clickable cross-references. If the one you're looking at requires zooming and scrolling through 300 pages to find a single connector pinout, you're probably looking at a scanned image version rather than a native digital file. Those scans are hard to read on a workbench anyway. I keep a tablet or laptop nearby so I can search without printing everything.
What Actually Goes Into These Documents
The core sections I use most are the wiring diagrams, diagnostic flowcharts, component specifications, and adjustment procedures. The rest is often padding. Some manuals include marketing copy or assembly instructions for factory production that have nothing to do with field service. I skip straight to the sections I need. Wiring diagrams in these manuals show everything from main power entry to low-voltage sensor connections. They usually label wire colors, connector pin numbers, and component terminals. When I'm troubleshooting an intermittent cooling issue, I trace the circuit from the control board through the harness to the actual component. A good diagram lets me find open circuits, shorted wires, and connection points without ripping the unit apart blindly. Diagnostics in modern refrigerators are mostly board-driven. The control panel shows error codes, but the manual tells me what those codes actually mean. Some brands use simple codes like F1 or E2. Others use longer sequences that require pressing and holding specific buttons in order. The diagnostic mode access procedure is always in the manual, and it's never obvious from looking at the unit. I've seen technicians replace good compressors because they couldn't get the machine into test mode properly.
Get the Full Details
Component specifications include resistance values, voltage requirements, and physical dimensions. Evaporator fans usually draw between 0.2 and 0.5 amps. Defrost heaters typically range from 15 to 40 ohms depending on the model. Condenser fans vary by motor type. When the manual lists test values, I measure actual readings and compare them. Values outside the specified range point to the failed component. Values within range but symptoms present usually mean the issue is elsewhere in the circuit.
Practical Steps for Field Work
Before I touch anything, I pull the manual and verify the model number against the coverage list. Then I check if there are any engineering change notices or bulletins for that specific model. Manufacturers update designs mid-production sometimes, and the base manual won't show those changes unless you know to look for them. Safety procedures come first in every proper manual. Disconnect power before removing panels. Capacitors in the compressor circuit can hold a charge even after shutdown. Some manuals warn about this in bold. Others bury it in a paragraph. I treat every unit as live until I verify with a meter, regardless of what the documentation says about safety features. Disassembly sequences vary by brand and model age. Newer units often use clips and hidden fasteners instead of visible screws. The manual shows the correct removal order to avoid breaking tabs or damaging harnesses. I've seen people force panels off and crack the inner liner. That creates air leaks and insulation exposure that are much harder to fix than the original problem. Follow the sequence, apply gentle pressure, and use the right tools.
Reassembly is where most mistakes happen after repairs. I torque fasteners to specification when the manual provides values. I route harnesses exactly as shown in the diagrams. I verify connector seating before restoring power. Units that come back with new issues after service usually have a wiring error or loose connection rather than a second failure.
Common Pitfalls When Using Service Documentation
The biggest issue I see is people treating manuals as complete references when they're often incomplete for real-world scenarios. A manual covers standard failures, not every possible combination of symptoms. When you encounter something unusual, the manual might not help directly. That's when experience and systematic testing matter more than documentation alone. Another problem is outdated information. Manuals get revised, and some distributors sell old versions without noting the changes. Part numbers shift, control boards get updated, and wiring colors change between production runs. If your measurements don't match the manual, check for revision notices before assuming the unit is different from the documentation. Some manuals have errors themselves. I've found incorrect resistance values, swapped wire labels, and missing connector references. When the manual conflicts with actual measurements, trust the meter. The documentation is helpful but not infallible. Cross-reference with other sources when possible.
The cost factor matters too. Comprehensive service manuals for premium brands can run fifty to two hundred dollars depending on the source. Budget brands sometimes include these documents with parts orders or make them available free. I budget for manual purchases when taking on specialized work, and I reuse the information across multiple jobs rather than buying separate copies each time.
When Service Manuals Fall Short
There are situations where a Refrigerator Service Manual won't solve the problem. Internal component failures that aren't covered in the documentation, manufacturing defects that require engineering approval, and issues caused by improper previous repairs often need resources beyond the standard manual. In those cases, I contact manufacturer technical support or consult with experienced colleagues who've handled similar units. Some diagnostic procedures require specialized equipment that most technicians don't own. Leak detection tools, vacuum pumps with gauges, and refrigerant recovery machines are standard for qualified technicians but unavailable to DIY users. The manual describes procedures that assume access to this equipment, which means the documentation alone isn't sufficient for complete service work. Warranty considerations also limit how far someone should go with manual-guided repairs. Opening sealed systems, replacing factory components, or modifying wiring can void warranties. The manual doesn't always highlight these consequences clearly. I check warranty status before beginning work and recommend professional service when the coverage would be compromised.
Information density varies wildly between manuals. Some brands provide thorough, well-organized documents with clear diagrams and comprehensive testing procedures. Others produce thin guides with minimal troubleshooting information and sparse documentation. I spend more time working around poor manuals than I do using good ones, which affects turnaround time and customer satisfaction. Learning to navigate these documents takes practice. The structure isn't always logical. Diagnostics might be separated from wiring information. Component specifications could be in appendices rather than the main body. I've developed my own system for locating information quickly, but that system came from repeated exposure and note-taking rather than any inherent design quality in the manuals themselves. The value comes from consistent reference and careful application rather than any single section or procedure. I use the manual as a starting point, verify findings through direct measurement, and document anything that doesn't match the expected values for future reference on similar units.
