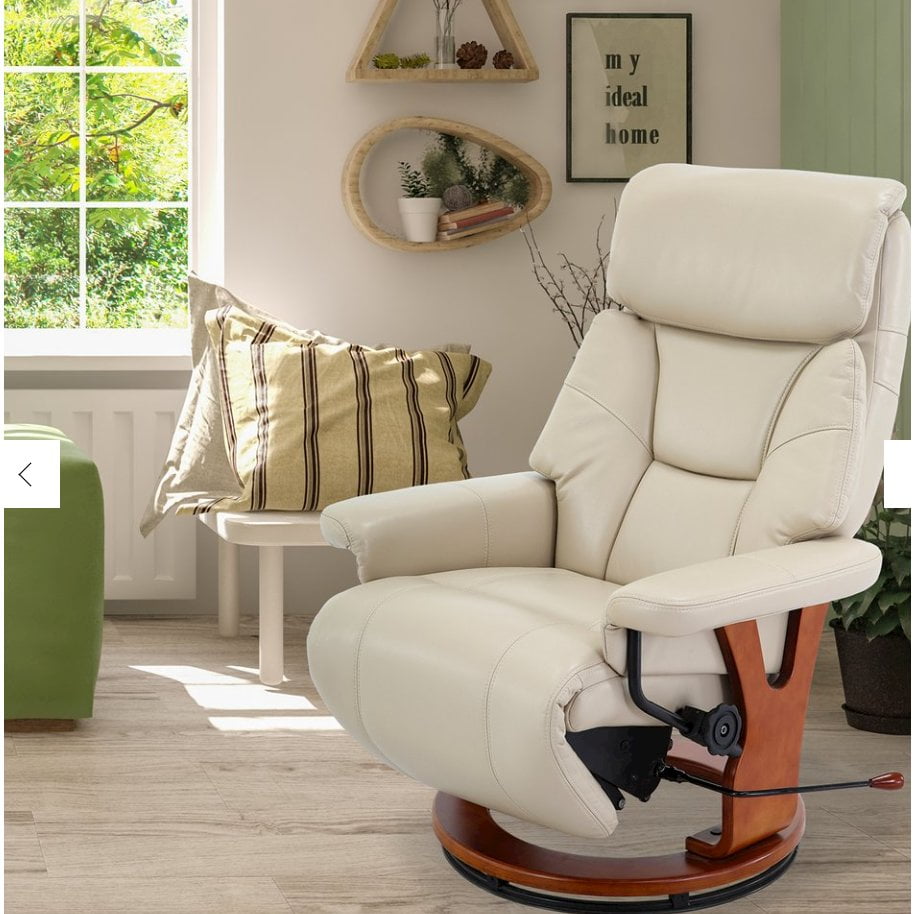

Getting Your Relax R Bishop Manual Recliner Setup Right
Most people buy a Relax R Bishop Manual Recliner and then immediately try to force it into the correct position without reading anything. That is the fastest way to strip the linkage or bend the mechanism. The chair uses a simple mechanical system — a pull handle, a recline lever, and a footrest that deploys on a track — but getting the geometry right matters more than you would expect. The Relax R Bishop Manual Recliner uses a cam-and-track design rather than a gas-lift or spring-based system. When you pull the side handle, a metal cam disengages from the track and allows the backrest to tilt back. At the same time, the footrest extends along a pair of steel rails. Pushing the chair forward against your shins re-engages the cam and locks everything back in place. Here is something most manuals leave out: the mechanism requires a certain amount of downward weight before it will operate smoothly. If you are sitting lightly or leaning to one side, the cam will not fully disengage. You will hear a grinding noise and nothing happens. I learned this the hard way when a customer complained his chair was "broken." He was a smaller-framed person and was leaning far back on his elbows while trying to recline. The fix was simply having him sit normally and lean forward slightly to load the mechanism before pulling the handle. Once his weight was centered, the chair worked perfectly.
Proper Operation Sequence
Start by ensuring the chair is placed at least four to six inches away from a wall. The backrest swings back and the entire unit shifts slightly rearward as it reclines. If it is pushed flush against a wall or sofa, the mechanism will bind and you risk damaging the frame or the upholstery. To recline, pull the handle on the right side of the chair firmly but not violently. The motion should be a steady tug, not a yank. The footrest will begin to extend. You can stop at any angle along the track. To return to the upright position, push the chair forward into your legs while simultaneously pressing down on the seat cushion. The cam will click back into the locked position. This usually takes two attempts for most people because they forget to press down while pushing forward. I have seen a lot of people use excessive force here. They lean their entire body weight backward or slam the chair forward. The mechanism is rated for typical residential use, which means roughly 250 to 300 pounds of dynamic load. Going beyond that consistently will wear out the cam detents within six to twelve months instead of the expected five to seven years.
Common Problems and What to Do About Them
The most frequent issue I encounter is the footrest sagging or sticking partway through its extension. This is almost always caused by debris getting into the track rails. Dust, pet hair, and lint accumulate in the aluminum channels and create enough friction to stop smooth operation. A vacuum with a narrow attachment followed by a light application of white lithium spray lubricant will resolve this in most cases. Do not use WD-40. It attracts more dust and thins out over time, leaving the rails drier than before. Another issue is the handle becoming loose. The bolt that secures the handle to the cam assembly can vibrate loose over months of use. Check it every few months. A simple quarter-inch wrench or socket will tighten it. I usually recommend a drop of medium-strength threadlocker on the bolt threads during reassembly. This prevents it from backing out again without making future removal impossible. If the backrest does not stay in position at certain angles, the cam detents inside the mechanism are worn. This is not typically a user-serviceable part on the Relax R Bishop model. The cam assembly is a sealed unit that Rivets and welds into the frame. You would need to replace the entire recliner mechanism, which runs roughly eighty to one hundred twenty dollars depending on the supplier. Before doing that, confirm the issue is actually the cam and not just an obstruction in the track or a loose mounting bracket. I once spent forty minutes diagnosing a "worn cam" problem only to find a screw that had fallen behind the seat cushion and was jamming the track.
Get the Full Details
Maintenance That Actually Matters
Forget the marketing about conditioning the leather or fabric every few months. The mechanical components are what determine how long this chair lasts. Tighten the four bolts that attach the mechanism to the wooden frame once a year. Inspect the track rails every three months and clean them. Check that the handle moves freely without excessive play. That is it. Spend your money on a decent floor protector if you have hardwood, because dragging this chair even a few inches will scratch the finish and put lateral stress on the mechanism mounts. The Relax R Bishop Manual Recliner is a solid piece of furniture if you treat it like a mechanical device rather than a lazy prop. It will outlast cheaper recliners by a wide margin when operated correctly. It will fail prematurely the moment someone treats the handle like a door pull.
