Getting Your Salt Cell Running Again

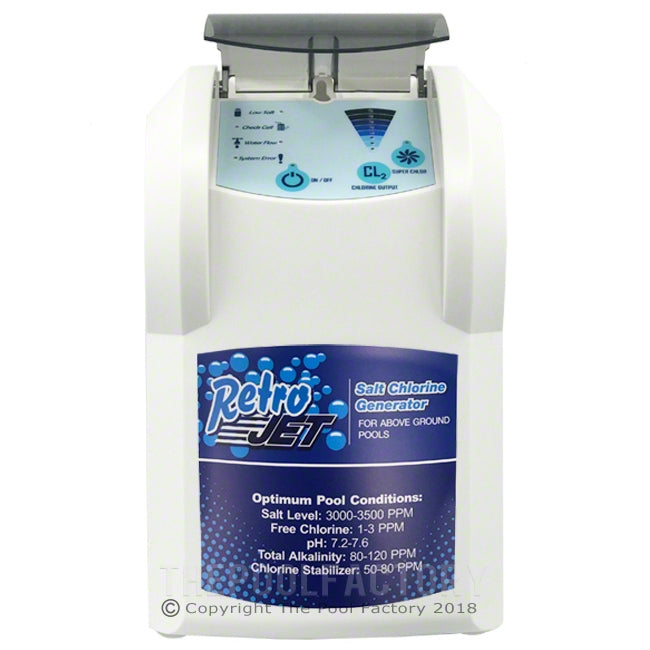

I've dealt with more Retro Jet salt generators than I care to count. Most people buy one of these units second-hand and immediately hit a wall because the manual got lost or never existed in the first place. The Retro Jet Salt Chlorine Generator Manual covers the basics, but it leaves a lot of gaps when you're actually trying to troubleshoot things on a working pool. The unit itself is straightforward. Salt passes through a flow cell, electrical current splits the salt water into chlorine, and that chlorine sanitizes your pool. The control panel displays salinity levels, chlorine output percentage, and cell condition. That's it. Nothing complicated until something breaks.
Retro Jet Salt Chlorine Generator Manual
Downloads for the official manual are scattered across defunct manufacturer websites and random forums. The PDFs you'll find floating around are usually OCR scans of the original paper manual, which means some text gets garbled during scanning. If you find a version where the error codes look like gibberish, grab a different copy. The error code table is the most useful section and it needs to be readable. Here's what the manual doesn't tell you clearly: the cell needs to produce at least 70% of its rated output to maintain proper chlorine levels in most residential pools. If your cell is showing degraded condition at 60% or below, you're wasting electricity running it. The manual will suggest cleaning the cell, which helps temporarily, but once the electrode coating wears thin, nothing brings it back. I had a unit last season where the display kept cycling through error codes that didn't match anything in the manual. E-01, E-03, then back to normal operation. The pool owner thought the generator was dead. Turns out the flow switch was intermittent. The impeller inside the flow sensor was coated with calcium buildup that slowed the turbine enough to drop the flow reading below threshold momentarily. A 10% muriatic acid soak on the flow sensor housing cleared it right up. The manual mentions checking flow but doesn't cover sensor maintenance at all.
Setting It Up Properly
Install the cell in the return line after all other equipment but before any heater. Water temperature matters here. Most Retro Jet cells operate safely between 41 and 104 degrees Fahrenheit. Running the generator when the water is above 100 degrees accelerates electrode wear significantly. I've seen cells degrade from 95% to under 40% in a single summer in heated pools where owners forgot to disable the generator during peak temperature. Check your salt level before turning anything on. The target range is 2700 to 3400 ppm.2500 ppm the unit won't produce chlorine effectively. Over 4000 ppm causes scaling issues and doesn't improve output either. Test strips work fine for this. Liquid test kits are more accurate if you have one available. Power connection is standard 120 volt. Make sure you're on a GFCI protected circuit. The unit draws roughly 6 to 12 amps depending on the model and output setting. A dedicated 15 amp circuit is plenty. Don't run it off a shared outlet with the pump if that outlet is also feeding lights or other equipment. Voltage drop during pump startup can cause erratic behavior in older Retro Jet models.
Get the Full Details
Maintenance That Actually Matters
Cell cleaning frequency depends entirely on your water chemistry. Balanced water with proper pH and alkalinity means cleaning every 3 to 6 months. Out-of-balance water means weekly or biweekly. I've pulled cells out of pools where the owner never checked pH and found them completely encrusted with white calcium deposit within two months. The cell still worked but output was maybe 30% of capacity. Use a 10% acid solution and a plastic brush. Never use metal brushes on the electrodes. Never use hydrochloric acid stronger than 10%. Stronger concentrations damage the titanium coating over time. Soak the cell for 15 to 20 minutes, scrub gently, rinse thoroughly, and reinstall. The whole process takes about 20 minutes if you know what you're doing. The salt concentration doesn't drop under normal operation. You only add salt when water is lost through backwashing, splashing, or intentional draining. Estimate one 35-pound bag of pool salt per 5000 gallons of water removed. Use pure sodium chloride salt, not iodized table salt or salt with anti-caking agents. Those additives deposit in the cell and on the electrodes.
Common Failure Points
The control board is the most frequent failure. Moisture intrusion is the usual cause. These units are designed for indoor or covered equipment pad installation. Leaving one exposed to rain or excessive splash leads to board corrosion within a few years. The symptoms are unpredictable. Random error codes, display going blank, or complete failure to power on. Replacement boards run around $80 to $150 depending on the model year. Flow switch failures are the second most common issue. The magnetic reed switch inside can stick or lose sensitivity. Symptoms mirror control board problems. If you're getting flow errors but your pump is clearly running and water is moving through the cell at normal volume, replace the flow switch before replacing the board. Flow switches cost about $15 to $25. Boards cost five to ten times that. Cable connections between the cell and control box corrode over time. The connectors are small and sit in a humid environment. Green or white crust on the terminals means corrosion. Clean them with a wire brush and apply dielectric grease before reconnecting. I do this every spring on every unit I service. It prevents a huge number of false error reports.
When to Replace Instead of Repair
If your cell reads below 40% condition and you've already cleaned it properly, replacement is the only real option. New cells for Retro Jet units run $200 to $400. At that point you have to decide whether the repair is worth it. A new cell restores output to 95% or better. A replacement control board costs less but won't fix an already degraded cell. Complete unit failures where the control board and cell both need replacement often exceed the value of a refurbished or newer model. Some pool supply houses offer trade-in pricing on older Retro Jet units. It's worth checking if you're doing a major repair. Manual overrides exist on most models. Holding the mode button for five seconds enters diagnostic mode where you can force the cell output and read sensor values directly. This is useful for confirming whether the issue is the cell itself or the control electronics. The manual barely mentions this feature. It's documented in the service notes that came with the unit but most owners never see those.
If your pool has soft water or low natural salinity, you'll need to add salt regardless. The Retro Jet systems don't create salt. They only convert existing salt into chlorine. A new pool fill with distilled or reverse osmosis water will show zero salinity until you add salt. The generator won't produce chlorine until the salt level reaches the minimum threshold. Winterizing follows standard procedure. Remove the cell if you're storing the unit for more than a month. Rinse it, let it dry completely, and store it indoors. Leaving it installed in an unheated space exposes the cell to freeze damage. Water inside the cell channels expands when frozen and cracks the housing. One freeze cycle destroys a cell that would otherwise last several years. The return line placement matters for cell longevity. Install the cell with the arrow on the housing pointing in the direction of water flow. Backwards installation causes reduced flow and increased pressure that stresses the cell fittings. Some people install it backwards by mistake because the plumbing layout requires it. Just make sure the arrow matches the flow direction or you'll have premature wear and lower output.
Most problems with these units trace back to one of three things: low salt, dirty cell, or flow issues. Check those first before assuming the control board is bad. That's the order I go through every time. Save yourself an unnecessary part order and a trip to the pool supply store.
