Working With the Roosa Master DB Injection Pump
The Roosa Master DB series is a mechanical inline fuel injection pump that shows up in a lot of older industrial equipment — gensets, forklifts, water pumps, the usual stuff. Finding a real manual for one can be frustrating because the part numbers branch out in weird directions. The DB-1310, DB-1710, DB-2110, and various sub-variants each have slightly different displacement and timing characteristics. A generic guide won't help you much if you're trying to set timing on a specific unit. I spent about three days last fall tearing into a DB-1710 on a Caterpillar 3306 that had been running rough at idle. The previous mechanic had replaced the lift pump and bled the system, but the pump was still surging. The manual I was working from had general teardown instructions but was missing the actual timing specs for that particular serial number range. I ended up cross-referencing with a service bulletin from the late '90s and a spec sheet from a parts distributor in Ohio. The manual itself is fine for basic overhaul work — seal replacement, plunger inspection, poppet valve lapping — but it stops short on dynamic calibration details.

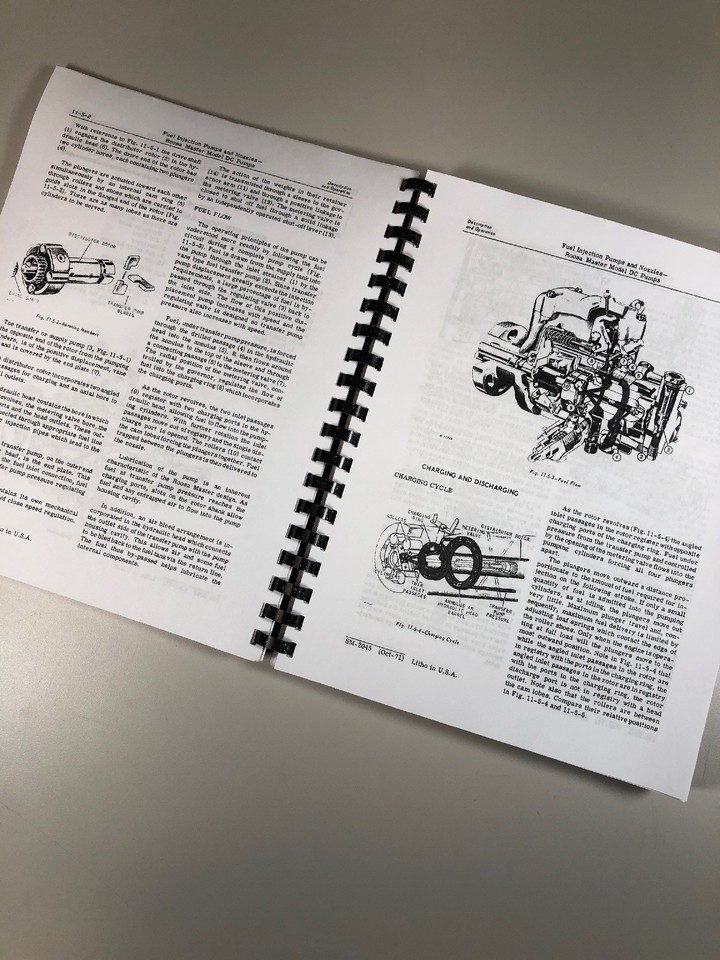

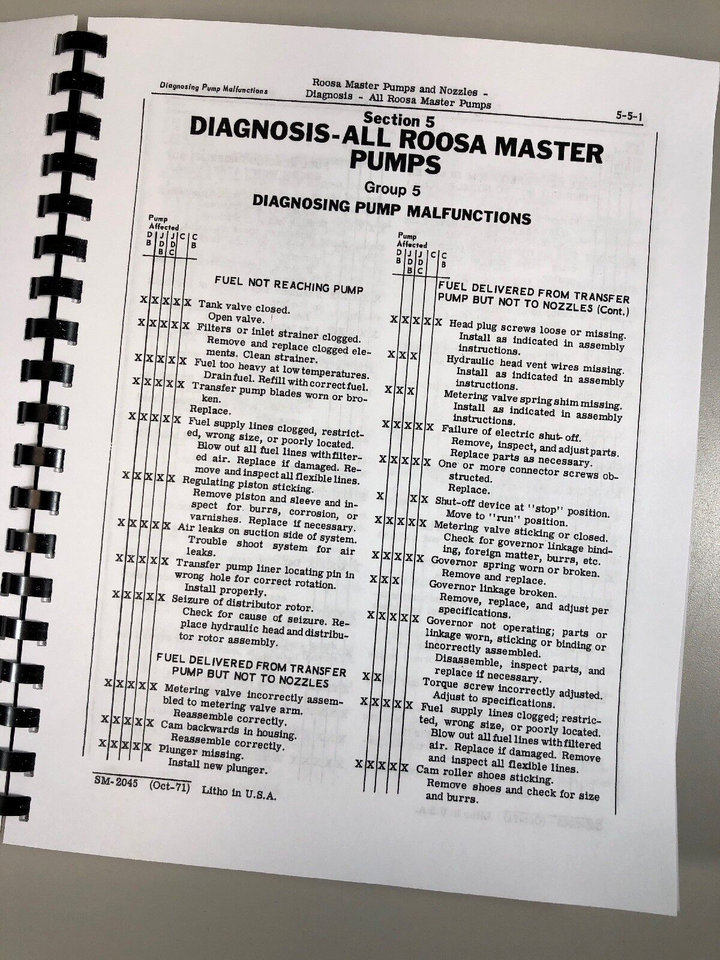

Where to Find the Roosa Master Db Injection Pump Manual
The most complete version I've used is the original service manual numbered 270158, sometimes listed as 270158A depending on the revision. It covers the full DB series from through the 1990s. You won't find it on the official Cummins site anymore since Roosa Master was acquired decades ago and the documentation migrated into the Cummins parts system. The best sources are either specialized diesel parts catalogs like EnginePartWorld or DieselPartsDirect, or older PDF repositories that scavenge from OEM dealer networks. Some of the older reproductions floating around have scans that are barely readable, so check the resolution before downloading. If the plunger bore diagrams are legible, you're probably looking at a decent copy. The manual walks through disassembly, inspection criteria for plungers and barrels, spring replacement intervals, and reassembly torque values. The torque specs alone are worth keeping handy — you're dealing with small fasteners on an aluminum body and over-tightening them will strip threads or crack the housing. The manual lists values like 15 to 18 foot-pounds for the delivery valve holding down screws and about 25 to 30 for the main body bolts. Those numbers matter more than people realize.
What the Manual Actually Covers and Where It Falls Short
The Roosa Master DB pump is a constant-speed, variable-delivery unit. Each plunger barrel pair controls one cylinder, and the rack and pinion mechanism adjusts the helix angle on each plunger to change fuel delivery. The manual explains this relationship but assumes you already understand how helix timing translates to cut-off point. If you're new to this, you might find yourself rereading that section a few times. One thing the manual doesn't emphasize enough: the condition of the governor springs. These are easy to overlook because they look fine visually. On that Caterpillar I mentioned, the primary governor spring had stretched about 0.020 inches past spec. It wasn't obvious until I measured it against the reference dimensions in the manual. The engine would surge under load because the spring couldn't hold the rack position steadily. Replacing just the spring fixed the surging completely. This is the kind of thing that takes a reading, not just an inspection. Another detail that trips people up is the delivery valve seat. The manual shows you how to remove and reinstall the delivery valve assembly, but it doesn't spell out what happens when the seat gets worn. A worn seat causes fuel hammer and irregular injection patterns. The telltale sign is uneven combustion and a slight black smoke at high RPM. You can test for this by monitoring the return line flow at idle versus at operating speed. If return flow increases significantly under load, check the delivery valve seats before you do anything else.
Get the Full Details
Practical Calibration Notes
The manual provides static timing procedures, but dynamic calibration on an actual engine requires a bit more than what's on paper. I use a timing light synced to the fuel injector line on cylinder one and adjust the pump mounting position until the mark aligns with the specified degrees before top dead center. For most DB-1710 applications, that's around 13 to 15 degrees BTC at idle. The manual gives a range, and the correct value depends on the engine manufacturer's specification, not the pump manufacturer's. Check the equipment's service data before setting it. When you're reinstalling the pump after an overhaul, there's a common mistake people make with the coupling. The flexible element in the drive coupling has a specific orientation, and installing it backward changes the effective timing by several degrees. The manual mentions the coupling but doesn't show the correct orientation in the diagrams. I learned this the hard way after setting timing perfectly, bolting everything up, and discovering the engine was running 8 degrees retarded. Flipping the coupling half corrected it instantly. The rack adjustment is another area where the manual is adequate but not complete. The free play specification is listed, but achieving it often requires shimming the rack stop. If your rack is binding at full fuel, don't just force it. Back off the stop, check for debris or worn bushings in the rack bore, and measure the play before adding shims. Forcing the rack into position creates uneven wear on the plungers and will shorten the life of the pump significantly.
Limits of This Setup
The DB series pumps are robust, but they have clear limitations. They don't handle modern ultra-low sulfur fuel well without modification. The lower lubricity of ULSD accelerates wear on the plunger-barrel pairs. If you're running ULSD in a machine that was originally designed for high-sulfur diesel, you should consider adding a fuel-borne lubricity additive or looking into an upgraded plunger set with hardened surfaces. The manual doesn't address this because it predates ULSD regulations by decades. Another limitation is spare parts availability for the earliest DB models. Plungers and barrels are still produced for the DB-1710 and DB-2110 through various aftermarket suppliers, but older variants like the DB-1310 can be difficult to source. In those cases, some people rebuild the existing components rather than replacing them. That's workable if you have the right gauges and lap the plungers properly, but it requires precision equipment you probably don't have lying around. For that reason, finding a good remanufactured unit is often more practical than attempting a full rebuild. The manual is a solid reference for rebuild work and general troubleshooting. It won't solve every problem you'll encounter, especially around calibration and governor tuning, but it's the starting point. If you're working on one of these pumps and hit a detail that's missing, reaching out to a local diesel repair shop or posting your specific serial number and application in a dedicated engine forum usually gets you somewhere faster than flipping through pages that weren't written for your exact situation.
