Working With the Ruud Silhouette II Gas Furnace

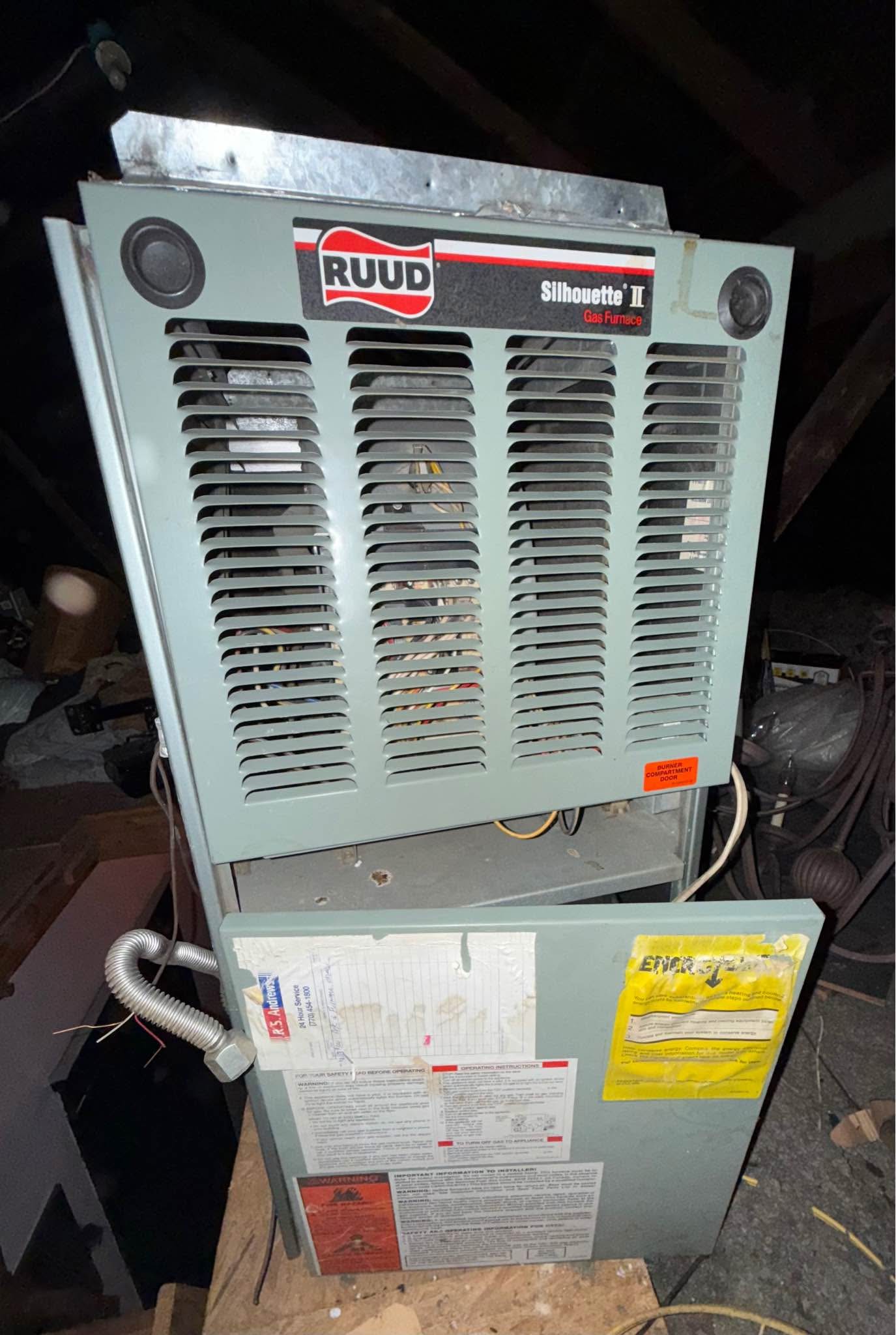

The Ruud Silhouette II is a fairly standard residential gas furnace. It comes in 80% AFUE efficiency models across a range of capacities from 60,000 to 100,000 BTU input. The control board is a single-piece module that handles ignition sequencing, flame sensing, and safety lockout. If you are looking for the owner's manual, your first move should be the model number tag on the blower compartment door or inside the burner access panel. The manual varies by specific model, so a generic search for Ruud Silhouette Ii Gas Furnace Owners Manual will pull up a few different documents depending on whether your unit is the SCILS180, SCILS240, or one of the others in the lineup. I spent about twenty minutes last November tracing a lockout code on a SCILS180 at a customer's house. The board was flashing six times — three short, a pause, then three more. That means the igniter is trying to glow but the board is not seeing flame within the trial period. Most people would immediately assume a bad igniter, but in this case the problem was a flaky ground connection on the flame sensor terminal. I cleaned the sensor with emery cloth, tightened the screw terminal on the board, and it fired right up. The part that tripped me initially was that the igniter itself was actually fine — the resistance measured about 45 ohms, which is in spec. If I had just swapped the igniter, the furnace still would not have lit until I chased the ground issue.
Where to Find the Ruud Silhouette Ii Gas Furnace Owners Manual
The most reliable source is directly from Ruud's website. You can go to their support section and enter your full model number to download the PDF. If the model tag is missing or illegible, you can also find the documentation on third-party sites like ManualsLib or AppliancePartsPros, but you need to verify the model match before using any of those for troubleshooting. An incorrect manual will list different wire colors or sequence codes, and following the wrong procedure on a gas furnace is not something I would recommend. The owner's manual covers the basics: filter maintenance, annual inspection notes, and basic operating information. What it does not cover in detail is the control board diagnostic code chart. For that, you want the installer or service manual. The service manual will show you the wiring diagram, terminal designations, and the full lockout sequence. The service manual is harder to find than the owner's manual, but if you search for the model number plus "service manual" or "technical guide," you should be able to pull one up on HVAC forums or from supplier sites like SupplyHouse or Greenheck's archive.
Control Board Diagnostics
The Silhouette II uses a five-LED diagnostic display on the control board. When the furnace calls for heat, you watch the LEDs in sequence. Under normal operation, LED1 lights during the pre-purge, LED2 activates when the inducer motor reaches proper speed, LED3 comes on during ignition, and LED4 indicates a successful flame signal. If any step fails, the board locks out and flashes a code. The common ones I deal with are: Code 1: Pressure switch did not close during pre-purge. This is almost always a blocked condensate trap, a cracked hose, or a failed pressure switch. Sometimes it is just a disconnected tube. Code 2: Pressure switch failed to open after the inducer stopped. Rare, but I have seen it happen when the pressure switch capillary tube gets water trapped inside it from a flooded condenser. The water freezes in cold weather and the switch stays closed.
Get the Full Details
Code 3: No flame during ignition. This is the one I just described above. Check the igniter resistance first — it should read between 30 and 70 ohms for most Silhouette II models. If it reads open or near zero, replace the igniter. If the resistance is good, check the 24V coming to the hot surface igniter terminals during the ignite cycle. If voltage is present and the igniter is glowing but there is still no flame, you are likely looking at a gas valve issue or a blocked manifold. Code 4: Flame signal lost after lockout reset. This usually points to a dirty or misaligned flame sensor, poor ground, or possibly an air-fuel mixture problem caused by a dirty filter or restricted return airflow. I have seen this repeatedly in homes where the filter has not been changed in over a year. The furnace fires, senses flame briefly, then loses the signal as the sensor carbonizes. Code 5: Thermal overload on the inducer motor. Not common. If you see this, check that the inducer wheel is not clogged with debris and that the bearings are not seized. Listen for any grinding noise when the inducer starts. A binding inducer will trip this protection every time.
Code 6: High limit trip. The heat exchanger got too hot. In my experience, this is usually airflow related — closed registers, a failing blower motor, or a dirty coil on the A-coil side. Less commonly, it is a cracked heat exchanger restricting flow internally, but that is rare on a unit this age.
Common Maintenance Items
The filter should be checked monthly and replaced when it loads up. The Silhouette II does not have a fancy filter rack, just a standard 16x25x1 or however your particular model is configured. Use a MERV 8 filter at minimum. Anything higher and you may starve the heat exchanger of airflow, which leads to Code 6. The burner assembly should be vacuumed out annually. The Silhouette II uses a cast stainless steel heat exchanger, and the burners are positioned above it. Dust and lint accumulate on the burner ports over time and can cause uneven ignition or slight buzzing during the spark phase. A shop vac with a brush attachment does this in about ten minutes. Do not use compressed air because it blows debris deeper into the exchanger passages. The condensate drain line needs attention twice a year. Pour a cup of white vinegar down the drain tee at the bottom of the secondary heat exchanger. This keeps algae from building up inside the PVC trap. I once cleared a lockout where the condensate line was completely solid with green slime — the inducer was trying to pull air through a blocked drain and the resulting back pressure tripped the pressure switch.
The blower motor is a direct-drive PSC type. The bearing grease is factory-packed and does not need servicing, but the motor pulley set screws should be checked annually. I found one unit where the blower wheel had worked itself slightly off-center because the set screw backed out. It caused a low-frequency rumble at high speed and reduced airflow enough to trigger the high limit repeatedly.
Gas Valve and Ignition Notes
The gas valve on the Silhouette II is a single-stage valve. When the control board calls for heat, it sends 24V to the valve solenoid and the valve opens fully. There is no modulating stage. The ignition system is a hot surface igniter, not a standing pilot or spark ignition. The igniter draws about 3.5 to 4 amps and reaches roughly 1800 degrees Fahrenheit during the warm-up phase before the gas valve opens. That delay is normal and accounts for about thirty seconds of the total startup cycle. If you are measuring voltage at the gas valve terminals and getting only 20 or 21 volts instead of a solid 24, the transformer may be failing or there is a voltage drop somewhere in the low-voltage wiring. I had one case where a corroded wire nut between the thermostat and the control board was dropping two volts under load. The gas valve was opening but barely, and the flame was weak. Replacing the wire nut resolved the issue without touching the valve.
A Few Things the Manual Won't Tell You
The heat exchanger on this unit is rated for about fifteen to twenty years under normal conditions. If you are getting regular Code 6 trips on a unit that is twelve years old and the airflow checks out fine, start looking for cracks. A borescope through the burner access ports will show you the exchanger surfaces without taking anything apart. I found a hairline crack in the center runner of an SCILS180 that was causing incomplete combustion and CO levels just under the danger threshold. The furnace was otherwise running fine, and the owner had no idea. Another thing worth noting is that the control board is not field-repairable. If it fails, you replace the entire module. Ruud sells them separately and they run around two hundred fifty to three hundred fifty dollars depending on the exact part number. Some third-party boards claim compatibility, but I have seen communication errors and intermittent flame sensing issues with non-OEM replacements. Stick with the original unless you have a reason not to. The inducer motor assembly is a sealed unit. If you hear a whining or screeching sound from the combustion chamber side, the motor bearings are wearing. Replacing just the motor is possible on some models but the seal gasket between the motor housing and the manifold often fails during removal, so you end up replacing the gasket anyway. In most cases it is cleaner and faster to swap the entire inducer assembly.
