Setup Guide For Guitar

What a Proper Guitar Setup Actually Involves

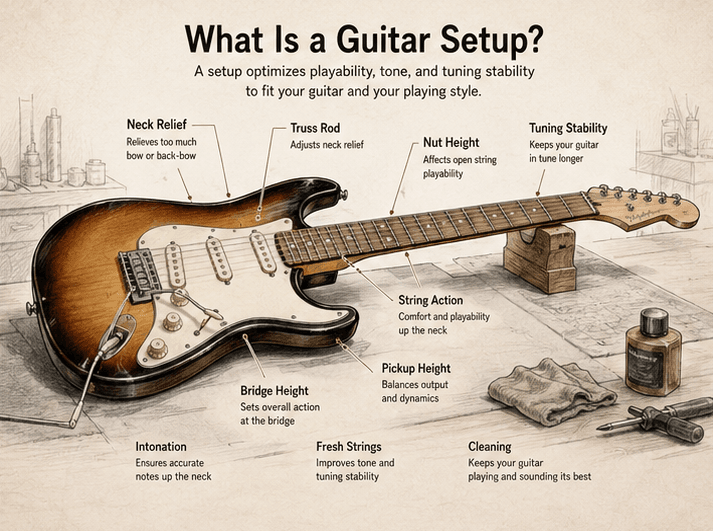

A setup is the process of adjusting the physical geometry of your instrument so it plays correctly. This means the neck relief, string action, intonation, and string height all work together without causing buzzes, sharp notes, or finger fatigue. Most people who buy a new guitar find it out of spec right out of the case. This is normal. Factory setups are done on an assembly line, not by a luthier at a workbench. I've done enough of these to know the sequence matters. If you change the string action before the truss rod is set, everything downstream is going to be wrong. The order is non-negotiable for a reason.

Step-by-step Setup Guide For Guitar

Start with the truss rod. Loosen all string tension and check the relief by pressing the low E at the first fret and the fret where the neck meets the body. You should see about 0.010 inches of gap — roughly the thickness of a business card. If it's flat, tighten the truss rod in quarter-turn increments. If it's too curved, loosen it. Wait five minutes between adjustments for the wood to settle. I learned this the hard way on a 1998 Fender Jazzmaster with a maple neck — I cranked the rod, expected immediate results, and ended up overcorrecting so badly the frets rattle against my fingers for a week before I could fix it again. Next, set the string action at the bridge. For electric guitars, a good starting point is 4/64 inches on the high E and 7/64 inches on the low E at the 12th fret. Adjust each saddle individually. Use a feeler gauge, not your eyeballs. The difference between 4 and 5 thousandths of an inch is the difference between comfortable bends and painful string buzz. Then intonation. Play the 12th fret harmonic and compare it to the fretted 12th fret note. If the fretted note is sharp, lengthen the string by moving the saddle back. If it's flat, shorten the string by moving the saddle forward. Do this one string at a time, re-tuning after every adjustment. A typical setup takes about 20 to 30 minutes for someone who has done this dozens of times. For a beginner, expect an hour or more on the first attempt.

Finally, check the nut slots. If a string binds in the nut when you tune up — which is why players report guitars going out of tune immediately after playing — file the slot slightly wider or lubricate it with graphite from a pencil. I've seen players replace entire nut blanks because they didn't realize the slots were the problem. One person I worked with had a Gibson Les Paul Custom that refused to stay in tune during vibrato dives. We spent forty-five minutes adjusting the bridge and tailpiece before I noticed the nut was the actual culprit. A few strokes with a nut file and it held tune perfectly.

Common Pitfalls That Ruin Setups

The biggest mistake people make is adjusting the truss rod while the strings are at full tension. The rod is under tension itself, and the neck flexes differently when strings are loose versus tight. Always adjust with strings at pitch. If you take them all the way down, the relief measurement changes, and you'll second-guess yourself. Another issue is ignoring fret wear. If you have a vintage-style guitar with raised frets at the first position, no amount of truss rod or action adjustment will fix buzzing on those frets. You'll need a fret level, crown, and polish — which is a separate process entirely. I once had a client bring in a mid-range acoustic with severe fret crowns at positions one through three. We adjusted everything we could, and it still buzzed on open strings. The only real fix was a professional fret job. Pickup height also matters more than most players realize. If your pickups are too close to the strings, they'll pull the strings out of phase and cause intonation issues that feel like the guitar is just broken. Start with about 3/32 inches on the bass side and 1/16 on the treble side, then tweak from there. The difference between a great tone and a muddy one is often half a millimeter of pickup height.

Tools You Actually Need

A quality feeler gauge set, hex wrenches in the sizes your guitar requires (usually 1.5mm, 2mm, and 2.5mm for truss rods), a string action ruler, and a set of nut files if you're doing nut work. For intonation, you need an accurate chromatic tuner — a clip-on tuner like the TC Electronic PolyTune works fine. Don't skip the tuner. Every adjustment depends on accurate pitch reference. A $20 budget tuner that reads 5 cents off will make your intonation work meaningless. If you don't own these tools, a professional setup will cost between $50 and $150 depending on the shop and region. Some shops offer free setups with a new guitar purchase, which is worth taking advantage of since you already paid for the instrument. The alternative is buying tools you might use once and storing them in a drawer for years.

When a Setup Won't Fix Your Problem

A setup cannot fix a warped neck. If the neck has a permanent bow that doesn't respond to truss rod adjustment, you need a neck replacement or a professional rebuild. I've seen three guitars in the past five years with this issue — two acoustics and one bass — all with visible crown shaping in the neck that no amount of rod adjustment could correct. The wood had dried out unevenly and the grain was set. Similarly, a setup won't fix poor-quality strings, a broken tuning machine, or a faulty bridge saddles that won't hold their position. Before spending time on adjustments, make sure every component is actually functioning correctly. A loose saddle screw can undo an entire intonation job in minutes. If you're working on a guitar with a floating tremolo system, the process becomes significantly more complex. Every adjustment to one area affects another. Changing string action on a Floyd Rose requires re-doing intonation. Adjusting the truss rod changes the string tension distribution across the entire bridge. For these systems, I recommend using a setup jig or taking it to someone who has done it before. The margin for error is much smaller.

The bottom line is that a proper Setup Guide For Guitar gives you the framework, but each instrument behaves differently based on its age, wood, hardware, and how it's been played. The adjustments you make will be unique to that specific guitar, even if two guitars are the same model from the same factory year.
