Getting Started With the Sharper Image TDX 2017

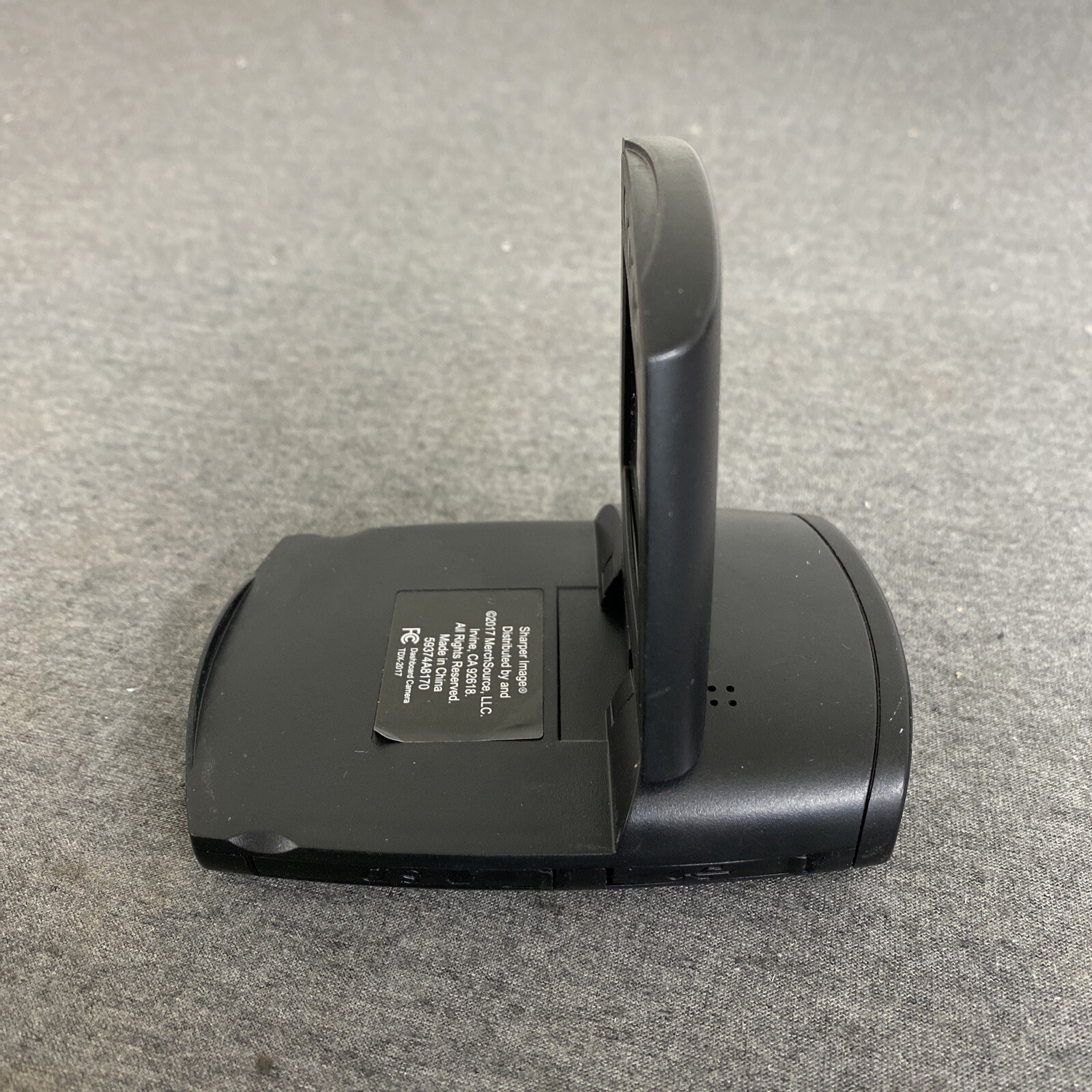

The Sharper Image TDX 2017 is a dual-channel dash cam — front and rear cameras connected to a central recording unit that mounts on your windshield. It records in 1080p on the front lens and 720p on the rear. The manual that comes with it is thin, poorly organized, and assumes you already know how dash cams work. Most people throw it away. I didn't, and I ended up needing it more than once. Sharper Image has gone through ownership changes and website revamps multiple times over the years. The original manual is sometimes hard to find on their site. If you can't locate it, search for "Sharper Image TDX 2017 user guide pdf" and look for the document on sites like ManualsLib or Scribd. The PDF version is essentially the same as the printed booklet but easier to search. Keep it saved somewhere on your phone or cloud storage. You'll want it when the parking mode isn't behaving the way you expect. The front camera mounts using the adhesive pad that comes in the box. Clean your windshield with alcohol before sticking it down — seriously, don't skip this. I learned that the hard way after the unit fell off during a temperature swing in February. The rear camera runs a cable along the headliner and down the driver's side trim. Route it behind the weather stripping on the door jamb so it stays hidden and doesn't get pinched.
Power comes from the cigarette lighter socket, which means the unit powers on and off with the car. If you want parking mode, you need to hardwire it to the fuse box using the provided hardwire kit. The kit includes a voltage cutoff at 11.8 volts to prevent draining your starting battery. This is important because the TDX 2017's parking mode records when it detects motion or G-sensor activation while the engine is off.
Common Problems and What I Did About Them
One issue that came up repeatedly in forums and support threads was the rear camera not displaying correctly. In my setup, the rear feed would flicker or go black intermittently. The problem wasn't the camera itself — it was the cable connection at the main unit. The ribbon cable connector is fragile and doesn't seat with a lot of force. I opened the housing, removed the ribbon cable, cleaned the contacts with a small amount of isopropyl alcohol on a cotton swab, and reseated it firmly. That solved it permanently. Another thing to watch out for is the microSD card. The manual says it supports cards up to 128GB, but in practice I had corruption issues with certain brands. Switch to a high-endurance card from Samsung or SanDisk. A regular card will fail faster because dash cams write continuously in a loop. Endurance-rated cards are built for that exact workload.
Get the Full Details
Settings That Matter Most
Goto the menu through the touchscreen. The most useful settings to adjust are the G-sensor sensitivity and the loop recording duration. Set the G-sensor to medium rather than high. When it's on high, normal braking and bumps trigger lock events that fill up your card with unusable footage. Medium catches the hard impacts without locking every time you hit a speed bump. For loop recording, 3-minute segments are a good balance. Shorter segments mean more files to sort through if you need to find a specific incident. Longer segments risk losing more footage if the card corrupts. Three minutes is standard and works fine.
What the Manual Doesn't Tell You
Here's something nobody mentions in the documentation: the front and rear cameras do not record simultaneously in the highest resolution. The dual-channel recording splits bandwidth, which means the rear camera can occasionally lag behind the front in file creation time. This isn't a defect. It's just how the chip handles two streams. If you need both channels perfectly synced for legal purposes, don't rely solely on this camera. For insurance claims and everyday use, it's adequate. The night vision on the rear camera is weak. It's not broken — it's just a 720p sensor with a modest lens. At night, things get grainy and license plates are hard to read beyond 15 feet. The front camera handles low light significantly better at 1080p. This is a limitation of the hardware, not something you can fix with a setting adjustment. If rear night recording is important to you, consider a camera with an larger sensor on the back channel.
Maintenance
Format the microSD card every month. Don't just delete old files — go into the menu and use the format function. This keeps the file system clean and prevents corruption that shows up as missing video segments. It takes about 30 seconds and saves you from pulling your hair out later. Check the adhesive mount every few months, especially if you live somewhere with extreme heat or cold. Reapply with a fresh adhesive pad if needed. I replace mine twice a year as a preventive measure. The firmware for the TDX 2017 hasn't been updated in years. Sharp Image stopped pushing updates after they rebranded and shifted product lines. There are no new features coming. The unit does what it does, and that's it. If it stops working after a few years, that's expected for this price range. It's a consumer-grade device, not professional equipment.
