Shop Vac Ball Float Problem

Why Your Wet/Dry Shop Vac Keeps Getting Swallowed by Water

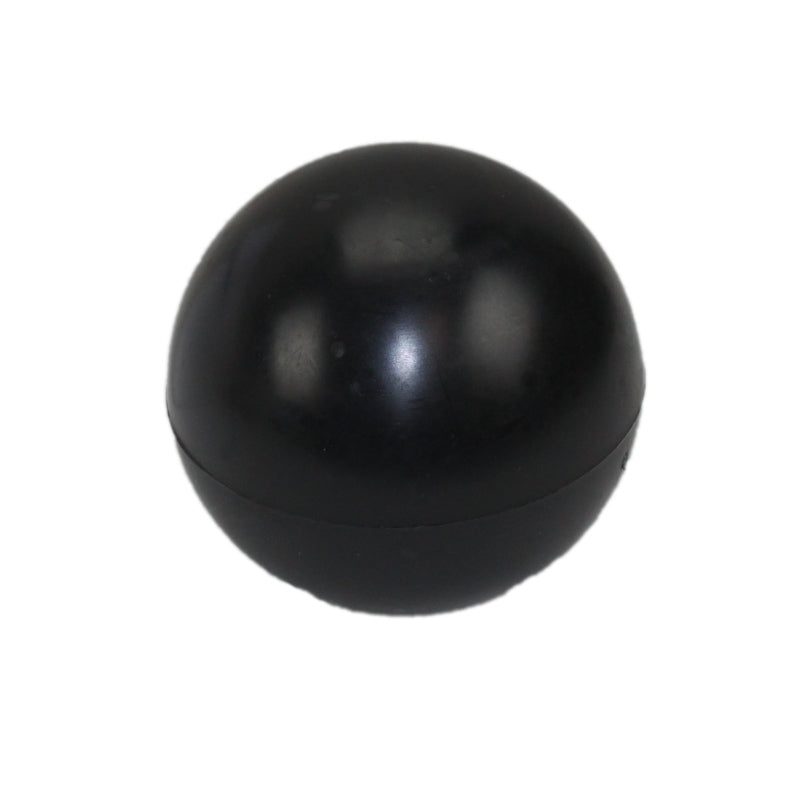

The ball float inside a shop vac is a deceptively simple mechanism, but it's also the single most common failure point when people switch between wet and dry pickup without thinking about what they're doing. The float is supposed to ride up as the water level rises in the canister and physically close off the intake port so the motor doesn't suck in liquid. When it fails, you get water in the motor housing, which means a bad day whether your unit is a $40 hardware store special or a $300 industrial model. Here's how it actually works: there's a hollow plastic sphere sitting on a valve seat at the top of the collection chamber. As water fills the can, the ball floats upward and presses against a rubber or plastic seal. The airflow path gets blocked before water can reach the fan. Dry only. Period.

Shop Vac Ball Float Problem: The Usual Suspects

The most common Shop Vac Ball Float Problem I see isn't even a broken part. It's debris. Hair, sawdust slurry, fine grit, that brown sludge that accumulates at the bottom of your bucket after cleaning up a wet garage floor. Any of it can lodge between the ball and its seat and prevent a proper seal. The float still moves. It still looks like it's doing its job. But you're quietly losing vacuum to a micro-leak that doesn't bother you until the second you try to pick up standing water and the motor starts making that horrible grinding sound. The second most common issue is the float itself becoming waterlogged. The plastic spheres aren't hermetically sealed forever. Over time, especially in humid environments or with repeated wet pickup cycles, moisture wicks through microscopic cracks or seam lines. A waterlogged ball loses buoyancy. It sits lower in the water than it should. The valve never fully closes. You lose the protective cutoff exactly when you need it most. I learned this the hard way on a Friday night in 2019. My 16-gallon shop vac was sitting in a basement that had just experienced a slow sump pump failure. I was pulling standing water out of a corner, maybe three gallons total. The float rose, I heard the valve click shut, and I figured I was done. I was wrong. About forty seconds later the motor started pulling water through anyway. I shut it off immediately but not before a significant amount got into the blower housing. The vac ran for another ten seconds on fumes, then died. The motor wasn't destroyed, but it needed a full teardown, cleaning, and replacement of the centrifugal fan bearings. That was a six-hour project on a Friday night that could have been avoided entirely.

How to Fix It

Start by unplugging the unit. Then remove the lid and take out the filter if there is one. Locate the ball float assembly. It's usually a clear or translucent plastic tube with the ball sitting inside it, positioned near the top of the canister where the collection chamber meets the motor housing. On most models you can remove the entire float assembly by unscrewing a retaining ring or lifting out a retaining clip. Some cheaper models just pop the whole thing out by hand. Clean the ball. Use warm soapy water and a soft brush. Check for cracks. If the ball has any visible fissures, replace it. I know some people will try to patch a cracked float with epoxy or superglue. Don't. The epoxy adds weight. The bond fails under repeated thermal cycling. Just get a new ball. They cost about two dollars on Amazon or you can sometimes salvage one from a donor unit at a scrap yard. Clean the valve seat inside the intake tube. This is the part that matters most. Use a pipe cleaner or a long cotton swab dipped in rubbing alcohol to get inside the narrow passage where the ball seals. You'd be surprised how much gunk packs into that small diameter. Run water through the tube and watch it drain completely. If water doesn't flow freely, you still have debris in there.

Reassemble and test with clean water before you commit to any actual cleanup job. Fill the canister halfway with fresh water from a hose. Turn the vac on in wet mode. Watch the float rise. Put your hand over the intake port and feel for airflow. When the float is fully elevated, airflow should stop completely or come down to a barely perceptible whisper. If you still feel a strong draft, the seal isn't closing and you need to go back through the cleaning steps.

Edge Cases and Workarounds

Sometimes the float mechanism itself is fine and the problem is elsewhere. On certain shop vac models, particularly older Craftsman and Shop-Vat branded units, the float tube can develop an internal stress crack near the base where it connects to the motor housing. Water seeps past the seal and into the motor chamber without ever touching the float. In those cases no amount of cleaning will help. You need to replace the float tube assembly or, on some models, seal the crack from the outside with a waterproof epoxy rated for plastics. That's a temporary fix at best. The epoxy degrades over months of vibration and temperature change. Another thing people miss: the float assembly on many wet/dry vacs is designed for water only. If you're picking up something heavier than water, like sawdust mixed with water forming a thick slurry, the float won't work properly. The slurry is denser than water but the viscosity prevents the ball from moving freely. The float sticks mid-travel. The valve stays partially open. Slurry goes straight into the motor. The workaround is to siphon or pump off the bulk liquid first, let the remaining sludge settle and dry slightly, then use the dry-only mode with the foam filter installed to pick up what's left. It's slower but it won't destroy your vac. There's also a counter-intuitive point about float position that most manuals don't mention. On adjustable float models, lowering the trigger point actually gives you MORE protection, not less. People assume setting the float to trigger earlier means you have less collection capacity before shutdown. That's true, but it also means the valve closes before the water level gets high enough to create significant hydrostatic pressure against the seal. A higher water column pushes the ball harder against the seat, which is good, but it also forces water through any microscopic imperfections in the seal interface. Lower float setting, cleaner cutoff, safer for the motor. Capacity drops by maybe fifteen to twenty percent. Motor survival rate goes up significantly.

When the Float Approach Isn't Enough

If you're doing heavy wet pickup work, especially in construction or automotive settings, I'd recommend against relying on the ball float alone. These mechanisms are maintenance items, not failure-proof safeguards. The industrial approach is to use a separate float switch or automatic shutoff module. These are aftermarket add-ons that mount inside the canister and kill power to the motor when water reaches a certain level. They're more expensive, usually running between $25 and $60, and they require some modification to install. But they're electrically triggered rather than mechanically blocked, so they respond faster and don't suffer from the same debris-related failures. Another practical limitation worth noting: the ball float only protects the motor. It does nothing for the filter. Once water breaches the float seal, it hits the filter next. A paper or cellulose filter soaked with water is ruined. A foam filter can be rinsed and reused, but repeated wetting and drying causes it to degrade and eventually tear. If you're doing serious wet work, carry spare foam filters and check them regularly for wear along the edges. The bottom line is that the shop vac ball float is a useful feature but a flawed one. Clean it before every wet job. Inspect the ball for waterlogging. Test it with a bucket of clean water and don't skip that step. And if you find yourself constantly battling the same problem, it's probably time to invest in a vac with an electronic float switch or just accept that manual monitoring is the only truly reliable approach.
