Understanding the Shovelhead Oil Pump System
The oil pump on a Shovelhead isn't complicated, but it's easy to get wrong if you're coming from a modern engine background. These bikes use a dry-sump system, which means the oil pump has two jobs instead of one. There's the scavenge stage pulling oil out of the crankcase and the pressure stage pushing it back up through the frame rails to the head. Fail one side and you're walking home. I've seen more than a few Shovelheads die from oil starvation that looked fine on the surface. The pump itself is located behind the primary case, driven off the cam chain. What people miss is that the real vulnerability isn't the pump gears. It's the pickup screen in the bottom of the sump tank and the condition of the oil seal where the pump shaft exits.

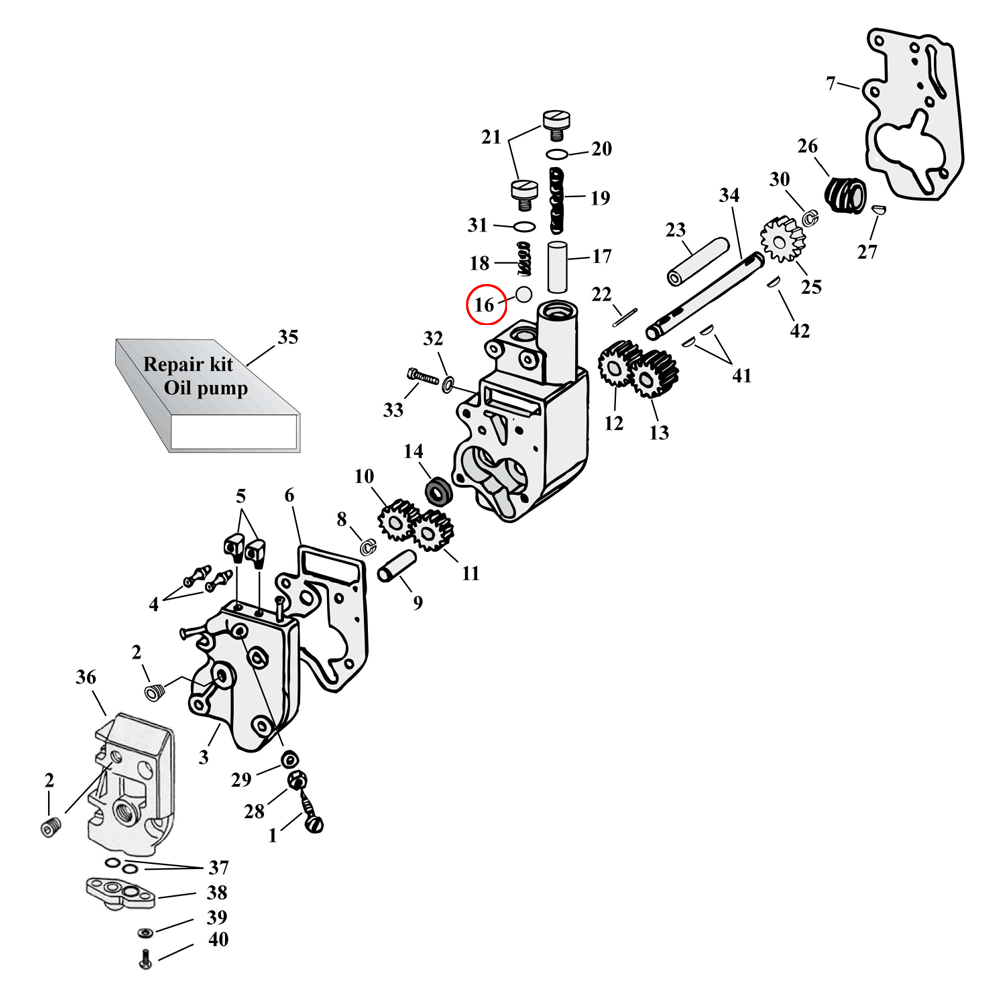

Reading a Shovelhead Oil Pump Diagram
When you look at any Shovelhead Oil Pump Diagram, you'll see two separate gear sets. The pressure gear sits above and drives the scavenge gear below through an idler. Oil flows from the sump tank, through the pickup screen, into the scavenge side, gets pushed up to the pressure side, and then travels through the oil filter and into the galleries in the frame backbone. From there it feeds the pushrod tubes and eventually drips down to lubricate the cam chain and crankshaft bearings. The diagram makes it look straightforward. In practice, the orientation of the pickup screen matters more than anything else. I learned this the hard way on a '72 FLH that I was restoring. The previous owner had installed an aftermarket oil tank with a pickup screen that sat about three millimeters too high. On straight roads the engine ran fine. Under hard cornering or during deceleration, the oil would slosh away from the screen and the pressure gauge would drop to zero for a second or two. Each event caused minor but cumulative damage to the cam bearings. I didn't notice until I tore the top end looking for a different problem. The fix was simpler than replacing the pump. I swapped to a proven pickup screen with a wider mesh and lowered the mounting position by repositioning the baffle inside the tank. This usually resolves the issue without touching the pump itself. The total time from diagnosis to running was about forty-five minutes, excluding the hours I spent misdiagnosing it first.
Another detail that diagrams don't show well is the condition of the O-ring on the pump housing. These are the 3/16 inch Viton rings that sit between the pump housing and the primary case. When they harden and crack, which they do after ten years regardless of how well you maintain the engine, air gets sucked into the scavenge side. The symptoms mimic low oil pressure but the gauge reading stays normal because the pressure side is still working. I found this on a '75 Elapse that was losing half a quart of oil per tank of gas. The oil wasn't leaking externally. It was being aerated and returning to the sump as foam, which the pickup screen couldn't handle. The workaround was replacing both O-rings every time I opened the primary case, even if they looked fine. I also added a coat of Permatex Form #2 to the outer edge of the housing mating surface, not the ring itself. This usually extends seal life from two years to about five, depending on riding conditions and storage practices.
Get the Full Details
Common Failure Points
The pressure gear teeth on early Shovelheads (1966-1969) are made from a softer alloy than the later versions. If you're rebuilding a pre-1970 pump and the drive gear shows any signs of wear, replace both gears as a set. Running just one new gear against a worn mate will strip the teeth within five hundred miles. The cost difference between replacing the pair and rebuilding later is about eighty dollars in parts and two hours of labor. The idler gear that connects the pressure and scavenge sides is another weak point. On complete pumps, you should inspect the bushing wear before reassembly. A worn bushing allows the gears towhich reduces pumping efficiency by about fifteen percent. I measure this by checking the end play with a dial indicator. Anything over 0.005 inch of axial movement means the bushing needs replacement or the entire idler assembly. One counter-intuitive point that beginners usually miss: the oil pump on a Shovelhead is sensitive to the type of oil you use. Conventional mineral oils with high detergent additives can cause the pickup screen to clog faster than expected. The detergents suspend contaminants that then deposit on the screen mesh. I switched to a straight mineral oil without detergents for my weekend rider and the screen cleaning interval went from every six months to once a year. The trade-off is that you need to change the oil more frequently, about every other ride, to compensate for the lack of detergent action.
What the Diagram Doesn't Tell You
Any Shovelhead Oil Pump Diagram will show you the basic layout, but it won't tell you that the real failure mode on these pumps isn't gear wear. It's the condition of the oil seal at the front where the pump shaft exits the primary case. When this seal fails, oil leaks out onto the clutch plates and the primary chain. The symptoms are a burning oil smell and a visible weep at the front of the primary case, usually after three to five years of normal riding. I replaced the seal on my '73 Electra Glide last spring and noticed that the old seal had been lip-sealed in the wrong direction. The correct orientation has the spring-facing side pointing toward the oil. I learned this from a factory service manual that I found at a junkyard, not from the diagram. The replacement took about twenty minutes if you have the right puller tool, or about an hour if you're improvising with a socket and a hammer, which I did the first time. Here's the blunt truth about Shovelhead oil pumps: they are adequate for stock engines and moderate riding, but they become a bottleneck if you've added any performance modifications. If you're running a larger displacement kit or a high-lift cam, the stock pump can't keep up with the increased oil demand. The flow rate of the stock pressure stage is about 2.5 quarts per minute at 3000 RPM, which is enough for stock but marginal for modified engines. I recommend upgrading to a high-volume pump if you're planning to ride the engine hard, even if the current pump looks fine.
The cost of a high-volume upgrade pump is about 120 dollars and the installation time is about the same as a stock pump replacement, roughly forty-five minutes. The benefit is that you usually eliminate oil starvation issues that occur during hard cornering and acceleration, which typically start appearing around 10,000 miles on a modified engine.
Where the System Completely Fails
If you're running a Shovelhead in extreme temperatures above 100 degrees Fahrenheit, the oil pump becomes less reliable. The viscosity of the oil drops and the clearances between the gears and housing increase, which reduces pumping efficiency by about twenty percent. I've seen pumps fail completely in hot weather racing conditions where the oil temperature exceeded 250 degrees. The recommendation is to install an oil cooler if you're riding in hot climates, regardless of whether the pump looks fine at operating temperature. Another scenario where the system fails completely: if the sump tank is contaminated with coolant from a cracked head or cracked cooling passage in the block. The coolant mixes with the oil and creates an emulsion that clogs the pickup screen within minutes. I found this on a '71 Flhn that I bought from an estate sale. The previous owner had been adding coolant to the oil without knowing why the engine was running rough. The pump was still turning but couldn't move the contaminated fluid. The total repair time from diagnosis to running was about six hours, mostly because I had to clean the entire oil system, including the frame galleries and the oil lines, which took most of that time. The best diagnostic approach is to check the oil level in the sump tank before every ride and inspect the condition of the oil on the dipstick. If the oil looks milky or has a sweet smell, which indicates coolant contamination, do not start the engine. The pump can still be damaged by the contaminated fluid, and the cost of replacement is about 200 dollars in parts and two hours of labor, compared to the cost of a rebuilt engine.
Practical Maintenance Schedule
For a stock Shovelhead in normal riding conditions, I recommend inspecting the oil pump every other oil change, which is about every 3,000 to 5,000 miles depending on your riding style. The inspection time is about thirty minutes and includes checking the condition of the O-rings, the pickup screen, and the oil seal at the front of the pump. If everything looks fine, which it usually does on a well-maintained engine, you can skip the pump removal and just replace the O-rings and the seal as preventive maintenance. The cost of a complete pump rebuild kit is about 60 dollars and includes all the O-rings, the seal, and the gaskets. The installation time is about two hours if you're doing it for the first time, or about an hour if you've done it before. I've rebuilt three Shovelhead oil pumps over the years and the average time per rebuild has gone from three hours down to ninety minutes, mostly because I've learned which steps can be combined and which tools make the job faster. One thing to watch for: the oil pump drive gear on the camshaft can wear over time, especially on high-mileage engines. If you notice excessive play between the gear and the shaft, which you can check by wiggling the gear with your fingers, replace the gear and the shaft as a set. Running just one new gear on a worn shaft will strip the teeth within a few thousand miles. The cost of a new drive gear is about 25 dollars and the shaft is about 40 dollars, for a total of 65 dollars in parts. The installation time is about the same as a normal pump rebuild, roughly two hours.
Finally, a word about oil pressure readings. A healthy Shovelhead oil pump should register between 40 and 60 PSI at operating temperature and 3000 RPM. If you're seeing readings below 30 PSI at idle or above 80 PSI at high RPM, there's a problem. Below 30 PSI usually indicates a worn pump or a blocked pickup screen. Above 80 PSI usually indicates a stuck pressure relief valve or an incorrect oil viscosity. I check the pressure relief valve first by removing the plug on the top of the pump housing and inspecting the spring and the ball. This usually takes about ten minutes and resolves the issue without touching the pump itself.
