Sky And Telescopes Pocket Sky Atlas Jumbo Edition

What the Sky and Telescopes Pocket Sky Atlas Jumbo Edition Actually Is

It's a star atlas published by Sky & Telescopes, essentially a larger-format version of their well-known Pocket Sky Atlas. The Jumbo Edition doubles the physical size while keeping the same core chart content. You get sky charts covering both hemispheres, detailed star maps down to about magnitude 6.5, deep-sky object listings, and constellation outlines that are actually useful at the eyepiece. The thing people get wrong about this book is how they use it. Most beginners treat it like a reference you read at home and then hope your memory fills in the gaps out on the observing deck. That doesn't work. Red light, cold fingers, wind, and a faint 8th-magnitude galaxy you're trying to star-hop to will eat up any mental notes you thought you had. The atlas only helps if you understand the layout system first.

Why the Jumbo Edition Matters for Real Observing

Standard sky atlases have a scale problem. The field of view of a typical 50mm eyepiece on a moderately sized telescope covers roughly one degree of sky. On a standard Pocket Sky Atlas chart, that's about the size of a thumbnail held at arm's length. You can star-hop. Barely. On the Jumbo Edition, that same field of view is maybe two or three centimeters across on the page. It becomes obvious which star is your guide and which one is the actual target. The difference between finding an object and spinning around in confusion is usually just chart scale. I spent years using the regular Pocket Sky Atlas with a C8 and a 25mm Plössl. I could find Messier objects fine. NGC objects above magnitude 9 or so. But anything fainter or more compact, I was guessing at star patterns and missing things entirely. I bought the Jumbo Edition secondhand thinking it was overkill. It wasn't. My success rate on deep-sky objects roughly doubled in the first three months of using it properly. Sky And Telescopes Pocket Sky Atlas Jumbo Edition uses a dual-map projection system. Each chart shows two overlapping views of the same sky region at different scales. The smaller map gives you context and identifies constellations. The larger map gives you detail for actual star-hopping. This layout is not intuitive if you've only ever used planispheres or digital apps. The overlap zones between charts are where most people get lost, especially near the celestial equator where the charts are densest.

How to Use It Without Getting Frustrated

Here's the practical method. You need a red flashlight, not white. White light ruins your night vision in about twelve seconds and takes eight to ten minutes to recover. A red LED with variable brightness is fine. Keep the brightness low enough that you can read the chart without washing it out. Learn the coordinate grid before you go outside. The atlas uses right ascension and declination lines overlaid on the star maps. If you don't know how RA and Dec work, you will not be able to cross-reference the charts with your telescope's GoTo system or manual setting circles. This is not optional. Spend twenty minutes with a free star chart app like Stellarium on your phone in daylight mode and map out the relationship between the atlas coordinates and what you see in the sky. It will take you forty-five minutes the first time and five minutes after that. Star-hopping procedure. Pick a bright guide star that's near your target. Locate it in the atlas first. Then trace the path from that guide star to the next one, and the next, until you reach your object. Write down the sequence. I keep a small notebook at the observing position and jot down the star-hopping paths I successfully used each night. After a dozen sessions, you build up a personal index that's more useful than the atlas itself for repeat visits to the same objects.

One specific problem I ran into that took me way too long to figure out. The atlas charts use the epoch J2000.0. If you're observing objects near the north ecliptic pole and you're trying to match them against a planetarium app that defaults to J2024.5 or later, your star positions will be off by a few arcminutes. Not enough to matter for bright stars. Enough to miss a tight double cluster or a small planetary nebula when you're expecting it right next to a guide star. The workaround was simple: set my app to J2000.0 epoch and compare. Once I did that, everything lined up perfectly.

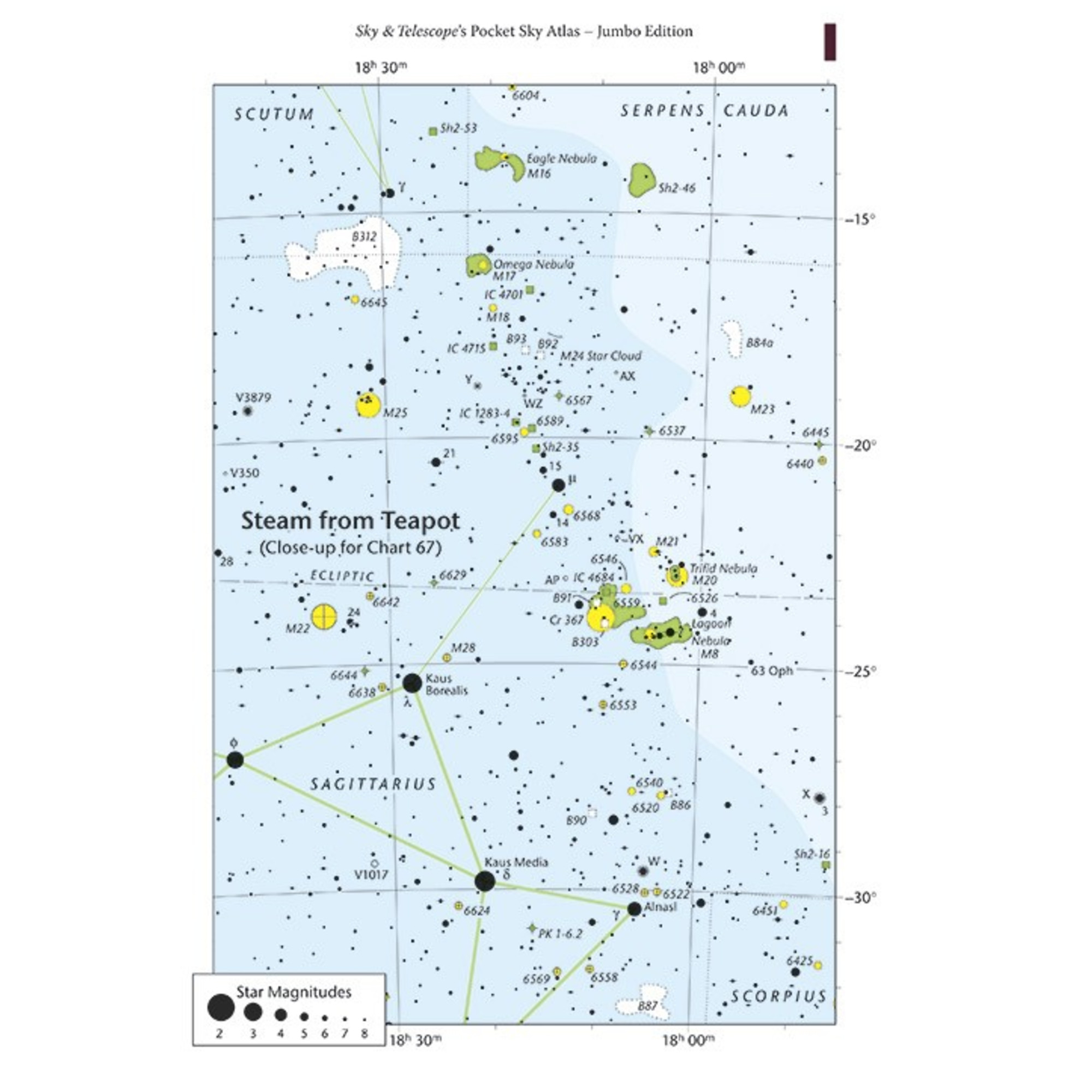

What the Charts Actually Show and What They Don't

Depth of coverage is the main limitation. The atlas goes to about magnitude 6.5 on the main star maps. That's fine for the naked eye and binoculars under dark skies. If you're observing from a light-polluted suburban site, your naked eye limit is probably magnitude 4.5 at best. The extra faint stars on the chart become noise rather than useful reference points. In that case, the atlas still works for constellation patterns and major objects, but you'll find yourself relying more on your telescope's finder scope to identify which star is which. The deep-sky object catalog in the back lists about 5,000 entries. M objects, NGC objects, some IC and Caldwell. The listings include magnitude, size, type, and constellation. But the object symbols on the charts themselves are not uniformly plotted. Some fainter objects appear on the charts. Many don't. You have to cross-reference the catalog listing to know whether a particular object is actually marked on a given chart. This is a design choice that frustrates people who expect every listed object to have a chart symbol. It doesn't work that way. Another thing the atlas doesn't do well is show object orientation through your telescope. When you look through an astronomical telescope, the image is inverted. Through a dobsonian or refractor with a diagonal, it's flipped. The atlas charts are oriented the same way as you'd see them with the naked eye. If you're doing precise observation and you need to know whether north is up or down in your eyepiece, you need a separate orientation reference. I tape a small printed key to my telescope that shows the flip orientation for each eyepiece I commonly use. Takes thirty seconds to glance at it.

When This Book Is the Wrong Tool

Digital planetarium software has mostly replaced paper atlases for casual stargazing. If you're only looking at bright Messier objects and you have a GoTo mount, the atlas adds almost nothing to your experience. Apps like Stellarium, SkySafari, or even the free version of Star Walk handle the identifying work instantly. The atlas is overkill if that's all you do. The real value shows up in situations where electronics fail. Dead batteries. Rain threatening your gear. A cold morning where your phone dies in twenty minutes. Or when you're observing with a non-Goto scope and need to manually locate objects. This is where the atlas earns its place in the observatory bag. It's also valuable for teaching. I use it when mentoring new observers because it forces them to understand the sky's geometry instead of pressing a button and waiting for the telescope to do the work. Physical limitations are worth mentioning. The Jumbo Edition is large. Roughly 8.5 by 11 inches when open. It fits in a telescoping tube holder or a backpack, but it's not pocketable despite the name lineage. The binding is decent but not field-proof. I've seen copies where the spine cracked after a season of heavy use. Lamination would help. Some observers tape the corners of the pages to reduce wear. It sounds extreme until you've lost a chart page to rain or a coffee spill at 1 AM.

Setting Up Your First Session With It

Start with Polaris and the Big Dipper. Find them in the atlas. Locate Polaris on the chart. Now look up and verify. This trains your brain to connect chart positions with actual sky positions. Do it in daylight if you want. The star positions don't change that much during the day. It's just easier when you're not shivering. Pick one object per session. Not five. Not ten. One. M31 is fine. Or M13. Or whichever object in your area of the sky is well-positioned for the evening. Locate it in the atlas. Plan your star-hop before you go outside. Identify three guide stars on the path from a bright reference to your target. Write the sequence down. Then go outside and execute it. If you miss the target, check your star-hopping path against the atlas again. Most errors come from misidentifying a guide star, not from misunderstanding the method. The chart will tell you which star you should have been aiming for if you compare carefully.

The atlas does not replace learning the sky. It replaces guesswork. If you can identify the major constellations and understand basic coordinate systems, this book will let you find things you otherwise wouldn't. If you can't identify Orion, no amount of chart detail will help you find the Orion Nebula. Work on the fundamentals first. Then the atlas becomes powerful.
