Putting a 3D Crystal Dragon Puzzle Together
I bought one of these crystal puzzle dragons online about two years ago, and honestly it took me longer than I expected. The pieces are small, transparent, and they reflect light in ways that make matching them confusing. But once you get the hang of the process, it works out fine. The main thing nobody tells you is that the instructions aren't just pictures. They're coded. Every piece has a number printed on the base of it, and those numbers correspond to positions in the diagram. So before you even start putting anything together, you need to separate your pile into groups by number. This takes about twenty minutes if you do it slowly. Don't skip this step. I skipped it the first time and spent forty-five minutes searching through a tangled mess of clear plastic trying to find piece #47.

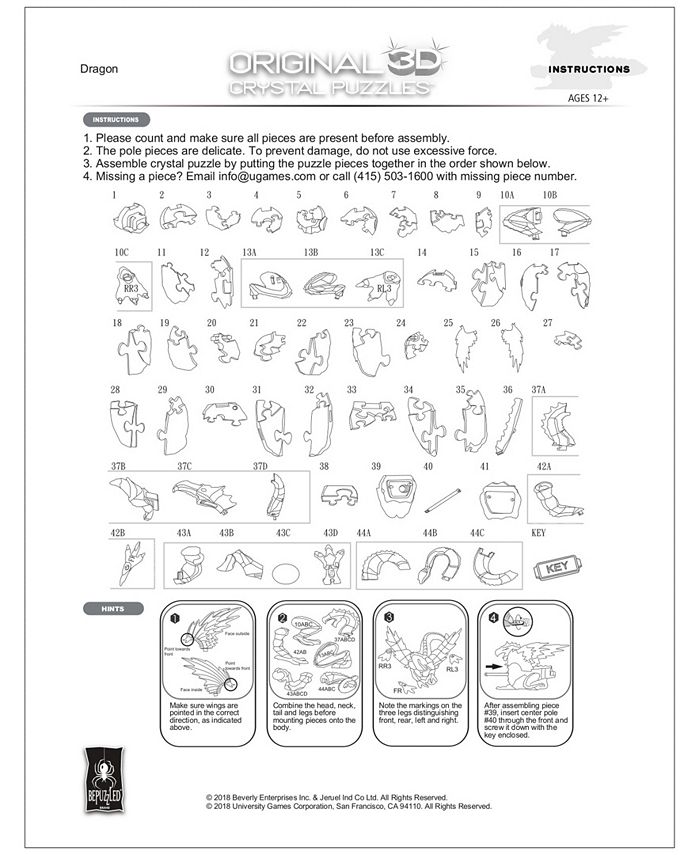

Step By Step Original 3D Crystal Puzzle Dragon Instructions
Here's how it actually goes down. Step one: Sort everything. Dump the box contents onto a flat, dark surface. A dark cutting mat or a black folder works best because the crystal pieces are nearly invisible on white. Sort them by the numbers etched into the bases. Group the wing pieces, the body segments, the tail sections, and the legs separately. Step two: Apply adhesive to the contact points only. Most kits come with UV resin glue or clear acrylic adhesive. Use a toothpick to place a tiny amount on the flat mating surfaces. Not the edges. The flat areas where two pieces meet. A single drop the size of a pinhead is enough for a piece roughly the size of a fingernail. More glue than that will ooz out and fog up the surrounding crystal, which is annoying to clean.
Step three: Press and hold. Hold each joined pair for about ten to fifteen seconds. The glue sets fast but not instantly. You need the pressure to create a clean bond without shifting the pieces. Step four: Build sub-assemblies before connecting them. This is where most people mess up. Don't try to attach a wing directly to the torso while it's floating in midair. Build the left wing as one unit first. Build the right wing as another unit. Then connect both to the body. Same with the tail — assemble it section by section on the table, then attach it to the rear of the body. It's mechanically cleaner and the joints line up better. Step five: Let everything cure. If you're using UV resin, you'll need a UV light or direct sunlight for about three to five minutes per joint. Standard clear glue needs longer — somewhere around fifteen to twenty minutes before the assembly is stable enough to move. Overnight is ideal if you have the patience.
Get the Full Details
Step six: Clean up the residue. Any glue that squeezed out should be wiped away immediately with a cotton swab dampened with a little isopropyl alcohol. If it dries, it leaves a cloudy film that's much harder to remove. I learned this the hard way on my first attempt and spent an hour trying to polish the cloudiness off three different pieces with a microfiber cloth and eyeglass cleaner. It came out eventually but barely. One edge case that isn't covered in the instructions: sometimes the etched numbers wear off during shipping or handling. I had two pieces where the numbers were completely illegible. What I did was compare the shape of the piece against the diagram more carefully, paying attention to the angle of the cut edges. Crystal puzzle pieces have distinctive bevels — the wing struts, for instance, have a consistent slant that matches only one position in the design. Once I matched the geometry instead of relying on the number, the rest of the missing pieces fell into place. If you're in that situation, work from the center outward. The body and spine are the anchor points. Everything else connects to them. Here's something counter-intuitive: lighting matters more than you'd think. Put your workspace near a window with indirect daylight, or use a cool-white LED lamp. Warm yellow light distorts the transparency of the crystal and makes it nearly impossible to see where the joint lines are. I did half the build under my desk lamp and then moved it to the kitchen table under natural light, and the difference was obvious. The pieces aligned visibly easier once I could actually see the edges clearly.
Another thing: don't rush the curing between sub-assemblies. If you connect the tail before the tail joints are fully set, the weight of the tail will pull the weak joints apart or bend the alignment. Even if it looks fine, give it extra time. Twenty minutes minimum between major sub-assembly connections. The dragon I ended up building sits on my shelf and looks decent. It's not perfect — one of the wing joints has a slight cloudiness from a glue mistake I made early on — but it holds together solidly and catches the light well. For anyone attempting this for the first time, just take your time, sort the pieces properly, and work in small sections. The whole build usually takes me about two to three hours spread across a couple of evenings. That's realistic. Anyone saying it takes thirty minutes hasn't actually done one.
