How Sonar Data Actually Gets Turned Into Maps
Ocean mapping for students usually starts with single-beam or multibeam sonar data. The equipment sends sound pulses down, they bounce off the seafloor, and the travel time tells you depth. That's the whole principle. The tricky part is what happens after you collect the raw ping data. I worked on a survey back in 2019 where the sonar unit was mounted on a small charter boat instead of a proper research vessel. The wave height was around two meters, and the platform motion wasn't being compensated for at all. The resulting bathymetric data looked like a crumpled piece of paper. Flat areas showed as jagged ridges, and actual trenches disappeared entirely. The fix wasn't a fancy software patch. I pulled the boat's GPS and IMU log, applied a motion correction offline using CARIS HIPS and SIPS, and reprocessed the raw pings. The map came out clean after about four hours of manual verification. That's the reality most student projects never face because they work with pre-cleaned datasets.

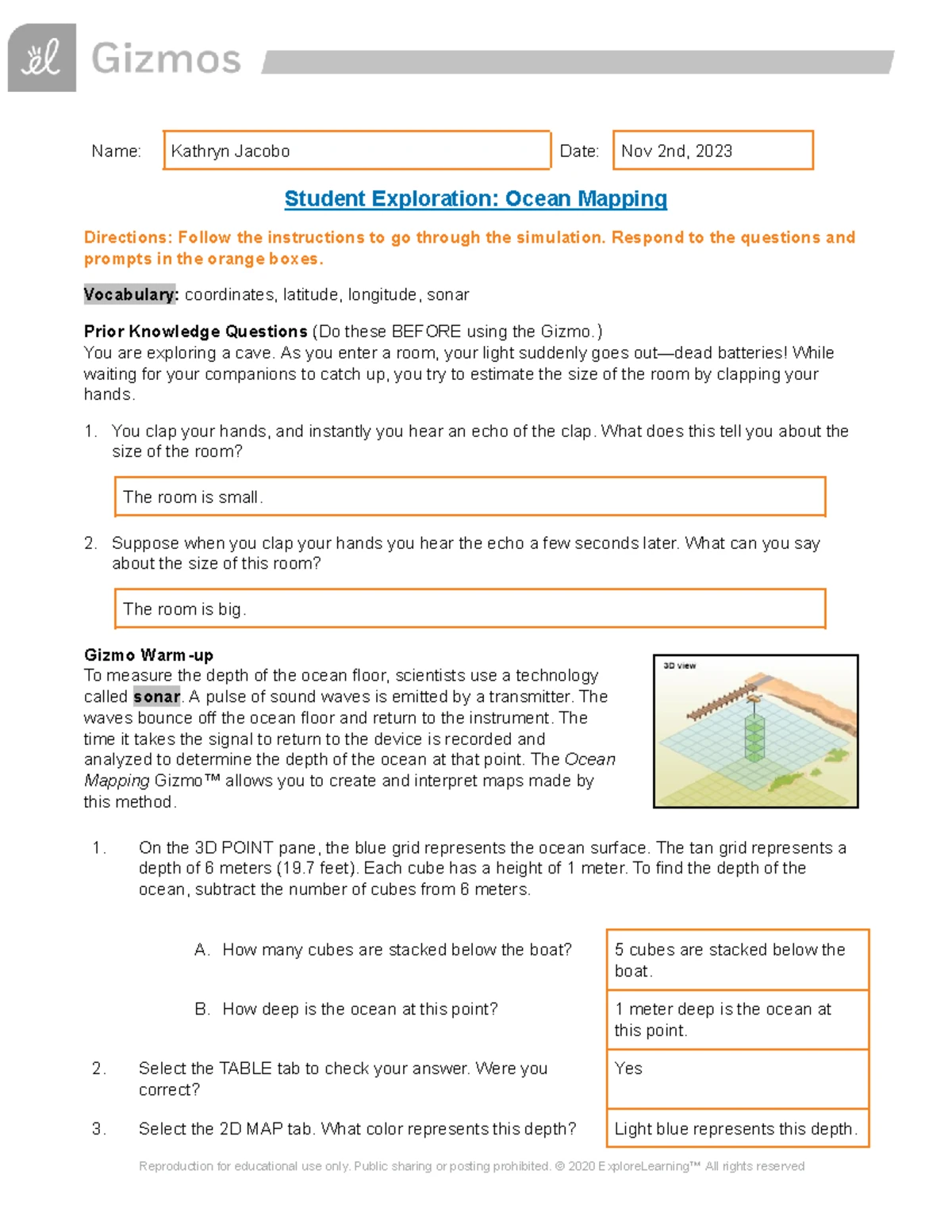

What Student Exploration Ocean Mapping Actually Involves
The term covers a range of activities, from basic classroom exercises using sample datasets to full student-led surveys with their own equipment. A typical exploration involves planning a survey grid, collecting depth measurements along parallel lines, and stitching those measurements into a gridded map. Students often use free or educational-license software like QGIS with the Bathymetry plugin, or NOAA's MB-System for more advanced work. Here's what most beginners miss: the quality of your map is almost entirely determined by your line spacing during data collection. If you space your survey lines too far apart, you'll miss underwater features between the lines. A common rule of thumb is to set line spacing at no more than half the width of your sonar's swath. For a typical educational multibeam system with a 500-meter swath at moderate depth, that means survey lines should be roughly 250 meters apart. Going wider saves time but produces gaps that interpolation can't reliably fill. Another thing people don't talk about enough is sound velocity profiles. Sound travels at different speeds in water depending on temperature, salinity, and pressure. If you don't measure the sound velocity at multiple depths and apply that profile to your data, your depth measurements will be systematically wrong. I've seen student teams produce maps with depth errors of three to five meters across an entire survey area because they assumed a standard sound speed of 1500 meters per second instead of actually measuring it. A simple SVP cast with a conductivity-temperature-depth sensor takes maybe ten minutes and fixes the entire problem.
Common Pitfalls and What to Do About Them
Tide correction is not optional. Even in seemingly calm locations, tidal changes of half a meter or more are common. If you collect data at low tide and don't correct to a consistent reference datum, your map will be offset from charts and from any subsequent surveys. Use local tidal predictions or, better yet, deploy a tide gauge and record real-time water level during your survey. GPS accuracy matters more than you think. Cheap consumer GPS units can drift by several meters. That drift translates directly into horizontal positioning errors on your map. A dual-frequency RTK GPS setup costs around two to three thousand dollars but will give you centimeter-level positioning. For student projects on a tighter budget, post-processing your GPS log against a known base station can bring accuracy down to about one to two meters, which is usually acceptable for educational purposes. Bottom tracking mode vs. reflection mode. Some single-beam echosounders have a bottom track setting that locks onto the seabed. This sounds convenient but it can lock onto fish schools, thermoclines, or suspended sediment layers instead of the actual bottom. Always verify your depth readings against known markers or a hand lead line when possible. I once spent an afternoon trying to figure out why my surveyed depths kept shifting by ten meters, only to realize the transducer was picking up a dense thermocline layer instead of the seafloor. Turning off bottom track and using raw reflection mode fixed it immediately.
Get the Full Details
A Practical Workflow That Actually Works
Start with a desktop study. Pull existing bathymetric charts for your study area and identify safe launching points, expected depth ranges, and any known hazards. Don't skip this step. I've seen student teams spend two days on the water only to discover the area they chose was a shipping channel with dangerous currents and no legal access. Calibrate your equipment before every deployment. Check the heel and trim angles, verify the offset between the transducer and your GPS antenna, and run a test ping in water of known depth. The test should match the charted depth within one percent. If it doesn't, something is wrong and you need to find it before collecting real data. Collect your survey lines in a grid pattern. Back and forth. Consistent speed. Overlap each line's swath by at least ten percent to ensure complete coverage. Record metadata for every shot: time, GPS position, depth, sound velocity, tide reading, and any notes about unusual returns. This metadata will save you when you're trying to figure out why a particular section of your map looks weird two weeks later.
Process the data in batches. Don't wait until the end of the survey to do your first cleanup. Process the first hour of data, check it, fix any issues, then continue. If you wait until all your data is collected, you might not realize you've been collecting garbage data for three days. For visualization and basic analysis, QGIS with the GMT (Generic Mapping Tools) extension works well and is free. For serious multibeam processing, CARIS HIPS and SIPS is the industry standard but requires a license. If your institution doesn't have one, NOAA offers educational licenses through their National Centers for Environmental Information. Alternatively, MB-System is free and powerful but has a steeper learning curve and runs primarily in a command-line environment.
When This Approach Falls Apart
Student exploration ocean mapping works well in shallow, calm, nearshore environments. Depths under 50 meters, protected bays, estuaries, and coral reefs are ideal. It breaks down in deep water, rough seas, or areas with strong currents. In deep water, the sonar signal spreads out too much and loses resolution. In rough seas, the platform motion makes accurate depth measurements nearly impossible without expensive motion compensation systems. Strong currents make it hard to maintain a steady survey line and can damage equipment. If you're working in conditions where conventional sonar mapping isn't practical, consider alternative approaches. Satellite-derived bathymetry using optical sensors can provide depth estimates in very shallow, clear water but lacks the resolution for most scientific purposes. LiDAR from aircraft works in shallow coastal zones down to about 30 to 50 meters in ideal conditions, but it's expensive and not something students typically have access to. For deeper or rougher environments, the most honest answer is that student-led ocean mapping may not be feasible, and you should scope your project to conditions where the equipment and expertise are adequate. The datasets below are commonly used as starting points for student projects. They're pre-collected and cleaned, which removes the hardest parts but also removes the learning that comes from dealing with bad data in real time. If your goal is genuinely to explore how ocean mapping works, collecting your own data is worth the frustration. If your goal is just to produce a map for a grade, using existing datasets is perfectly reasonable. Just know what you're trading away either way.
