Working with the Photoelectric Effect Gizmo in Practice

The ExploreLearning Gizmo for the photoelectric effect is one of those simulations that looks straightforward on the surface but actually trips up a lot of students the moment they try to derive quantitative conclusions from it. The interface gives you a light source, a metal plate, a power supply, and a current meter. You adjust wavelength, intensity, and voltage. It seems simple enough. The problem is that the simulation smooths over a lot of the messy physical reality, and if you don't prepare students for what that means, they'll come away with misconceptions that are harder to undo than if you hadn't used the tool at all. I've run this lab probably fifty times across three different schools now, and the most consistent issue I hit is the intensity-versus-frequency confusion. Students will crank up the light intensity and watch the current spike, then conclude that more intense light means more energetic photons. That's exactly the wrong takeaway, and the Gizmo actually reinforces it visually because the current trace jumps dramatically when you increase intensity. The simulation shows what happens in the circuit, not what happens to individual photons. You have to explicitly separate those two levels of explanation before students touch the controls.

Getting the Most Out of the Student Exploration Photoelectric Effect Teacher Guide

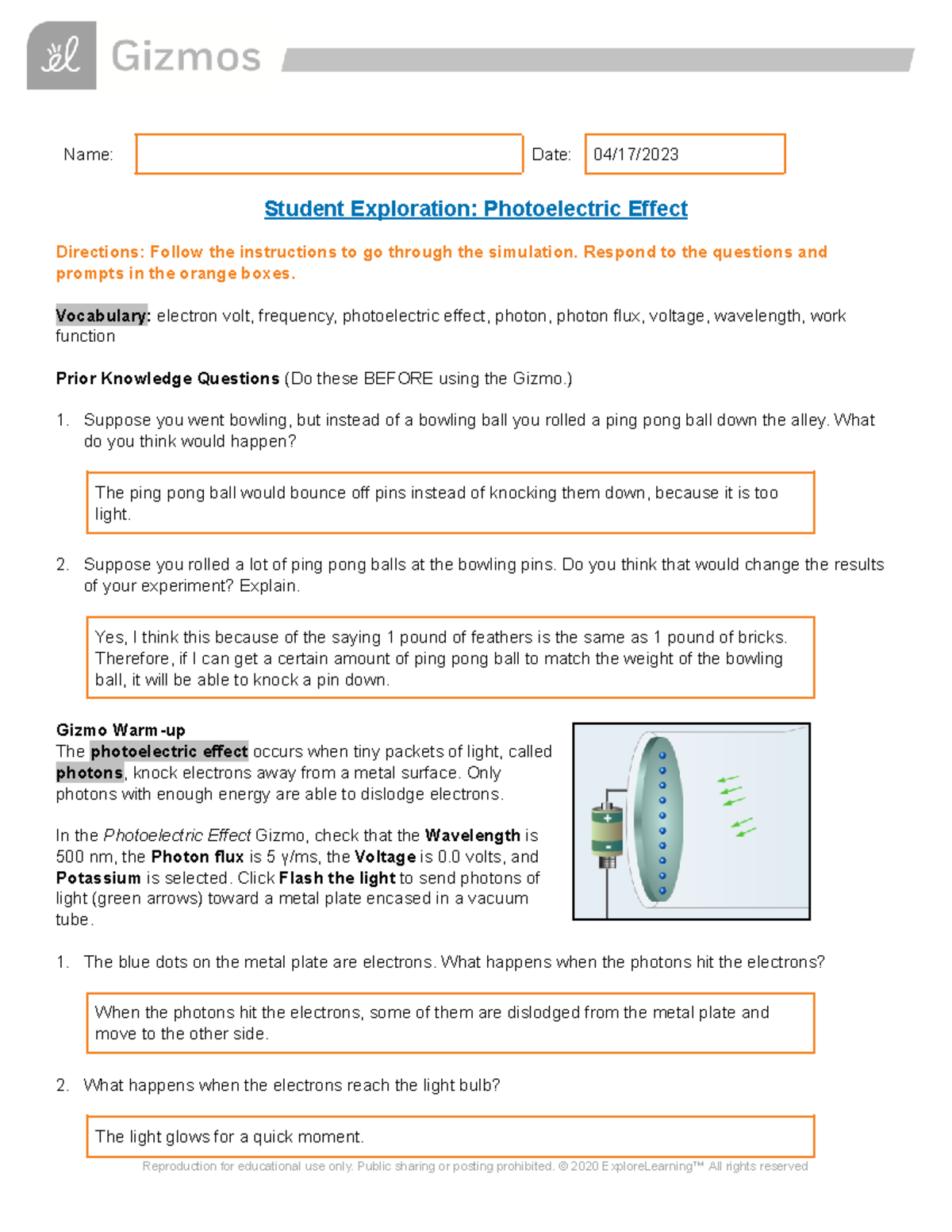

The official teacher guide from ExploreLearning gives you a structured exploration worksheet, pre-lab questions, and a set of expected answers. It's useful but fairly rigid. I tend to use it as a backbone rather than a script. The core sequence they recommend — start with low-intensity red light, observe no current, then move to blue, then adjust intensity — is sound. But I add steps that the guide doesn't emphasize enough. Before students even open the simulation, I have them write down what they think will happen when they change wavelength versus when they change intensity. Getting their predictions on paper forces a distinction that the Gizmo's single-screen interface blurs together. Most students can't articulate the difference until they've been caught out by it, which is why this step matters more than it sounds. The teacher guide also includes a section on stopping potential, which is where the simulation gets most interesting and most problematic. The Gizmo lets you apply a reverse voltage and find the point where current drops to zero. That's the stopping potential, and it's directly related to the maximum kinetic energy of the emitted electrons. The guide walks through the calculation, but it glosses over the fact that the simulation uses idealized work functions. Real metals don't behave quite like the model does, and students who later do an actual lab with a phototube will be confused by the discrepancy.

I ran into a specific issue last year when a student pointed out that the stopping potential in the Gizmo didn't match the textbook equation KE_max = hf - phi when she plugged in the numbers. She was right. The simulation rounds the work function values and uses a simplified photon energy scale. I spent about twenty minutes that day walking her through why the numbers were close but not exact, and we ended up comparing the Gizmo output to data from a real hydrogen discharge tube experiment. It turned into a better lesson than the one I'd planned, but only because I knew enough to recognize what was happening. The workaround I use now is to show her the discrepancy deliberately before she finds it herself. I set the wavelength to 400 nanometers on zinc, have her calculate the expected stopping potential, then run the simulation and note the difference. It's faster to address it head-on than to let it accumulate as a hidden confusion. The guide's answer key is generally accurate for the simulation's internal logic, but it sometimes misses edge cases. For instance, at very low light intensities the current meter in the Gizmo can register near-zero readings that flicker between positive and negative values due to the way the simulation models thermal noise. Students interpret this as evidence that the photoelectric effect is random at low intensity, when really it's just a modeling artifact. The teacher guide doesn't mention this, and I've seen it derail discussions half a dozen times. The fix is to tell students to average three readings before recording data, which also happens to be a genuine experimental practice they should learn anyway. One counter-intuitive thing that catches experienced teachers off guard: the Gizmo makes it surprisingly easy to demonstrate that the photoelectric effect is instantaneous. You can switch the light on and the current appears immediately in the simulation, which is physically correct but hard to appreciate without a real oscilloscope comparison. I usually pair the Gizmo run with a brief video of an actual pump-probe experiment showing sub-nanosecond electron emission. The contrast between the idealized simulation and the real measurement is where the deepest learning happens.

There are real limitations to this tool. The simulation assumes a single clean metal surface with a fixed work function. It doesn't model surface oxidation, temperature effects, or the fact that real photodiodes have quantum efficiencies well below 100 percent. If your curriculum requires students to understand why actual solar cells underperform compared to the theoretical limits, this Gizmo won't get you there. In those cases, I supplement it with a second activity using real datasheets from manufacturer specifications, which is more tedious but more honest. The guide also doesn't address the polarization dependence of photoemission, which some advanced students will ask about if they've done prior reading. It's a valid question, and the answer involves the orientation of the electric field vector relative to the metal surface. The Gizmo doesn't let you vary polarization, so you just have to explain it verbally or skip it depending on your class level. I usually skip it in introductory courses and flag it for AP students as something to look into on their own. Accessing the simulation requires an ExploreLearning subscription, which costs per seat and changes pricing periodically. The teacher guide is available through the platform once you have an active license. There isn't a free standalone version, and no legitimate way to download the Gizmo for offline use. Some schools share login credentials across departments, which violates the terms of service and creates licensing complications that aren't worth the hassle. If your school doesn't have a subscription, the closest free alternative is PhET's Photoelectric Effect simulation, which covers the same core concepts with slightly less refined modeling but no cost barrier.

When I structure the actual lab period, I give students about thirty minutes with the Gizmo itself, ten minutes for the worksheet, and then a fifteen-minute debrief where we compare results across groups. The variation between groups is actually useful — different teams pick different metals and wavelengths, and the aggregated data on the board makes the trends unmistakable. The teacher guide's suggested discussion questions work well here, but I add one of my own: ask students to explain why increasing intensity doesn't increase the stopping potential, using the photon model. That question separates students who've actually internalized the quantum explanation from those who are just matching numbers to boxes.
