Setting Up a Submersible Pump Without Losing Patience

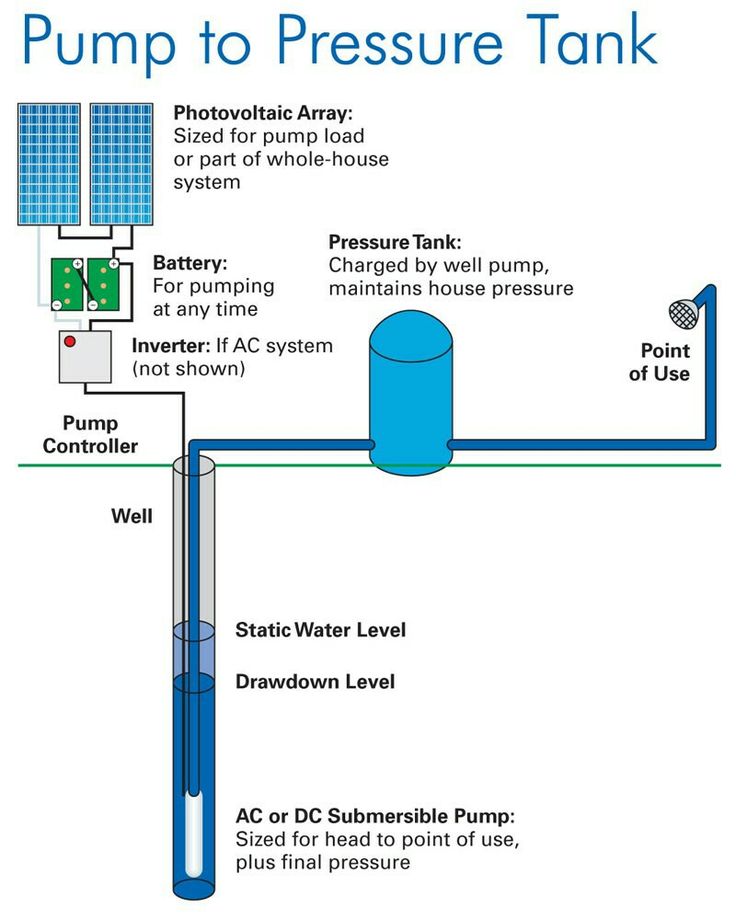

I've spent years working with water pump systems across residential, agricultural, and industrial sites. Most people grab the first manual they can find online and start bolting things together. That usually works until it doesn't, and then you're wading through standing water at 11 PM trying to figure out why your pump is cavitating. The real Submersible Water Pump Instructions you need aren't in the generic PDF that came with it. They're in the stuff the manufacturer assumes you already know. Start by checking the static water level versus the dynamic water level before you even unbox the unit. I once dropped a 1/2 HP submersible well pump into a 6-inch casing that looked fine on paper, only to discover the drawdown rate was pulling the water level 15 feet below the pump intake during operation. The pump ran dry every time the pressure tank cycled off, which shortened its lifespan by maybe six months. The workaround was dropping the pipe size down a notch and adding a foot valve with a check valve assembly, which kept the prime intact between cycles.
Submersible Water Pump Instructions for Proper Installation
The actual installation sequence matters more than people think. Here's the order that tends to work: inspect the casing or sump for debris first, test the check valve and pressure switch on your existing plumbing, lower the pump on its guide rails or suspension cable with the power disconnected, connect the discharge line using threaded fittings rated for the working pressure, prime the system by filling the casing with water if it's a new install, then power up and monitor amperage draw against the nameplate rating before walking away. One thing most guides skip: you need to verify the pipe support strategy. Submersible pumps are heavy when wet, and if you're suspending them by the discharge pipe rather than using a proper safety cable or guide rail system, the joint at the pump head becomes a failure point. I've seen multiple 4-inch well pumps hang by nothing but Schedule 40 PVC threaded into the pump housing. That connection will crack under thermal cycling within a year. Use a stainless steel safety cable rated for at least twice the pump's weight, and route it separately from the electrical conductor so the cable bears the load, not the fitting. Electrical connections are where things get risky fast. If you're working with a 230-volt single-phase submersible, the wiring diagram on the inside of the junction box cover is usually wrong or incomplete. Flip the pump's terminal board over and trace each wire yourself. Most modern submersibles use a three-conductor cable with a separate ground, and the common mistake is mixing up the run and start leads on capacitor-start models. Measure resistance across the terminals before you apply power. You should see a low resistance value between common and run, a higher value between common and start, and a similar value between run and start. If any reading is open or near zero, the motor windings are already damaged or the internal connections have come loose.
Here's a practical note about priming and ventilation. Some submersible pumps, especially smaller sump pump units, need a minimum water depth to operate safely. The manufacturer will state a minimum submergence, often 8 to 12 inches for small effluent pumps and 2 to 3 feet for larger well pumps. Running a submersible pump below that level causes the intake to pull in air along with water, which creates cavitation damage to the impeller over time. I learned this the hard way on a dewatering job where the water table had dropped faster than our monitoring could track, and we ran a 3-inch trash pump below its recommended minimum for about twenty minutes before it seized. The impeller was scored. Cost us a replacement and a day of downtime we didn't have. Control wiring deserves attention too. Float switches, pressure switches, and level sensors all behave differently depending on the load they're switching. A standard sump pump float might be rated for 10 amps at 120 volts, but if you're wiring it directly to a 1-horsepower pump that draws 16 amps at full load, you'll arc out the switch contacts within weeks. Use a relay or contactor rated for the pump's locked-rotor amperage, and let the float or sensor switch the low-current side of the relay coil instead. When it comes to maintenance intervals, the textbook answer is annual inspection. Realistically, a well pump in a clean water application with a good sediment pre-filter can go 2 to 3 years between service calls if the drawdown characteristics haven't changed. A sump pump in a basement with sandy soil and variable inflow needs checking every 6 to 12 months. The thing to look for isn't just whether it turns on and off, but whether the cycle frequency is increasing. Short cycling is usually a sign of a waterlogged pressure tank or a leaking check valve, not a pump problem. Fix the cause and the pump will last significantly longer.
Get the Full Details
There are situations where a submersible pump simply isn't the right choice. If you're dealing with highly abrasive wastewater containing sand or grit, a submersible's tight clearance impellers will wear out quickly. A top-loading centrifugal or a dedicated slurry pump made for solids handling will outlast it. If the installation depth exceeds the rated pressure rating of the pump's mechanical seal, you'll get seal failure and water tracking into the motor compartment. Most residential submersibles are rated for about 150 to 250 feet of head. Deep boreholes beyond that need specialized high-pressure units, and the instructions for those differ substantially from what you'll find for a standard home well pump. The bottom line is that the instructions that come with the pump cover the baseline scenario. Your situation almost never matches that exactly. Pay attention to the numbers on the nameplate, verify your electrical and mechanical supports, and don't skip the initial performance check before you backfill a sump pit or lower a pump into a sealed well casing where access becomes difficult.
