What actually goes into a substation commissioning manual
A Substation Commissioning Engineer Manual is a living document that tracks every test, every relay setting, every wiring verification, and every clearance before a high-voltage installation is handed over to operations. It is not a textbook. It is a legal and operational record. When the plant operator signs off on it, they are accepting liability for everything documented inside. That changes how you write it. I have spent more years than I care to count walking through 132kV and 220kV substations with checklists that were either three pages of vague checkboxes or three hundred pages of boilerplate that nobody actually filled out. Both are useless. The manuals that matter are dense, specific, and written by people who expect someone to read them five years later when a relay misoperation is under forensic review.
Substation Commissioning Engineer Manual — structure that survives contact with reality
Start with a table of contents that mirrors the physical commissioning sequence, not the order your company's quality department prefers. Most manuals I see are organized by discipline: protection first, then SCADA, then earthing, then HV testing. That forces every reviewer to flip back and forth. Put it in the order you actually do the work. Preface and document control should be one page. Version number, revision history table, list of superseded documents, and who is authorized to approve changes. I once saw a manual where the grounding test results on page 87 were revised in field conditions but the transmittal log on page 3 was never updated. Two weeks later, an outside auditor flagged a discrepancy between the approved setting sheet and the as-built record. That is the kind of problem this section prevents.

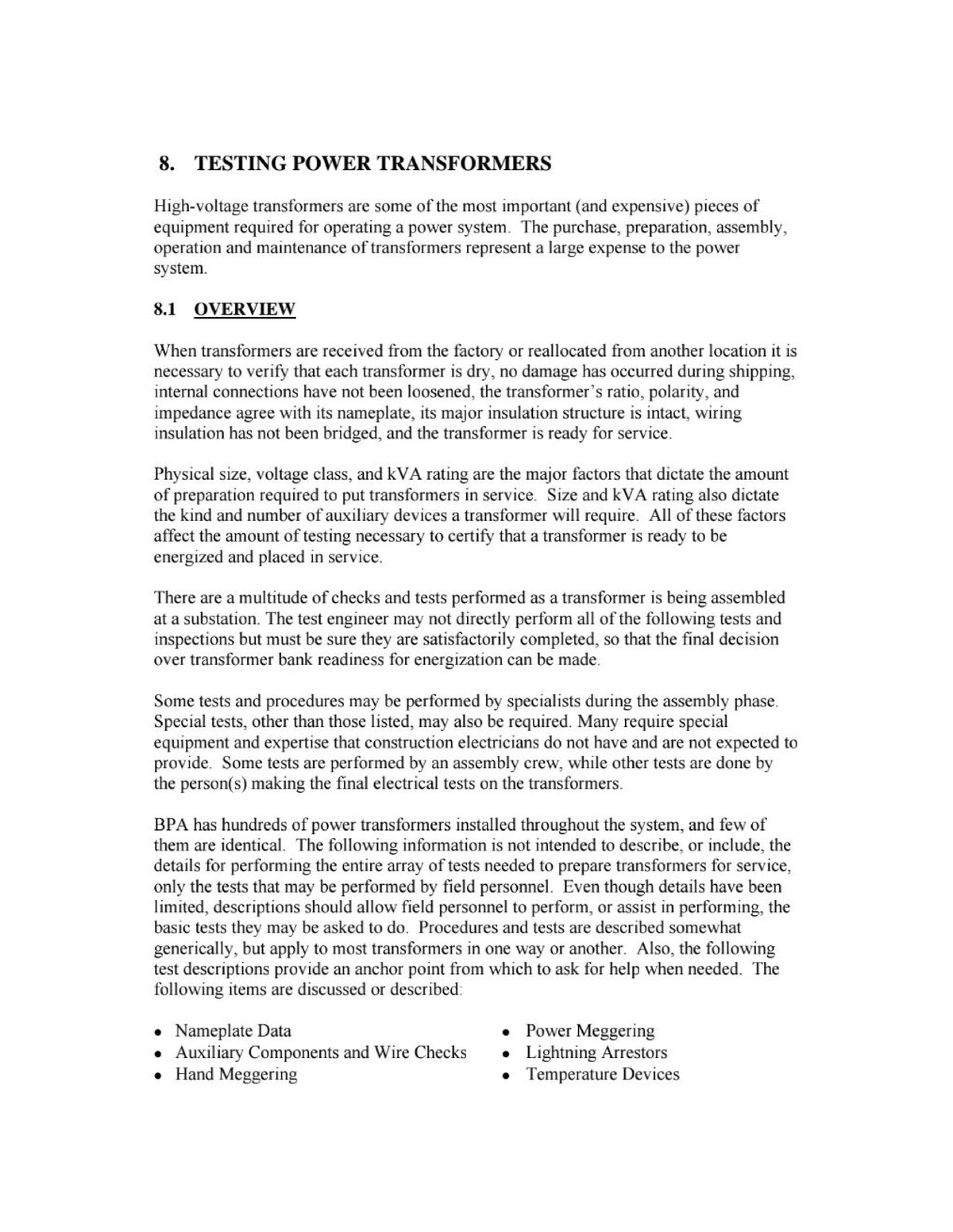

How to actually write the test procedures section
Each test or verification item needs four things: the reference standard, the acceptance criteria, the test method, and the record format. Skip any one and you will have arguments during SAT instead of clean sign-offs. For relay commissioning, do not just write "verify protection functions." Write which IEC 60255 or ANSI C37 series function number you are checking, what input stimulus you will apply, what trip output to expect, and the tolerance. A typical transformer differential check requires injecting 1.0x, 1.2x, and 2.0x rated current into the primary side while the secondary is held at 0.5x to confirm no trip, marginal operation, and definite trip respectively. If your manual leaves that level of detail to the individual technician, you will get four different test methodologies on the same bay. For HV testing, the most common mistake is mixing up withstand levels. A 132kV class equipment impulse test is 550kV BIL. A 220kV class is 950kV. Writing "perform impulse test per specification" without restating the value in the procedure is how people accidentally apply the wrong test level and damage bushings. Put the number in the procedure.
Get the Full Details
The part everyone skips until it causes a problem
Interlocks and sequencing checks. Most commissioning manuals treat protection testing and operational sequencing as separate chapters. They should be linked. I spent a day at a 220/33kV gas-insulated switchgear installation trying to prove that the earth switch could not be closed while the bay was energized, and the interlock logic was only verified at the relay panel, not at the local HMI. The PLC ladder diagram showed the closure was blocked, but the physical key interlock on the GIS bay was wired to a separate contactor that had been left in bypass mode during construction. We found it because the manual required a functional sequence check under live simulated conditions, not just a continuity test. Force the manual to require final interlock verification under controlled live simulation. It adds about two hours per bay, but it catches the wiring shortcuts that survive every single-point test.
Record formats and evidence requirements
Every test result needs a structured record. Not a free-form box. A table with fields for date, ambient temperature, instrument serial number, instrument calibration due date, test set model, test lead length, and the actual result versus the acceptance limit. This matters more than people realize. During a partial discharge test on a 132kV cable joint last year, the handheld PD meter gave inconsistent readings. We traced it to the fact that the calibration sticker had fallen off the probe adapter and nobody had logged the adapter serial number separately from the main unit. The Substation Commissioning Engineer Manual I was reviewing had required both serial numbers. We pulled the calibration certificate for the adapter and confirmed it was out of tolerance by eleven percent. That record requirement saved us from signing off on a joint that would have failed within eighteen months.
Common failures in commissioning manuals
Some patterns keep showing up and they are predictable. Over-reliance on manufacturer templates. A relay vendor will hand you a generic commissioning checklist that covers every function in the unit. Most of those functions are unused in your application. Running every test wastes time and sometimes stresses equipment unnecessarily. A 31-day transformer protection unit does not need each of its twelve optional functions validated if only four are enabled in the settings file. Verify the enabled functions and document why the others were excluded. Vague acceptance criteria. Phrases like "operate within specification" or "verify correct operation" are red flags. Correct to what standard? What tolerance? If the manual does not state the acceptance limit, the inspector and the contractor will interpret it differently. "Within specification" means something different to a testing engineer than it does to a commissioning manager.
Missing traceability to setting sheets. Every relay test should reference the approved setting sheet by document number and revision. I once commissioned a feeder bay where the final as-built settings matched the approved sheet, but the setting change request during construction had been approved verbally without updating the transmittal log. The manual should require the approved setting sheet number on every protection test record so there is a clear audit trail.
What this document cannot do
A Substation Commissioning Engineer Manual does not replace competent supervision. It will not catch rushed work if nobody is watching the test setup. It will not fix missing permits or incomplete isolation certificates. Writing a thorough manual gives you a framework, but if the site team treats it as paperwork to complete rather than a verification tool to follow, the manual becomes a liability document rather than a safety and quality document. It also cannot account for every site-specific condition. If you are commissioning in a high-humidity environment, SF6 gas handling procedures need to reflect the actual dew point limits you are seeing, not just the generic manufacturer recommendation. If you are working near live busbars in an existing substation, the clearance distances and phasing verification steps need to match the actual layout, not a standard diagram from a textbook.
Practical steps to produce a usable manual
Start with the project specification and the approved design drawings. Extract every requirement that involves testing or verification. Map each requirement to a test procedure. Cross-reference every procedure to the relevant setting sheet, single-line diagram, and wiring diagram. Fill in the acceptance criteria before you go to site. Keep the manual in a controlled electronic format with change tracking. Paper binders get lost, annotated, and outdated. If your project uses a document management system, link each test record directly to the source drawing and setting sheet. If it does not, at minimum use a consistent numbering system that ties test records to drawing revisions. Review the draft with the protection engineer, the SCADA integrator, the HV test lead, and the operations representative before issuing for construction. Each of them will spot gaps that the author missed. The protection engineer will notice missing function coverage. The SCADA person will notice untested teleprotection channels. The HV test lead will notice missing safety clearances. The operations representative will notice missing operational sequence checks.
Final notes on scope and limitation
This is a general guide. The exact content depends on voltage level, equipment type, utility requirements, and local codes. A 33kV distribution substation has a very different commissioning scope than a 400kV converter station. The manual must reflect the actual project, not a generic template. If you are unsure about a test requirement, refer to the relevant IEC, IEEE, or CIGRE publication and cite it explicitly in the procedure. That citation is what protects you when someone later asks why a particular test was included or omitted. The most reliable commissioning manuals are the ones written by people who have dealt with post-commissioning failures. They include the procedures that prevent repeat mistakes, not just the procedures that satisfy a checklist. If you want the manual to be useful, write it assuming someone will use it to investigate a problem, not just to sign a completion certificate.
