Where to Find Actual Service Documentation for Vintage Gear
Service manuals for synthesizers are scattered across the internet in varying states of usefulness. Some are complete schematic diagrams with component values. Others are vague circuit descriptions written by someone who clearly never actually worked on the equipment. The difference matters when you're staring at a PCB that refuses to power up. I spent years chasing down documentation for broken analog gear, mostly European polysynths from the late 70s and early 80s. You'd be surprised how many popular machines have almost no reliable documentation beyond what an enthusiast scanned from a photocopied paper manual found in a thrift store basement somewhere. The originals were often sold under lock and key to authorized repair centers back in the day, which is why so much of this material surfaced on forums and file-sharing sites decades later.
Where to Get a Synthesizer Service Manual
Start with synthmaintenance.com. They've been cataloging documentation for analog and digital synthesizers since the early 2000s. The database isn't exhaustive but it covers more gear than any other single source. If your synthesizer isn't listed there, try the manufacturer's support page, though most legacy brands have abandoned those archives entirely. Roland and Yamaha at least still host some PDFs on their corporate sites, but only for models where liability hasn't expired yet. The Yahoo Group archives are another overlooked resource. People posted scanned PDFs of service manuals there before the groups shut down or went privatized. Internet Archive has snapshots of several of those threads. You can search for specific model numbers plus the word "service" and usually find someone who digitized the manual from paper copy. If you own physical gear, check inside the case or under the chassis for a service sheet that may have been included at the factory. Rare, but I found one tucked behind the volume knob assembly on a Yamaha DX7 that someone had removed and forgotten to put back. It was a hand-drawn troubleshooting flowchart that wasn't in any published document.
What These Manuals Actually Contain

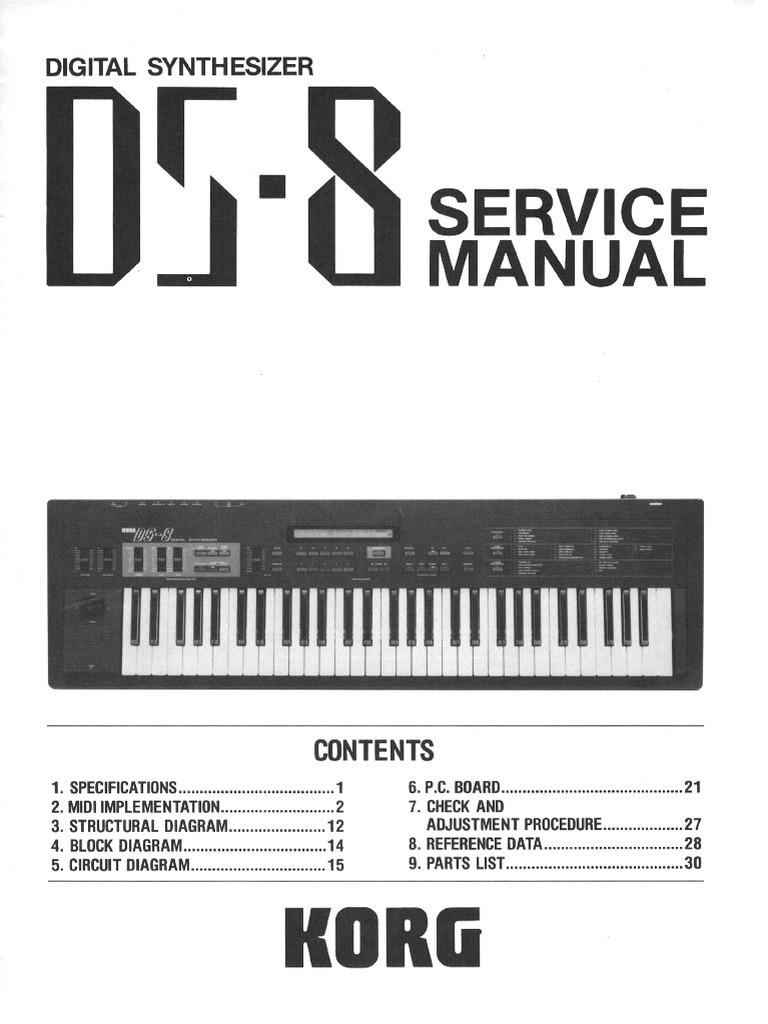

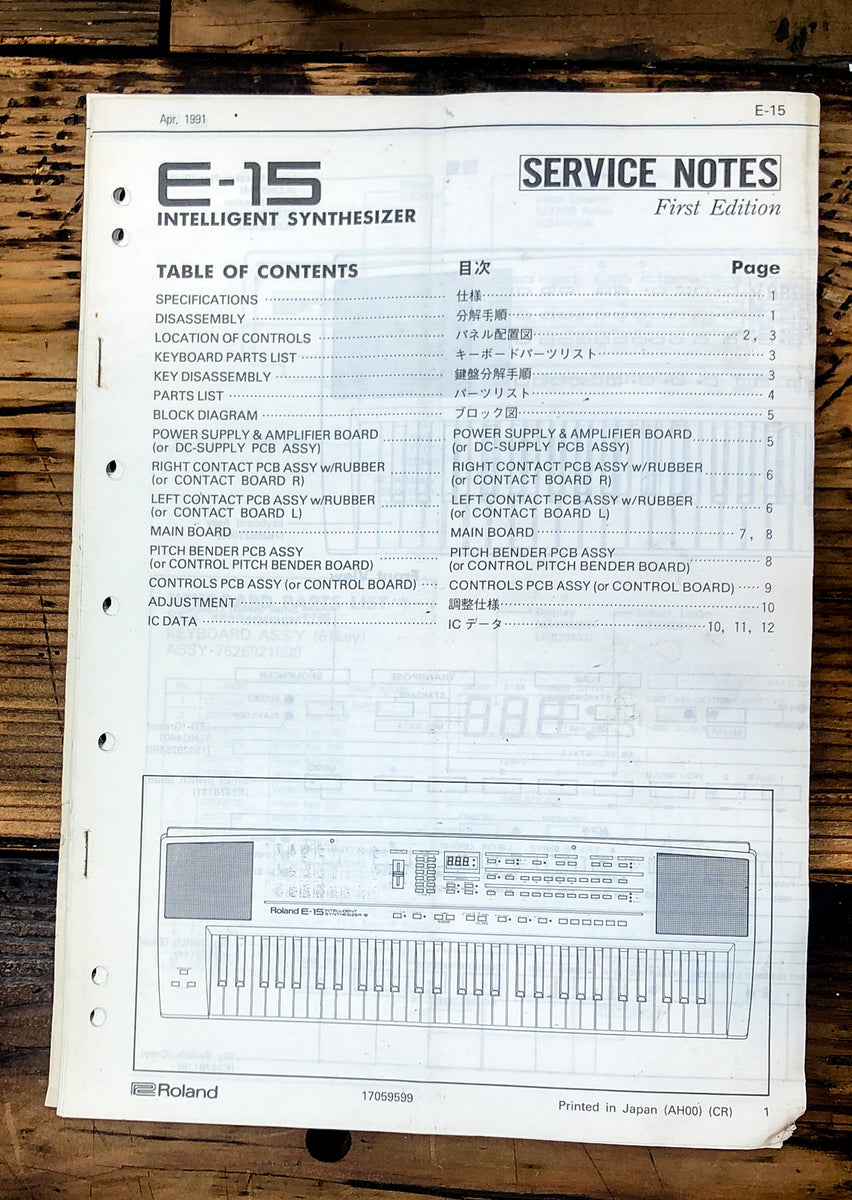

A proper service manual includes block diagrams, schematics, part numbers, alignment procedures, and troubleshooting flowcharts. The useful ones also list test points and expected voltage readings at various junctions. Without those reference voltages you're just guessing whether a discrepancy means a failed component or normal variation for that circuit design. Many manuals skip alignment procedures entirely and assume the technician already knows how to adjust a particular circuit. This is especially common with Japanese gear from the 1980s where the documentation was written for in-house technicians who received additional training on the factory floor. The manual might say "adjust VR102 for 2.4V at TP3" and leave it at that. If you don't know what happens when you turn that trimpot clockwise versus counter-clockwise, you're going to make things worse before you figure it out. The block diagrams are sometimes more valuable than the full schematics for initial diagnosis. They show signal flow and major subsystem boundaries, which helps you isolate whether a problem is in the audio path, the control voltage network, or the power supply section. A missing block diagram is a red flag that the manual was assembled from incomplete sources.
Get the Full Details
A Problem I Ran Into That Documentation Didn't Cover
I was working on a Sequential Circuits Prophet-5 Rev 3 last winter. The manual showed the correct voltages for the VCO board and the filter board, but the oscilloscope readings didn't match anything on the chart. The issue turned out to be a revision difference that the published manual didn't account for. Sequencia had swapped out a capacitor value and relocated a test point between firmware revisions without updating the paperwork. The workaround was to trace the actual PCB traces with a multimeter in continuity mode and map the test points myself. I cross-referenced the layout with a Rev 4 manual I found on a European repair forum where someone had posted photos of their schematics. The VCO calibration procedure was identical between revisions, but the physical test point locations were shifted by two pins on the connector. Once I identified the correct pins, the alignment procedure from the Rev 4 manual worked fine on the Rev 3 board. This kind of mismatch happens more often than people admit. Manufacturers routinely made board revisions without reissuing service documentation. The fix is to look for the board revision number silkscreened on the PCB itself, not just the model number on the back panel. That suffix letter or number tells you which version of the documentation applies.
Pitfalls to Avoid
Don't trust every PDF you find online. Some service manuals have been transcribed by hand and contain errors in resistor values, capacitor ratings, or IC part numbers. A single wrong component value in a schematic can lead you to replace a perfectly good part while the actual failure goes unnoticed. Always verify critical values against the physical components on the board. If the schematic says 100k but the resistor in the circuit is marked 1M, the manual is either for a different revision or someone made a transcription error. Alignment procedures require specific equipment. Many manuals assume you have a dual-trace oscilloscope, a frequency counter, and a DC voltmeter with at least 10 megohm input impedance. Using a cheap multimeter with lower impedance can load down high-impedance circuits and give you false readings. I learned this the hard way on a Oberheim OB-XA where my budget meter was drawing enough current to shift the bias point on the filter board, making a healthy circuit look broken. Some manuals list replacement parts with obsolete part numbers. Manufacturers frequently discontinued components and substituted them with equivalent parts that have different physical dimensions or thermal ratings. Check the date code on the original component and compare it against known substitution lists before ordering a replacement from a current distributor. A capacitor marked with a date code from 1983 likely has a different voltage rating or tolerance than a modern equivalent with the same part number.
When Documentation Isn't Enough
No amount of reading a manual replaces actual hands-on diagnosis. I've seen Technicians spend hours chasing a problem using a service manual only to discover the issue was a cold solder joint on a connector that wasn't even mentioned in the troubleshooting section. Manuals describe ideal circuits. They don't describe what happens when a connector pin corrodes or a trace cracks under thermal stress from repeated heating and cooling cycles. For older gear, you'll often need to combine multiple sources. A schematic from one manual, an alignment procedure from another, and physical inspection of the actual board. This is standard practice in the industry and something most professional repair shops do routinely. The manual is a starting point, not a complete guide to every possible failure mode. If you're dealing with a digital synthesizer, also check whether the unit has stored calibration data in non-volatile memory. Some models like the Korg M1 and Prophet-2000 store alignment values in EEPROM. A power failure or dead backup battery can corrupt those values and cause erratic behavior that looks like hardware failure but is actually a data problem. The fix is re-entering the factory calibration values, which requires a specific key sequence and test equipment setup described only in the service manual, not the owner's manual.
