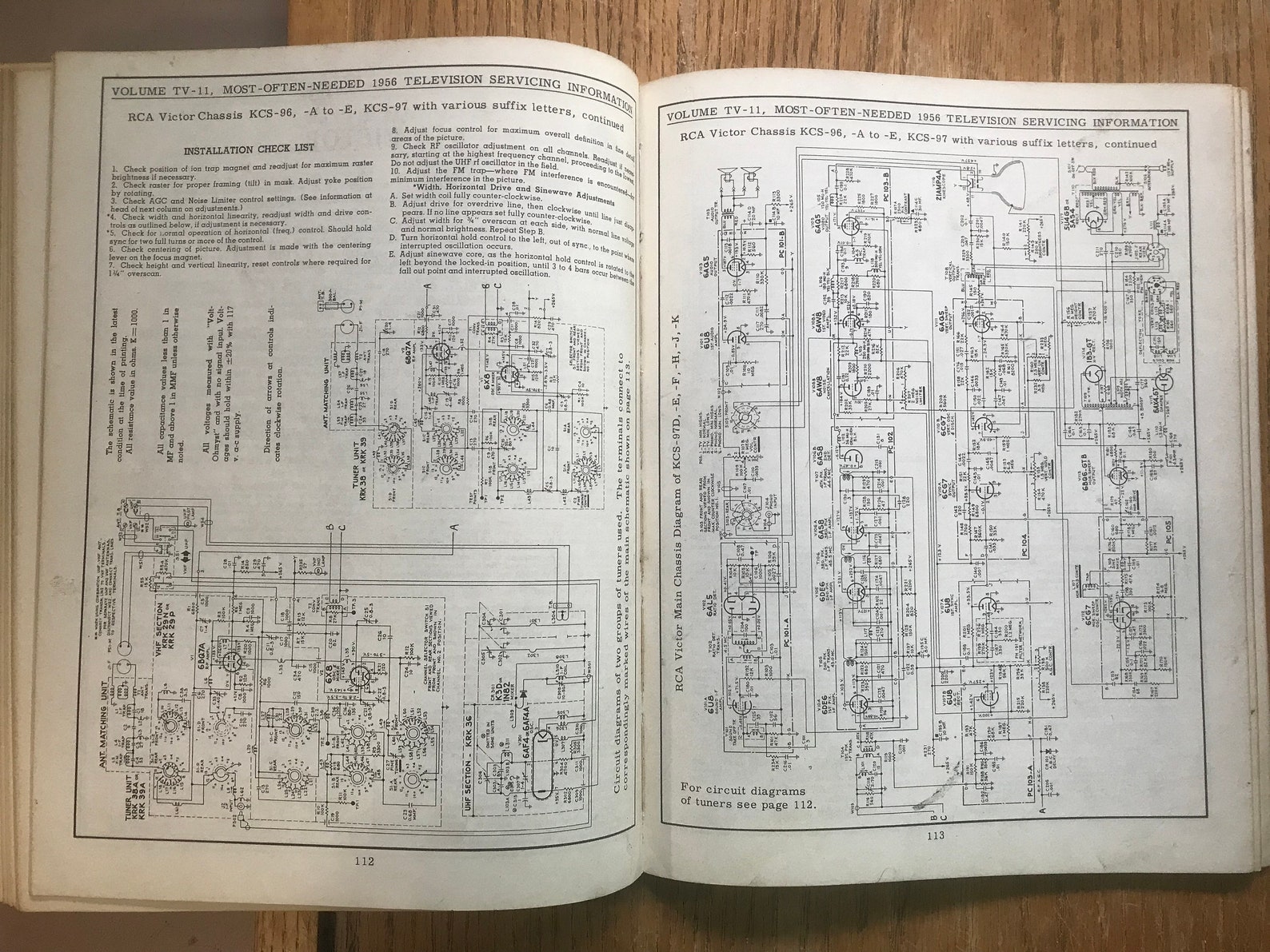

What You Actually Need When You Pull a TV Service Manual Off the Shelf
Most people treat a TV repair manual like it's a universal cookbook. It isn't. The parts list inside one is tied to that specific chassis and that specific revision of the board. Grab the wrong number and you're ordering a 100uF electrolytic when the set actually used a 47uF, or worse, a pin-compatible replacement with the wrong ripple current rating. I spent years diagnosing power supply boards and found that out the hard way on a Samsung UN46C630. The schematic called for a STV705A voltage regulator. I ordered the datasheet-approved equivalent from a distributor, mounted it, powered up, and got a 1.2V rail floating at 1.8V. Turns out the PCB had been revised mid-production without updating the BOM in the manual. The original part had a slightly different lead configuration that the board layout accounted for. I ended up sourcing a rebuilt unit from a donor board and cross-referencing the silkscreen markings to confirm the date code matched the revised board. That cost me three days and a $40 part that should have worked straight out of the package.

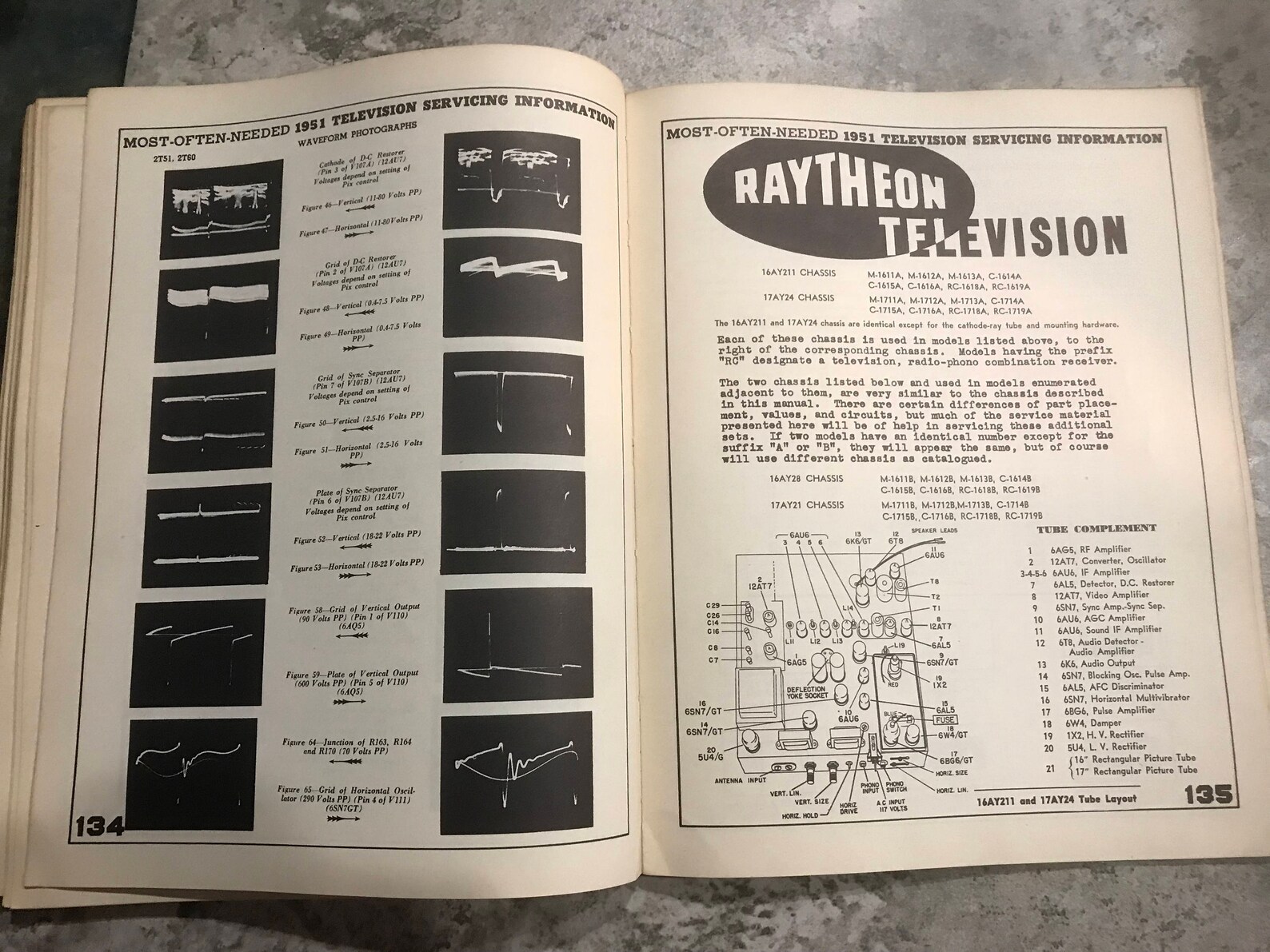

How to Read a Television Repair Manual Parts List

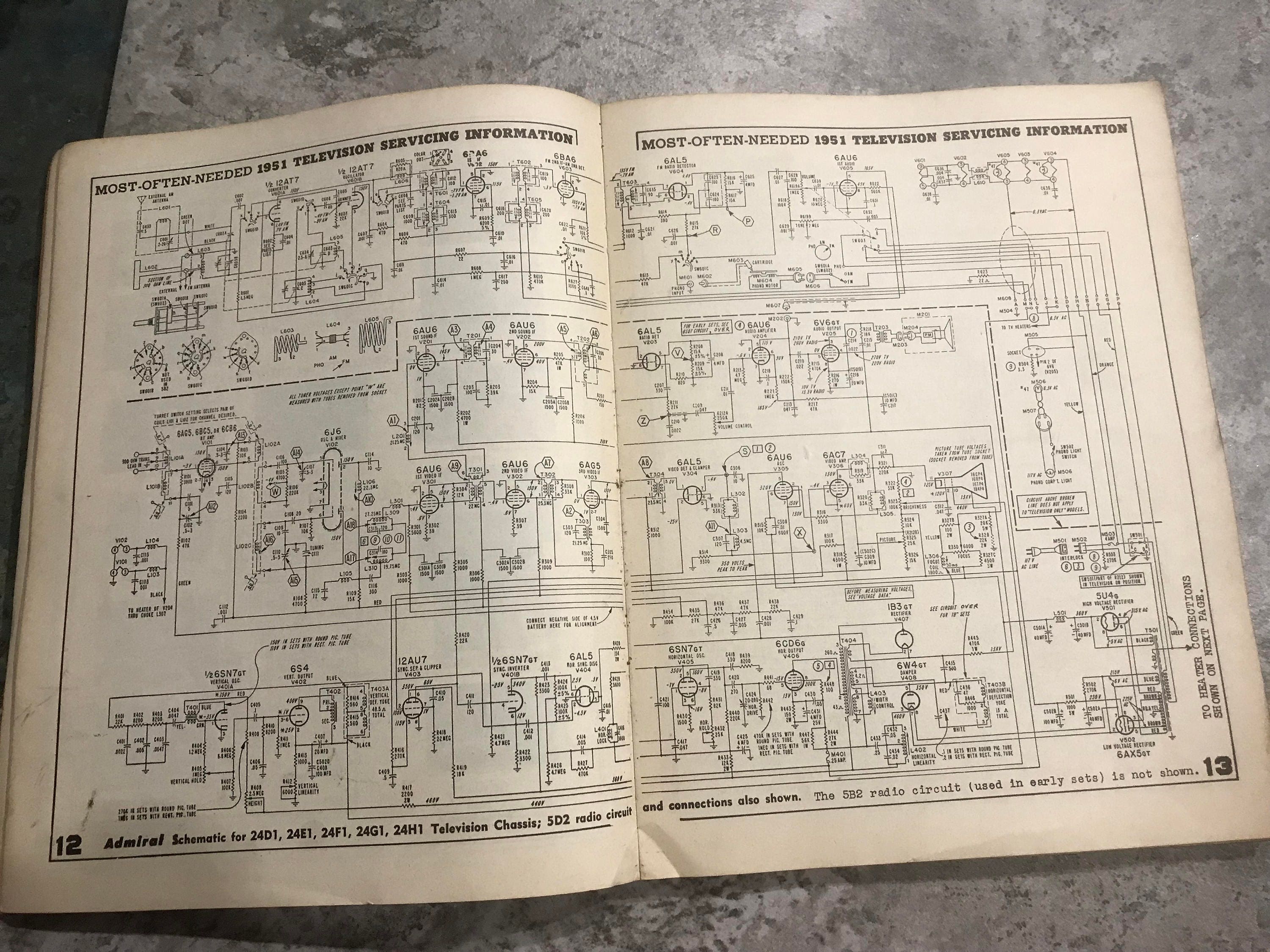

Start with the cover page. It'll list the model number, chassis code, and serial number range. Those serial ranges matter because manufacturers run different component substitutions through the same model name. A parts list for units shipped before March 2011 might show a different backlight driver IC than one for units after. Match your TV's serial plate before you trust anything in the list. The reference designators are your actual map. R1 means resistor. C1 means capacitor. U1 means integrated circuit. Q1 means transistor. When the parts table references R47 and your multimeter shows infinite resistance on that pad, you're not misreading the schematic. You're reading the right spot. Look for the revision codes in the corner of the schematic pages. If you see Rev 02 or V2 stamped on the board next to the main IC, the parts list you're using needs to correspond to that revision. Some manufacturers publish separate errata sheets. Others don't. If you can't find a revision match in the manual, assume the list is preliminary and verify every critical component against the physical board.
Capacitor values are where most people mess up. The ESR rating matters more than the microfarad number on these boards. A bypass capacitor on a switching regulator needs low ESR. Slapping in a general-purpose electrolytic from a hardware store will cause the rail to oscillate and fail within weeks. Check the manufacturer's DigiKey or Mouser part number if the manual provides one. Many service manuals list the full part number now, not just the value. Resistors follow the same pattern. Power resistors get marked with wattage. A 10-ohm 2-watt resistor is not interchangeable with a 10-ohm 0.5-watt resistor, even if they look identical. The smaller one will carbonize and open under load. The manual usually notes the wattage next to the resistance value. If it doesn't, measure the physical size of the original part and use that as a proxy. Anything larger than a 1206 surface mount footprint is probably a power resistor. Fuses need special attention. Fast-blow fuses protect semiconductors. Slow-blow fuses handle inrush current. Mixing them up blows the protection layer on the wrong component. The manual lists the type by symbol and sometimes by text. Look for "F" designations and check whether the symbol includes a time-delay indicator. If the manual only shows a generic fuse symbol, cross-reference the physical fuse marking on the board itself.
Get the Full Details
Transformers and inductors are the parts you can't replace with approximations. The turns ratio on a flyback transformer determines the high voltage output. Get that wrong and you either underdrive the screen or fry the output stage. The parts list should include the manufacturer code and the supplier number. If it only lists a generic description, you're working with an incomplete manual. Find a more complete source or order a replacement from the manufacturer's parts portal using your full model number. ICs are straightforward in theory. Match the part number exactly. In practice, some manufacturers substitute ICs between production runs without updating the manual. The silkscreen on the chip is the truth. If the manual says U12 is a THS7374 but the chip on your board reads THS7374DR, you're fine. If it reads something else entirely, verify the function by checking the pinout against the schematic before powering the board. One thing beginners consistently miss is the optional parts section. Manuals often include a column labeled "Optional" or "For models with feature X." Those components are only present on certain configurations. If your TV has a different feature set than the base model, those optional parts might be missing from your board, or your board might have extra parts not shown in the primary list. Check the configuration codes on the back label. They usually match a table inside the manual that maps features to part variants.
Another thing nobody mentions: connector part numbers. The wiring harness connectors fail just as often as the components. A cracked housing on a 6-pin connector from the T-Con board to the panel will cause intermittent display failures that look like mainboard issues. The parts list should include connector P/Ns. If it doesn't, photograph your existing connectors and search by the molding code on the housing. Molex, JST, and Hirose each have distinct part numbering systems. Here's the blunt truth about working from these lists. They are directional, not absolute. A Television Repair Manual Parts List will get you 90 percent of the way there. The other 10 percent is visual verification, serial number matching, and sometimes educated guessing based on what similar chassis use. Budget two extra hours per repair for parts verification even if the manual seems clear. The time saves you from ordering the wrong thing twice. If the manual you have lacks revision information, optional parts tables, or supplier part numbers, consider downloading an updated version from the manufacturer's service support page rather than forcing a repair with incomplete data. Some third-party manual aggregators also offer corrected editions. They cost around twenty dollars and typically include the revision matrices that free PDFs omit.
The core workflow I use: match serial to revision, verify every capacitor ESR rating against the original part physically removed from the board, check transformer and inductor codes rather than approximating, photograph connectors before disassembly, and always double-check the optional parts column. This usually cuts diagnostic time from three hours down to forty-five minutes on power supply and T-Con board repairs. On panel-level issues, it doesn't help much since those problems rarely show up in the parts list at all.
