Getting Your Tenmiro LEDs Working Without Losing Your Mind

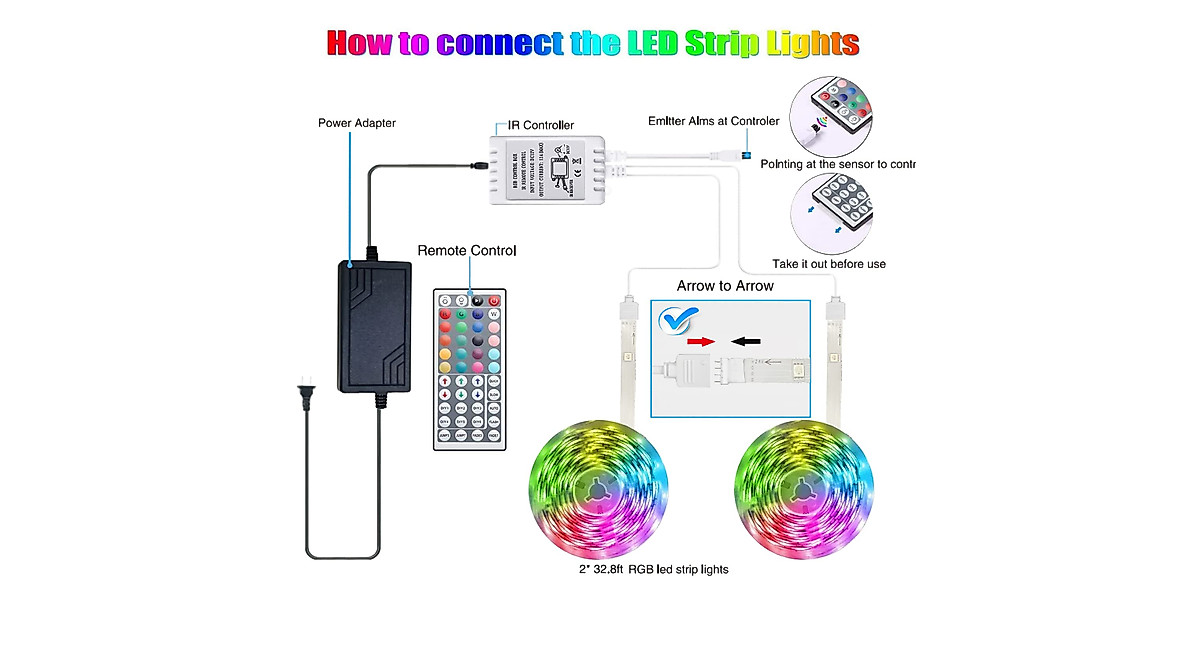

Most people buy Tenmiro LED strip lights and then immediately hit a wall because the instructions that come in the box are... let's just say they were translated through three different languages by someone who has never actually installed an LED light strip. The receiver box has tiny buttons, four connector pins, and a power input. That's it. There's no wiring diagram. There's no QR code. There's just a piece of paper with three blurry photos and the words "Press M to mode" printed somewhere near the bottom. The original instruction PDF is available on Tenmiro's website under the support or download section. Search for your specific model number — it's usually printed on the back of the controller box in small font. Different models use different remotes and have different wiring configurations, so the exact manual matters. If you can't find your model, the most common Tenmiro kits use a 24-key or 44-key IR remote and a four-channel receiver. The wiring is generally the same across those variants. I keep a bookmarked copy of the generic manual for the popular K2 and K3 receiver boxes because the PDF sometimes disappears after Tenmiro updates their site. Start by plugging the DC power adapter into the power input on the receiver box. This is usually a barrel jack, 5.5mm outer diameter by 2.1mm inner diameter. Don't force it. The polarized tips can be finicky. Once that's seated, connect your LED strip to the receiver terminals. This is where most people mess up. The strip connectors have +V, R, G, B markings. Match them exactly. Reverse the polarity on the power leads and you'll blow the LED chip at the start of the strip within seconds. I learned this the hard way on a 5-meter run I'd already adhesive-backed to my ceiling. The first meter was cooked. Had to cut it off and resolder a new connector. Saved maybe twenty bucks on the replacement strip, but I wasted an afternoon.
After the strip is connected, plug the power adapter into the wall. The remote should work immediately — point it at the receiver's IR sensor, which is usually a small black dome on the front of the box. Press any color button. If nothing happens, check three things before assuming the strip is dead: the power adapter is actually delivering voltage, the strip wires are making solid contact in the terminal clips, and the IR sensor isn't blocked by whatever you mounted the box behind.
Common Remote Modes and What They Do
The standard Tenmiro remote has a MODE button, brightness controls, color keys, and speed/darkness sliders. Here's what each mode actually does in practice, not what the manual claims: MODE 1 through 8 are static colors. One press per color. Fast, no flashing. MODE 9 through 16 are dynamic color cycles with different transition speeds. MODE 17 is a strobe effect that most people find annoying after thirty seconds. MODE 18 is a fading gradient that actually looks decent if you dim the brightness down to about 40% — at full brightness it looks cheap and busy. The brightness slider reduces overall output. The speed slider only affects dynamic modes. In static color modes, the speed slider does absolutely nothing. I've seen people spend ten minutes adjusting the speed slider wondering why their solid white isn't getting faster.
Get the Full Details
A Specific Problem I Ran Into and How I Fixed It
Last year I installed a Tenmiro kit behind a kitchen cabinet. Everything worked fine during the test phase. Two weeks later, the lights would randomly shift colors on their own. Not a remote issue — I'd moved the remote to another room. The behavior was consistent: every 30 to 45 minutes, one channel would drift. Usually red, sometimes blue. I ruled out the remote, the receiver, and the power supply. The problem was heat. The receiver box was mounted in a tight space behind the cabinet with zero airflow. The IC chips on the receiver were thermally throttling, causing one PWM channel to desync. I moved the box to an open shelf with a small gap for ventilation and the drifting stopped completely. Tenmiro doesn't mention thermal management anywhere in their documentation. It's something you figure out after the fact. If you're running more than 5 meters of 5050 LED strip at full brightness on a single receiver, you're likely hitting the current limit. A standard 5-meter roll of 5050 SMD 60LED/m strip draws about 2.4 amps per meter at full white, which is 12 amps total. Most Tenmiro receivers are rated for 6 to 10 amps depending on the model. Pushing 12 amps through a 10-amp receiver will cause the voltage to sag at the far end. The last meter will look noticeably dimmer and slightly reddish because the red LED channel drops voltage differently than the others. The fix is dual-input power. Feed power into both ends of the strip. You'll need a second power supply or a single higher-amperage supply with the positive and negative leads split to each end. This also applies if you're daisy-chaining multiple strips — don't rely on the copper traces in the connector cable to carry current the full length. That cable is thin. It adds resistance. Just splice into both ends directly.
Another thing nobody talks about: the IR range on these remotes is terrible if your receiver is behind any kind of enclosure. The effective range is about 3 meters with a direct line of sight. Anything more than that and you need to either relocate the receiver box or add a fiber optic extender cable, which Tenmiro sells separately for some models. I started keeping the receiver in an open spot and routing a short extension cable if I needed it hidden. Cheap solution, works every time.
When Tenmiro Gear Just Doesn't Cut It
The Tenmiro receivers are fine for basic color changing and simple scenes. They are not DMX controllers. They don't support addressable protocols like WS2812B or SK6812. If your strip has individual addressing and you try to drive it with a Tenmiro receiver, nothing will happen — the timing signals are completely different. Also, the PWM frequency on these boxes is low enough that if you film your lights with a phone camera at certain shutter speeds, you'll see visible banding. It's not a defect. It's just how cheap PWM drivers work. If flicker-free video recording matters to you, look at a better controller. For ambient room lighting, it doesn't matter. The Bluetooth app versions — Tenmiro's Tuya or Smart Life compatible models — are more reliable than the IR-only remotes for daily use, but they require a 2.4GHz Wi-Fi network. They don't work on 5GHz. If your router separates the two bands and you don't know how to force the pairing onto 2.4GHz, you'll spin your wheels for an hour. The app also drops the connection occasionally. A power cycle of the strip fixes it, but it's annoying if you're in the middle of setting a mood scene.
Bottom Line on the Instructions
The printed instructions are adequate for unboxing and basic connection if you already know how LED strips work. They're useless if you're a first-timer and encounter anything beyond plugging it in. The real guidance is in the wiring, the current limits, and the thermal issues. Those are the things that matter once the box is open and the testing begins. Keep the manual bookmarked online. Use it as a reference for button functions, not as a step-by-step installation guide. The wiring decisions and the planning are where the actual work happens, and that part Tenmiro expects you to figure out on your own.
