What You Actually Need to Know About Switch OLED Customization Templates
If you've been looking into modifying or personalizing a Nintendo Switch OLED model, you've probably run into the term Top 10 Nintendo Switch Oled Template floating around forums and decal shops. Here's the unvarnished version of what that actually means and how it works in practice. A Switch OLED template is essentially a scaled-down, precise cutout map of the console's shell surfaces. These are used for applying vinyl decals, skin wraps, or even as guides for hand-painting or airbrushing custom finishes. The OLED model has different dimensions from the original Switch and the Switch Lite, so using a template made for the wrong variant is the most common mistake I see people make.
Top 10 Nintendo Switch Oled Template

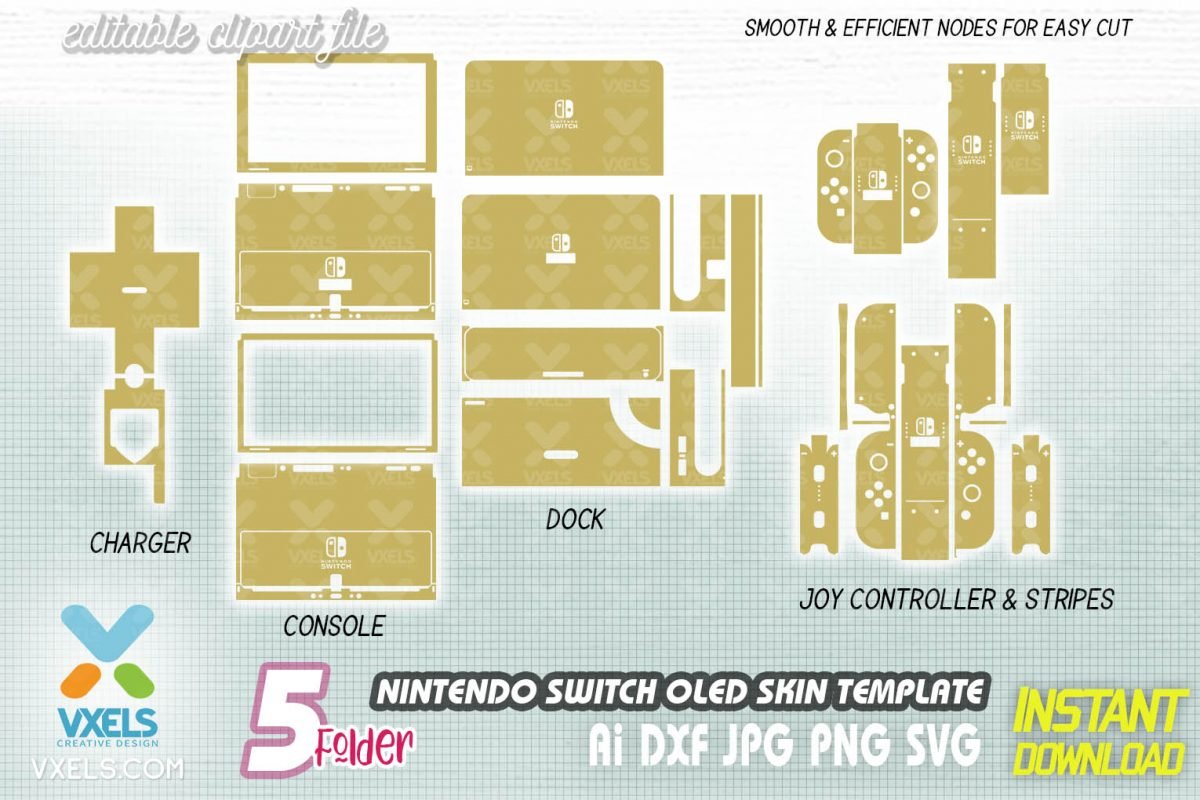

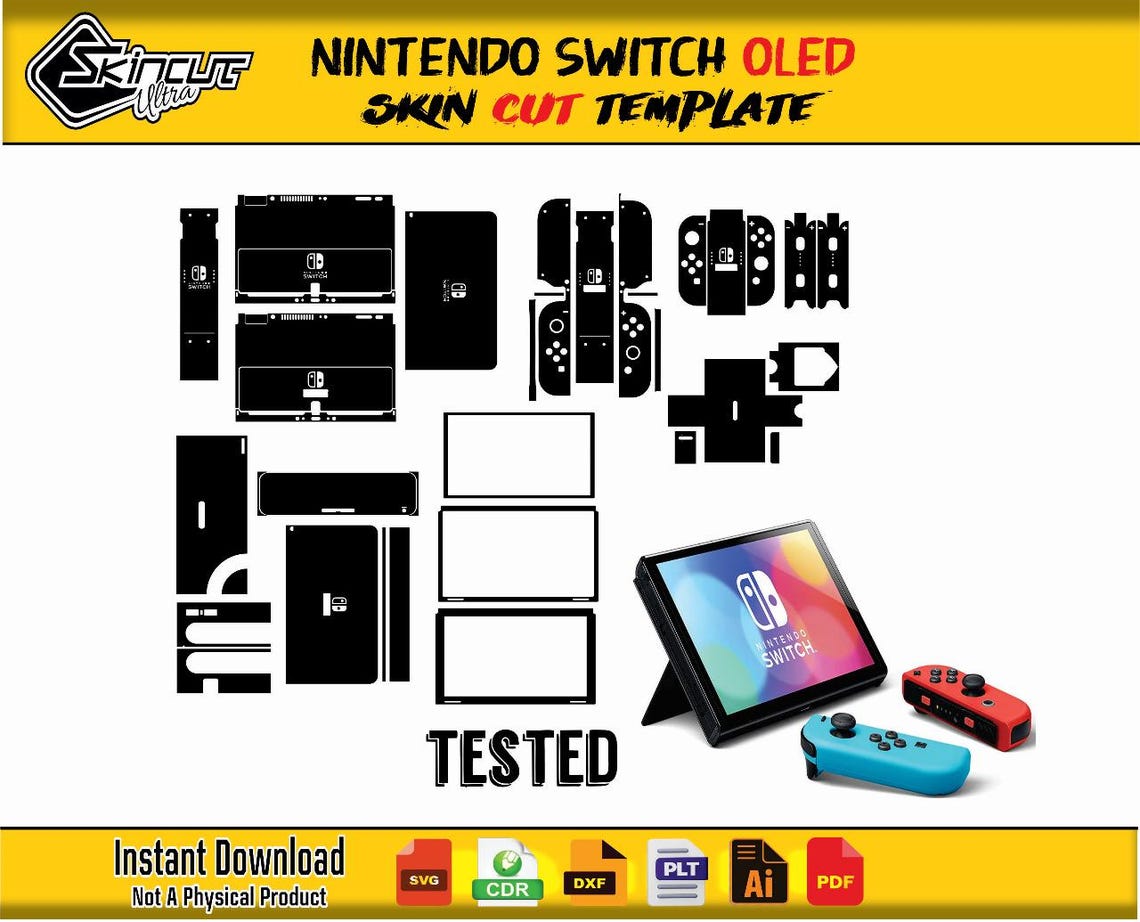

The "Top 10" label usually refers to curated collections found on sites like Etsy, DeviantArt, or specialized gaming modding communities. These aren't official Nintendo products. They're created by independent designers who measure consoles and produce digital files you can print at home or order as pre-cut vinyl from a decal vendor. Here's what a decent template set should include: the left Joy-Con face, the right Joy-Con face, the top lid (where the screen sits), the dock-facing back panel, the grip underside, and sometimes the dock itself if you're doing a full set. Anything less and you're going to have gaps in your coverage. I spent about three weeks working through my first full decal application on an OLED model back in late 2022. The hardest part wasn't the cutting or the alignment. It was the fact that the OLED's hinge area has a slightly different curvature than the original Switch, and templates labeled "OLED" from certain sellers were still using the older hinge measurements. My workaround was to take a fresh template file and manually adjust the hinge section by about 1.5 millimeters using a vector editing program. That small tweak prevented the vinyl from buckling at the joint, which was the exact spot where every botched attempt I'd seen online had failed.
The other issue nobody warns you about is the SD card door. On the OLED model it's on the left side rail, and the latch mechanism means you need a template piece that either accounts for the flap being removable or leaves a clean cutout around it. Cheap template sets skip this detail entirely, and you end up either ripping the vinyl or leaving a ugly gap every time you open the slot.
Get the Full Details
How to Use a Template Properly
Start by cleaning the console surface with isopropyl alcohol, not water. Water leaves residue that weakens adhesive bonding. Let it dry completely. Then lay out your template pieces on a flat surface and use a craft knife with a fresh blade to cut along the lines. Don't use scissors. The edges will be jagged and alignment will drift. For vinyl decals, use transfer tape. It sounds like extra work but it cuts application time from roughly 45 minutes to about 12, and it dramatically reduces bubbles and misalignment. Apply the vinyl in sections, starting from the largest flat panels first and working toward the curved areas. The grip underside and the Joy-Con rails are where most people mess up because those surfaces curve in two directions at once.
Common Pitfalls and What They Cost You
Using a template that isn't to exact scale is the biggest problem. If the seller measured from a photo instead of calipers, your decal will be off by a few millimeters across the entire surface. On a console that small, a 3-millimeter error means the design won't line up with buttons and ports. Always check reviews that mention measurements or include photos of the applied result, not just the digital mockup. Another thing: some template sets are designed for the standard OLED model and won't account for models with a modified case or a third-party replacement shell. If you've already swapped parts, measure your actual console and verify the template dimensions against it before committing to a full cut. There's also the question of finish. Matte vinyl templates look professional but show fingerprints on glossy buttons. Glossy vinyl shows every dust particle during application. Semi-gloss is the middle ground most builders end up choosing, though it's rarely mentioned in product descriptions.
Where to Find Reliable Templates
Independent sellers on Etsy tend to have the most up-to-date OLED-specific files because they actively update based on customer feedback. Amazon listings are hit or miss. Free PDF templates on forums often have scaling errors because someone resized them for their own printer without recalibrating the dimensions. If you're going the free route, print a test square with a known measurement like a ruler next to it and verify the scale before cutting into your actual console. For pre-cut vinyl, companies like Slickwraps and BodyKit make Switch OLED skins that are essentially premium templates already applied to carrier film. They cost more but eliminate the cutting and alignment variables entirely. If you're doing this for the first time and don't want to risk a $450 console, that's the safer path. The whole process, from template selection to finished application, usually takes between 2 and 3 hours for a full set if you're doing it carefully. Rushed applications take longer because you end up peeling and reapplying sections. Factor in drying time for any adhesive-heavy vinyl, which can be another 30 to 45 minutes before you should reconnect controllers or dock the system.
