Understanding the Problem Before You Open Your Toolbox

The first thing most people get wrong when troubleshooting a CCTV camera is they assume the camera is broken. In my experience, roughly 60 to 70 percent of what looks like a dead camera is actually something else entirely. Power issues account for the majority of false diagnoses. A camera that appears completely offline is more likely suffering from a bad PoE injector, a corroded connector, or a misconfigured VLAN than it is from an internal hardware failure. This is where a proper Training Manual Cctv Camera Troubleshooting Guide becomes useful—not as a replacement for actual diagnostic sense, but as a structured way to avoid skipping steps. When I trained technicians, I always told them to follow a physical layer first approach. You check power, you check the cable, you check the switch port, and only then do you start looking at the camera itself. Most people reverse that order and waste two hours swapping cameras before realizing the switch port had PoE disabled.

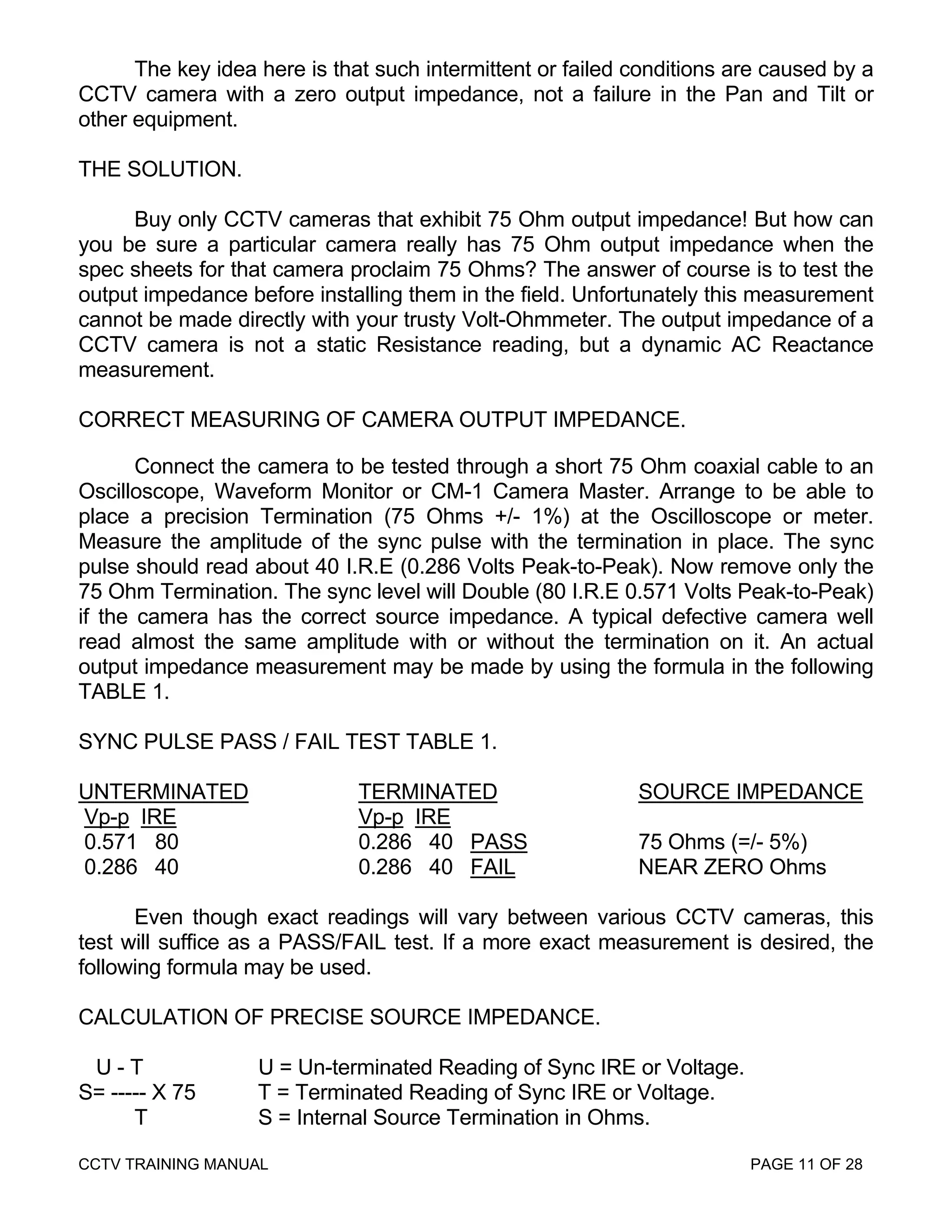

Training Manual Cctv Camera Troubleshooting Guide: The Core Diagnostic Flow

The guide works best when you treat it as a decision tree rather than a reference list. Start with the symptom, not the brand. A blurry image on an AXIS camera and a blurry image on a Hikvision camera both point to focus drift or lens contamination, regardless of manufacturer. The manual organizes these by common fault patterns—no video, intermittent video, poor image quality, network errors, night vision failures—and gives you a repeatable path through each one. Here is how I break down the process on a live job. Step one is physical inspection. Look at the connector. If it is an RJ45, check for pushed-out pins. If it is an M12 connector, check for overtightening that cracks the housing. I once spent a full day chasing an intermittent feed on a camera at a warehouse site. The issue was a strain relief on the ethernet cable that had pinched the inner conductors just enough to fail when the wind moved the housing slightly. The camera itself was fine. That kind of problem does not appear in any manual, but the manual does tell you to inspect the cable run before replacing anything, which is where I found it.

Power Problems and What They Actually Look Like

PoE is the standard power delivery method for modern IP cameras, and it is also the most common source of failure. A camera drawing 12 watts on a switch port rated for 15.4 watts (802.3af) will work fine in perfect conditions. But when cable temperature rises, or the cable run approaches 90 meters, the voltage drop becomes significant. The camera reboots randomly, or the IR LEDs cut out at night while the image stays stable during the day. This is a classic sign of insufficient power headroom. The manual recommends checking whether the camera is on a PoE+ (802.3at) capable port when the specs call for more than 12.95 watts. I add to that by recommending you use a dedicated PoE tester rather than relying on switch diagnostics. Some managed switches report a port as "connected" even when the camera is negotiating at half speed or drawing marginally under the minimum threshold. A handheld tester showing actual voltage and amperage at the camera end tells you what is really happening at the device, not what the switch thinks is happening. For cameras running on external 12V DC power supplies, the failure mode is different. You get gradual degradation rather than sudden death. A capacitor in the power supply begins to fail, and the output becomes slightly under-voltage. The camera boots, but NVR integration drops it from the recording schedule intermittently. I once diagnosed this by measuring voltage at the camera terminal while the system was under load at midnight when the IRs were active. The supply was reading 11.2 volts instead of the expected 12.6. Swapping the power supply resolved it immediately. A multimeter and ten minutes saved a truck roll.
