Training Manual Lawn Mower Parts List

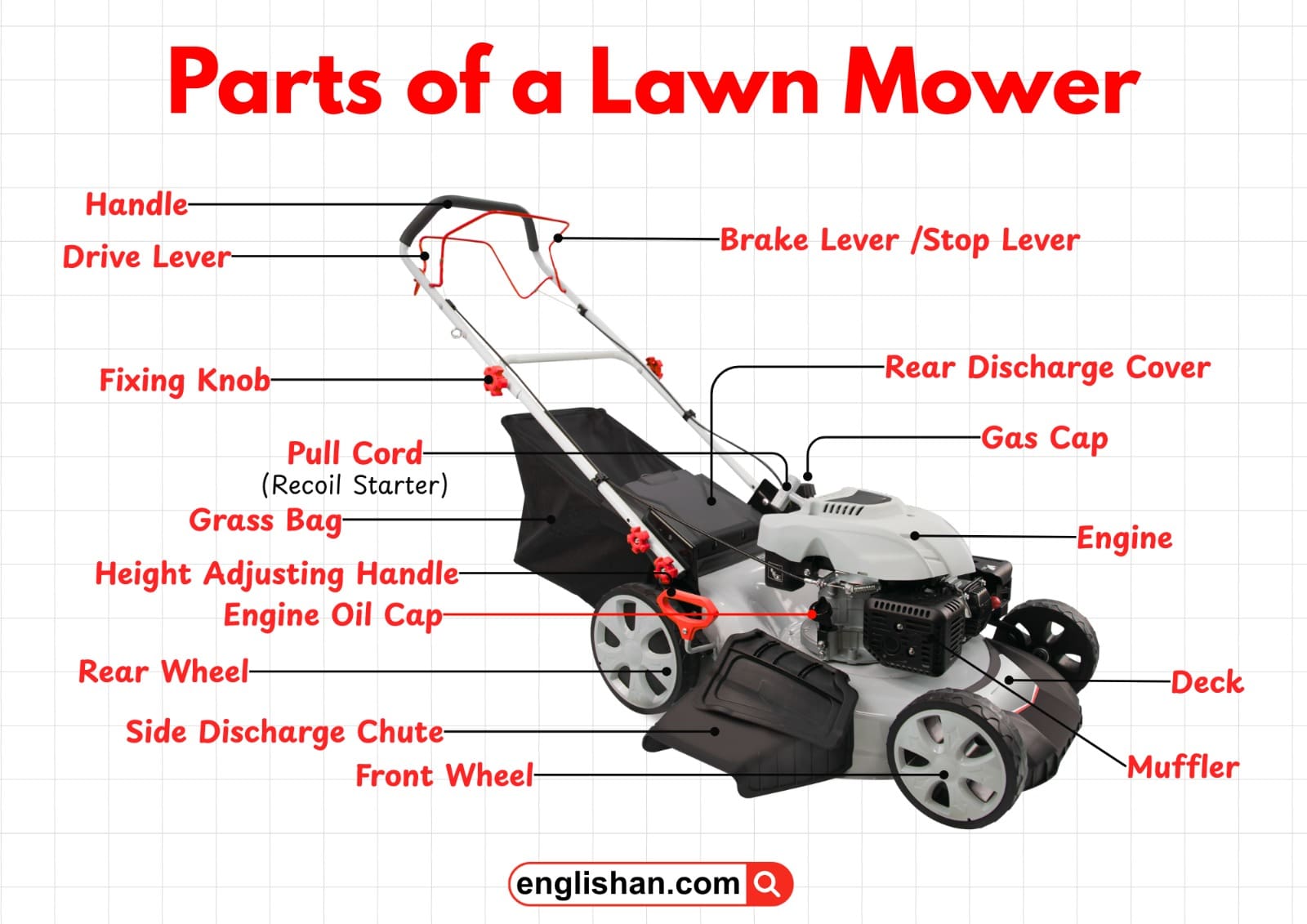

Why You Need a Proper Parts Breakdown for Training

Most people grab a random schematic off the internet and try to teach from it. It does not work well. The manuals provided by major mower manufacturers are engineered with specific exploded-view numbering systems that actually correlate to real inventory. When you strip out the training context and leave people with just a parts diagram, they miss critical assemblies like the engagement clutch linkage or the deck height adjustment cam brackets. These are the pieces that fail during hands-on sessions, and if the trainee cannot locate them on the list, the entire exercise stalls.

I have spent years watching technicians struggle through repair certification courses because someone handed them a generic catalog instead of the OEM training manual lawn mower parts list for the exact model being serviced. The difference between a confusing mess and a functioning workflow usually comes down to whether the list matches the serial number range. I ran into a situation last winter where a trainee was replacing a blade spindle bearing on a commercial zero-turn mower, but the parts book had been pulled for a 2019 model while the unit in question was a 2021 refresh. The spindle housing was nearly identical externally, but the internal seal groove had changed depth by about 1.5 millimeters. The replacement part ordered from the list would not seat correctly. I had to pull the correct serial-number-matched pages and print them on cardstock so they would survive the oil and grease in the workshop. That workaround cut the confusion from a forty-minute troubleshooting session down to about six minutes. A training manual parts list is more than a catalog. It is a structured reference tool that pairs every component with a cross-referenced part number, a material specification, torque value where applicable, and a sub-assembly location code. The sub-assembly codes are what most beginners skip over, and that is the real mistake. Those codes tell you which bracket a bolt belongs to, which housing a spring sits inside, and how multiple components nest together before the final fastener goes in. Without them, reassembly becomes a guessing game. Start by laying out the actual machine next to the manual. Do not try to memorize part numbers in a classroom setting. The first thing to do is identify the model plate, usually located on the frame near the rear axle or under the seat bracket. Record the full model number and the serial number range printed next to it. The manual will have a cover sheet or an index table that maps serial ranges to specific edition revisions. Skip that step once and you will end up working from outdated drawings.

Once you have the correct edition, begin with a single sub-assembly rather than the entire machine. A good starting point is the cutting deck lift linkage. It is visually straightforward, uses common hardware, and the parts list typically breaks it into six to eight numbered items. Trace each number on the diagram to the physical component on the mower. Then flip to the parts list column and read the description and part number. Note the kit numbers as well. Most manufacturers offer repair kits that bundle small consumables like seals, O-rings, and retaining clips into a single SKU. Ordering individual pieces instead of the kit usually costs more and takes longer to arrive.

Common Pitfalls That Waste Training Time

The biggest issue I see is people confusing aftermarket compatibility with OEM fitment. A third-party parts catalog might list a bolt as interchangeable, but the thread pitch or the head profile can differ by fractions of a millimeter. When a trainee torques a non-OEM fastener into a cast aluminum bracket, stripped threads are almost guaranteed. Always verify thread length, diameter, and grade before accepting an aftermarket substitute during training. Another frequent error involves the engagement clutch and PTO switch assembly. The parts list often shows these as separate entries, but functionally they operate as a single unit. If the trainer only labels one without cross-referencing the other, the trainee will replace a worn solenoid and then wonder why the blade still will not engage. The wiring harness connector behind the solenoid is usually the actual failure point, not the solenoid itself. I keep a note in every training session reminding people to check the harness pins for corrosion before ordering any new components.

What the Parts List Does Not Cover

No parts list will tell you about wear patterns or failure thresholds. The manual lists a spindle belt as a single replaceable item, but it does not explain that a belt showing glazing on the inner rib surface should be replaced even if it has not snapped. It also will not warn you that deck belt tensioners on certain push mower models begin to lose resistance after roughly four hundred hours of operation. That kind of information comes from field experience, not from a printed list. Trainees who rely solely on the manual for diagnostic decisions will miss these signs and end up replacing parts that were still functional. There is also a limitation around proprietary fasteners. Several manufacturers use one-way break-off bolts or torq-set screws on the engine mounting brackets and transmission housings. The parts list will show these as standard fastener entries, but in practice they cannot be removed and reused. I have seen multiple training sessions grind to a halt because the instructor did not mention this upfront. The workaround is to keep a small box of the correct replacement fasteners at every workbench and to flag the ones that require replacement before the trainee starts disassembly.

Where to Obtain Reliable Training Parts Lists

The most dependable source is the manufacturer's official training portal. Most major brands require you to register for an account, but the access fee is generally low compared to the cost of incorrect parts. Some offer free training modules with downloadable parts breakdowns included. Aftermarket publishers like Haynes and Chilton produce simplified parts lists for consumer-grade mowers, but these omit many of the sub-assembly detail pages that professionals rely on. If you are running a commercial training program, stick with OEM sources for the heavy equipment and reserve the third-party catalogs for residential push mower work only. If you need a current reference document for a specific model, the manufacturer service database usually allows you to pull a printable PDF of the complete parts section for any serial number within warranty range. These downloads are typically free and update automatically when the manufacturer releases a revised bulletin. Keep the file dates checked before each training cycle. A list printed two years ago may reference a superseded bracket or a discontinued bushing that no longer fits the updated frame design.
