Reading the Trane Refrigerant Piping Application Guide Properly

Most people who work with these systems treat the manual like a wall of text they flip through once and then forget. That is a mistake. I once spent three weeks troubleshooting intermittent capacity loss on a 12-ton rooftop pack, only to trace it back to a gas line that was undersized by half an inch because I hadn't checked the actual length correction factor in the piping guide. The table values assumed 20 feet of equivalent length. We had 65. The suction gas velocity dropped so low that oil was not returning properly. Compressor started burning bearings within months. All because someone looked at the table and moved on without doing the math. The Trane Refrigerant Piping Application Guide is a reference document that covers how to size and layout refrigerant piping for both air-cooled and water-cooled systems, with detailed tables and figures for R-22, R-410A, R-134a, and newer low-GWP refrigerants. It gives you friction loss charts, velocity limits, oil return strategies, separator sizing, and trap configurations. It is not a step-by-step installation manual. Think of it more like a lookup tool that you use alongside your design work, not something you read cover to cover before starting a job.

How to Use the Trane Refrigerant Piping Application Guide on Real Jobs

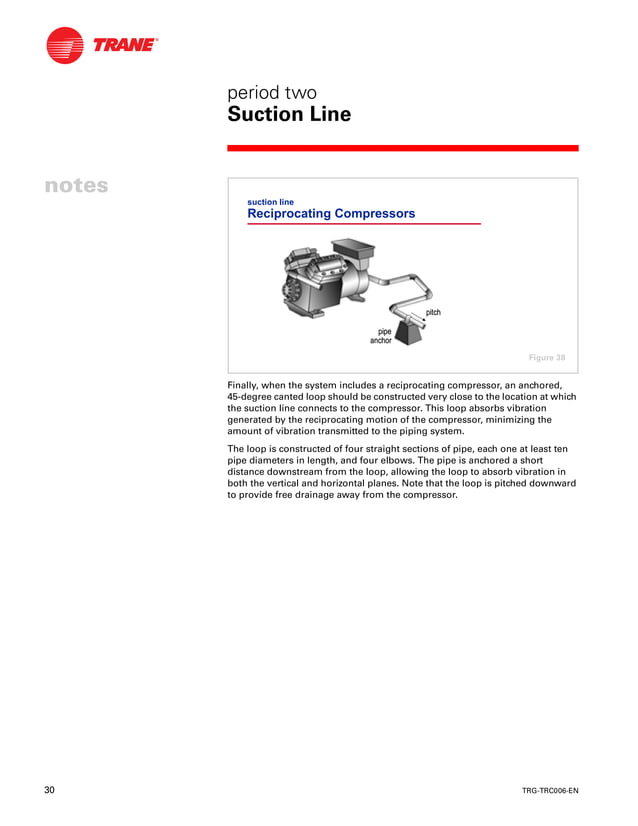

I keep it open on a tablet while I am running line sets through the field. Here is the basic workflow. Start with the capacity and refrigerant type. Look up the correct table for your conditions. Multiply the base pipe sizing by the equivalent length correction factor. Check velocity. Make sure liquid lines do not flash gas before the metering device. Verify that suction lines are sized to maintain enough velocity for oil carryback at partial load, not just at full load. That last part is where most people mess up. The guide will give you friction loss data in inches of mercury per 100 feet for different pipe sizes and refrigerant flows. You need to calculate equivalent length by adding up actual straight runs and then assigning equivalent lengths to every fitting. A standard 90-degree elbow is roughly 10 to 15 feet of equivalent length depending on diameter. ATEE valve might add another 20. You end up with a total that is usually double the measured physical length, sometimes more if you have tight equipment placements. I work through a specific job now. A recent project had a chiller in the basement and evaporators on three different floors. The suction header ran vertically up a shaft, with branch connections tapping off at each floor. Trane's guide shows the proper configuration for vertical risers, including the need for oil traps on every riser if the compressor is below the evaporator. The guide specifies trap height, diameter, and the correct number of return bends. On this job, the contractor skipped two of the four required traps because they looked ugly in the ceiling space. Six months later, the compressor had slugged twice. Not because of liquid floodback. Because oil was trapped at the bottom of the riser and could not get back to the compressor. The fix was shutting down the system, pulling out the headers, and redoing the riser piping with proper traps.

Common Pitfalls That the Guide Addresses But People Ignore

Oil traps are not optional. Every vertical riser that serves an evaporator above the compressor needs at least one trap. The rule of thumb from the guide is that the gas velocity must be high enough to lift oil on its own, and when that velocity is not achievable at low loads, the trap provides a reserve path. Without it, you are gambling on oil return. I have seen systems run for years without traps and seem fine. Then one winter when the refrigerant charge was slightly low and velocities dropped across the board, oil migration became a chronic problem and the compressor failed. Another issue is liquid line flashing. If your liquid line runs through an unconditioned space and the pressure drop causes the liquid temperature to drop below saturation, you will get flash gas before the metering device. This reduces capacity and can cause hunting. The guide has tables for allowable liquid line lengths and recommends subcooling calculations to prevent this. Most installers do not bother with the subcooling math. They just install the pipe and hope for the best. Suction line insulation matters more than people think. Vapor lines that are not insulated will pick up heat from surrounding spaces, which increases superheat at the compressor inlet. This is especially problematic on systems with long suction runs through hot attics or mechanical rooms. The guide recommends insulating all suction lines larger than a certain diameter. I follow that rule even when the code does not require it, because the energy impact adds up over a full cooling season.

What the Guide Does Not Tell You Clearly

It does not cover every edge case. Multicomponent refrigerant blends can separate in the piping if you have significant temperature gradients, which causes composition changes and performance issues. The guide touches on this but does not go deep. If you are working with R-454B or R-32 in a large commercial system with long piping runs, you should also consult the specific manufacturer's application bulletin for that refrigerant. Those bulletins often have additional restrictions that the general piping guide does not include. Another blind spot is the interaction between piping layout and defrost cycles on heat pumps. Hot gas defrost can create extreme pressures in poorly designed suction headers. The guide has a section on this, but the real-world behavior depends heavily on your specific equipment and control sequence. I learned this the hard way on a hotel heat pump installation where the defrost cycle caused liquid slugging in the compressor because the suction accumulator was undersized for the defrost flow rate. The piping guide would have caught this if someone had actually looked at the defrost capacity tables instead of just the cooling capacity tables.

Getting the Document

The guide is published by Trane and is available through their official technical resources portal. It is not always free. You typically need a Trane account or a contractor login to access the full version. Sometimes your local distributor can provide a PDF copy if you are bidding on a project. The document is fairly large, usually over 200 pages, with tables for multiple refrigerants and capacities ranging from small packaged units to large centrifugal chillers. I keep a printed copy in my truck because downloading it to a tablet every time is annoying when you are at a site with spotty cell service.

Bottom Line

Read the relevant sections before you design the piping. Do the equivalent length calculations. Size for oil return at minimum load, not just full load. Install the traps. Insulate the suction lines. And do not assume the guide has answers for every unusual situation, because it does not. When in doubt, call the manufacturer's engineering support line. They have seen worse than what you are dealing with, and a 10-minute phone call can save you a week of troubleshooting.
