Trek Domane Size Guide

Picking the Right Trek Domane Frame Size

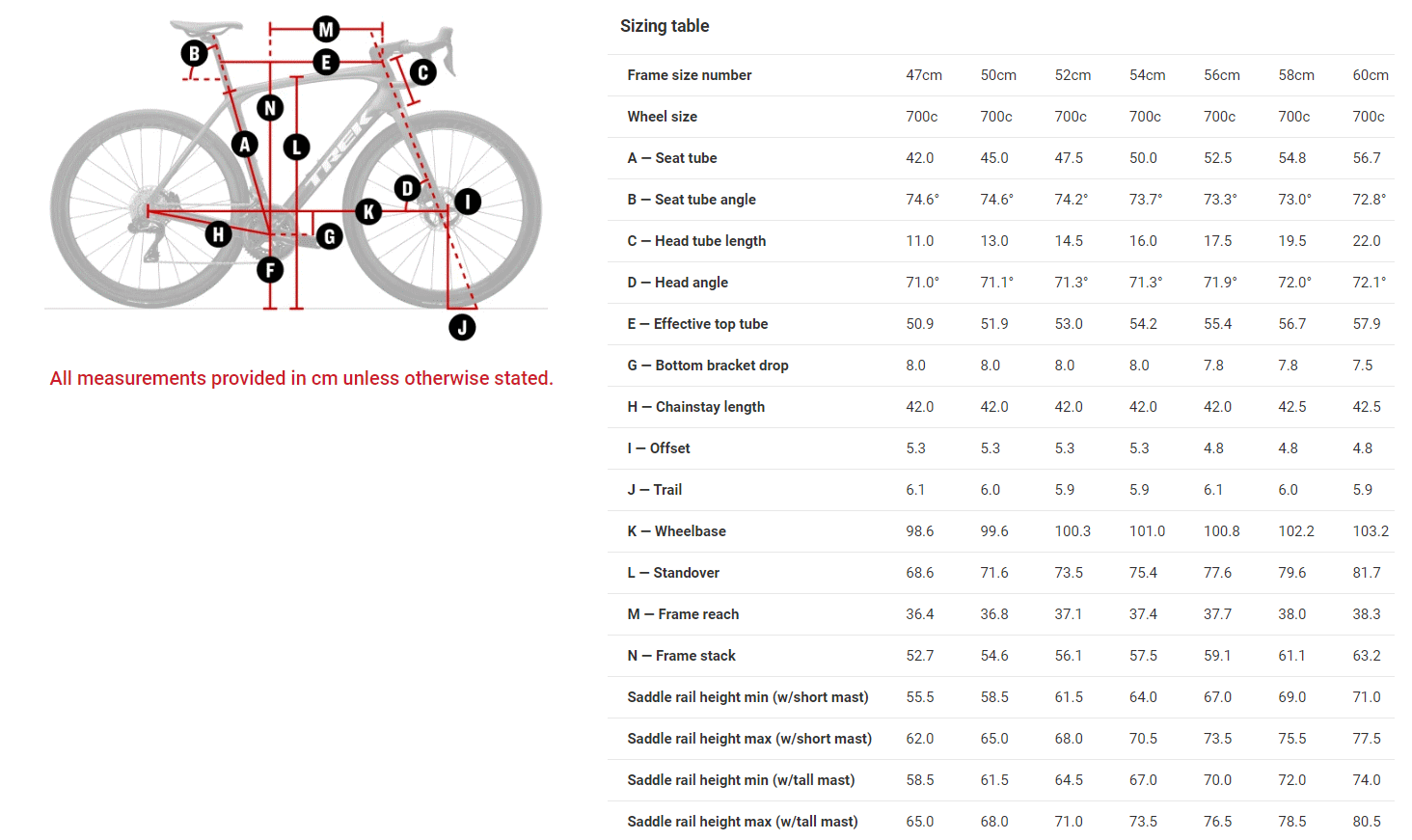

Most people buy a Domane the wrong size and then try to fix it with spacers and a longer stem. That only gets you so far before the bike feels like a shopping cart with loose wheels. The Trek Domane Size Guide is straightforward but there are nuances that don't show up in the chart. The current-gen Domane ALR and SL charts break down like this. Small fits riders roughly 5'0" to 5'4", Medium covers 5'4" to 5'8", Large is for 5'8" to 6'1", and X-Large starts around 6'1" and up. These are seat tube lengths measured center-to-top, and they overlap on purpose because rider proportions matter more than height alone. Here's the thing the chart doesn't tell you: reach matters more than stack for endurance bikes like the Domane. Two riders at 5'9" might both fit a Large perfectly well on paper, but if one has long arms and a short torso and the other is the inverse, the fit will feel completely different even though the spec sheet says the same thing.

I ran into this exact problem last year when a friend picked up a used Domane SL 7 based strictly on his height. He's 5'10" with notably short arms from years of playing piano as a kid. The Large was correct by the chart but the reach felt stretched, like he was leaning over a counter. We solved it by swapping to a 90mm stem (it came with 110mm) and adding a couple of headset spacers to raise the bar. That cut the effective reach by about 25mm and made the bike actually comfortable on rides longer than an hour. Without that change he'd have been complaining about hand numbness and lower back strain within two weeks.

ALR vs SL — Sizing Differs Between Platforms

The aluminum Domane ALR and carbon Domane SL don't share the exact same geometry across sizes. The ALR tends to run slightly more relaxed in the head tube angle, which means a given size feels a touch more stable but also a touch longer in the front end. If you're cross-shopping between the two and your height lands right on a size boundary, the ALR in the smaller size and the SL in the larger size might feel comparable on paper but ride differently. Another detail people miss: the Domane has an adjustable W2 system on most carbon models. You can tweak the headset spacer position to adjust stack height by about 15mm without changing any components. This is useful when you're between sizes and want to compensate for reach rather than immediately reaching for a stem swap.

When the Size Guide Completely Fails

The chart works fine for average-proportion riders. It falls apart in three specific cases. First, riders with very long legs and a short torso relative to their height — you might end up needing a smaller frame with a longer stem, which sounds contradictory but is actually common. Second, riders with extremely flexible hamstrings who can flatten their back on the drops — they'll want a lower stack and shorter reach than the chart suggests. Third, people doing bikepacking or commuting with panniers on the Domane — the added front load changes how the bike feels at speed, and a size that felt fine empty might oscillate or feel twitchy once loaded. If you fall into any of those categories, the size chart is a starting point at best. A proper fit session or at minimum borrowing a friend's bike in the size you're considering will save you more trouble than any online calculator.

Used Market Considerations

Buying a used Domane adds another variable because Trek changed geometry between model years. Pre-2020 Domane frames run slightly different than the current generation, particularly around the top tube length relative to seat tube. A 2018 Domane SL Large will feel measurably longer in the reach than a 2023 Domane SL Large even though both are labeled Large. If you're shopping used, always check the model year and compare the actual top tube measurement to the current chart rather than trusting the size label alone. Also worth noting: Domane frames don't have universal compatibility with every component. The internal cable routing uses Trek's proprietary interface, so if you're planning a full groupset rebuild on an older model, expect to spend additional time and money on adapters that newer models don't need. This isn't a sizing issue per se but it's the kind of thing that catches people off guard after they've already committed to a purchase based on the size chart.

Practical Steps Before You Buy

Measure your inseam and your torso length separately. Inseam determines saddle height which the chart accounts for reasonably well. Torso length and arm length together determine what stem and spacers you'll actually need, and that's where most sizing mistakes happen. If you can visit a Trek dealer and stand over a demo bike in the size you're considering, do it. Spend ten minutes on it, roll your shoulders, check whether your hands naturally fall to the hoods without overreaching. That ten minutes is worth more than any online calculation. The Domane is a comfort-oriented endurance bike and its geometry already leans generous compared to a race machine. When in doubt between two sizes, the smaller frame is usually the safer bet because you can always run a longer stem, but you can't make a too-long frame any shorter. I've seen more people make this mistake than the reverse.
