Working with the Daytona 675 Electrical System

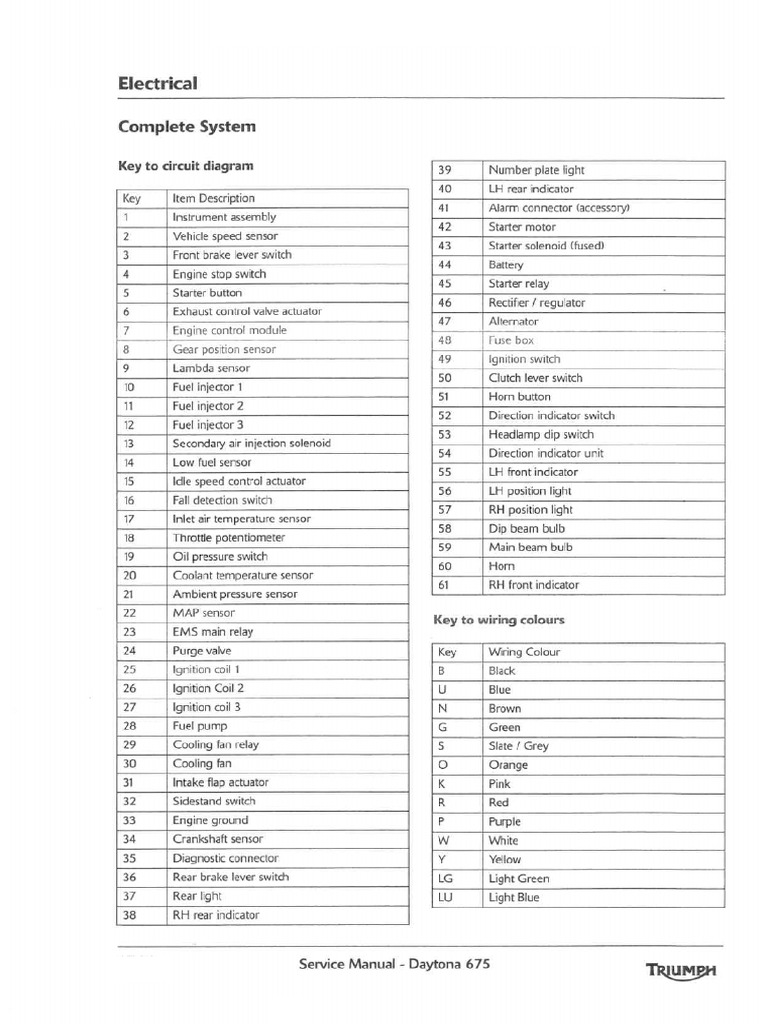

The Triumph Daytona 675 has one of those wiring harnesses that seems designed to test your patience. It came out around 2006, ran through 2017, and during that production run Triumph made several ECU updates and connector redesigns. If you are hunting for a Triumph Daytona 675 Wiring Pinout Diagram Pdf, you will quickly discover that one single official PDF does not cover every model year. The 2007 sport version uses a different ECU and sensor layout than the R variant that arrived later. You need to match your diagram to your specific year and sub-model before you start probing anything. The most reliable source is the official Triumph service manual, which includes the full wiring diagrams with pin assignments for every control module. These are sold as PDF downloads from Triumph's own parts and documentation portal or through authorized motorcycle repair manual vendors. Forums like DaytaTriumph and Reddit's r/MotorcycleDIY sometimes share scanned pages, but they are often incomplete, low resolution, or cropped to a single circuit. I stopped chasing forum PDFs years ago because the pin numbering on the shared copies frequently had the connector orientation flipped, which sent me down a few wrong probe paths in the past. What actually works better is pulling the diagram directly from the service manual and taking a high-resolution photo of the relevant section, then printing it at full size. A printed A3 copy on a workbench is infinitely more useful than zooming around on a phone screen while your hands are covered in grease. The electrical connectors on this bike are small, the pins are tight, and you cannot afford to misread a label in the middle of a diagnostic run.
The Basic Layout and What the Diagram Actually Shows
The Daytona 675 wiring centers around the main ECU, the instrument cluster, and a set of peripheral control modules depending on the year. The primary connectors you will deal with are the main ECU harness plug, the regulator/rectifier connection, the ignition switch feed, the starter relay circuit, and the sensor banks for the ABS, traction control, and engine management systems. Each connector on the diagram has a terminal number printed next to it, usually in a small square or circle. The color codes on the wires follow Triumph's standard scheme: black for ground, red for constant battery feed, yellow and green for sensor signals, and white for lighting circuits. Not every wire follows the color code perfectly after a previous owner did a splice, so do not trust color alone. The pinout tables in the diagram list each terminal with its function and the wire color going to it. They also show which pins are signal grounds versus chassis grounds. This distinction matters more than most people realize. The ECU references its own signal ground plane, not the frame. When you measure resistance or voltage at a sensor, a bad chassis ground can look exactly like a bad sensor if you are not careful about which ground point you are using as your reference.
How I Actually Use the Diagram During a Diagnosis
I do not pull up the full wiring diagram and read it cover to cover. I identify the symptom, trace the circuit from the diagram, and focus only on the relevant section. For example, if the bike throws a lean misfire code on cylinder two, I go straight to the fuel injector circuit for that cylinder, check the pinout for the injector connector, verify power at the ECU side, and then check continuity through the harness. That usually takes ten to fifteen minutes if the diagram is clear. Without it, I am walking around the bike with a multimeter guessing at which connector to lift. One real problem I ran into that the diagram did not immediately solve was a phantom fault on a 2011 model. The bike would crank but not fire, and the diagnostic readout showed no communication with the ECU. The wiring diagram pointed to the main ECU connector as the obvious suspect, and the pinout showed the power and ground pins were intact. I spent about forty minutes checking every connection in that plug. Nothing. Then I noticed that the frame ground strap running from the steering head area down to the engine had corroded internally. The diagram does not always highlight frame ground straps prominently because they are considered part of the mechanical assembly, not the electrical circuit. Once I cleaned and verified that strap, the ECU woke up and the bike started. The wiring diagram was correct. The problem was somewhere the diagram treated as an afterthought.
Get the Full Details
Common Pitfalls People Miss
The biggest mistake I see is assuming the connector pin numbers on the diagram match the physical connector exactly as you see it. Triumph sometimes supplies the same connector shell with different keying or orientation depending on the production batch. The pin numbers are always correct on the diagram, but if you are looking at a connector that has been replaced with an aftermarket or salvage yard unit, the physical layout may not line up. Always verify pin numbers by counting from the connector reference mark, usually a small notch or raised dot on the housing, rather than by looking at the connector face randomly. Another issue is the difference between the sport and R models. The R got updated electronics including ride-by-wire throttle bodies on later years, which added throttle position sensor circuits and changed how the ECU interprets certain inputs. If you are using a diagram from a 2014 R while working on a 2010 sport, several sensor pins will not match and you will waste a lot of time chasing signals that are not supposed to be there. Always confirm the exact year and model before trusting the pinout.
A Quick Reference to the Main Connector Areas
The ECU connector is the one you will visit most often. It has multiple rows of terminals covering power, ground, injector drivers, ignition coil circuits, sensor references, and communication lines. The regulator/rectifier connector handles the AC input from the stator and the DC output to the battery. The ABS modulator connector on later models carries wheel speed sensor signals and solenoid control lines. The instrument cluster connector carries speed data, gear position, and warning lamp circuits. Each of these sections has its own pinout table in the service manual diagram. If you are doing a full harness inspection, I recommend photographing each connector with the pins visible before you unplug anything. These clips are brittle and break if you force them, and after-market replacements are frustrating to source. The wiring diagram itself is an excellent tool when you match it to your exact bike. It cuts diagnostic time significantly compared to trial and error with a multimeter. Just keep in mind that no single PDF covers every variation, the frame ground straps are easy to overlook, and connector orientation can vary between batches. Those three things cost me enough weekend afternoons that I now triple-check before I start poking around under the tank.
