Working on a Troy Bilt GTX 16? You Need the Right Manual
The Troy Bilt Gtx 16 Service Manual is not the easiest thing to track down. Troy Bilt does not publish a ton of detailed technical documentation for their residential-grade riding mowers the way they used to back in the day. Most people searching for this end up on random parts websites that scan a PDF into low-resolution images. That is fine for ordering a belt or a spindle, but it is nearly useless when you are actually trying to diagnose an electrical gremlin or figure out why the PTO clutch will not engage on a cold morning. I spent about three weekends last year trying to sort out a no-start condition on a GTX 16 that had been sitting over winter. The manual I finally found through a dealer portal had the wiring diagram pages blurry enough that I could barely distinguish the orange wire from the pink one. I ended up tracing every single connection by hand with a multimeter instead of relying on the diagram. It took longer than it should have, but at least I learned how the interlock circuit actually behaves under load.
Where to Actually Find the Troy Bilt Gtx 16 Service Manual

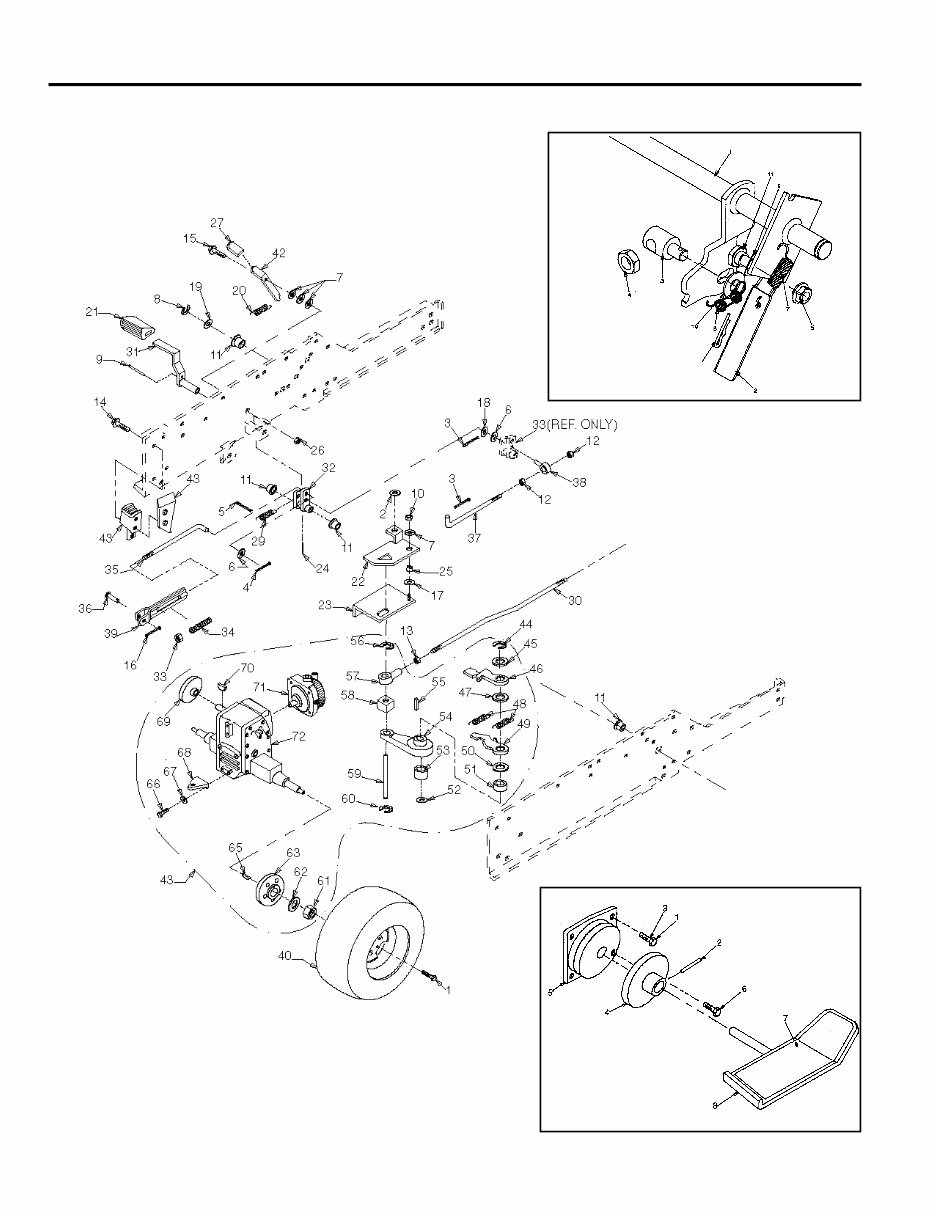

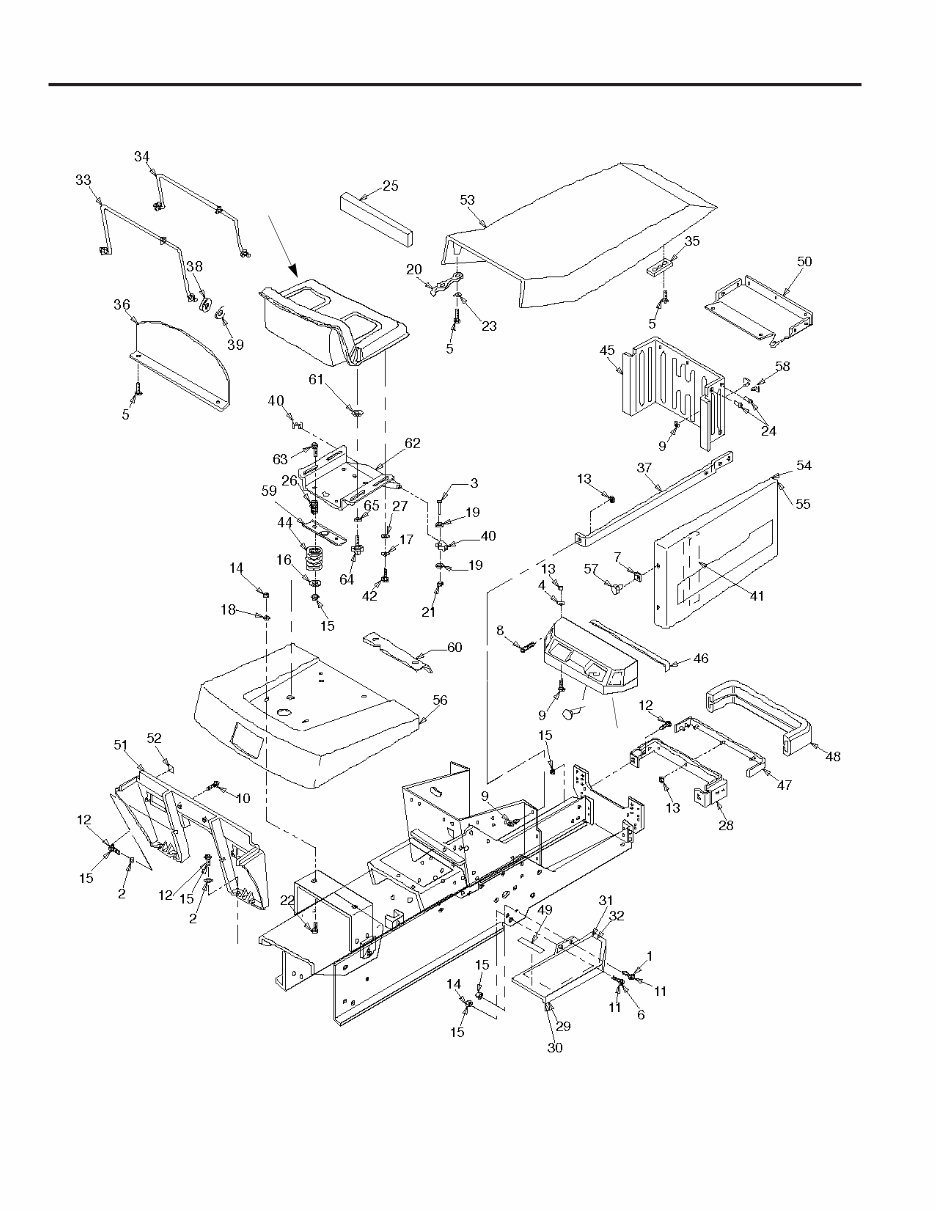

The honest answer is that there is no single official free PDF hosted anywhere by Troy Bilt for this model. Briggs & Stratton, who makes the engines for these machines, has better documentation for the engine side. For the chassis and electrical systems, you are usually looking at one of a few paths: Troy Bilt dealer portals sometimes provide manual access if you have a dealer login. If you know someone at a small engine shop, ask them to print out the relevant sections. They often have access to Mitchell Books or similar technical databases that pull the correct schematics. Parts diagram sites like PartsTree, JacksSmallEngines, and PartSelect host scanned manuals alongside exploded parts views. The quality varies. Some are clean scans from the original printing. Others are three generations of phone photos of a photocopier output. You will know the difference immediately when you try to read a wire gauge notation.
Briggs & Stratton service resources cover the engine portions in far more detail than Troy Bilt ever does. The GTX 16 typically runs a Briggs Intek or similar single-cylinder V-twin depending on the year. If your problem is fuel delivery, carburetor syncing, or valve clearance, the Briggs manual will be substantially more useful than anything Troy Bilt produces for this mower.
Get the Full Details
What Is Actually Inside These Manuals
A proper service manual for the GTX 16 covers the ignition interlock system, the PTO clutch circuit, the battery charging system, and basic engine tune-up procedures. The wiring diagrams are the most valuable section if you can read them. Most problems on these machines are electrical anyway. The safety switch loop has a reputation for being finicky, and the key switch develops internal resistance that intermittent contact symptoms can drive you crazy diagnosing without a schematic. The adjustment specifications are usually sparse. You will find basic torque values and spark plug gaps but rarely the kind of precision specs you see in motorcycle or automotive service manuals. That is because these are consumer-grade equipment manuals written for parts replacement, not overhaul. If you are doing a complete engine rebuild, you need the Briggs documentation separately.
Common Problems These Manuals Help You Solve
The most frequent issue people pull the manual out for is the PTO clutch not engaging. The manual will show you the power feed path from the battery through the key switch and safety interlocks to the clutch coil. What it usually does not show you is that the ground path on many GTX 16 models runs through the frame near the engine mount, and corrosion there causes exactly the same symptom. I had a mower where the clutch received full voltage but still would not engage because the ground strap at the frame was painted over and effectively insulated. Cleaning the contact point and adding a dedicated ground wire fixed it immediately. The diagram would have led me in circles without that physical observation. Another issue is intermittent starting after the battery is replaced. The manual covers battery removal and reconnection. It does not typically mention that the memory backup in the ignition module can lose its idle trim setting when power is cut. Some owners report the engine running rough for a few minutes after a battery change before settling down. That is normal behavior for these systems. Let it warm up and cycle the throttle a few times. The module recalibrates itself.
Practical Limitations You Should Know About
These manuals are not comprehensive repair guides. They will not walk you through teardown sequences for the transmission or the deck lift mechanism in any meaningful detail. If you are dealing with a hydrostatic transmission that has lost power, the manual will tell you to check the belt and the drive pulley and then recommend a dealer service. That is about as far as it goes. The step-by-step procedures are often written assuming you have a basic tool set and a workbench, not the field conditions most people actually work in. I have seen instructions that assume you can remove the engine shrouding in a tidy sequence. On a GTX 16, several hose clamps and wiring harness clips share mounting points with the shroud panels. You will disconnect things you did not intend to disconnect. Taking photos before every removal step saves considerable frustration. For the engine-specific procedures like valve adjustment or carburetor rebuilding, the Briggs & Stratton manual for your specific engine model number is going to be more thorough. Look at the decal on the engine cover. That model number is your key to finding the right engine documentation.
What to Do When the Manual Is Not Enough
When the documentation falls short, which it frequently does for electrical diagnostics, you need a multimeter and patience. The interlock system on these mowers is fundamentally simple: battery positive runs through the key switch, then through a chain of safety switches (seat, brake, PTO), and finally to the clutch or starter solenoid. Any open in that chain breaks the circuit. Testing each switch for continuity at the connector rather than at the switch itself will save you time. The wires between the connector and the switch can break internally, and the switch itself can read good on a bench test while failing under load. If you are doing routine maintenance, the manual gives you the basic intervals. Oil changes every 50 hours for the engine, air filter cleaning at the same interval, and belt inspection annually. Beyond that, most of the work is reactive. These mowers do not typically suffer catastrophic failures if you keep the basics current. The deck spindles are the usual weak point, and replacement is straightforward even without a detailed guide since the assembly is generally self-contained. Bottom line: get the best manual you can find, cross-reference the engine work to Briggs documentation, and learn to trust your multimeter more than any printed wiring diagram. The diagrams are directionally correct but often incomplete on field realities like corroded grounds and cracked wire insulation that no manual can anticipate.
