Getting Tusk Seat Heaters Working Without Losing Your Mind

You pull up to the barn after a long day on the trail and flip the switch. Nothing. The wiring looks correct, the connection is solid, and you still can't get any heat. This is where I found myself last November when my first install went sideways. The heater mat was brand new, the power source was there, and nothing happened. Turns out the issue wasn't with the heater itself — it was with how I routed the sense wire on the thermostat module. But I'll get to that later. The official documentation from Tusk is decent, but it assumes you already know how automotive low-voltage systems work. If you're someone who just bought a seat heater kit off the shelf and has never touched a multimeter before, you're going to run into trouble. The instructions cover the basics: route the power harness, mount the heating elements under the seat foam, connect the thermostat module, and wire it to your power source through a fused circuit. That's the summary. The devil is in the details that aren't really detailed in the manual. One thing the instructions don't emphasize enough is gauge selection for the power wire. They tell you to use 10-gauge wire for the main feed. That's correct for runs under 12 feet on a standard 12V system. If your UTv battery is further away from the seat — and on a Can-Am Defender with the rear bench seat, it almost always is — you should step up to 8-gauge or even 6-gauge to avoid significant voltage drop across the run. I measured a 1.4-volt drop on my first attempt using 10-gauge wire over a 15-foot run. That's the difference between warm and hot when you're sitting in 20-degree weather waiting for something to heat up.

The Actual Installation Process

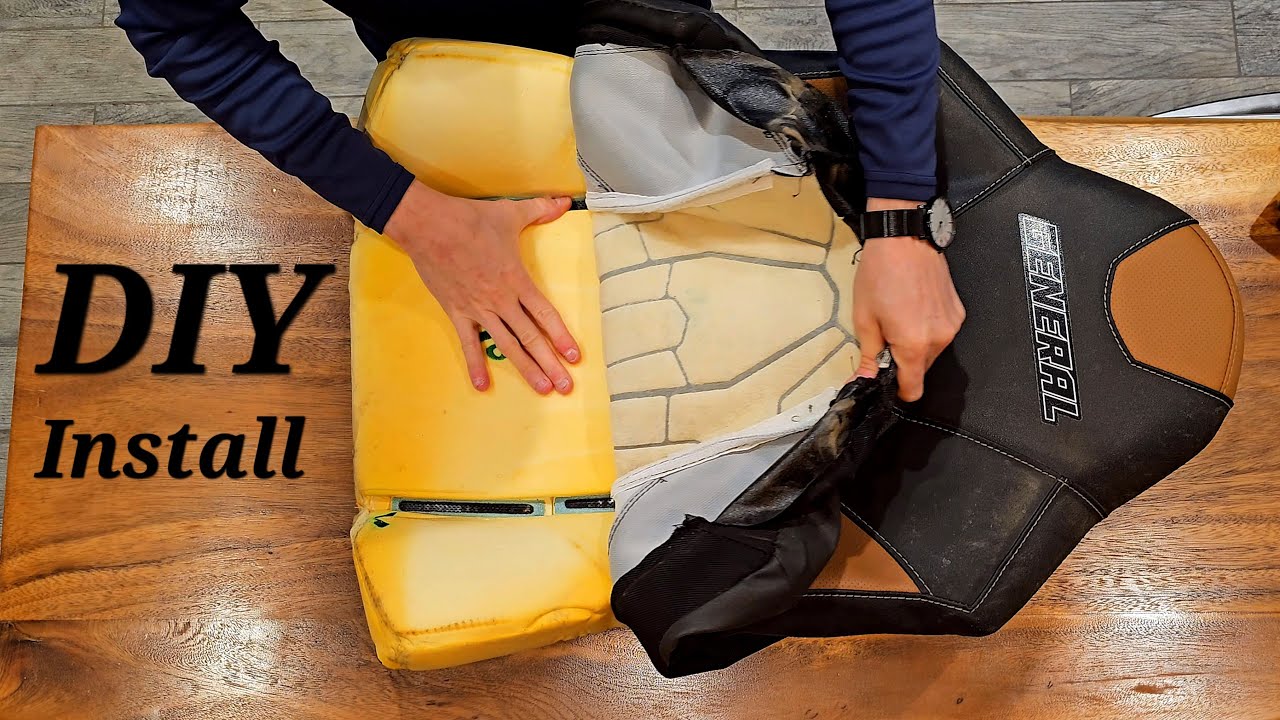

Start by removing the seat cushion. On most Tusk kits, the heating elements come as flexible mats that you lay flat against the underside of the foam. Don't crease them. Creasing damages the resistive wires inside the mat and creates cold spots or complete failure points. I learned that the hard way on my second installation when I bent a mat around a tight corner of the seat frame and ended up with a dead zone right where my left thigh sits. Apply the adhesive backing if your kit includes it, or use a spray adhesive rated for automotive use. I prefer 3M Super 77 because it bonds well to both foam and fabric without saturating the material. Less is more here. You're not trying to glue the entire seat together permanently. You just need the mats to stay flat while you reassemble everything. Too much adhesive and you'll never get the mats back out if you need to replace a broken element. Route the power wires along existing factory channels when possible. Don't run them loosely through the cabin. Vibrations from the frame will wear through the insulation over time, and a short to the metal frame could blow your fuse or start a fire. I used zip ties and existing grommets to secure the harness, and I made sure to leave about six inches of slack at each connection point. Seats move — they slide forward and back, they tilt — so if you pull the wires tight during installation, they'll get yanked loose or pulled apart the first time you adjust the seat position.

The thermostat module is where most people mess up. It has three connections: power input, ground, and a sense wire that goes back to the controller or fuse panel depending on your setup. The sense wire is what tells the system when to cycle the power. If you connect this wrong, the heater will either stay on continuously and cook your battery, or it won't turn on at all. Double-check every connection before you test anything. A misplaced sense wire connection is exactly what happened to me on that first install. Once I traced it back, the system worked immediately.

Electrical Considerations Most People Skip

Your UTv's electrical system is the limiting factor here. Tusk kits typically draw between 10 and 15 amps per seat depending on the model. That means you're looking at a minimum of a 15-amp fuse on the power feed, but ideally a 20-amp fuse if you're running dual seats. Make sure your alternator can handle the additional load without dropping voltage below 13.5 volts while idle. On many side-by-sides, the stock charging system is already near its limit with lights, winches, and radios running. Add two seat heaters and you might see the battery sit at 13.2 volts at idle instead of the normal 13.8 to 14.4. I installed a dedicated relay triggered by the heater switch rather than running the full amperage through the switch itself. This protects the switch contacts from arcing and reduces voltage drop through the switch mechanism. A good quality 30-amp automotive relay costs about eight dollars and makes the system more reliable long-term. The stock wiring in these kits isn't designed for years of heavy use, and cheap switches fail faster than you'd expect when they're carrying full heater current directly. Grounding is equally important. Don't run the ground wire to just any bare metal point you can find under the seat. Find the nearest solid chassis ground — ideally a factory bolt that connects directly to the frame, not to a bracket or subframe piece that could introduce resistance. Use a ring terminal with a star washer underneath to ensure good metal-to-metal contact. Clean the paint off the grounding surface with a wire brush or sandpaper. Painted surfaces create resistance that reduces heater performance, and I've seen it cause intermittent operation where the heater works fine until it vibrates loose enough to break the connection.

Troubleshooting Common Issues

If the heater isn't turning on at all, check three things first: the fuse, the ground connection, and the thermostat module power input. Use a multimeter to verify you have 12 volts at the heater mat input when the system is switched on. If you do, but the mat stays cold, the element inside is likely open and the mat needs replacement. These things don't repair themselves. A broken resistive wire inside the mat is a permanent failure. If the heater turns on but shuts off after a few minutes, the thermostat is working correctly — it's cycling based on temperature. This is normal. Some people mistake this for a fault and start tearing things apart looking for a problem that doesn't exist. The thermostat is supposed to cut power when the seat reaches the set temperature and cycle back on when it cools down. If the cycling is too aggressive — on for 30 seconds, off for five minutes — then the thermostat sensor may be placed in a position where it's reading ambient air temperature instead of the seat surface temperature. Move the sensor closer to the heating element. Intermittent heating that comes and goes with vibration usually points to a bad connection somewhere in the harness. I had this happen on a build where a factory connector under the dash had corroded pins. The heater would work fine until I turned hard left, then it would cut out. Traced it to corrosion on pin three of the main power connector. Cleaned it with electrical contact cleaner and applied dielectric grease, problem gone. This kind of issue is impossible to diagnose without a wiring diagram and a multimeter, which is why people often give up and just live without the heater for a season.

What the Manual Doesn't Tell You

The Tusk documentation assumes your UTv has clean, stable 12-volt power available near the seat. That's rarely true on older or well-used machines. Voltage fluctuations, poor grounding, and corroded connectors from years of mud and water exposure all affect heater performance. I've seen seat heaters perform noticeably weaker on machines that otherwise run fine, and the culprit was almost always ground resistance, not the heater itself. Another thing nobody mentions: foam thickness matters. If you have thick seat foam — and most utility UTvs do — the heat takes longer to transfer through to the surface. A standard half-inch of foam adds maybe two to three minutes to the warm-up time. That's not a big deal, but if you're expecting the seat to be hot within 60 seconds of flipping the switch, you'll be disappointed. Heat transfer through closed-cell foam is slow. Thinner foam gets warm faster, but it also cools faster when you turn the heater off. There's a tradeoff either way. Winter riding changes things too. At zero degrees or below, the seat starts from a much colder baseline and the heater has to work harder to overcome the cold foam and ambient air. I've noticed my heater takes about twice as long to reach a comfortable temperature in deep cold compared to fall riding. This is normal physics, not a malfunction. If you're riding regularly in extreme cold, consider a higher-wattage mat or adding a secondary heat source. The stock 120-watt mats are adequate for most conditions but they're not designed for sustained sub-zero temperatures where heat loss through the seat structure is significant.

If you're dealing with a newer Tusk seat heater and want to reference the documentation, searching for Tusk Utv Seat Heater Instructions will bring up the official PDF, but I'd recommend pairing it with this practical approach rather than relying solely on the manual. The manual gets you 80 percent of the way there. The remaining 20 percent is learning from the failures and edge cases that nobody writes down.
