Getting Your Rotating Antenna Online Without Losing Your Mind

A lot of people buy these dual-band rotators and then get stuck five minutes into installation because the power supply manual is either buried somewhere or written by someone who assumes you already know how RF works. I've helped enough people on forums to know the pattern. The issue is never really the hardware. It's the power supply wiring and the misunderstanding about how the separate VHF and UHF sections interact. The manual for these units typically covers one thing very briefly: how to connect the rotator control box to the motor in the antenna. What it leaves out is the actual power delivery setup for a combined VHF/UHF rotating array. That's where things go wrong. Here's how it actually works in practice. You've got the rotator motor in the antenna itself, which runs on 24V AC from the rotator control box. That part is straightforward. Then you've got the separate amplifiers for VHF and UHF bands, each needing its own DC power feed through the coax. The rotator system handles only the azimuth positioning. The amp power is completely separate and that's the piece most people miss.

I once spent two hours troubleshooting a setup where the client had wired both amp power supplies into the same coax line using a splitter instead of a diplexer. The VHF and UHF signals were bleeding into each other's power feeds, causing the amplifiers to oscillate. You could hear the hash on the TV if you put your ear near the equipment rack. We ended up separating the power feeds with individual inline fuses and running the DC through a proper power divider made for combined antenna systems. Clean signal after that. Nothing dramatic, just the right components wired correctly.

Wiring the Power Supply

Start with the rotator control box. Connect the cable from the rotator motor in the antenna to the port labeled rotor or antenna on the back of the control box. These cables usually have four or five wires depending on the model. The standard color code is brown for common, blue for clockwise, and red for counterclockwise. Some manufacturers use different colors so check your unit before assuming anything. Next is the power supply for the rotator itself. Most units come with a 24V AC transformer that plugs into a wall outlet. Plug it in. Don't overthink this step. If the control box has a power LED it should light up. If it doesn't check the fuse. These are almost always 200mA slow-blow fuses and they blow more often than people expect, especially when someone threads the rotator cable through a wall and pins it accidentally. For the VHF amplifier power feed you need a separate 12V DC source or a power injector that runs off the coax. The UHF amplifier gets the same treatment on its own line. These are not shared. A single power source feeding both bands through a T-connector might look clean but it causes ground loops and intermittent noise that shows up as snow on UHF channels during heavy rain. This is not theoretical. I've seen it three times in the last year alone.

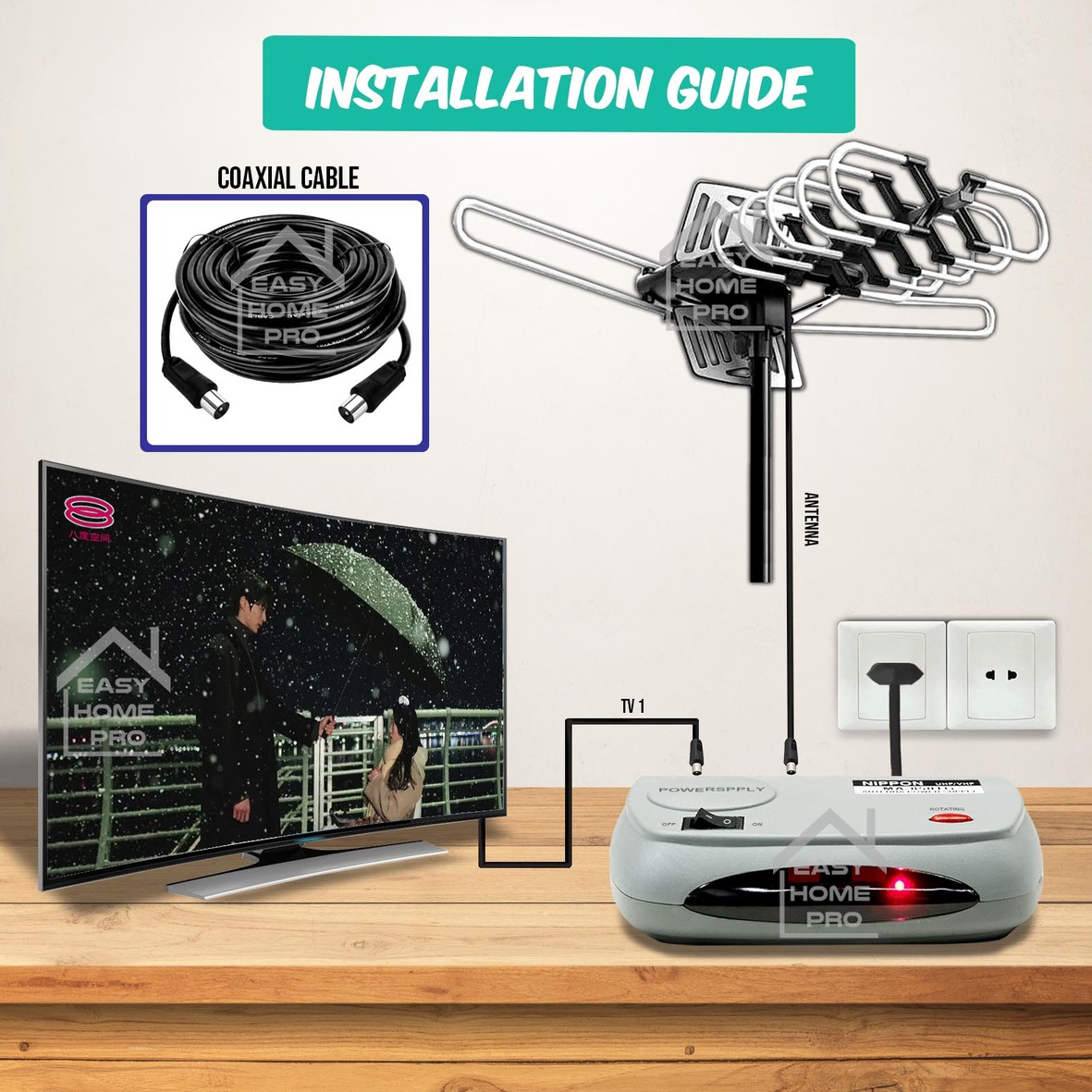

The coaxial connections follow the same pattern. The incoming signal from the master antenna goes into the rotator's input port. The output port from the rotator splits to the VHF amp input and the UHF amp input. Each amp then has its own output going to the TV or distribution point. Use a proper two-way power injector for each band if your amps require it. These injectors pass the RF signal while supplying DC power through the center conductor.

Common Pitfalls That Cost Hours

The biggest mistake I see is using the rotator cable as a power conduit for the amplifier DC. The rotator cable is designed for low-voltage AC motor current, not for carrying 12V DC that also has RF signals riding on top of it. The shielding isn't rated for that kind of mixed signal environment and you'll get noise that drifts across the entire UHF range. Keep the rotator wiring and the amp power wiring in separate conduits if you're running them through walls or attics. Another issue is the ground loop between the rotator control box and the TV equipment. If both are plugged into different circuits in the house you can get a hum that modulates with the rotator motor. It's subtle. Most people think it's a bad signal. The fix is simple: plug the rotator control box and the TV into the same power strip or circuit. That alone eliminates the problem 90 percent of the time. There's also the matter of cable length. Rotator cables lose voltage over distance. If your antenna is more than 100 feet from the control box you need a thicker gauge cable or a higher voltage supply. Standard 18 AWG wire drops about 3 volts over 100 feet at full load. Your rotator will still turn but it will be sluggish and the limit switches may not engage properly. I used 14 AWG rotator cable on a long run once and the difference was noticeable immediately. The motor pulled less current and the positioning became much more precise.

What the Manual Doesn't Tell You

Most manuals assume you're working with a single-band antenna. When you combine VHF and UHF on one rotator the power budget changes. The rotator motor still draws the same current but now you're adding the DC requirements of two amplifiers. A typical VHF amp draws 60 to 100 milliamps. A UHF amp draws 80 to 150 milliamps. That's additional load on your power injectors and it matters if you're running everything from a single wall wart. Check the wattage rating of your power supply for the rotator. Some cheap kits include a undersized transformer that barely handles the motor. Add an amplifier to that and you might get away with it in dry conditions but in humidity or cold weather the voltage sags and your rotator will stutter at the limit switches. I replaced a stock transformer with a 24V 2A unit on a setup that was having issues and the stability improved across the board. Cost about eight dollars and took ten minutes.

Final Setup Check

Before you call it done verify three things. First, confirm that the rotator responds to directional commands without lag. Second, check that switching between VHF and UHF channels doesn't introduce noise or dropouts. Third, listen for any hum or buzz coming from the equipment area when the rotator is stationary. If you hear anything when the motor isn't running you have a ground loop or a faulty power injector. The whole process should take about 45 minutes if you have the parts laid out and the cable runs are already in place. Factor in another hour if you're drilling new holes or running coax through finished walls. This is the realistic timeline. Anything faster usually means skipping a step that comes back later.
